NI PXI Modules and PXIe Measurement Instruments
NI PXI modules are modular measurement, generation, switching, control and communication instruments installed in a compatible PXI or PXI Express chassis. They allow engineers to combine multiple instrument functions in one synchronized, software-controlled automated test platform.
PXISOURCE supplies current and legacy NI PXI and PXIe modules for data acquisition, high-speed digitization, RF testing, semiconductor characterization, switching, programmable power, digital I/O, FPGA processing, sensor measurement, industrial communication and system synchronization.
What Is a PXI Module?
A PXI module performs a specific measurement or test function inside a PXI system. The chassis provides power, cooling, backplane communication, clocks and trigger resources, while the controller runs the operating system, instrument drivers and test application.
Unlike most standalone instruments, PXI modules share a common chassis and can exchange triggers, reference clocks and measurement data through the backplane. This architecture supports compact automated systems containing multiple synchronized instruments.
A complete PXI test system normally includes:
- A compatible PXI or PXIe chassis
- An embedded PXI controller or remote-control interface
- PXI or PXIe measurement and control modules
- Terminal blocks, cables, RF connections or other signal accessories
- Supported NI drivers and application software
A PXI module should not be selected independently from the rest of the system. Module type, slot compatibility, bandwidth, power, cooling, controller performance, cabling and software support must be evaluated together.
PXI Module Categories

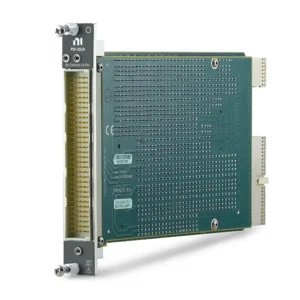

| Module Category | Primary Function | Important Selection Factors | Typical Applications |
|---|---|---|---|
| PXI Data Acquisition | Analog input, analog output, digital I/O and counter functions | Channel count, sample rate, resolution, input range, isolation and simultaneous sampling | Automated validation, sensor acquisition and mixed-signal test |
| PXI Oscilloscopes and Digitizers | High-speed time-domain waveform acquisition | Analog bandwidth, sample rate, resolution, record length, triggering and channel count | Transient capture, waveform analysis and electronic-device validation |
| PXI RF and Wireless Test | RF signal generation, acquisition, analysis and transceiver testing | Frequency range, instantaneous bandwidth, RF performance, synchronization and data throughput | Wireless validation, radar, communications and RF production test |
| PXI Signal Generators | Function, arbitrary waveform and electrical stimulus generation | Waveform type, frequency range, sample rate, output range, resolution and synchronization | Device stimulus, circuit characterization and automated functional test |
| PXI Programmable Power Supplies and SMUs | Programmable voltage or current sourcing with electrical measurement | Voltage and current ranges, sourcing accuracy, measurement resolution, channels and protection | Semiconductor, battery, power-management and component testing |
| PXI Digital Multimeters | Precision voltage, current, resistance and related measurements | Digits of resolution, accuracy, measurement speed, input protection and switching integration | Precision electrical measurement and multipoint automated test |
| PXI Switches | Routes signals between instruments and devices under test | Topology, channel count, voltage, current, bandwidth, impedance and relay life | Signal routing, matrix switching, RF switching and fault insertion |
| PXI Digital Input and Output | Logic monitoring, digital control and pattern generation | Logic levels, channel count, direction, timing, pattern rate and voltage thresholds | Digital validation, device control and production automation |
| PXI Counter/Timers | Event counting, frequency measurement, pulse generation and encoder input | Counter quantity, timebase, resolution, input frequency and triggering | Frequency measurement, encoder testing and precision digital timing |
| PXI Dynamic Signal Analysis | Low-noise synchronized acoustic and vibration acquisition | IEPE support, input noise, dynamic range, sample rate, coupling and anti-alias filtering | Sound, vibration, NVH and structural testing |
| PXI Sensor Measurements | Acquires thermocouple, RTD, bridge, LVDT, vibration and other sensor signals | Sensor type, excitation, signal conditioning, isolation, range and sampling architecture | Temperature, strain, load, pressure, position and mechanical measurement |
| PXI FPGA and RIO Modules | Reconfigurable hardware processing and custom digital or analog interfaces | FPGA resources, adapter modules, I/O architecture, data throughput and development software | Custom protocols, deterministic processing and specialized control |
| PXI Semiconductor Test | Parametric, digital and mixed-signal device characterization | Pin count, voltage and current ranges, timing, multisite scalability and test throughput | IC characterization, wafer test and semiconductor production test |
| PXI Industrial Communication | Communicates with automotive and industrial networks | Bus standard, port count, transceiver type, termination and software API | ECU validation, HIL testing and industrial automation |
| PXI GPIB, Ethernet and VXI | Connects external or legacy instruments to a PXI system | Interface standard, data rate, controller capability, cable and driver compatibility | Legacy system migration and control of standalone instruments |
| PXI MXI Interfaces | Provides remote computer control and PXI system expansion | PCI Express generation, lane width, host adapter, cable type and topology | Desktop, workstation, server and multichassis control |
| PXI Data Streaming | Supports high-rate recording, playback and storage | Sustained throughput, storage capacity, chassis bandwidth, controller and cooling | RF recording, high-speed digitizer acquisition and long-duration data capture |
| PXI Synchronization | Distributes clocks, triggers and timing references | Reference source, clock frequency, trigger routing, synchronization accuracy and chassis count | Phase-coherent acquisition and synchronized multichassis systems |
| PXI Vision | Image acquisition and machine-vision interfacing | Camera interface, image rate, resolution, triggering, cabling and processing requirements | Automated inspection, scientific imaging and production monitoring |
| PXI Accessories | Completes module-to-signal and system connections | Module compatibility, connector type, pinout, signal rating and cable length | Terminal blocks, cables, adapters and replacement system accessories |
How to Select the Right PXI Module
1. Define the Required Test Function
Begin with the signal or device requirement rather than a model number. Determine whether the system must measure voltage, current, resistance, RF signals, digital patterns, temperature, strain, vibration or frequency, or whether it must generate signals, provide power or route test connections.
This first decision identifies the correct module family. A general-purpose DAQ module, high-speed digitizer and dynamic signal module may all measure voltage, but they are designed for different bandwidth, noise, synchronization and signal-conditioning requirements.
2. Confirm PXI or PXI Express Compatibility
Traditional PXI modules use a PCI-based backplane, while PXI Express modules use PCI Express links. A PXIe chassis may contain PXIe peripheral slots, hybrid slots and system timing slots, each with different compatibility characteristics.
A hybrid slot can support compatible PXIe modules and selected hybrid-compatible PXI modules, but it does not support every traditional PXI product. Check the exact module connector and chassis slot map before ordering.
3. Define Channel Count and Signal Range
Calculate the total required channels, channels per module and expected future expansion. Also confirm maximum signal amplitude, common-mode voltage, input impedance, output drive and overload conditions.
Higher channel density can reduce chassis usage, but individually isolated or specialized channels may require more slots. Reserve enough chassis capacity for timing modules, switching, controllers and future additions.
4. Determine Accuracy and Resolution
ADC or DAC resolution alone does not determine measurement accuracy. Review gain error, offset, noise, drift, input range, calibration uncertainty and environmental conditions.
For production test, compare the complete measurement uncertainty with the DUT tolerance and required guard band. Selecting the smallest suitable range can improve effective resolution, but the range must still accommodate normal signals, offsets and expected overloads.
5. Match Sample Rate and Bandwidth
Choose sample rate and analog bandwidth according to the actual signal. Slowly changing temperature measurements have very different requirements from vibration, transient, RF or high-speed digital applications.
Maximum sample rate should not be treated as usable bandwidth. Analog front-end response, filtering, settling time, channel multiplexing and anti-alias characteristics must also be considered.
6. Decide Whether Simultaneous Sampling Is Required
Multiplexed modules measure channels sequentially and are suitable for many general-purpose applications. Simultaneous-sampling modules preserve timing and phase relationships between channels and are important for vibration, power, structural, acoustic and waveform-correlation measurements.
7. Review Isolation and Signal Conditioning
Industrial signals and sensor measurements may require channel isolation, bridge excitation, IEPE power, thermocouple cold-junction compensation, filtering or input protection. Confirm whether the selected PXI module includes the required conditioning or depends on an external accessory.
8. Calculate Data Throughput
For high-speed acquisition, estimate the continuous payload using the active channel count, sample rate and transferred bytes per sample. Include all modules that will operate simultaneously.
The complete data path includes the module interface, PXIe slot, chassis segment, controller connection, system memory, storage and application software. A bottleneck at any point can reduce sustainable performance.
9. Check Triggering and Synchronization
Determine whether modules must share a start trigger, sample clock, reference clock or timestamp. Instruments installed in the same chassis are not automatically synchronized unless the required timing routes are configured and supported.
Multichassis, phase-coherent RF and tightly correlated acquisition systems may require dedicated synchronization hardware and an engineered clock-and-trigger distribution plan.
10. Verify Power and Cooling
High-performance RF, FPGA, digital and storage modules can require more slot power and airflow than lower-speed instruments. Confirm per-slot cooling, total chassis power and the thermal effect of installing several high-power modules next to each other.
PXI Module, Chassis and Controller Compatibility
| System Component | What to Verify | Common Compatibility Risk |
|---|---|---|
| PXI/PXIe Module | Form factor, connector, bus type, bandwidth, power and cooling | Assuming every PXI module can be installed in every PXIe slot |
| Chassis | Slot map, hybrid slots, system timing slot, segment bandwidth and cooling | Enough physical slots but insufficient compatible slots or bandwidth |
| Controller | Processor, memory, PCIe bandwidth, operating system and interfaces | Controller cannot process or store the combined module data rate |
| Software | Driver, operating system, LabVIEW, TestStand and API compatibility | New hardware is not supported by the validated software environment |
| Connectivity | Terminal block, cable, breakout, RF connector and pinout | Ordering the module without the required signal-access accessory |
| Calibration | Calibration interval, documentation and traceability requirements | Measurement hardware arrives without required calibration records |
Software and Driver Support
NI PXI modules use different instrument drivers according to their function. Common examples include NI-DAQmx, NI-SCOPE, NI-DMM, NI-SWITCH, NI-DCPower, NI-FGEN, NI-RFSA, NI-RFSG, RFmx, NI-VISA and FlexRIO software.
NI Measurement & Automation Explorer is commonly used to identify installed hardware, run self-tests, inspect device configuration and manage calibration information. LabVIEW and TestStand can then be used to create measurement applications and automated test sequences.
Before purchasing hardware for an existing system, verify:
- Supported operating-system version
- Required NI driver and runtime versions
- LabVIEW or TestStand compatibility
- 32-bit or 64-bit application requirements
- Real-time and FPGA development-software requirements
- Third-party library and custom-code dependencies
- License requirements for analysis and measurement software
A newer PXI module may provide improved specifications but still require a newer driver, operating system, connector, cable or application API. Legacy replacement should be treated as a system migration unless drop-in compatibility has been confirmed.
Representative NI PXI Modules
| Model | Unique Category | Core Function | Best Fit |
|---|---|---|---|
| PXIe-6365 | Multifunction Data Acquisition | Combines analog input, analog output, digital I/O and counter functions | Mixed-signal validation and automated data acquisition |
| PXIe-5842 | Vector Signal Transceiver | Combines RF signal generation and analysis in a PXIe instrument | Wideband RF, wireless, radar and semiconductor test |
| PXI-4472 | Dynamic Signal Acquisition | Simultaneous dynamic input channels for sound and vibration measurement | Acoustic, vibration and structural testing |
| PXI-6651 | Timing and Synchronization | Routes reference clocks and triggers within synchronized PXI systems | Coordinating multiple instruments and chassis |
These models represent different PXI instrument families and are not direct alternatives. Final selection should be based on the required measurement function, specifications, chassis architecture and software environment.
Typical PXI Module Applications
- Automated production and functional test systems
- Semiconductor characterization and multisite device test
- RF, microwave, radar and wireless validation
- Automotive ECU and hardware-in-the-loop testing
- Aerospace, avionics and defense-system validation
- High-speed waveform acquisition and transient recording
- Electronic component and power-management testing
- Sound, vibration, structural and NVH measurement
- Industrial control and communication validation
- Scientific research and laboratory automation
Legacy PXI Module Replacement
Replacing a discontinued PXI or PXIe module requires more than matching its general function. A newer module may use a different connector, channel architecture, input range, bus interface, driver or calibration method.
Compare the following before approving a substitute:
- Complete model and part number
- PXI or PXI Express form factor
- Chassis slot and connector compatibility
- Channel count and electrical ranges
- Accuracy, resolution, sample rate and bandwidth
- Triggering and synchronization behavior
- Terminal block, cable and connector pinout
- Operating-system and driver compatibility
- Application API and existing software code
- Calibration and system-requalification requirements
For validated production equipment, sourcing the same module model may create less engineering risk than changing hardware and requalifying the complete test station.
PXI Module Procurement and RFQ Guide
Provide the following information for accurate module selection and quotation:
- Exact NI model and complete part number
- Required quantity and product condition
- Measurement, generation or switching requirement
- Signal type, range, frequency and expected bandwidth
- Required channel count and sample rate
- Accuracy, isolation and synchronization requirements
- Existing PXI/PXIe chassis and controller models
- Required terminal blocks, cables and accessories
- Operating system and NI driver versions
- Calibration-documentation requirements
- Required delivery date and destination
For complete systems, send the full bill of materials so the modules, chassis, controller and accessories can be reviewed together. For pre-owned hardware, request device-recognition results, self-test information and functional channel testing appropriate to the module type.
FAQ
What is the difference between PXI and PXIe modules?
Traditional PXI modules communicate through a PCI-based backplane, while PXIe modules use PCI Express links for higher throughput. They also use different backplane connectors. Compatibility depends on the exact module and chassis slot type.
Can a PXI module be installed in a PXIe chassis?
Selected hybrid-compatible PXI modules can be installed in compatible PXIe hybrid slots. A standard PXIe peripheral slot does not automatically support traditional PXI modules. Check the chassis slot map and module connector before installation.
Can one PXI system use different types of modules?
Yes. A major advantage of PXI is the ability to combine acquisition, RF, switching, digital I/O, power, FPGA and communication instruments in one platform. The complete configuration must remain within the chassis compatibility, bandwidth, power and cooling limits.
How do I know which PXI module I need?
Start with the required test function, signal type, range, number of channels, accuracy, sample rate, bandwidth, isolation and timing requirements. Then confirm chassis, controller, driver and accessory compatibility.
Are terminal blocks and cables included with PXI modules?
Not necessarily. Many modules require separately ordered terminal blocks, connector blocks, RF cables, breakout cables or adapters. Check the complete signal path before ordering.
Can a newer PXI module directly replace a discontinued model?
Not always. Differences in connectors, ranges, channel architecture, drivers, timing and application APIs can prevent a direct replacement. Existing production systems may require software changes and requalification.
Do modules in the same chassis automatically synchronize?
No. The chassis provides clock and trigger resources, but the instruments must support the required routes and be configured correctly. Advanced or multichassis systems may require dedicated synchronization modules.
What limits PXIe data-streaming performance?
Performance can be limited by the module interface, selected slot, chassis segment, controller connection, system memory, storage or software. Sustainable throughput must be evaluated across the complete data path.
