NI PXI GPIB, Ethernet and VXI Interfaces
NI PXI GPIB, Ethernet and VXI interfaces connect PXI automated test systems to external instruments, networked devices, servers, cameras, storage systems and legacy modular instrumentation. They allow the PXI controller and test software to communicate with equipment that operates outside the PXI backplane.
The category covers several different functions: IEEE 488 instrument control, standard Gigabit Ethernet, multiport test networks, GigE Vision image acquisition, high-speed Ethernet with RDMA, network-based synchronization and legacy VXI integration. Selection should begin with the required communication architecture rather than the highest available data rate.
What Are PXI GPIB, Ethernet and VXI Interfaces?
These modules normally provide communication rather than performing the primary electrical measurement. They connect the PXI controller to benchtop instruments, cameras, external computers, network storage, distributed test stations or legacy VXI systems.
A hybrid automated test system might combine PXI digitizers and switches with a GPIB power supply, an Ethernet-controlled oscilloscope, GigE Vision cameras and an existing VXI instrument rack. NI-VISA and interface-specific drivers allow these resources to operate within one LabVIEW, TestStand or custom application.
Main PXI Connectivity Types
| Interface Type | Primary Function | Best Fit | Important Selection Factors |
|---|---|---|---|
| GPIB / IEEE 488 | Controls programmable laboratory instruments | Legacy ATE, calibration and benchtop instrument automation | Controller capability, instrument count, cable length, NI-488.2 and VISA resources |
| Standard Ethernet | Provides TCP/IP, LXI or vendor-specific network communication | External instruments, distributed systems and dedicated test networks | Port count, link speed, RJ45 cabling, IP configuration and protocol support |
| GigE Vision | Transfers images and camera-control data over Gigabit Ethernet | Machine vision, scientific imaging and production inspection | Camera count, PoE, acquisition software, triggering and aggregate image rate |
| High-Speed Ethernet | Moves large measurement datasets between PXI and external systems | RF, digitizer, FPGA, server and storage applications | 10/25/40/50 GbE, transceiver format, PXIe bandwidth and receiving endpoint |
| RDMA / RoCE | Supports low-overhead direct memory data movement | Continuous high-throughput measurement streaming | NI-RDMA, RoCE compatibility, switches, cables and complete data-path performance |
| VXI / MXI Integration | Connects legacy VXI instrumentation to newer controllers or PXI systems | Long-life aerospace, defense, calibration and production systems | PXI-side module, VXI-side interface, MXI generation, cable and NI-VXI support |
PXI-6683, PXI-6683H, PXIe-6672 and PXIe-6674T are timing and synchronization modules rather than general-purpose Ethernet interfaces. Their network or front-panel connections distribute time, clocks or triggers and should not be selected as ordinary instrument-network adapters.
Current NI PXI GPIB, Ethernet and Timing Modules

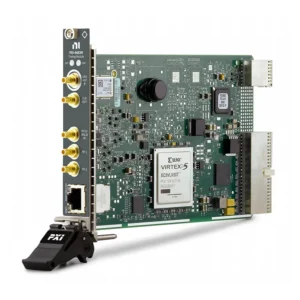

| Model | Unique Category | Key Differentiator | Best Fit |
|---|---|---|---|
| PXI-6683 | External-Clock Network Timing Module | GPS, IEEE 1588, IRIG-B, clock routing and timestamping for PXI systems | Distributed acquisition requiring absolute time and external timing references |
| PXI-6683H | TCXO GPS/PTP Synchronization Module | GPS, IEEE 1588, IRIG-B, Gigabit Ethernet and a 10 MHz TCXO reference | Network-synchronized PXI systems and geographically distributed measurements |
| PXI-8231 | Single-Port Classic PXI Gigabit Ethernet | One 10/100/1000BASE-T RJ45 interface for conventional PXI systems | Adding an independent network connection to a legacy PXI chassis |
| PXI-8232 | Combined GPIB and Gigabit Ethernet | One IEEE 488 controller and one Gigabit Ethernet port in a single PXI module | Hybrid systems using both GPIB and Ethernet instruments |
| PXI-GPIB | Dedicated IEEE 488 Controller | HS488-compatible GPIB interface supporting as many as 14 external instruments | Calibration, laboratory automation and established GPIB test racks |
| PXIe-6672 | PXIe Clock and Trigger Synchronization | TCXO-based clock generation, trigger routing and PXI Express timing distribution | Synchronizing multiple PXIe measurement and generation modules |
| PXIe-6674T | High-Stability OCXO Timing Module | High-accuracy 10 MHz OCXO with programmable clock generation and differential-star routing | Low-jitter RF, digitizer and multichassis synchronization |
| PXIe-8234 | Dual-Port GigE Vision Interface | Two independent 1000BASE-T ports for Ethernet communication or two GigE Vision cameras | Legacy dual-camera vision and scientific imaging systems |
| PXIe-8238 | Dual-Port PXIe Gigabit Ethernet | Two Gigabit Ethernet connections for network communication and instrument control | PXIe systems requiring two dedicated standard-speed network interfaces |
| PXIe-8240 | Dual-Port 40 Gigabit Ethernet | Two QSFP+ ports supporting 10 or 40 Gbit/s with a PCIe Gen 3 x8 backplane interface | Large test-data transfers to servers, storage and other PXIe systems |
| PXIe-8245 | Four-Port General-Purpose Gigabit Ethernet | Four independent 10/100/1000BASE-T RJ45 network interfaces | Multiple instruments, subnets or isolated test networks in one PXIe slot |
| PXIe-8246 | Four-Port PoE GigE Vision Frame Grabber | Four GigE Vision camera ports with Power over Ethernet support | Multicamera machine vision and automated production inspection |
| PXIe-8280 | Single-Port 50 Gigabit RoCE Interface | One QSFP28 50 GbE port with RoCE v2 and a PCIe Gen 3 x8 backplane link | High-throughput streaming to compatible servers and storage systems |
| PXIe-8285 | Dual-Port 25 Gigabit RDMA Interface | Two SFP28 25 GbE ports with RoCE support and NI-RDMA software | Flexible high-bandwidth PXI-to-server and peer data movement |
The category currently contains GPIB, Ethernet, vision, RDMA and timing modules. A VXI migration may require legacy PXI/VXI or MXI hardware that is not represented by the current product list. Confirm both ends of an existing VXI connection before ordering replacement hardware.
How to Select a PXI Communication Interface
1. Identify the External Equipment Interface
Begin with the connector, communication standard and programming interface used by the external equipment. Determine whether it uses GPIB, TCP/IP, LXI, GigE Vision, conventional Ethernet, RoCE/RDMA or a legacy VXI/MXI connection.
An RJ45 connector does not identify the complete protocol. Equipment may use VISA TCP/IP, raw sockets, EtherCAT, proprietary Ethernet messages or an industrial protocol requiring a different interface family.
2. Separate Instrument Control From Data Streaming
Instrument control usually consists of short commands and measurement responses. GPIB or standard Gigabit Ethernet is normally adequate for configuring a DMM, power supply, signal generator or environmental chamber.
Continuous RF, digitizer, image or FPGA data can require tens of gigabits per second. These applications should be designed around sustained throughput, PXIe bandwidth, memory handling and the performance of the receiving server or storage system.
3. Determine the Required Port Count
A single Ethernet port may be sufficient for one instrument network. Multiple ports allow individual instruments or cameras to use separate subnets and prevent high-rate device traffic from competing with the facility network.
For machine vision, also determine the number of cameras and whether each camera requires PoE. PXIe-8234 supports two GigE Vision connections without camera power, while PXIe-8246 provides four GigE Vision ports with PoE support.
4. Choose the Required Ethernet Speed
| Nominal Link Speed | Typical Use | Common Connector |
|---|---|---|
| 1 GbE | Instrument control, standard networking, GigE Vision and moderate file transfer | RJ45 |
| 10 GbE | Higher-rate data transfer and compatibility with supported 10 GbE infrastructure | SFP+ or QSFP+ breakout architecture |
| 25 GbE | High-rate measurement streaming and RDMA | SFP28 |
| 40 GbE | Large data transfers between PXIe systems, servers and storage | QSFP+ |
| 50 GbE | Very-high-throughput RoCE v2 measurement data movement | QSFP28 |
Nominal link speed is not guaranteed application throughput. Ethernet framing, protocol overhead, PXIe backplane limitations, memory transfers, software and the receiving endpoint reduce the sustainable payload rate.
5. Verify PXI or PXI Express Slot Compatibility
PXI-8231, PXI-8232 and PXI-GPIB use conventional PXI architecture and require a compatible PXI or hybrid peripheral slot. PXIe network interfaces require PXI Express-compatible slots.
High-speed interfaces also require sufficient PCIe generation, lane width and chassis segment bandwidth. A physical PXIe slot may accept a module while providing less data bandwidth than the application requires.
6. Select the Correct Cable and Transceiver
Standard Gigabit Ethernet normally uses correctly terminated Category 5e or better RJ45 cabling. High-speed interfaces can require SFP28, QSFP+ or QSFP28 optical transceivers, active optical cables or direct-attach copper cables.
The module, cable, transceiver, switch and receiving network adapter must support a compatible speed and physical-layer standard. Transceivers and cables should not be assumed to be included with the interface module.
7. Confirm Driver and Operating-System Support
GPIB interfaces normally require NI-488.2 and may be accessed through NI-VISA. Standard Ethernet interfaces use supported operating-system network drivers, while vision products can require NI Vision Acquisition Software. RDMA modules require the applicable NI-RDMA and network software environment.
Legacy hardware should be checked against the existing operating system, LabVIEW or TestStand version, application architecture and saved VISA resource configuration before purchase.
GPIB Instrument Control
GPIB—also called IEEE 488 or HP-IB—is widely used with programmable oscilloscopes, DMMs, signal generators, power supplies, electronic loads, analyzers and calibration instruments.
A GPIB system contains a controller and one or more addressed instruments. PXI-GPIB provides a dedicated controller, while PXI-8232 combines GPIB and Gigabit Ethernet in one module. Each instrument on the bus must use a unique address.
GPIB performance depends on the controller, connected instruments, cable topology and data-transfer size. HS488 operation requires compatible instruments and cabling; the interface’s maximum rate should not be treated as guaranteed application throughput.
Standard Ethernet and LXI Instrument Control
Ethernet-connected instruments may communicate through VISA TCP/IP resources, LXI services, raw sockets or manufacturer-specific APIs. Standard Gigabit Ethernet is generally sufficient for sending SCPI commands and retrieving scalar measurements or moderate waveform records.
Network configuration may include static IP addresses, subnet masks, gateways, VLANs and firewall rules. A successful network ping proves basic IP connectivity but does not confirm that the instrument driver, VISA resource or required control protocol is working.
GigE Vision and Machine Vision Interfaces
GigE Vision transports camera data and control messages over Gigabit Ethernet. A vision application also requires compatible cameras, lenses, lighting, cabling, image-acquisition software and adequate controller and storage performance.
Important selection criteria include:
- Number of simultaneous cameras
- Image resolution, frame rate and pixel format
- Aggregate camera data rate
- PoE power requirements
- External trigger and synchronization requirements
- NI Vision Acquisition Software compatibility
- Image-processing and storage workload
Camera interfaces in this category should also be reviewed against the dedicated PXI Vision category when the primary application is image acquisition.
High-Speed Ethernet and RDMA
High-speed digitizers, RF instruments and FPGA modules can generate more data than a conventional Gigabit Ethernet connection can transfer continuously. PXIe high-speed Ethernet modules provide faster links to compatible servers, storage or processing systems.
RDMA over Converged Ethernet allows supported systems to move data with reduced processor involvement and fewer memory-copy operations. This capability requires a compatible module, network adapter, cable or transceiver, operating system, driver and network configuration.
Calculate the complete path:
Measurement module → PXIe slot → chassis segment → controller memory → Ethernet interface → network → server memory → storage or processing.
The lowest sustainable rate in this path determines whether continuous streaming can be maintained.
VXI Integration and Legacy Migration
VXI systems remain in service in aerospace, defense, semiconductor, calibration and long-life production applications. A VXI connection may use a matched PXI-side interface, VXI Slot 0 controller, MXI cable and generation-specific software.
Before replacing a VXI interface, document:
- PXI-side interface model and part number
- VXI-side interface or Slot 0 controller
- VXI chassis and installed instruments
- MXI generation and cable type
- NI-VXI and NI-VISA versions
- Operating system and controller model
- VISA resource names and instrument drivers
- Existing LabVIEW, TestStand or custom application
Do not order one side of a legacy VXI/MXI link without confirming the corresponding interface and cable. Similar-looking connectors can belong to incompatible MXI generations.
Ethernet Interface Versus PXI Remote Control
| Requirement | PXI Ethernet Interface | PXI MXI Remote Control |
|---|---|---|
| TCP/IP Networking | Primary function | Not the primary function |
| LXI Instrument Control | Supported with compatible protocols and software | Not its intended purpose |
| Network Storage or Servers | Suitable | Different architecture |
| External PC Enumerates PXI Modules | No | Yes |
| Extends the PCIe Bus | No | Yes |
If an external computer must directly enumerate and control the modules installed in a PXI chassis, select a product from the PXI MXI Interfaces category rather than a standard Ethernet network module.
Software and System Configuration
Common software components include:
- NI-488.2: Driver and API support for compatible NI GPIB controllers.
- NI-VISA: Common instrument communication architecture for GPIB, Ethernet, USB, serial, PXI and VXI resources.
- NI-Sync: Configuration and programming support for compatible timing and synchronization modules.
- NI-RDMA: Software support for compatible high-speed RDMA data-transfer hardware.
- NI Vision Acquisition Software: Camera discovery, configuration and image acquisition for supported GigE Vision interfaces.
- NI MAX: Hardware discovery, interface configuration and communication testing.
- LabVIEW and TestStand: Application development and automated test sequencing.
The required software depends on the module and application. Confirm operating-system, driver and development-environment compatibility before changing an interface in a validated system.
Typical Applications
- Automated control of GPIB laboratory instruments
- Hybrid PXI, LXI, USB and benchtop test systems
- Calibration and metrology automation
- Production functional testing
- GigE Vision machine inspection
- Scientific and multicamera imaging
- RF and digitizer data offload
- PXI-to-server measurement streaming
- Distributed data acquisition
- Dedicated laboratory and production networks
- Aerospace and defense VXI modernization
- Legacy test-station maintenance
Legacy Interface Replacement
Replacing a communication interface requires more than matching its connector. The replacement can change the operating-system driver, VISA resource name, controller index, supported protocol, data rate and application behavior.
Compare the following before approving a replacement:
- Exact model and complete part number
- PXI or PXI Express form factor
- Number, speed and type of ports
- Connector and cable or transceiver requirements
- NI-488.2, NI-VISA, NI-Sync, NI-RDMA or vision-software support
- Operating-system and controller compatibility
- Existing IP addresses and VISA resource names
- Connected instrument or camera models
- PXIe slot bandwidth and cooling
- Application-code and system-requalification requirements
PXI GPIB, Ethernet and VXI RFQ Guide
Provide the following information for interface selection and quotation:
- Required interface model and complete part number
- GPIB, Ethernet, GigE Vision, RDMA, VXI or timing requirement
- Models of connected instruments, cameras or servers
- Required number of ports and Ethernet speed
- Expected sustained data-transfer rate
- GPIB instrument quantity and cable lengths
- RJ45, SFP28, QSFP+ or QSFP28 connection requirement
- Required optical transceivers or direct-attach cables
- PoE requirement for connected cameras
- PXI/PXIe chassis and controller models
- VXI chassis and VXI-side interface model
- Operating system and NI software versions
- Required quantity and preferred product condition
- Delivery destination and required delivery date
For pre-owned communication hardware, request module-recognition and port-function test results. High-speed interfaces should be tested with compatible cables, transceivers and endpoints rather than evaluated only by chassis detection.
FAQ
What is the difference between PXI-GPIB and PXI-8232?
PXI-GPIB is a dedicated IEEE 488 instrument controller. PXI-8232 combines a GPIB controller with a Gigabit Ethernet port, making it suitable when both legacy GPIB and network connectivity are required.
Can a PXI GPIB interface control third-party instruments?
Yes. It can control compatible IEEE 488 instruments from different manufacturers. The application must use the correct instrument commands, GPIB address, driver and timeout settings.
Is Ethernet faster than GPIB?
Ethernet usually provides a higher nominal data rate, but total test time can be limited by instrument processing and command latency. GPIB remains suitable for many automated instrument-control applications.
When is an RDMA interface required?
RDMA is useful when large measurement streams must move continuously between PXI and compatible servers, storage or processing nodes. It is normally unnecessary for occasional SCPI commands or small measurement results.
What is the difference between PXIe-8280 and PXIe-8285?
PXIe-8280 provides one 50 GbE QSFP28 connection with RoCE v2. PXIe-8285 provides two 25 GbE SFP28 connections with RDMA support. Selection depends on the required port topology and compatible external infrastructure.
Can PXIe-8245 be used for GigE Vision?
It provides four general-purpose Gigabit Ethernet ports, but a complete vision application also depends on camera, PoE and NI Vision Acquisition Software requirements. PXIe-8246 is specifically positioned as a four-port PoE GigE Vision frame grabber.
Is an Ethernet module the same as an MXI controller?
No. Ethernet provides network communication between independent systems. MXI extends PCI or PCI Express so an external computer can enumerate and control the modules installed in the PXI chassis.
Can an older VXI system be connected to PXI?
Yes, when compatible VXI/PXI or MXI interface hardware exists on both sides. The exact VXI controller, PXI interface, cable generation, software and operating system must be identified before selecting replacement hardware.
Recommended PXI Connectivity Products
Related NI PXI Solutions
Install the selected interface in a compatible PXI or PXIe chassis and confirm processing and operating-system support with the selected PXI controller. Review PXI Data Streaming for continuous recording requirements and PXI Industrial Communication for CAN, LIN, automotive Ethernet and other application-specific networks.
