What Is PXI Data Acquisition?

PXI data acquisition combines modular DAQ hardware with a PXI chassis, system controller and measurement software. The DAQ module converts real-world analog or digital signals into data that can be processed, displayed, stored or used to control a device under test.

A PXI DAQ system can combine several measurement functions in one platform:

• Analog voltage acquisition
• Programmable analog output
• Static or hardware-timed digital I/O
• Frequency, period, pulse and event measurement
• Encoder and position measurement
• Hardware triggering and clock routing
• Synchronization with switching, RF, digitizer and power instruments

PXI DAQ modules operate inside a compatible PXI chassis and are controlled by an embedded PXI controller or remote computer connection.

PXI DAQ Measurement Architectures

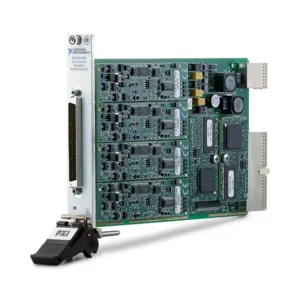

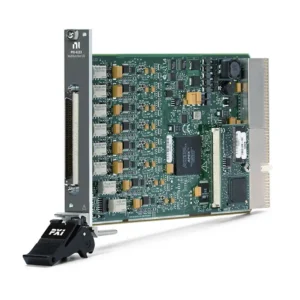

NI PXI Data Acquisition Model Classification

Every model currently listed in this category is assigned to one unique architecture. Models from different generations should not be treated as interchangeable without reviewing connectors, terminal accessories, signal performance, chassis requirements and software compatibility.

How to Select a PXI Data Acquisition Module

1. Identify the Signal Type

Start by identifying the electrical output of the device or sensor. Record whether the signal is voltage, current, resistance, frequency, pulse, digital state or another electrical parameter.

Also determine whether the signal is floating or ground referenced, its source impedance, maximum amplitude, expected frequency content and any common-mode voltage.

2. Determine the Required Channel Count

Calculate the total analog input, analog output, digital I/O and counter channels. Include reference channels, test-fixture monitoring and future expansion.

A high-density module can reduce chassis usage, but it may require multiple cables and terminal blocks. Channel density should not be selected at the expense of sampling, isolation or accuracy requirements.

3. Select the Input Range

The smallest input range that accommodates the maximum expected signal generally provides better usable resolution. Include signal offset, common-mode voltage, transient conditions and overload when selecting the range.

External attenuation or conditioning may be required when signals exceed the module’s supported electrical limits.

4. Evaluate Resolution and Accuracy

ADC resolution describes the number of digital levels used to represent the signal, but it is not the same as measurement accuracy. A complete evaluation includes gain error, offset, noise, drift, input range and calibration uncertainty.

For automated production test, compare system uncertainty with the DUT tolerance and required guard band.

5. Calculate the Required Sample Rate

Select sample rate according to the signal bandwidth and transient behavior. Slowly changing control or sensor signals require less acquisition speed than switching transients, motor waveforms or fast electronic events.

For multiplexed hardware, determine whether the published sample rate is an aggregate rate shared across channels. The per-channel rate can decrease as more channels are added to the scan.

6. Choose Simultaneous or Multiplexed Sampling

Multiplexed acquisition is suitable for general measurements where small timing differences between channels are acceptable. It normally provides higher channel density and efficient use of conversion hardware.

Simultaneous sampling is preferable when phase and timing relationships must be preserved, including:

• Three-phase voltage and current measurement
• Power and energy analysis
• Motor and inverter testing
• Structural and mechanical measurements
• Multichannel transient capture
• Time-correlated DUT response measurement

7. Determine Whether Isolation Is Required

Isolation can reduce ground-loop problems and allow supported measurements between signals operating at different electrical potentials. It can be important in industrial machinery, power electronics, distributed sensors and electrically noisy test environments.

Check whether isolation is provided between channels, between channel banks or only between the measurement circuitry and the PXI system.

8. Review Analog Output Requirements

Multifunction DAQ modules can generate programmable analog voltages for device stimulus, control references and test sequencing. Check output channel count, update rate, range, resolution, drive capability and regeneration mode.

Applications requiring specialized waveform generation may be better served by dedicated PXI signal generators.

9. Review Digital I/O and Counters

Confirm the number of digital lines, logic compatibility, direction control, hardware timing and output-current limits. Digital I/O integrated into a multifunction DAQ device may differ from a dedicated high-performance digital instrument.

For pulse generation, event counting, frequency measurement or encoder input, verify the available counter quantity, timebase and supported routing. Dedicated PXI counter/timer modules may be appropriate when more counter resources are required.

10. Calculate Data Throughput

A simplified payload estimate is:

Data rate = active channels × sample rate × transferred bytes per sample.

For multiplexed devices, use the configured aggregate scan rate. For simultaneous-sampling devices, calculate the combined rate of every active converter. Include multiple modules operating at the same time.

The selected PXI chassis, controller, memory and storage system must sustain the complete data path.

PXI DAQ vs PXI Digitizer

If analog bandwidth, waveform fidelity or transient capture is the primary requirement, review PXI oscilloscopes and digitizers rather than selecting a multifunction DAQ device solely because it provides analog inputs.

Triggering and Synchronization

Hardware triggering allows acquisition to begin from an electrical event, another instrument or a chassis trigger line. This provides more predictable timing than starting each operation independently through software.

PXI DAQ synchronization may use:

• Shared start triggers
• Shared sample clocks
• Reference clocks
• PXI or PXIe backplane trigger lines
• External PFI connections
• Dedicated synchronization hardware

Different DAQ generations may use different reference-clock resources. When synchronizing X Series, M Series and older S Series hardware, verify the supported clock and trigger routes instead of assuming that every module can use the same timing method.

For multichassis or advanced clock-distribution requirements, review PXI synchronization modules.

Sensor Measurement and Signal Conditioning

Many sensors do not produce a signal that can be connected directly to a general-purpose DAQ input. The complete system may require amplification, excitation, filtering, bridge completion, isolation or conversion to a compatible voltage.

Review PXI sensor measurement modules for temperature, bridge, LVDT and conditioned-sensor acquisition, or PXI dynamic signal analysis for sound and vibration applications.

Grounding, Cabling and Measurement Integrity

The DAQ module specification represents only part of the total measurement system. Grounding, shielding, cable type, source impedance, terminal accessories and environmental interference can materially affect the result.

Common measurement problems include:

• Ground loops between the DUT and PXI system
• Incorrect differential or referenced single-ended configuration
• Excessive source impedance when using multiplexed inputs
• Long unshielded signal cables
• Power-line and electromagnetic interference
• Input signals exceeding the supported range or common-mode limits
• Incorrect terminal-block or cable pinout

Design the complete connection from the signal source to the module before ordering hardware.

Terminal Blocks and DAQ Accessories

Many PXI DAQ modules use high-density connectors and require separately ordered cables, terminal blocks or breakout accessories. The correct accessory depends on the module connector and required signal performance.

Confirm:

• Module connector type and quantity
• Compatible shielded or unshielded cable
• Terminal-block connector and pinout
• Maximum supported signal voltage
• Whether screw terminals, mass termination or direct fixture connection is required
• Cable length and environmental shielding
• Strain relief and rack integration

NI-DAQmx and Software Compatibility

NI PXI and PXIe multifunction DAQ modules are generally configured through NI-DAQmx. The driver provides device discovery, channel configuration, timing, triggering, scaling, calibration information and programming APIs.

Common software environments include:

• NI Measurement & Automation Explorer for configuration and self-test
• LabVIEW for custom measurement and automation applications
• TestStand for automated production-test sequencing
• FlexLogger for supported data logging and channel configuration
• InstrumentStudio for interactive supported-device measurements
• C, C++, C# and Python applications using supported NI-DAQmx APIs

Before replacing legacy hardware, confirm the required operating system, NI-DAQmx version, application bitness, LabVIEW runtime and custom-code dependencies.

Typical PXI Data Acquisition Applications

• Automated functional and production testing
• Electronic-device design validation
• Automotive ECU and component testing
• Motor, inverter and power-electronics measurement
• Aerospace and avionics system validation
• Industrial equipment monitoring
• Multichannel voltage and sensor acquisition
• Environmental and long-duration testing
• Research laboratory automation
• Hardware-in-the-loop support systems

Legacy PXI DAQ Replacement

Replacing a discontinued PXI DAQ module requires checking more than analog input count. A newer PXIe device may use a different sampling architecture, connector, terminal accessory, voltage range, driver or timing system.

Compare the following before approving a replacement:

• PXI or PXI Express form factor
• Analog input and output channel quantities
• Multiplexed or simultaneous sampling
• Resolution, input range and sample rate
• Isolation and common-mode specifications
• Digital I/O and counter resources
• Trigger and clock-routing capabilities
• Connector, cable and terminal-block compatibility
• NI-DAQmx, operating-system and application support
• Calibration and system-requalification requirements

For validated production systems, obtaining the original model can sometimes be less expensive than modifying fixtures, rewriting software and requalifying the test station.

PXI Data Acquisition Procurement and RFQ Guide

For pre-owned modules, request device recognition, self-test and functional channel-test information. Inspect high-density connectors for bent pins, contamination and physical damage before installation.
