Product Introduction

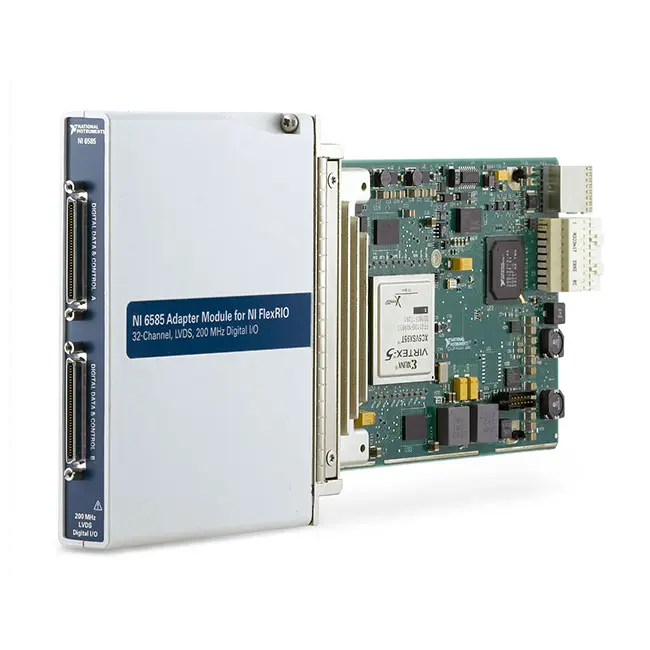

The NI-6585B is a high-performance FlexRIO adapter module designed for PXI-based FPGA test and measurement systems. It provides high-speed digital I/O capability and enables engineers to create customized instrumentation solutions using NI FlexRIO FPGA processing platforms.
Featuring high-speed digital interfaces, FPGA-based real-time processing, customizable hardware integration, and LabVIEW FPGA support, the NI-6585B is ideal for semiconductor testing, digital communication validation, embedded system development, and advanced automated test applications.
Product Overview
The NI-6585B belongs to the NI FlexRIO adapter module family and is designed to work with FlexRIO FPGA modules such as the PXIe-797x series.
Unlike traditional fixed-function instruments, the NI-6585B provides a flexible digital interface that connects directly to FPGA resources, allowing users to implement custom protocols, timing logic, and high-speed signal processing algorithms.
By combining the NI-6585B with a FlexRIO FPGA module and LabVIEW FPGA software, engineers can build application-specific instruments for demanding test and validation environments.
Key Features
High-Speed Digital I/O Interface
The NI-6585B provides high-performance digital connectivity for FPGA-based applications.
- High-speed digital input/output
- FPGA-controlled signal processing
- Deterministic digital communication
- Custom digital protocols
- Low-latency data transfer
Advantage: Enables precise control and analysis of high-speed digital signals.
FlexRIO FPGA Integration
The NI-6585B is designed specifically for NI FlexRIO FPGA platforms.
- Direct FPGA connectivity
- Custom hardware acceleration
- Parallel signal processing
- User-defined instrumentation
- Real-time hardware execution
Advantage: Allows engineers to create customized measurement systems beyond standard instruments.
Custom Digital Protocol Testing
The adapter module supports user-defined digital communication testing.
- Protocol emulation
- Digital interface validation
- Device communication testing
- Embedded system verification
- Signal pattern generation
Advantage: Provides flexibility for testing emerging and proprietary digital interfaces.
FPGA-Based Real-Time Processing
The NI-6585B works with FPGA modules to provide deterministic processing close to the hardware.
- Real-time signal analysis
- Hardware triggering
- Custom timing control
- Digital filtering
- High-speed data processing
Advantage: Provides faster response and higher determinism compared with software-only solutions.
LabVIEW FPGA Support
The NI-6585B integrates with NI LabVIEW FPGA development tools.
- Graphical FPGA programming
- FPGA IP reuse
- Hardware simulation
- Rapid prototype development
- Custom instrument creation
Advantage: Reduces FPGA development complexity for test engineers.
PXI Express Modular Integration
The NI-6585B can be combined with PXI Express FlexRIO FPGA modules.
- PXI Express chassis compatibility
- High-bandwidth communication
- Multi-module synchronization
- Scalable test architecture
- Automated test integration
Advantage: Enables flexible expansion of advanced test systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | FlexRIO High-Speed Digital Adapter Module |
| Interface Type | High-Speed Digital I/O |
| Platform | NI FlexRIO FPGA Modules |
| Processing | FPGA-Based Processing |
| Programming Environment | LabVIEW FPGA |
| Bus Interface | PXI Express via FlexRIO FPGA Module |
| Driver | NI-RIO |
| Application | Custom Digital Test and Measurement |
Software Ecosystem
The NI-6585B integrates with NI FPGA software tools for custom digital instrumentation development.
- LabVIEW FPGA: Provides FPGA programming, compilation, debugging, and hardware control.
- NI-RIO: Provides communication between FlexRIO hardware and software applications.
- LabVIEW: Enables system-level instrument development and automation.
- NI MAX: Provides hardware configuration and diagnostics.
- C/C++: Supports integration with custom applications.
Industries
- Semiconductor Testing
- Telecommunications
- Aerospace and Defense
- Embedded Systems
- Automotive Electronics
- Research Laboratories
- High-Speed Digital Testing
- Automated Test Equipment
Applications
Semiconductor Validation
The NI-6585B enables FPGA-based digital testing of semiconductor devices.
- IC interface testing
- Device characterization
- Memory testing
- Digital pattern analysis
High-Speed Communication Testing
The module supports validation of advanced digital communication interfaces.
- Protocol verification
- Signal analysis
- Communication emulation
- Interface debugging
Custom Instrument Development
The NI-6585B allows engineers to build application-specific instruments.
- Custom digital analyzers
- Specialized test equipment
- Research platforms
- Prototype validation
Hardware-in-the-Loop Testing
The FPGA-based architecture supports deterministic simulation and control.
- Real-time simulation
- Embedded controller testing
- Digital stimulus generation
- Closed-loop validation
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI-6585B | FlexRIO high-speed digital adapter module for FPGA-based systems. | Custom digital instrumentation |
| NI-6587 | FlexRIO digital adapter module designed for specific high-speed interfaces. | Advanced digital testing |
| NI PXIe-7976 | FlexRIO FPGA processing module for PXI Express. | FPGA-based custom instrumentation |
| NI PXIe-6537 | Fixed-function high-speed digital I/O module. | Digital pattern testing |
Recommended Related Products
| NI PXIe-7976 | FlexRIO FPGA module for custom high-speed processing applications. |
| NI PXIe-1095 | PXI Express chassis for advanced FPGA test systems. |
| NI PXIe-8880 | High-performance PXI Express controller. |
| NI PXIe-6537 | High-speed digital I/O module for automated digital testing. |
Why Choose NI-6585B?
- High-speed FPGA-based digital I/O
- FlexRIO adapter module architecture
- Custom protocol implementation capability
- Real-time FPGA processing
- LabVIEW FPGA support
- PXI Express scalable integration
- Ideal for semiconductor and communication testing
- Flexible custom instrumentation solution
Frequently Asked Questions
What is NI-6585B used for?
The NI-6585B is used for FPGA-based digital testing, semiconductor validation, communication interface testing, and custom instrumentation development.
What FPGA modules support NI-6585B?
The NI-6585B is designed for use with NI FlexRIO FPGA modules, providing direct access to FPGA resources.
Does NI-6585B support LabVIEW FPGA?
Yes. The NI-6585B integrates with LabVIEW FPGA and NI-RIO software for custom FPGA application development.
Conclusion
The NI-6585B FlexRIO adapter module provides a flexible high-speed digital interface for FPGA-based PXI Express test systems. With customizable digital I/O, real-time FPGA processing, LabVIEW FPGA support, and scalable FlexRIO architecture, it is an ideal solution for semiconductor testing, communication validation, embedded development, and advanced automated test applications.
