Product Introduction

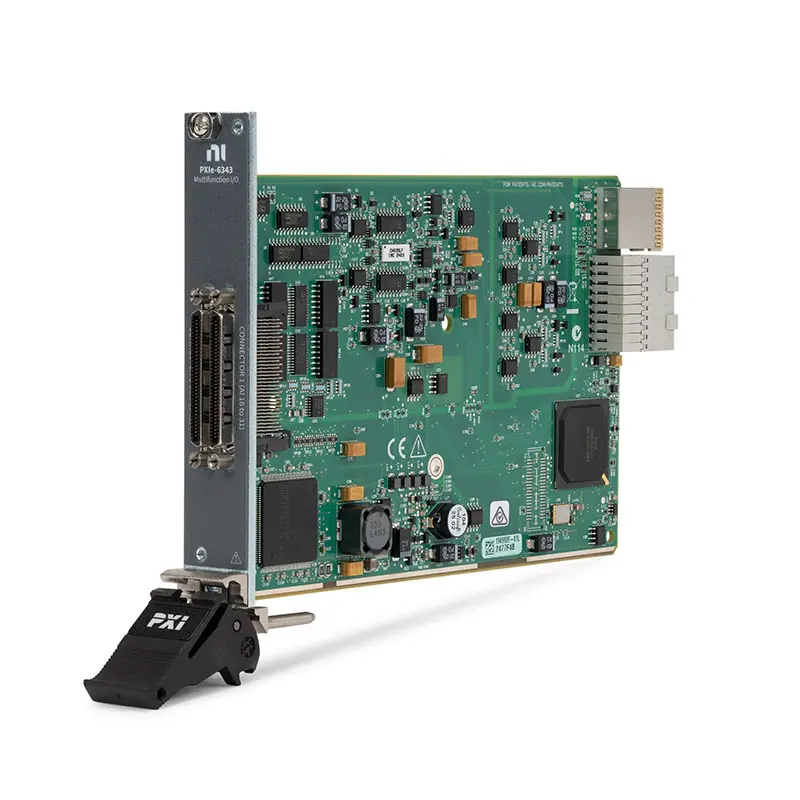

The NI PXIe-6343 is a high-performance X Series PXI Express multifunction data acquisition (DAQ) module designed for automated test equipment (ATE), industrial automation, laboratory measurement, research, and embedded validation systems. It combines high-speed analog input, analog output, digital I/O, advanced timing, and counter functionality into a single PXI Express module.
Featuring up to 32 analog input channels, four hardware-timed analog outputs, 48 digital I/O lines, and four independent counters, the PXIe-6343 delivers a flexible platform for synchronized measurement, control, waveform generation, and hardware automation.
Product Overview
The PXIe-6343 belongs to the National Instruments X Series DAQ family and incorporates the NI-STC3 timing engine for deterministic synchronization between analog, digital, and counter subsystems.
The module provides 32 single-ended or 16 differential analog input channels with 16-bit resolution and aggregate sampling rates up to 500 kS/s. Four 16-bit analog outputs support waveform generation while 48 digital I/O lines and four 32-bit counters enable flexible control, triggering, encoder measurement, and timing applications.
Combined with NI-DAQmx, LabVIEW, TestStand, FlexLogger, NI MAX, Python, C/C++, C#, and .NET, the PXIe-6343 integrates easily into both development and production test environments.
Key Features
High-Density Analog Input
The PXIe-6343 provides flexible analog acquisition for large-channel-count measurement systems.
- 32 single-ended or 16 differential inputs
- 16-bit ADC resolution
- 500 kS/s aggregate sampling
- Programmable gain ranges
- Low-noise analog front end
Advantage: Supports simultaneous acquisition from multiple sensors while maintaining high measurement accuracy.
Four Analog Outputs
Integrated waveform generation enables synchronized stimulus and control applications.
- 4 analog output channels
- 16-bit DAC resolution
- Up to 900 kS/s update rate
- ±10 V output range
- Hardware-timed generation
Advantage: Ideal for closed-loop control, signal simulation, and automated validation systems.
48 Programmable Digital I/O
Large digital resources simplify industrial automation and electronic validation.
- 48 bidirectional TTL digital lines
- Hardware-timed digital I/O
- Trigger routing
- Static digital control
- External device interfacing
Advantage: Controls fixtures, relays, PLCs, indicators, and production equipment from one PXI module.
Four Independent Counter/Timers
Integrated timing resources support measurement and motion applications.
- 4 independent 32-bit counters
- Encoder measurement
- Pulse generation
- Frequency measurement
- Event counting
- PWM generation
Advantage: Eliminates the need for dedicated timing hardware in many automated systems.
NI-STC3 Timing Technology
The advanced timing engine synchronizes all measurement subsystems.
- NI-STC3 architecture
- Hardware triggering
- Reference triggering
- External clock support
- High-speed synchronization
Advantage: Enables deterministic measurements and precise synchronization with other PXI instruments.
PXI Express Performance
The PXIe-6343 utilizes the PXI Express platform for high-speed communication.
- PXI Express interface
- High data bandwidth
- Low communication latency
- Scalable modular architecture
- Shared PXI timing resources
Advantage: Provides reliable communication and synchronization for demanding automated test applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Multifunction DAQ Module |
| DAQ Family | NI X Series |
| Bus Interface | PXI Express |
| Analog Input Channels | 32 Single-Ended or 16 Differential |
| Analog Input Resolution | 16 Bits |
| Maximum Sampling Rate | 500 kS/s |
| Analog Input Ranges | ±0.2 V, ±1 V, ±5 V, ±10 V |
| Analog Output Channels | 4 |
| Analog Output Resolution | 16 Bits |
| Maximum Analog Output Rate | 900 kS/s |
| Analog Output Range | ±10 V |
| Digital I/O | 48 Bidirectional TTL Lines |
| Counter/Timers | 4 × 32-Bit |
| Counter Timebases | 100 MHz, 20 MHz, 100 kHz |
| Timing Engine | NI-STC3 |
| Connector | 68-Pin VHDCI |
| Driver | NI-DAQmx |
| Programming Support | LabVIEW, Python, C/C++, C#, .NET, LabWindows/CVI |
Software Ecosystem
The PXIe-6343 integrates with the complete National Instruments software platform.
- NI-DAQmx – Configuration, acquisition, waveform generation, timing, and synchronization.
- LabVIEW – Graphical application development for measurement and automation.
- NI MAX – Device discovery, diagnostics, calibration, and configuration.
- FlexLogger – Configuration-based measurement and data logging.
- TestStand – Automated production testing and validation.
- DIAdem – Data analysis, visualization, and reporting.
- Python, C/C++, C#, .NET – Complete NI-DAQmx API support.
Industries
- Industrial Automation
- Automated Test Equipment
- Electronics Manufacturing
- Semiconductor Testing
- Automotive Validation
- Aerospace and Defense
- Energy Systems
- Research Laboratories
Applications
Large-Channel Data Acquisition
Acquire measurements from multiple sensors using one high-density DAQ module.
- Voltage measurement
- Sensor monitoring
- Signal acquisition
- Data logging
Automated Production Testing
Integrate analog, digital, and timing functions into manufacturing systems.
- Functional testing
- Production validation
- Electronic verification
- Quality assurance
Waveform Generation
Generate synchronized analog stimulus signals during automated testing.
- Signal simulation
- Closed-loop control
- Calibration
- Device characterization
Motion and Encoder Applications
Use integrated counters for encoder acquisition and pulse generation.
- Encoder measurement
- Frequency measurement
- PWM generation
- Position monitoring
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXIe-6343 | 32 analog inputs, 4 analog outputs, and 48 digital I/O for high-channel-count PXI applications. | Large-scale multifunction data acquisition |
| NI PXIe-6341 | Lower-channel-count X Series multifunction DAQ module. | General-purpose PXI measurement |
| NI PXIe-6345 | Higher-performance multifunction PXIe DAQ with expanded capabilities. | Advanced industrial automation |
| NI PXIe-6378 | Higher-speed X Series DAQ module for demanding applications. | High-speed synchronized acquisition |
| NI PCIe-6323 | PCI Express desktop version of X Series multifunction DAQ. | Desktop automated testing |
Recommended Related Products
| NI PXIe-1085 | 18-slot PXI Express chassis for scalable modular systems. |
| NI PXIe-1095 | High-performance PXIe chassis with advanced cooling. |
| NI PXIe-8880 | Embedded PXIe controller for high-performance automated testing. |
| NI PXIe-6366 | High-speed X Series multifunction DAQ module. |
| NI PXIe-6386 | Advanced multifunction PXIe DAQ with higher sampling performance. |
Why Choose PXIe-6343?
- 32 analog input channels with 16-bit resolution
- 500 kS/s aggregate sampling performance
- 4 hardware-timed analog outputs
- 48 programmable digital I/O lines
- 4 independent 32-bit counters
- Advanced NI-STC3 timing engine
- High-speed PXI Express communication
- Excellent LabVIEW and NI-DAQmx integration
- Ideal for industrial automation and ATE
- Scalable PXI Express architecture
Frequently Asked Questions
How many analog input channels does the PXIe-6343 provide?
The PXIe-6343 provides 32 single-ended or 16 differential analog input channels with 16-bit resolution and an aggregate sampling rate of up to 500 kS/s.
Can the PXIe-6343 generate analog output signals?
Yes. The module includes four hardware-timed 16-bit analog output channels capable of generating synchronized waveforms at update rates up to 900 kS/s.
Which software supports the PXIe-6343?
The PXIe-6343 is supported by NI-DAQmx, LabVIEW, NI MAX, FlexLogger, TestStand, DIAdem, Python, C/C++, C#, .NET, and LabWindows/CVI.
Conclusion
The NI PXIe-6343 combines high-density analog acquisition, hardware-timed waveform generation, extensive digital I/O, advanced NI-STC3 synchronization, and PXI Express performance into a versatile multifunction DAQ module. It is an ideal solution for industrial automation, automated testing, laboratory research, electronic validation, and high-channel-count measurement applications.
