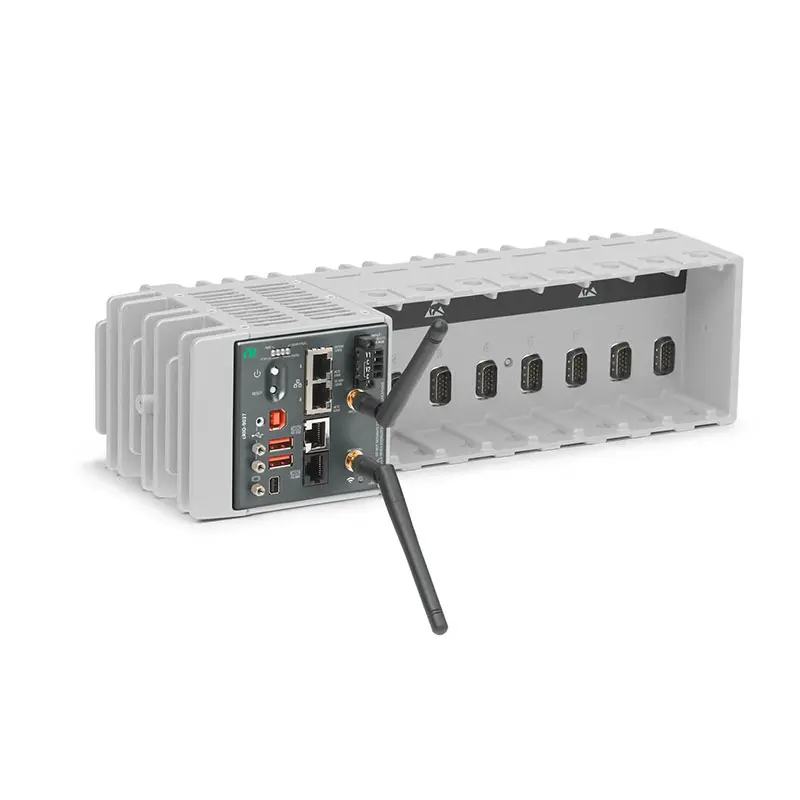

NI cRIO-9037 CompactRIO Controller
The NI cRIO-9037 is an embedded CompactRIO controller designed for advanced real-time control, industrial automation, high-speed data acquisition, and embedded monitoring applications. Developed by National Instruments, the cRIO-9037 combines an embedded processor, FPGA technology, and flexible C Series I/O module support into a rugged industrial platform.
The cRIO-9037 enables engineers to develop standalone control and measurement systems using LabVIEW Real-Time and FPGA programming. Unlike traditional computer-based measurement solutions, CompactRIO controllers can execute deterministic applications directly on the embedded hardware.
With powerful processing capability, integrated FPGA resources, and industrial-grade reliability, the cRIO-9037 is widely used in machine control, energy systems, transportation testing, industrial monitoring, and advanced automated test applications.
Key Features of NI cRIO-9037
Embedded CompactRIO Controller Architecture
The cRIO-9037 integrates processing, FPGA computing, and modular I/O expansion into a single embedded controller platform.
- Embedded real-time controller
- Integrated FPGA architecture
- Supports NI C Series I/O modules
- Standalone operation capability
- Designed for industrial environments
Real-Time Processing Capability
The cRIO-9037 provides deterministic real-time processing for control and measurement applications.
- LabVIEW Real-Time support
- NI Linux Real-Time support
- Independent application execution
- Real-time monitoring and control
Integrated FPGA Technology
The FPGA architecture of the cRIO-9037 enables customized hardware processing, high-speed signal analysis, and precise timing control.
- High-speed FPGA processing
- Custom hardware logic development
- Low-latency control applications
- Advanced signal processing capability
C Series I/O Module Support
The cRIO-9037 supports a wide range of NI C Series modules for flexible measurement and control system design.
- Analog input modules
- Analog output modules
- Digital I/O modules
- Communication modules
- Industrial sensor modules
Industrial Rugged Design
The cRIO-9037 is designed for reliable operation in demanding industrial environments.
- Compact embedded form factor
- Long-term continuous operation
- Industrial automation support
- Reliable field deployment
Applications of NI cRIO-9037
Industrial Automation and Control
The cRIO-9037 provides real-time embedded control capability for industrial automation systems.
- Machine control
- Factory automation
- Process monitoring
- Motion control systems
High-Speed Data Acquisition
The cRIO-9037 combines FPGA processing and C Series modules for advanced measurement applications.
- High-speed sensor acquisition
- Real-time signal processing
- Data logging systems
- Measurement automation
Hardware-in-the-Loop Testing
The cRIO-9037 is suitable for real-time simulation and hardware validation applications.
- Control system validation
- Embedded testing
- Real-time simulation
- Engineering verification
Energy and Transportation Systems
The cRIO-9037 is commonly used in advanced monitoring and control applications.
- Power system monitoring
- Transportation testing
- Infrastructure monitoring
- Remote control systems
Software Support
The cRIO-9037 supports National Instruments software platforms for embedded control and measurement development.
- LabVIEW
- LabVIEW Real-Time
- LabVIEW FPGA
- NI Linux Real-Time
- NI-DAQmx
Technical Specifications of cRIO-9037
| Feature | Description |
|---|---|
| Product Type | CompactRIO Embedded Controller |
| Platform | CompactRIO |
| Processor | Intel Atom E3800 Series Processor |
| FPGA | Integrated Xilinx Kintex-7 FPGA |
| Module Support | NI C Series I/O Modules |
| Applications | Industrial control, automation, embedded measurement |
Comparison with Similar CompactRIO Controllers
| Model | Main Difference | Best Application |
|---|---|---|
|
NI cRIO-9037 | CompactRIO controller with real-time processor and FPGA capability for industrial embedded applications. | Industrial control and advanced measurement |
|
NI cRIO-9035 | CompactRIO controller designed for general embedded control and monitoring applications. | Industrial automation systems |
|
NI cRIO-9038 | Higher-memory CompactRIO controller for more demanding embedded applications. | Complex control and data processing |
|
NI cRIO-9045 | Newer-generation CompactRIO controller with improved processing performance. | Advanced automation and real-time systems |
Recommended Related Products
The following products are commonly used with the cRIO-9037 to build complete CompactRIO control and measurement systems.
|
NI cRIO-9035 | CompactRIO controller for embedded industrial automation and real-time measurement applications. |
|
NI cRIO-9045 | Next-generation CompactRIO controller with enhanced processing capability for advanced applications. |
|
NI-9215 | C Series analog input module for voltage measurement and high-speed data acquisition. |
|
NI-9472 | C Series digital output module for industrial control and automation applications. |
|
NI-9401 | High-speed digital I/O module for FPGA-based control and measurement systems. |
Why Choose NI cRIO-9037
- Powerful CompactRIO embedded controller
- Integrated real-time processor and FPGA
- Supports flexible C Series I/O modules
- Standalone execution of control applications
- Suitable for industrial automation systems
- Ideal for high-speed measurement and embedded control
Conclusion
The NI cRIO-9037 CompactRIO Controller provides a powerful and flexible embedded platform for engineers developing advanced industrial control and measurement systems.
With real-time processing, FPGA capability, C Series module compatibility, and rugged industrial design, the cRIO-9037 is an excellent choice for automation, machine monitoring, high-speed data acquisition, and embedded control applications.
