Product Introduction

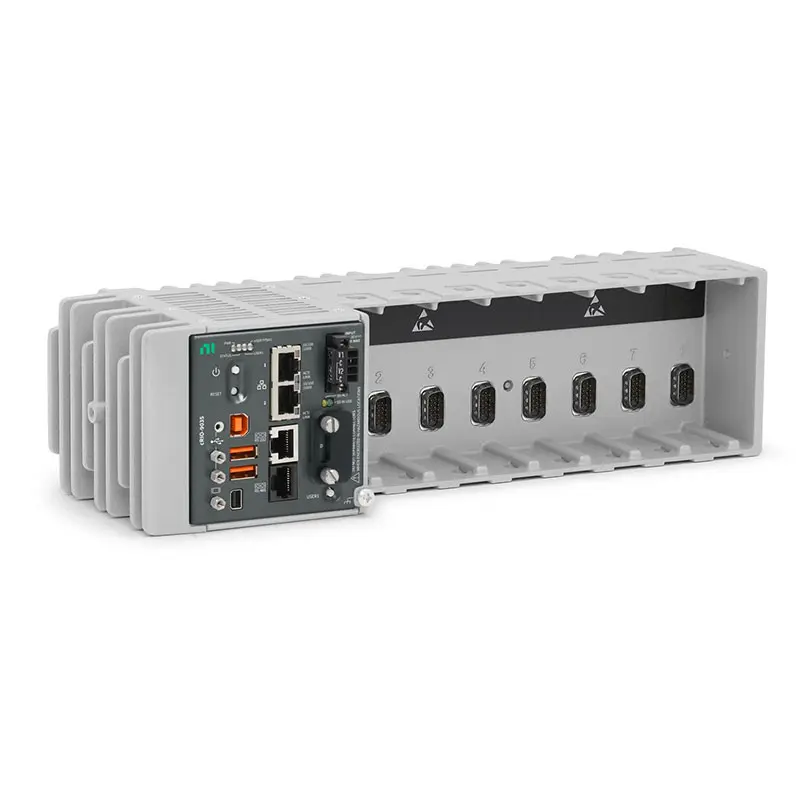

The NI cRIO-9035 is a high-performance CompactRIO real-time controller designed for industrial automation, embedded control, machine monitoring, and advanced data acquisition applications. It combines an embedded processor, real-time operating system, and user-programmable FPGA architecture in a rugged industrial platform.
Featuring an Intel processor, integrated FPGA, C Series I/O module compatibility, Ethernet connectivity, and LabVIEW Real-Time support, the cRIO-9035 provides a flexible and reliable solution for deterministic control, distributed monitoring, and customized automation systems.
Product Overview
The cRIO-9035 belongs to the NI CompactRIO controller family and provides a complete embedded control platform for demanding industrial and research applications.
Unlike traditional industrial controllers, the cRIO-9035 combines real-time processing with FPGA-based hardware customization, allowing engineers to implement high-speed control algorithms, custom signal processing, and deterministic I/O operations.
With support for NI C Series modules, LabVIEW FPGA, LabVIEW Real-Time, and NI-RIO drivers, the cRIO-9035 enables scalable embedded measurement and control system development.
Key Features
Integrated Real-Time Processor
The cRIO-9035 provides embedded computing capability with a real-time operating system for reliable industrial control.
- Intel processor architecture
- Real-time operating system
- Deterministic application execution
- Standalone embedded operation
- Industrial-grade reliability
Advantage: Provides dependable real-time control without requiring an external industrial computer.
User-Programmable FPGA Technology
The cRIO-9035 includes an integrated FPGA for customized hardware processing and high-speed control applications.
- FPGA-based signal processing
- Custom hardware logic implementation
- Parallel processing capability
- High-speed I/O control
- Deterministic timing execution
Advantage: Enables engineers to create application-specific hardware functions beyond standard controllers.
C Series I/O Module Compatibility
The cRIO-9035 supports NI C Series modules to provide flexible measurement and control configurations.
- Analog input modules
- Analog output modules
- Digital I/O modules
- Communication modules
- Specialized measurement modules
Advantage: Allows users to customize the system according to different industrial requirements.
Industrial Communication Interfaces
The cRIO-9035 provides connectivity options for distributed automation and monitoring systems.
- Ethernet communication
- Network-based control
- Remote monitoring
- Industrial system integration
- Data communication
Advantage: Supports integration with modern industrial networks and distributed systems.
Rugged CompactRIO Platform
The cRIO-9035 is designed for reliable operation in industrial environments.
- Compact embedded form factor
- Industrial temperature operation
- DIN rail mounting support
- Field deployment capability
- Long-term system reliability
Advantage: Suitable for machine-level control and remote industrial applications.
LabVIEW Real-Time and FPGA Support
The cRIO-9035 integrates with NI software tools for rapid embedded system development.
- LabVIEW Real-Time support
- LabVIEW FPGA programming
- NI-RIO driver support
- Real-time deployment
- FPGA debugging tools
Advantage: Simplifies development of complex automation and measurement applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | CompactRIO Real-Time Controller |
| Processor | Intel Processor |
| Architecture | Real-Time Controller with Integrated FPGA |
| I/O Compatibility | NI C Series Modules |
| Communication | Ethernet |
| Programming | LabVIEW Real-Time, LabVIEW FPGA |
| Driver | NI-RIO |
Software Ecosystem
The cRIO-9035 integrates with NI software platforms for embedded control, industrial automation, and real-time application development.
- LabVIEW Real-Time: Provides deterministic execution for embedded control applications.
- LabVIEW FPGA: Enables custom FPGA logic development and hardware acceleration.
- NI-RIO: Provides CompactRIO hardware communication and configuration.
- NI MAX: Supports hardware setup and diagnostics.
- TestStand: Enables integration with automated test workflows.
Industries
- Industrial Automation
- Machine Control
- Automotive Testing
- Aerospace and Defense
- Energy Systems
- Embedded Control
- Manufacturing Systems
- Research Laboratories
Applications
Industrial Automation
The cRIO-9035 provides real-time control and monitoring for industrial equipment.
- Machine automation
- Process control
- Factory monitoring
- Distributed control systems
Embedded Control Systems
The controller supports customized embedded applications requiring deterministic performance.
- Real-time control loops
- Custom automation systems
- FPGA-based processing
- Embedded measurement
Hardware-in-the-Loop Testing
The cRIO-9035 supports real-time simulation and validation environments.
- Controller validation
- Real-time simulation
- Closed-loop testing
- Embedded system verification
Data Acquisition and Monitoring
Combined with C Series modules, the cRIO-9035 provides flexible measurement and monitoring capability.
- Sensor data acquisition
- Condition monitoring
- Remote measurement
- Industrial diagnostics
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI cRIO-9035 | CompactRIO controller with integrated processor and FPGA for industrial control. | Advanced embedded automation systems |
| NI cRIO-9034 | Similar CompactRIO controller platform with different configuration options. | Industrial measurement and control |
| NI cRIO-9056 | Newer CompactRIO controller generation with updated processing capability. | Modern industrial automation |
| NI cRIO-9033 | CompactRIO controller for embedded control applications. | General embedded automation |
Recommended Related Products
| NI cRIO-9056 | Advanced CompactRIO controller for modern industrial applications. |
| NI cRIO-9034 | CompactRIO real-time controller for embedded automation systems. |
| NI-9211 | C Series thermocouple input module for temperature measurement. |
| NI-9207 | C Series analog input module for industrial signal acquisition. |
Why Choose cRIO-9035?
- Integrated real-time processor and FPGA
- Flexible C Series I/O expansion
- Deterministic industrial control capability
- LabVIEW Real-Time and FPGA support
- Compact rugged embedded design
- Suitable for distributed automation systems
- Scalable measurement and control platform
- Reliable industrial deployment
Frequently Asked Questions
What is cRIO-9035 used for?
The cRIO-9035 is used for industrial automation, embedded control, real-time monitoring, hardware-in-the-loop testing, and customized measurement applications.
Does cRIO-9035 support LabVIEW?
Yes. The cRIO-9035 supports LabVIEW Real-Time, LabVIEW FPGA, NI-RIO drivers, and NI development environments.
What is the difference between CompactRIO and PLC systems?
CompactRIO combines real-time processing with FPGA-based customization, providing greater flexibility for advanced measurement and control applications compared with traditional PLC systems.
Conclusion
The NI cRIO-9035 CompactRIO controller provides a powerful embedded platform for industrial automation, real-time control, and advanced measurement applications. With an integrated processor, programmable FPGA, C Series I/O compatibility, and LabVIEW support, it is an ideal solution for machine control, embedded validation, distributed monitoring, and customized industrial systems.
