Product Introduction

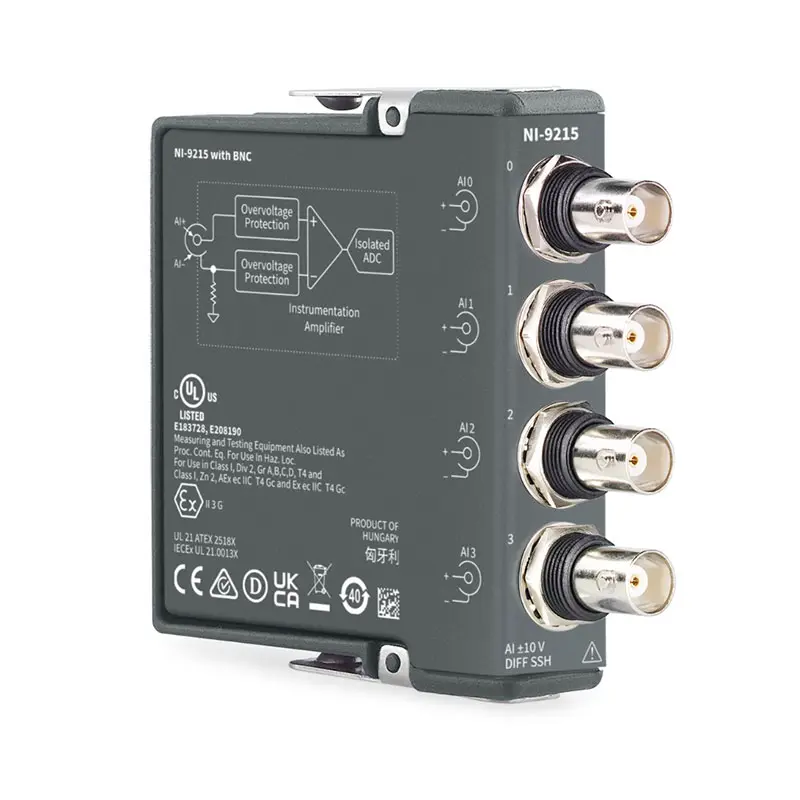

The NI-9215 is a high-performance C Series analog input module designed for precision voltage measurement, dynamic signal acquisition, and automated test applications. It provides four simultaneous analog input channels with high-resolution data acquisition capability for CompactRIO and CompactDAQ systems.
Featuring 16-bit analog-to-digital conversion, simultaneous sampling on all channels, ±10 V input range, and NI-DAQmx software support, the NI-9215 provides an accurate and reliable solution for industrial measurement, control, and research applications.
Product Overview
The NI-9215 belongs to the NI C Series analog input module family and is designed for applications requiring high-speed, synchronized analog signal measurement.
Unlike multiplexed analog input modules, the NI-9215 uses simultaneous sampling technology, allowing multiple channels to acquire signals at the same time with consistent timing performance.
With CompactRIO and CompactDAQ compatibility, the NI-9215 enables engineers to build flexible measurement systems for industrial monitoring, electronic testing, laboratory research, and embedded applications.
Key Features
4-Channel Simultaneous Analog Input
The NI-9215 provides four analog input channels with simultaneous sampling capability.
- 4 analog input channels
- Simultaneous sampling
- Independent ADC per channel
- Synchronized voltage measurement
- High-speed data acquisition
Advantage: Provides accurate timing alignment between multiple measured signals.
16-Bit Resolution Voltage Measurement
The NI-9215 provides high-resolution analog measurement for precise signal acquisition.
- 16-bit ADC resolution
- ±10 V input range
- High measurement accuracy
- Low-noise signal acquisition
- Reliable measurement performance
Advantage: Enables detailed analysis of analog signals in demanding applications.
High-Speed Data Acquisition
The NI-9215 is designed for applications requiring fast analog signal monitoring.
- Fast sampling capability
- Dynamic signal measurement
- Real-time data acquisition
- Transient signal capture
- High-speed monitoring
Advantage: Suitable for applications where signal changes must be captured accurately.
C Series Modular Architecture
The NI-9215 uses NI C Series modular technology for flexible system integration.
- CompactRIO compatibility
- CompactDAQ compatibility
- Modular I/O expansion
- Hot-swappable module design
- Flexible system configuration
Advantage: Allows engineers to create customized measurement platforms.
Industrial Measurement Capability
The NI-9215 provides reliable voltage acquisition for industrial and embedded systems.
- Sensor signal measurement
- Machine monitoring
- Control system feedback
- Industrial testing
- Embedded measurement
Advantage: Supports continuous operation in industrial environments.
NI-DAQmx and LabVIEW Support
The NI-9215 integrates with NI software tools for measurement application development.
- NI-DAQmx driver support
- LabVIEW integration
- Measurement Studio compatibility
- Hardware configuration tools
- Application development support
Advantage: Simplifies programming and deployment of data acquisition systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | C Series Analog Input Module |
| Input Channels | 4 Analog Input Channels |
| Sampling Method | Simultaneous Sampling |
| Resolution | 16-bit ADC |
| Input Range | ±10 V |
| Platform Compatibility | CompactRIO, CompactDAQ |
| Driver Support | NI-DAQmx |
| Programming | LabVIEW, C/C++, .NET |
Software Ecosystem
The NI-9215 integrates with NI software platforms for high-performance data acquisition and measurement applications.
- NI-DAQmx: Provides hardware drivers, configuration, and acquisition control.
- LabVIEW: Enables graphical programming for measurement and automation systems.
- NI MAX: Supports device configuration and diagnostics.
- Measurement Studio: Supports Windows-based measurement applications.
- C/C++ and .NET: Enables custom software development.
Industries
- Industrial Automation
- Automotive Testing
- Aerospace and Defense
- Energy Systems
- Research Laboratories
- Electronic Validation
- Machine Monitoring
- Embedded Control
Applications
Dynamic Signal Measurement
The NI-9215 provides synchronized analog acquisition for dynamic signal applications.
- Signal analysis
- Waveform measurement
- Transient capture
- System validation
Automated Test Systems
The NI-9215 can be integrated into automated testing platforms requiring accurate analog measurement.
- Electronic testing
- Functional verification
- Device characterization
- Test automation
Industrial Monitoring
The module supports continuous monitoring of analog signals from industrial equipment.
- Machine condition monitoring
- Sensor acquisition
- Process monitoring
- Equipment diagnostics
Embedded Measurement Systems
Combined with CompactRIO controllers, the NI-9215 provides flexible embedded measurement capability.
- Real-time measurement
- Remote data acquisition
- Custom monitoring systems
- Distributed sensing
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI-9215 | 4-channel simultaneous sampling analog input module with 16-bit resolution. | Precision voltage measurement and dynamic signals |
| NI-9219 | Universal analog input module supporting multiple sensor types. | Flexible sensor measurement |

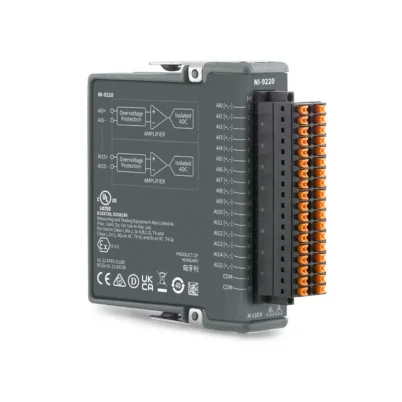

| NI-9220 | C Series voltage input module for higher channel measurement requirements. | Industrial voltage acquisition |
| NI-9206 | Industrial analog input module supporting voltage and current measurement. | Industrial sensor applications |
Recommended Related Products
| NI-9219 | Universal analog input module for multiple sensor measurement applications. |
| NI-9220 | High-performance voltage input module for precision acquisition. |
| NI-9206 | Industrial analog input module for voltage and current measurement. |
| NI cRIO-9039 | CompactRIO controller for embedded measurement and control systems. |
Why Choose NI-9215?
- 4-channel simultaneous analog input
- 16-bit high-resolution measurement
- Fast synchronized data acquisition
- CompactRIO and CompactDAQ compatibility
- NI-DAQmx and LabVIEW support
- Reliable voltage measurement performance
- Suitable for dynamic signal applications
- Flexible embedded measurement solution
Frequently Asked Questions
What is NI-9215 used for?
The NI-9215 is used for precision voltage measurement, dynamic signal acquisition, automated testing, industrial monitoring, and embedded measurement systems.
Does NI-9215 support CompactRIO?
Yes. The NI-9215 is compatible with NI CompactRIO and CompactDAQ platforms using C Series module architecture.
What is the difference between NI-9215 and NI-9206?
The NI-9215 focuses on high-speed simultaneous voltage measurement, while the NI-9206 is designed for flexible industrial voltage and current measurement applications.
Conclusion
The NI-9215 C Series analog input module provides high-performance voltage measurement for industrial automation, automated testing, and research applications. With simultaneous sampling, 16-bit resolution, CompactRIO and CompactDAQ compatibility, and NI software support, it is an ideal solution for accurate and synchronized analog signal acquisition.
