Product Introduction

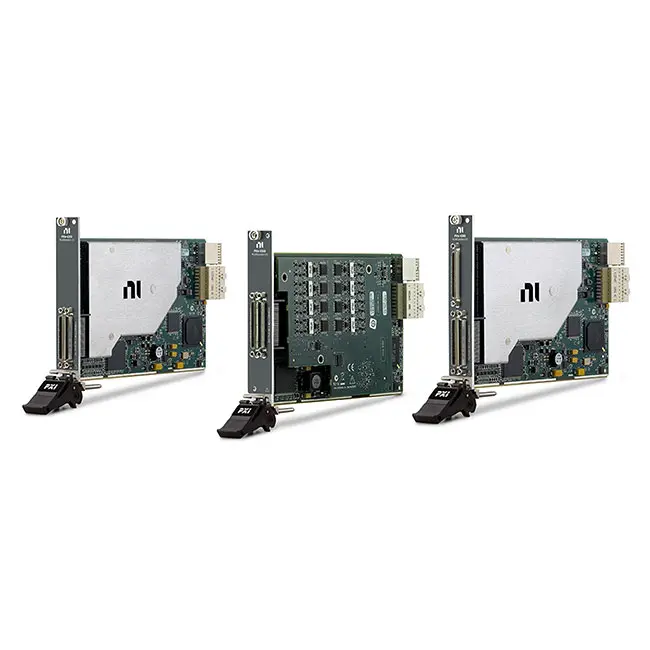

The PXIe-6366 is a high-performance X Series multifunction data acquisition module developed by National Instruments for PXI Express automated test, industrial measurement, and advanced data acquisition applications. It integrates analog input, analog output, digital I/O, and counter/timer functions into a single PXI Express module, providing a flexible solution for complex measurement and control systems.
Designed for engineers requiring high-speed acquisition, precise timing, and scalable modular instrumentation, the PXIe-6366 delivers reliable performance for applications including automated testing, industrial monitoring, semiconductor validation, and research measurement.
Product Overview
The PXIe-6366 belongs to the NI X Series multifunction DAQ family and provides high-channel-count analog measurement capability with PXI Express high-bandwidth connectivity. It is designed for applications requiring synchronized acquisition, waveform generation, and hardware-timed digital operations.
The module combines high-resolution analog input, analog output, programmable digital I/O, and advanced counter/timing functions, allowing users to build customized PXI Express measurement systems for a wide range of engineering applications.
With support for NI-DAQmx, LabVIEW, and PXI synchronization resources, the PXIe-6366 enables efficient development of automated test and measurement platforms.
Key Features
High-Channel-Count Analog Input Capability
The PXIe-6366 provides multiple analog input channels for measuring voltage signals from sensors, instruments, and electronic devices.
- High-density analog input channels
- 16-bit analog-to-digital conversion
- Multiple input configurations
- High-speed signal acquisition
Advantage: Supports multi-channel measurement applications while reducing the need for multiple acquisition devices.
High-Speed PXI Express Data Transfer
The PXIe-6366 uses PXI Express architecture to provide fast communication between the DAQ module and host controller.
- PCI Express-based communication
- High-bandwidth data transfer
- Low-latency acquisition
- Efficient continuous streaming
Advantage: Enables reliable performance in demanding applications requiring rapid data collection and processing.
Integrated Analog Output Functionality
The PXIe-6366 includes analog output channels for waveform generation and device control applications.
- Analog waveform generation
- Programmable voltage output
- Closed-loop control support
- Signal stimulation applications
Advantage: Allows engineers to combine signal measurement and generation within one PXI Express module.
Digital I/O and Counter/Timer Resources
The PXIe-6366 provides programmable digital interfaces and hardware timing resources for automation applications.
- Digital input/output lines
- Counter/timer functions
- Hardware triggering
- Event measurement
Advantage: Provides flexible control and synchronization for complex automated test systems.
PXI Express Synchronization Capability
The PXIe-6366 supports PXI timing and synchronization features for multi-module measurement systems.
- Reference clock distribution
- Trigger synchronization
- Multi-device coordination
- Hardware timing control
Advantage: Ensures accurate timing alignment across multiple instruments in advanced PXI systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Multifunction DAQ Module |
| DAQ Family | NI X Series |
| Analog Input | High-Speed Analog Input Channels |
| Resolution | 16-bit ADC |
| Analog Output | Integrated Analog Output Channels |
| Digital I/O | Programmable Digital I/O |
| Counter/Timer | Hardware Timing Resources |
| Interface | PXI Express |
| Driver Support | NI-DAQmx |
| Programming Environment | LabVIEW, C/C++, .NET, Python |
Software Ecosystem
The PXIe-6366 integrates with the National Instruments software ecosystem to provide complete tools for hardware configuration, programming, and automated measurement development.
- LabVIEW: Graphical programming environment for measurement automation and control applications.
- NI-DAQmx: Driver software for configuring, acquiring, and controlling DAQ hardware.
- NI MAX: Hardware configuration and system management utility.
- TestStand: Automated test sequencing platform for production and validation systems.
Industries
- Industrial Automation
- Automotive Testing
- Semiconductor Testing
- Aerospace and Defense
- Electronics Manufacturing
- Research and Development
Applications
Automated Test Systems
The PXIe-6366 provides multifunction measurement capability for PXI Express automated test platforms.
- Electronic device testing
- Production validation
- Functional verification
- Engineering testing
Industrial Monitoring and Control
The PXIe-6366 enables engineers to acquire sensor data and control industrial equipment.
- Machine monitoring
- Process measurement
- Equipment diagnostics
- Automation control
Multi-Channel Sensor Measurement
The PXIe-6366 is suitable for applications requiring synchronized measurement from multiple sensors.
- Temperature monitoring
- Voltage measurement
- Pressure sensing
- Environmental testing
Research and Engineering Validation
The PXIe-6366 provides a flexible platform for experimental measurement and prototype development.
- Prototype testing
- Signal analysis
- Data acquisition research
- Custom instrumentation
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
|
PXIe-6366 | X Series PXI Express multifunction DAQ module designed for high-channel-count measurement and automation applications. | Large-scale PXI Express data acquisition |
|
PXIe-6363 | General-purpose X Series multifunction DAQ module with balanced analog and digital capabilities. | General automated measurement systems |
|
PXIe-6376 | Higher-performance X Series DAQ module designed for demanding PXI Express applications. | Advanced automated testing |
|
PXIe-6378 | High-performance multifunction DAQ module optimized for advanced synchronized acquisition. | High-speed measurement systems |
Recommended Related Products
The following products are commonly used with the PXIe-6366 to build complete PXI Express automated test and measurement systems.
|
NI PXIe-1095 | 18-slot PXI Express chassis for large-scale modular instrumentation systems. |
|
NI PXIe-1092 | Compact PXI Express chassis for flexible automated measurement systems. |
|
NI PXIe-8842 | Embedded controller for PXI Express automated test platforms. |
|
NI PXIe-6378 | High-performance X Series DAQ module for expanding PXI Express acquisition capability. |
|
NI PXIe-6738 | High-density analog output module for waveform generation and control applications. |
Why Choose PXIe-6366?
- High-channel-count multifunction data acquisition capability
- 16-bit high-resolution analog measurement
- Integrated analog output, digital I/O, and timing functions
- High-bandwidth PXI Express communication
- Compatible with NI-DAQmx and LabVIEW ecosystem
- Ideal for automated testing, industrial measurement, and research applications
Frequently Asked Questions
What is PXIe-6366 used for?
The PXIe-6366 is used for multifunction data acquisition, automated testing, industrial monitoring, and engineering validation applications requiring synchronized analog and digital measurements.
Which software supports PXIe-6366?
The PXIe-6366 is supported by NI-DAQmx, LabVIEW, NI MAX, TestStand, and other NI software development tools.
What is the difference between PXIe-6366 and PXIe-6363?
The PXIe-6366 provides higher channel density and is designed for larger measurement systems, while the PXIe-6363 is a flexible general-purpose multifunction DAQ module for a wide range of applications.
Conclusion
The PXIe-6366 X Series Multifunction DAQ Module provides a powerful and scalable solution for engineers developing advanced PXI Express measurement and automation systems.
With high-speed acquisition, integrated analog and digital I/O, precise timing capability, and full NI software support, the PXIe-6366 is an excellent choice for industrial automation, automated testing, semiconductor validation, and engineering research applications.
