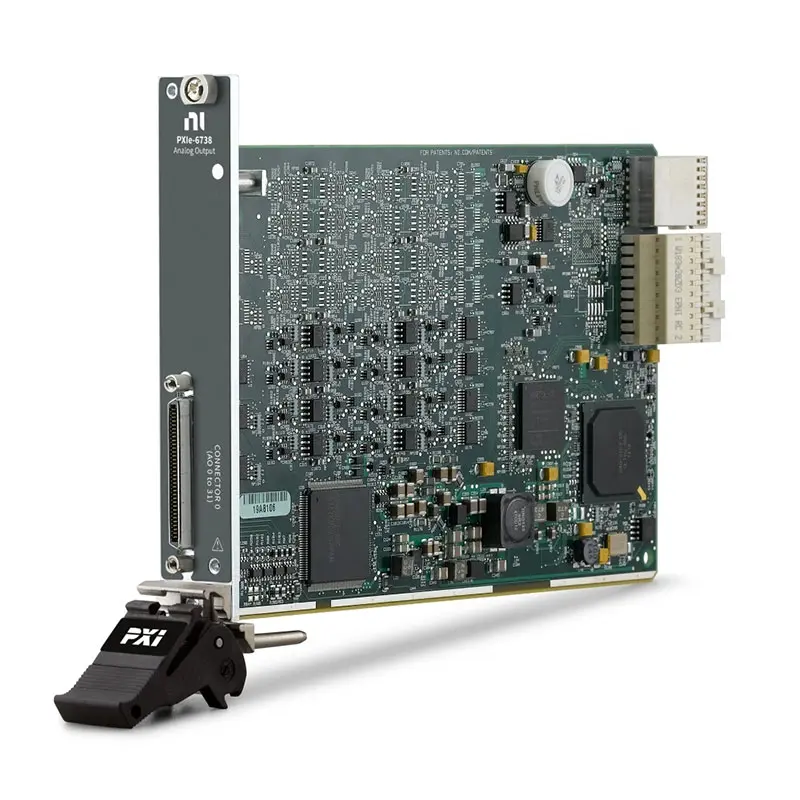

NI PXIe-6738 PXI Express Analog Output Module
The NI PXIe-6738 is a high-performance PXI Express analog output module designed for precision voltage generation, hardware simulation, automated testing, and control system applications. Developed by National Instruments, the PXIe-6738 provides multiple high-resolution analog output channels for generating accurate and synchronized signals.
The PXIe-6738 is based on NI PXI Express measurement technology and provides engineers with a flexible solution for applications requiring precise analog signal generation, waveform output, and closed-loop control.
With NI-DAQmx driver support, LabVIEW integration, and PXI Express high-speed communication, the PXIe-6738 is suitable for demanding engineering, research, and industrial measurement systems.
Key Features of NI PXIe-6738
High-Precision Analog Output Capability
The PXIe-6738 provides accurate analog voltage output for advanced measurement and control applications.
- High-resolution analog output
- Precision voltage generation
- Stable signal output
- Multi-channel operation
Multi-Channel Synchronized Output
The PXIe-6738 supports multiple synchronized analog outputs for complex test and simulation systems.
- Multiple analog output channels
- Synchronized signal generation
- Hardware timing control
- Coordinated output operations
PXI Express High-Speed Architecture
The PXIe-6738 uses PXI Express bandwidth for efficient communication with PXI controllers and other modules.
- High-speed PCI Express communication
- Fast data transfer
- Low-latency system response
- Scalable PXI system integration
NI Software Integration
The PXIe-6738 integrates with NI software platforms for analog output programming and automation development.
- LabVIEW support
- NI-DAQmx driver support
- NI MAX configuration
- TestStand integration
Applications of NI PXIe-6738
Automated Test Systems
The PXIe-6738 provides accurate analog stimulus generation for automated testing platforms.
- Electronic device testing
- Functional verification
- Production testing
- ATE system development
Hardware-in-the-Loop (HIL) Simulation
The PXIe-6738 is suitable for generating analog signals in real-time simulation environments.
- Automotive simulation
- Controller validation
- Real-time testing
- System verification
Industrial Control Systems
The PXIe-6738 supports industrial applications requiring precise analog control signals.
- Process control
- Equipment control
- Automation systems
- Signal conditioning
Research and Laboratory Applications
The PXIe-6738 provides flexible analog signal generation for engineering research.
- Experimental systems
- Signal generation
- Prototype development
- Scientific measurement
Software Support
The NI PXIe-6738 supports National Instruments software tools for analog output applications.
- LabVIEW
- NI-DAQmx
- NI MAX
- TestStand
Technical Specifications of PXIe-6738
| Feature | Description |
|---|---|
| Product Type | PXI Express Analog Output Module |
| Platform | PXI Express |
| Function | Analog Voltage Output |
| Resolution | 16-bit Analog Output |
| Software | LabVIEW, NI-DAQmx |
| Applications | Signal generation, testing, simulation, control |
Comparison with Similar PXI Express Analog Output Modules
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-6738 | High-performance PXI Express analog output module designed for precision multi-channel signal generation. | Advanced control and simulation systems |
|
NI PXIe-6739 | Higher-performance analog output module for demanding synchronized signal generation applications. | High-channel precision output |
|
NI PXI-6733 | PXI analog output module for general-purpose voltage generation applications. | Standard PXI systems |
|
NI PXIe-6363 | Multifunction PXI Express DAQ module combining analog input, output, and digital I/O. | Complete data acquisition systems |
Recommended Related Products
The following products are commonly used with the PXIe-6738 to build complete PXI Express signal generation and automated test systems.
|
NI PXIe-6739 | High-performance PXI Express analog output module for advanced signal generation applications. |
|
NI PXIe-6363 | X Series multifunction PXI Express DAQ module for integrated measurement systems. |
|
NI PXIe-5423 | PXI Express arbitrary waveform generator for advanced signal generation and testing. |
|
NI PXIe-8842 | PXI Express embedded controller for complete automated measurement system control. |
|
NI PXIe-1085 | 18-slot PXI Express chassis for large-scale modular instrumentation systems. |
Why Choose NI PXIe-6738
- High-precision PXI Express analog output capability
- Multi-channel synchronized signal generation
- Supports LabVIEW and NI-DAQmx
- High-speed PXI Express communication
- Ideal for automated testing and simulation
- Suitable for industrial control and research systems
Conclusion
The NI PXIe-6738 PXI Express Analog Output Module provides a powerful solution for engineers requiring accurate and synchronized analog signal generation in modular test systems.
With high-resolution output capability, PXI Express performance, and NI software integration, the PXIe-6738 is an excellent choice for automated testing, hardware simulation, industrial control, and advanced research applications.
