Product Introduction

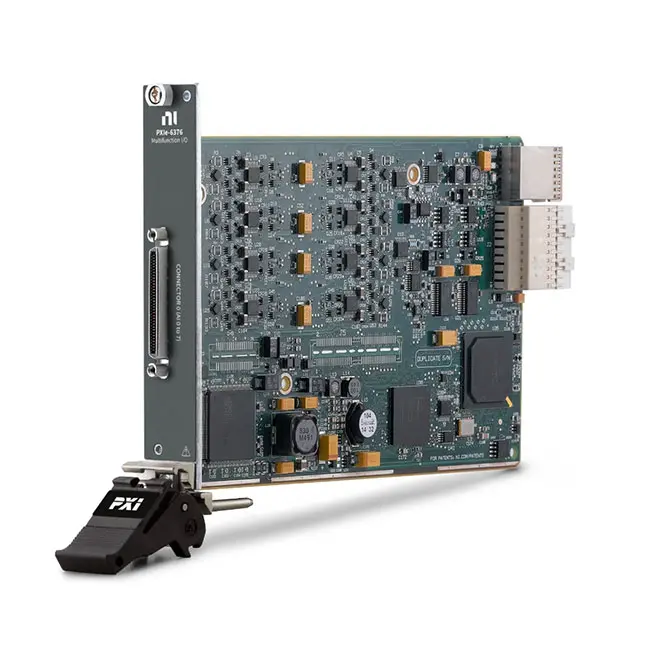

The PXIe-6376 is a high-performance X Series multifunction data acquisition (DAQ) module developed by National Instruments for PXI Express automated test, industrial automation, and engineering measurement applications. It combines high-speed analog input, analog output, digital I/O, and counter/timer functionality into a single PXI Express module, making it an ideal solution for complex test and measurement systems.
Built on the PXI Express platform, the PXIe-6376 offers excellent data throughput, precise timing, and seamless integration with the NI software ecosystem, enabling engineers to develop scalable and reliable automated measurement systems.
Product Overview
The PXIe-6376 belongs to the NI X Series family and is designed to provide synchronized analog and digital measurements for demanding applications. Its PCI Express interface ensures high-bandwidth communication while supporting deterministic timing and hardware synchronization across multiple PXI Express modules.
By integrating analog acquisition, analog generation, digital control, and timing resources into one compact module, the PXIe-6376 simplifies system architecture while reducing installation space and overall system cost.
The module supports NI-DAQmx, LabVIEW, and other NI development tools, allowing users to rapidly configure hardware, develop applications, and deploy automated test systems.
Key Features
High-Speed Multifunction Data Acquisition
The PXIe-6376 integrates multiple measurement and control functions into a single PXI Express module.
- High-speed analog input acquisition
- Integrated analog output channels
- Programmable digital I/O
- Hardware timing and triggering
Advantage: Reduces hardware complexity by combining measurement and control functions into one compact platform.
High-Resolution Analog Measurement
The PXIe-6376 provides accurate analog signal acquisition suitable for industrial and laboratory environments.
- 16-bit analog-to-digital conversion
- Excellent signal accuracy
- Low-noise acquisition
- Stable long-term performance
Advantage: Delivers reliable measurement results for precision testing and engineering validation.
PXI Express High-Bandwidth Architecture
The PXIe-6376 utilizes the PXI Express platform for fast communication between the DAQ module and embedded controller.
- PCI Express interface
- High-speed data transfer
- Low-latency communication
- Optimized system performance
Advantage: Supports demanding applications requiring continuous high-speed data acquisition.
Integrated Timing and Synchronization
The PXIe-6376 includes advanced timing resources for synchronized measurements across multiple PXI Express modules.
- Hardware timing engine
- Counter/timer functionality
- Trigger routing support
- Multi-device synchronization
Advantage: Improves timing accuracy in multi-channel and multi-module automated test systems.
Scalable PXI Express Integration
The PXIe-6376 integrates seamlessly with PXI Express chassis and controllers, allowing flexible system expansion.
- Compatible with PXI Express chassis
- Supports embedded PXI controllers
- Flexible modular expansion
- Designed for long-term scalability
Advantage: Enables users to expand their measurement systems without redesigning existing hardware.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Multifunction DAQ Module |
| DAQ Family | NI X Series |
| Analog Input | High-Speed Analog Input |
| Resolution | 16-bit ADC |
| Analog Output | Integrated Analog Output |
| Digital I/O | Programmable Digital I/O |
| Counter/Timer | Hardware Timing Resources |
| Interface | PXI Express |
| Driver Support | NI-DAQmx |
| Programming Environment | LabVIEW, C/C++, .NET, Python |
Software Ecosystem
The PXIe-6376 is fully supported by National Instruments software tools for measurement, automation, and system development.
- LabVIEW: Graphical programming software for automated measurement and control.
- NI-DAQmx: Driver software for hardware configuration and synchronized data acquisition.
- NI MAX: Device configuration, diagnostics, and calibration utility.
- TestStand: Automated test management software for validation and production testing.
Industries
- Industrial Automation
- Automotive Electronics
- Semiconductor Testing
- Aerospace and Defense
- Electronics Manufacturing
- Research and Development
Applications
Automated Test Equipment
The PXIe-6376 is widely used in PXI Express automated test systems requiring synchronized acquisition and control.
- Functional testing
- Production validation
- Electronic verification
- Quality control
Industrial Measurement and Control
The PXIe-6376 provides accurate acquisition and digital control for industrial automation systems.
- Machine monitoring
- Process control
- Sensor acquisition
- Equipment diagnostics
Engineering Research
The PXIe-6376 supports research laboratories requiring flexible analog and digital measurement capabilities.
- Prototype validation
- Signal analysis
- Experimental testing
- Data logging
Embedded System Validation
The PXIe-6376 enables synchronized hardware verification and embedded controller testing.
- Real-time measurement
- Hardware-in-the-loop testing
- Control system validation
- Embedded software verification
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
|
PXIe-6376 | High-performance X Series multifunction DAQ module optimized for automated testing and industrial measurement. | General-purpose PXI Express data acquisition |
|
PXIe-6378 | Higher-performance X Series multifunction DAQ module for demanding synchronized acquisition applications. | High-speed automated testing |
|
PXIe-6363 | Versatile multifunction DAQ module with balanced analog and digital performance. | General laboratory and industrial measurement |
|

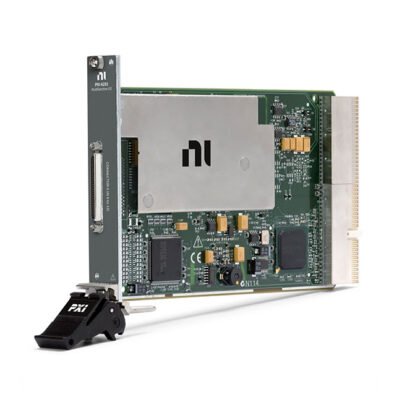

PXI-6251 | M Series multifunction DAQ module for standard PXI measurement applications. | General-purpose data acquisition |
Recommended Related Products
The following products are commonly used with the PXIe-6376 to build complete PXI Express automated test and measurement systems.
|
NI PXIe-1092 | 10-slot PXI Express chassis for compact automated measurement systems. |
|
NI PXIe-1095 | 18-slot PXI Express chassis for high-performance modular instrumentation platforms. |
|
NI PXIe-8842 | Embedded PXI Express controller for automated test and measurement systems. |
|
NI PXIe-6363 | X Series multifunction DAQ module for expanding PXI Express measurement capabilities. |
|
NI PXIe-6738 | High-density analog output module for waveform generation and control applications. |
Why Choose PXIe-6376?
- High-performance multifunction data acquisition
- 16-bit high-resolution analog measurement
- Integrated analog output, digital I/O, and timing resources
- High-bandwidth PXI Express communication
- Supports LabVIEW and NI-DAQmx software
- Ideal for industrial automation, automated testing, and engineering validation
Frequently Asked Questions
What is the PXIe-6376 used for?
The PXIe-6376 is used for multifunction data acquisition, industrial automation, automated testing, and engineering measurement applications requiring synchronized analog and digital I/O.
Which software supports the PXIe-6376?
The PXIe-6376 is supported by NI-DAQmx, LabVIEW, NI MAX, TestStand, and programming environments including C/C++, .NET, and Python.
What is the difference between PXIe-6376 and PXIe-6378?
Both modules belong to the NI X Series family. The PXIe-6378 is intended for higher-performance acquisition requirements, while the PXIe-6376 provides an excellent balance of measurement capability, flexibility, and system cost for general PXI Express applications.
Conclusion
The PXIe-6376 X Series Multifunction DAQ Module provides a reliable and scalable solution for engineers developing PXI Express automated test and measurement systems.
With high-speed analog acquisition, integrated digital control, precise hardware timing, and seamless compatibility with the NI software ecosystem, the PXIe-6376 is an ideal choice for industrial automation, electronics testing, laboratory research, and engineering validation.
