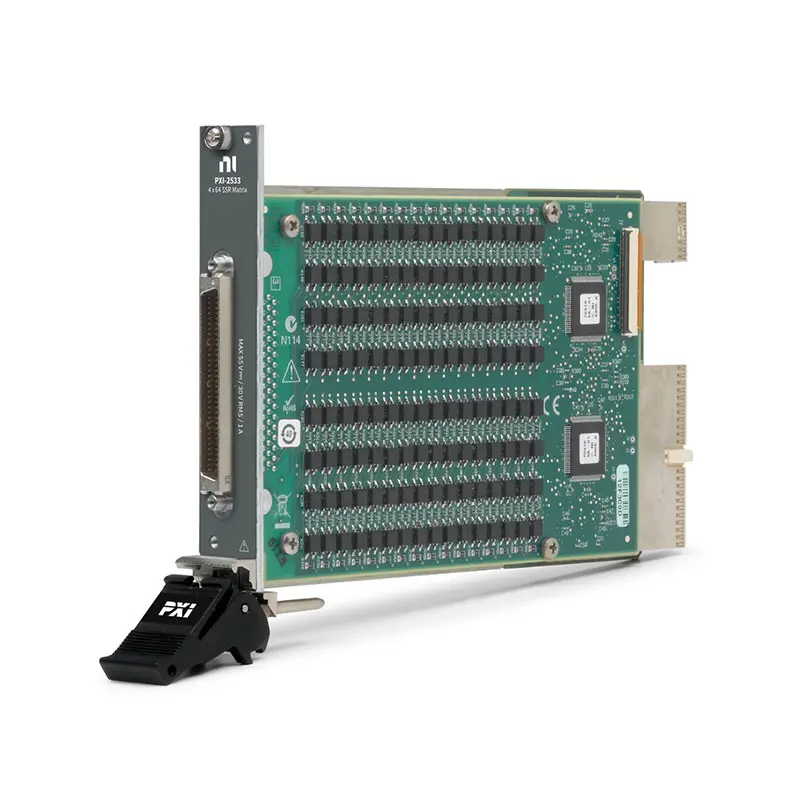

PXI-2533

The NI PXI-2533 is a high-density, 1-wire PXI matrix switch module utilizing Solid-State Relay (SSR) technology. Featuring 256 crosspoints in a 4×64 configuration, this module is specifically engineered for high-speed automated test systems (ATE) that require high-throughput switching and virtually unlimited relay life. Unlike traditional electromechanical switches, the PXI-2533 offers microsecond switching speeds and remains free from mechanical wear, making it the premier choice for reliability-intensive applications such as semiconductor validation and mass production testing.

1. Key Technical Specifications

Total Crosspoints: 256 (1-wire) Topology: Fixed 4×64 matrix Relay Type: Solid-State Relay (SSR) Max Switching Voltage: 60 VDC / 60 VAC (CAT I) Max Switching Current: 1.0 A (Simultaneous per channel) Switching Speed: 500 microseconds (Total transition time) Relay Life: Virtually unlimited (No mechanical moving parts) Path Resistance: 1.4 Ohms (Typical)

2. Detailed Technical Breakdown

Solid-State Reliability and Speed The core advantage of the PXI-2533 is the use of Solid-State Relays. While electromechanical relays are limited to millions of cycles, SSRs do not suffer from mechanical fatigue. This translates to a significantly lower Total Cost of Ownership (TCO) in 24/7 production environments where a mechanical switch would require frequent replacement. Furthermore, the 500-microsecond switching speed is orders of magnitude faster than mechanical equivalents, drastically reducing overall test time.

High-Density 4×64 Configuration Providing 256 crosspoints within a single PXI slot, the PXI-2533 allows for the routing of up to 64 different test points to 4 distinct measurement instruments. This 1-wire configuration is optimized for single-ended signals and common-ground systems. The compact design ensures that engineers can scale their switching subsystems without occupying excessive chassis real estate.

Simultaneous Current Handling Many high-density matrices limit the amount of current that can be carried across multiple channels simultaneously due to heat buildup. The PXI-2533 is designed for robust power distribution, allowing for a continuous 1.0 A current across all channels up to its total power limit. This makes it suitable for power-on self-test (POST) routines and basic power rail routing.

3. Usage and Application Scenarios

Semiconductor Validation and Production In the semiconductor industry, testing thousands of chips daily requires switches that can keep up with fast testers. The PXI-2533’s SSR speed ensures the switch is never the bottleneck in the test cycle, while its longevity prevents costly production line stoppages for maintenance.

Hardware-in-the-Loop (HIL) Simulation For HIL systems simulating rapid sensor feedback or fault insertion, the microsecond response time of the PXI-2533 is essential. It allows for the dynamic reconfiguration of signal paths to mimic real-world electrical transients and sensor failures.

Reliability and Burn-in Testing During long-term environmental stress screening (ESS) or burn-in, switches are often cycled repeatedly. The PXI-2533 excels in these scenarios, providing consistent contact resistance over years of continuous operation, ensuring that data collected at the start of a test remains comparable to data at the end.

4. Product Comparison and Recommendations

NI PXI-2533 (The SSR Speedster) 256 crosspoints, 60V/1A, SSR. Best for high-speed production, 24/7 testing, and applications where relay replacement is not feasible.

NI PXI-2532B (Ultra-High Density Mechanical) Up to 512 crosspoints, 100V/0.5A, Reed Relay. Best for extremely high-channel counts where space is the absolute priority, though relay life is finite compared to SSR.

NI PXI-2529 (High-Voltage Matrix) 128 crosspoints, 150V/1A, Electromechanical. Best for applications involving higher voltages (up to 150V) where the solid-state limits of the PXI-2533 would be exceeded.

Summary

The NI PXI-2533 stands as a high-performance, maintenance-free solution for engineers pushing the boundaries of test throughput. Its combination of SSR speed, 1A current capacity, and 256-crosspoint density provides a unique edge in professional ATE system design. We offer expert technical support for system architecture and support project pricing for large-scale production line deployments and multi-chassis integrations.
