Product Introduction

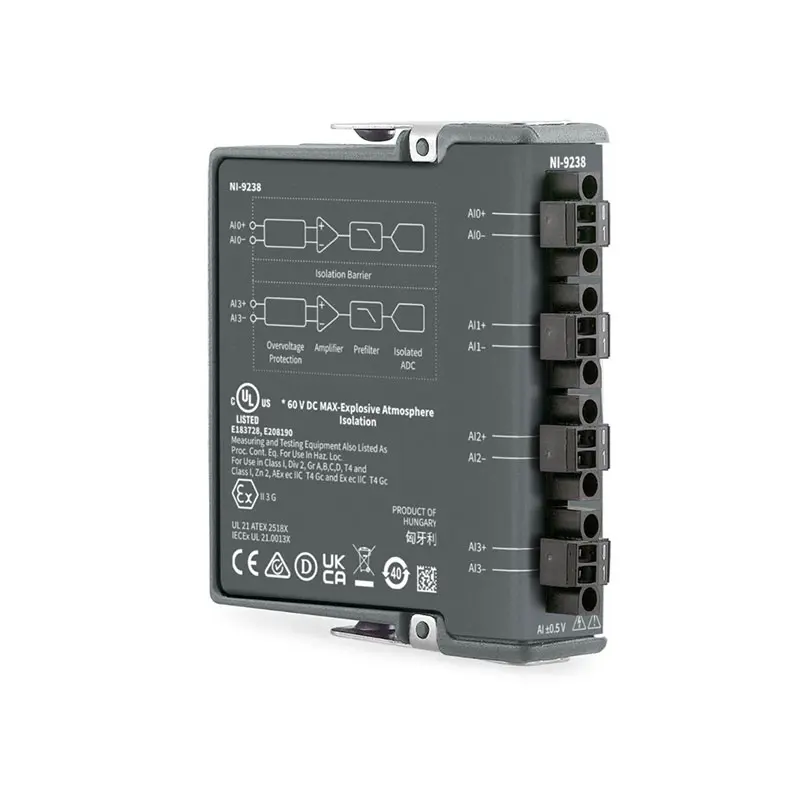

The NI-9238 is a C Series analog input module designed for dynamic signal acquisition, vibration measurement, and condition monitoring applications. It provides four IEPE input channels for connecting accelerometers, microphones, and other piezoelectric sensors requiring integrated signal conditioning.
Featuring 24-bit resolution, IEPE sensor excitation, simultaneous sampling, CompactRIO and CompactDAQ compatibility, and NI-DAQmx software support, the NI-9238 provides a high-performance solution for structural testing, machine diagnostics, and dynamic measurement systems.
Product Overview
The NI-9238 belongs to the NI C Series dynamic signal acquisition module family and is designed for applications requiring high-quality measurement of vibration and acoustic signals.
Unlike standard analog input modules, the NI-9238 includes built-in IEPE excitation and signal conditioning, allowing direct connection to industrial vibration sensors without additional external conditioning hardware.
With high-resolution acquisition, synchronized sampling, and modular C Series architecture, the NI-9238 is suitable for predictive maintenance, mechanical testing, aerospace validation, and laboratory research.
Key Features
4-Channel IEPE Sensor Input
The NI-9238 provides four analog input channels specifically designed for IEPE-powered sensors.
- 4 IEPE input channels
- Support for piezoelectric sensors
- Integrated current excitation
- Direct accelerometer connection
- Dynamic signal measurement
Advantage: Simplifies vibration measurement system design by eliminating external IEPE conditioning equipment.
24-Bit High-Resolution Acquisition
The NI-9238 provides high-resolution analog conversion for accurate dynamic signal analysis.
- 24-bit ADC resolution
- High signal-to-noise ratio
- Low distortion measurement
- Detailed waveform capture
- Precision dynamic analysis
Advantage: Enables accurate measurement of low-level vibration and acoustic signals.
Simultaneous Sampling Capability
The NI-9238 provides synchronized acquisition across all channels.
- Simultaneous channel sampling
- Phase-consistent measurement
- Time synchronization
- Multi-channel vibration analysis
- Dynamic signal monitoring
Advantage: Maintains accurate timing relationships between multiple sensor signals.
Integrated IEPE Signal Conditioning
The NI-9238 includes built-in signal conditioning for IEPE sensors.
- IEPE current excitation
- Sensor power supply
- Input signal conditioning
- Noise reduction
- Improved measurement reliability
Advantage: Reduces system complexity and improves measurement accuracy.
C Series Modular Architecture
The NI-9238 uses NI C Series technology for flexible system integration.
- CompactRIO compatibility
- CompactDAQ compatibility
- Modular I/O expansion
- Hot-swappable module design
- Scalable measurement platforms
Advantage: Enables customized vibration and dynamic measurement systems.
NI-DAQmx and LabVIEW Support
The NI-9238 integrates with NI software tools for advanced measurement development.
- NI-DAQmx driver support
- LabVIEW integration
- Signal processing functions
- Hardware configuration tools
- Automated measurement development
Advantage: Simplifies development of vibration analysis and monitoring applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | C Series Dynamic Signal Acquisition Module |
| Input Channels | 4 IEPE Analog Input Channels |
| Resolution | 24-bit ADC |
| Signal Type | Dynamic Voltage Input |
| Sensor Support | IEPE Accelerometers and Sensors |
| Platform Compatibility | CompactRIO, CompactDAQ |
| Driver Support | NI-DAQmx |
| Programming | LabVIEW, C/C++, .NET |
Software Ecosystem
The NI-9238 integrates with NI software platforms for vibration analysis, dynamic measurement, and automated testing.
- NI-DAQmx: Provides hardware drivers, acquisition control, and configuration.
- LabVIEW: Enables graphical programming for measurement and analysis applications.
- Sound and Vibration Toolkit: Supports advanced dynamic signal analysis.
- NI MAX: Provides hardware setup and diagnostics.
- Measurement Studio: Supports Windows-based measurement applications.
Industries
- Industrial Automation
- Automotive Testing
- Aerospace and Defense
- Mechanical Engineering
- Energy Systems
- Research Laboratories
- Predictive Maintenance
- Structural Testing
Applications
Vibration Monitoring
The NI-9238 provides accurate vibration measurement for machine condition monitoring.
- Machine health monitoring
- Predictive maintenance
- Bearing analysis
- Rotating machinery diagnostics
Structural Testing
The NI-9238 supports dynamic testing of mechanical structures.
- Modal analysis
- Structural vibration testing
- Mechanical validation
- Engineering research
Automotive Testing
The module is suitable for vehicle vibration and durability testing.
- Vehicle NVH testing
- Component validation
- Road testing
- Performance analysis
Acoustic Measurement
The NI-9238 can acquire signals from IEPE microphones and acoustic sensors.
- Sound measurement
- Noise analysis
- Environmental testing
- Audio research
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI-9238 | 4-channel IEPE dynamic signal acquisition module with 24-bit resolution. | Vibration and acoustic measurement |
| NI-9234 | 4-channel IEPE analog input module for sound and vibration applications. | Dynamic signal acquisition |
| NI-9232 | 3-channel analog input module for dynamic signal measurement. | General vibration testing |
| NI-9215 | Voltage input module for general analog measurement. | Standard analog acquisition |
Recommended Related Products
| NI-9234 | Dynamic signal acquisition module for IEPE vibration sensors. |
| NI-9232 | Analog input module for dynamic measurement applications. |
| NI cRIO-9039 | CompactRIO controller for embedded measurement and control systems. |
| NI-9237 | Strain and bridge measurement module for structural testing applications. |
Why Choose NI-9238?
- 4-channel IEPE sensor input
- 24-bit high-resolution acquisition
- Integrated sensor excitation
- Simultaneous dynamic signal measurement
- CompactRIO and CompactDAQ compatibility
- NI-DAQmx and LabVIEW support
- Ideal for vibration monitoring
- Flexible C Series measurement solution
Frequently Asked Questions
What is NI-9238 used for?
The NI-9238 is used for vibration measurement, dynamic signal acquisition, structural testing, acoustic measurement, and predictive maintenance applications.
Does NI-9238 support IEPE sensors?
Yes. The NI-9238 provides integrated IEPE excitation and supports IEPE accelerometers, microphones, and other piezoelectric sensors.
What is the difference between NI-9238 and NI-9234?
Both modules are designed for IEPE dynamic signal measurement. The NI-9238 provides similar functionality with different hardware specifications and application positioning compared with the NI-9234.
Conclusion
The NI-9238 C Series dynamic signal acquisition module provides a high-performance solution for vibration monitoring, acoustic measurement, and mechanical testing applications. With IEPE sensor support, 24-bit resolution, CompactRIO and CompactDAQ compatibility, and NI software integration, it is an ideal choice for advanced dynamic measurement systems.
