Product Introduction

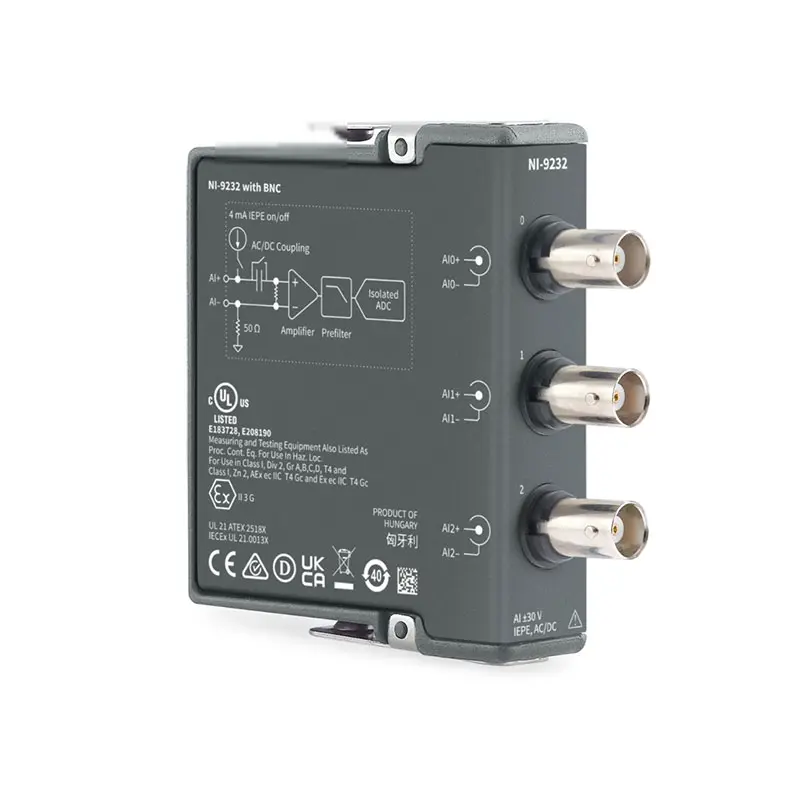

The NI-9232 is a 3-channel C Series dynamic signal acquisition module designed for sound, vibration, acoustic, and mechanical measurement applications. It provides direct connectivity to IEPE sensors, integrated signal conditioning, and high-resolution analog acquisition for demanding dynamic measurement systems.
With 24-bit ADC resolution, 102.4 kS/s per-channel sampling, built-in IEPE excitation current, and anti-aliasing filters, the NI-9232 delivers accurate dynamic signal measurement for CompactDAQ and CompactRIO platforms.
Product Overview
The NI-9232 belongs to the National Instruments C Series dynamic signal acquisition family and is optimized for accelerometers, microphones, and other IEPE-based sensors.
Each input channel includes an integrated analog front end with excitation current, AC/DC coupling selection, and high-resolution ADC conversion. The module provides synchronized acquisition across all channels, making it suitable for vibration analysis, acoustic testing, and machine condition monitoring.
The NI-9232 integrates with NI-DAQmx, LabVIEW, FlexLogger, and CompactRIO real-time systems, enabling scalable engineering measurement solutions.
Key Features
3-Channel IEPE Dynamic Signal Inputs
The NI-9232 provides three independent analog input channels optimized for IEPE sensors.
- 3 differential dynamic signal inputs
- IEPE accelerometer support
- IEPE microphone support
- Simultaneous channel acquisition
- Dynamic measurement capability
Advantage: Enables synchronized vibration and acoustic measurements using industry-standard IEPE sensors.
24-Bit High-Resolution ADC
The module uses high-resolution analog conversion technology for precise dynamic signal measurement.
- 24-bit ADC resolution
- High dynamic range
- Low-noise acquisition
- Accurate signal reproduction
- Improved measurement repeatability
Advantage: Captures low-level vibration and acoustic signals with excellent measurement detail.
102.4 kS/s Sampling Rate per Channel
The NI-9232 supports high-speed simultaneous sampling for dynamic applications.
- 102.4 kS/s per channel
- Simultaneous sampling
- Hardware-timed acquisition
- Dynamic signal analysis
- Transient event capture
Advantage: Provides sufficient bandwidth for vibration, acoustic, and mechanical analysis applications.
Integrated IEPE Current Excitation
The NI-9232 provides built-in excitation for powered sensors.
- Integrated IEPE excitation
- Constant current sensor power
- No external signal conditioner required
- Simplified sensor connection
- Reduced system complexity
Advantage: Directly connects common industrial accelerometers and microphones without additional hardware.
AC/DC Coupling Support
Flexible input coupling allows measurement of different signal types.
- AC coupling for dynamic signals
- DC coupling for offset measurements
- Sensor bias monitoring
- Flexible measurement configuration
- Application-specific setup
Advantage: Supports both vibration-only applications and measurements requiring DC signal information.
Built-In Anti-Aliasing Filters
The NI-9232 includes integrated filtering for accurate dynamic measurement.
- Analog anti-aliasing filters
- Signal conditioning
- Improved frequency response
- Reduced measurement distortion
- Reliable frequency analysis
Advantage: Improves measurement accuracy in vibration and acoustic analysis applications.
Channel-to-Earth Isolation
Electrical isolation improves reliability in industrial environments.
- Channel-to-earth isolation
- Reduced ground-loop interference
- Improved noise immunity
- Sensor protection
- Industrial deployment support
Advantage: Provides stable measurements when sensors are installed in electrically noisy environments.
Compact C Series Architecture
The NI-9232 integrates into CompactDAQ and CompactRIO systems.
- C Series modular design
- Compact installation
- Flexible chassis expansion
- Mixed measurement capability
- Industrial-ready platform
Advantage: Allows engineers to combine vibration, temperature, voltage, and digital measurements in one system.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | C Series Dynamic Signal Acquisition Module |
| Number of Channels | 3 Analog Input Channels |
| Input Type | IEPE Dynamic Signal Input |
| ADC Resolution | 24 Bits |
| Maximum Sampling Rate | 102.4 kS/s per Channel |
| Input Coupling | AC/DC Selectable |
| Sensor Support | IEPE Accelerometers and Microphones |
| Excitation | Integrated IEPE Current Excitation |
| Filtering | Anti-Aliasing Filters |
| Isolation | Channel-to-Earth Isolation |
| Supported Platforms | CompactDAQ and CompactRIO |
| Driver | NI-DAQmx |
| Programming Support | LabVIEW, FlexLogger, Python, C/C++, C#, .NET |
Software Ecosystem
The NI-9232 integrates with National Instruments software tools for dynamic measurement and analysis.
- NI-DAQmx: Provides hardware configuration, acquisition, timing, and programming support.
- LabVIEW: Enables vibration analysis, acoustic testing, and automated measurement development.
- FlexLogger: Provides configuration-based engineering data acquisition.
- NI MAX: Supports hardware detection, diagnostics, and configuration.
- DIAdem: Provides engineering data analysis and reporting.
- Python, C/C++, C#, .NET: Supports custom measurement applications.
Industries
- Automotive Testing
- Aerospace Engineering
- Industrial Automation
- Mechanical Research
- Manufacturing
- Energy Systems
- Machine Condition Monitoring
- Research Laboratories
Applications
Vibration Measurement
The NI-9232 provides accurate acquisition from IEPE vibration sensors.
- Machine vibration monitoring
- Modal testing
- Structural analysis
- Mechanical diagnostics
Acoustic Testing
The module supports IEPE microphones for sound measurement applications.
- Noise testing
- Acoustic analysis
- Sound quality evaluation
- Environmental noise measurement
Machine Condition Monitoring
High-speed dynamic acquisition enables predictive maintenance systems.
- Bearing monitoring
- Motor vibration analysis
- Equipment diagnostics
- Fault detection
Automotive and Aerospace Testing
The NI-9232 supports dynamic testing during vehicle and aerospace validation.
- Vehicle vibration testing
- Component durability testing
- Flight structure analysis
- Environmental testing
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI-9232 | 3-channel IEPE dynamic signal acquisition module for vibration and acoustic measurement. | General vibration and sound testing |
| NI-9234 | 4-channel IEPE dynamic signal module with higher channel count. | Multi-channel vibration testing |
| NI-9233 | 4-channel IEPE module optimized for vibration measurement applications. | Machine monitoring systems |
| NI-9230 | Dynamic signal acquisition module for sound and vibration applications. | General dynamic measurement |
Recommended Related Products
| NI cDAQ-9185 | Ethernet CompactDAQ chassis for distributed vibration and acoustic measurement. |
| NI cRIO-9056 | CompactRIO controller supporting C Series dynamic measurement modules. |
| NI-9234 | 4-channel IEPE vibration measurement module. |
| NI-9237 | Bridge input module for strain, load, torque, and pressure measurement. |
Why Choose NI-9232?
- 3-channel IEPE dynamic signal acquisition
- 24-bit high-resolution ADC
- 102.4 kS/s sampling per channel
- Integrated IEPE excitation
- AC/DC coupling support
- Built-in anti-aliasing filters
- Channel-to-earth isolation
- Compatible with CompactDAQ and CompactRIO
- Ideal for vibration and acoustic testing
- Supported by NI-DAQmx and LabVIEW
Frequently Asked Questions
What sensors can NI-9232 measure?
The NI-9232 is designed for IEPE sensors including industrial accelerometers, vibration sensors, and IEPE microphones.
What is the difference between NI-9232 and NI-9234?
The NI-9232 provides three IEPE input channels, while the NI-9234 provides four channels and is commonly used for higher-channel-count vibration measurement systems.
Can NI-9232 be used with CompactRIO?
Yes. The NI-9232 is compatible with supported CompactRIO controllers and CompactDAQ chassis for distributed dynamic measurement applications.
Conclusion
The NI-9232 3-channel C Series dynamic signal acquisition module provides high-resolution IEPE sensor measurement, integrated excitation, synchronized sampling, and industrial isolation for vibration and acoustic applications. It is an ideal solution for machine monitoring, structural testing, automotive validation, aerospace analysis, and engineering research systems based on CompactDAQ and CompactRIO platforms.
