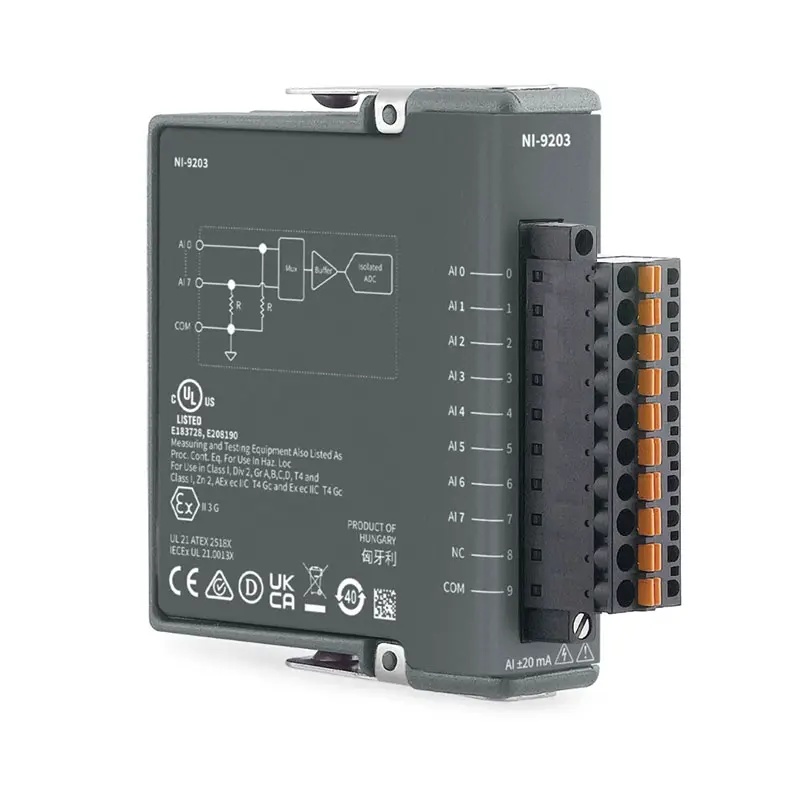

NI-9203 C Series Current Input Module
The NI-9203 is an industrial-grade C Series current input module designed for current loop measurement, sensor monitoring, process automation, and distributed data acquisition applications. Developed by National Instruments, the NI-9203 provides 8 channels of analog current input for CompactDAQ and CompactRIO systems.
The NI-9203 is optimized for industrial sensors and transmitters commonly using 4-20 mA current loops. With reliable signal acquisition, channel isolation, and robust C Series architecture, it provides accurate and stable measurements for industrial environments.
Supporting NI-DAQmx software, LabVIEW programming, and flexible CompactDAQ deployment, the NI-9203 provides a practical solution for industrial monitoring and automated measurement systems.
Key Features of NI-9203
8-Channel Analog Current Input
The NI-9203 provides multiple current input channels for monitoring industrial sensors and electrical signals.
- 8 analog current input channels
- ±20 mA input range
- 4-20 mA sensor compatibility
- Industrial current measurement
Industrial Current Loop Measurement
The NI-9203 is designed for applications using standard industrial current loop sensors.
- 4-20 mA transmitter measurement
- Process instrumentation monitoring
- Sensor signal acquisition
- Industrial automation support
C Series Modular Architecture
The NI-9203 uses NI C Series technology for flexible integration into CompactDAQ and CompactRIO platforms.
- CompactDAQ compatibility
- CompactRIO compatibility
- Modular channel expansion
- Distributed measurement capability
Reliable Industrial Signal Acquisition
The NI-9203 provides stable acquisition performance for long-term industrial monitoring applications.
- Noise-resistant measurement
- Reliable operation
- Industrial environment support
- Continuous monitoring capability
NI Software Integration
The NI-9203 works with NI software platforms for measurement configuration and application development.
- NI-DAQmx support
- LabVIEW integration
- NI MAX configuration
- TestStand compatibility
Applications of NI-9203
Industrial Process Monitoring
The NI-9203 provides accurate current measurement for industrial process control and monitoring systems.
- Flow sensor monitoring
- Pressure transmitter measurement
- Industrial process control
- Equipment monitoring
Factory Automation
The NI-9203 enables integration of industrial sensors into automated measurement systems.
- Machine monitoring
- Production equipment testing
- Automation systems
- Industrial diagnostics
Remote Data Acquisition
The NI-9203 is suitable for distributed measurement systems requiring reliable current acquisition.
- Remote monitoring stations
- Environmental monitoring
- Infrastructure measurement
- Field data acquisition
Research and Laboratory Applications
The NI-9203 provides flexible current measurement capability for engineering and research systems.
- Sensor testing
- Prototype development
- Experimental measurement
- Data logging
Software Support
The NI-9203 supports National Instruments software tools for industrial data acquisition and automation.
- LabVIEW
- NI-DAQmx
- NI MAX
- TestStand
Technical Specifications of NI-9203
| Feature | Description |
|---|---|
| Product Type | C Series Current Input Module |
| Platform | CompactDAQ / CompactRIO |
| Channels | 8 Analog Current Input Channels |
| Input Range | ±20 mA |
| Signal Type | Current Loop / Industrial Sensors |
| Software | LabVIEW, NI-DAQmx |
| Applications | Industrial monitoring, process control, sensor measurement |
Comparison with Similar C Series Analog Input Modules
| Model | Main Difference | Best Application |
|---|---|---|
|
NI-9203 | 8-channel analog current input module designed for industrial current loop measurement. | 4-20 mA industrial monitoring |
|
NI-9208 | Higher-density current input module optimized for industrial sensor applications. | Large-scale process monitoring |
|
NI-9219 | Universal analog input module supporting voltage, current, RTD, and thermocouple measurements. | Multi-sensor measurement |
|
NI-9227 | Current input module designed for higher-current electrical measurement applications. | Power and electrical monitoring |
Recommended Related Products
The following products are commonly used with the NI-9203 to build complete CompactDAQ and CompactRIO industrial measurement systems.
|
NI cDAQ-9189 | Ethernet CompactDAQ chassis for distributed industrial data acquisition systems. |
|
NI cDAQ-9178 | 8-slot CompactDAQ chassis for multi-channel C Series measurement systems. |
|
NI-9208 | Industrial current input module for high-channel-count current loop measurement. |
|
NI-9219 | Universal analog input module for flexible sensor measurement applications. |
|
NI cRIO-9045 | CompactRIO controller for industrial control and embedded measurement systems. |
Why Choose NI-9203
- 8-channel industrial current measurement
- Supports standard 4-20 mA sensors
- Reliable C Series modular design
- Compatible with CompactDAQ and CompactRIO
- Supports NI-DAQmx and LabVIEW
- Ideal for industrial monitoring and automation
Conclusion
The NI-9203 C Series Current Input Module provides a reliable and flexible solution for engineers requiring accurate industrial current measurement in automated and distributed data acquisition systems.
With 4-20 mA support, C Series modular architecture, and NI software integration, the NI-9203 is an excellent choice for industrial automation, process monitoring, sensor acquisition, and remote measurement applications.
