Product Introduction

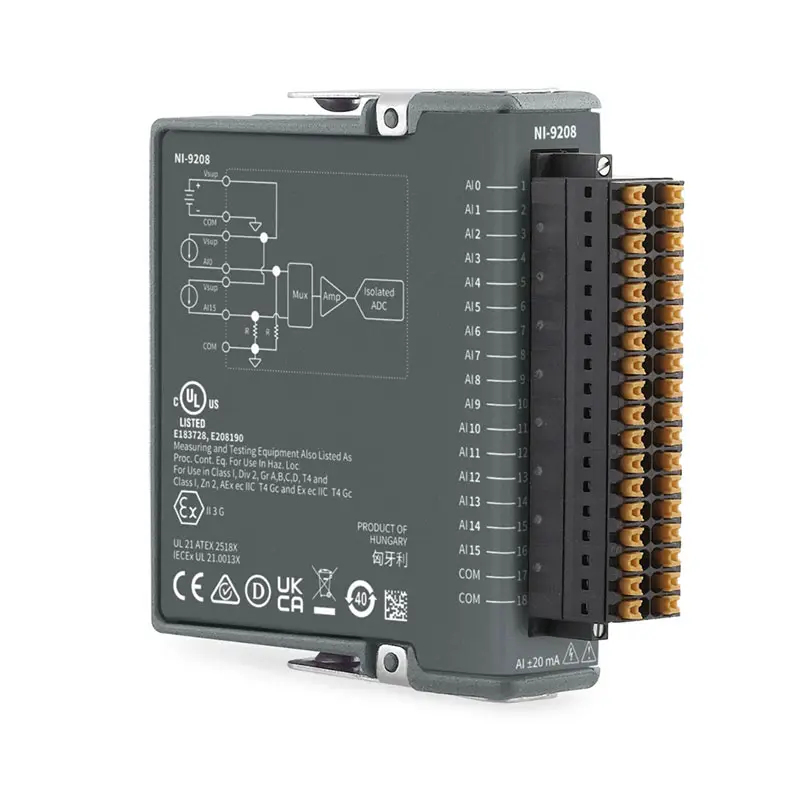

The NI-9208 is a high-density 16-channel C Series current input module designed for industrial data acquisition, process monitoring, automated test, machine monitoring, and measurement of current-output sensors and transmitters.
The NI-9208 provides 16 single-ended analog current input channels, a nominal ±20 mA measurement range, 24-bit resolution, and a maximum aggregate sampling rate of 500 S/s.
Designed with industrial measurement systems in mind, the NI-9208 also provides a high-resolution acquisition mode with 50/60 Hz rejection, helping reduce power-line interference in low-speed precision measurements.
Product Overview
The National Instruments NI-9208 belongs to the C Series current input module family and can be integrated into compatible CompactDAQ and CompactRIO systems.
A typical measurement architecture is:
4–20 mA Sensor / Current Signal → NI-9208 → CompactDAQ or CompactRIO → Measurement Software
Its 16-channel architecture provides high channel density in a single C Series slot, making it particularly useful for industrial systems that need to monitor many current-loop sensors without installing multiple lower-channel-count modules.
Key Features
16 Current Input Channels
The NI-9208 provides 16 single-ended analog current input channels.
The high channel count is useful for systems that monitor multiple industrial transmitters, sensors, and process signals simultaneously within a compact C Series platform.
Typical connected devices include:
- Pressure transmitters
- Flow transmitters
- Level transmitters
- Temperature transmitters
- Position transmitters
- Industrial process sensors
- Current-output measurement devices
±20 mA Current Measurement
The NI-9208 is designed for current measurements around the standard industrial current-loop range and supports approximately -20 mA to +20 mA measurement.
This makes it particularly suitable for common industrial signals such as:
- 4–20 mA
- 0–20 mA
- Bidirectional current signals
- Industrial transmitter outputs
24-Bit Resolution
The NI-9208 uses a 24-bit ADC, providing high digital resolution for industrial current measurements.
This is especially useful for slowly changing process signals where measurement stability and the ability to detect small current changes are more important than very high acquisition speed.
500 S/s Maximum Sampling Rate
The NI-9208 provides a maximum sampling rate of 500 S/s.
The 500 S/s specification applies to the module’s multiplexed acquisition architecture and should not be interpreted as 500 S/s per channel.
When multiple channels are scanned, the available acquisition rate is distributed across the channels being measured.
High-Resolution Mode
The NI-9208 provides a high-resolution measurement mode intended for applications where low noise is more important than maximum acquisition speed.
This mode is particularly useful for slowly changing industrial process measurements such as pressure, temperature, flow, and level.
50/60 Hz Noise Rejection
The high-resolution mode includes 50 Hz and 60 Hz rejection to help reduce interference from AC power systems.
This capability is useful in industrial environments where low-level current signals may be affected by mains-frequency electrical noise.
Industrial Current Loop Measurement
The NI-9208 is particularly well suited for 4–20 mA industrial current loops.
A typical architecture is:
Industrial Transmitter → 4–20 mA Signal → NI-9208 → Monitoring / Control Software
The measured current can represent physical variables such as pressure, temperature, flow, level, position, or other process parameters.
External Power Routing
The NI-9208 provides Vsup terminals that can be used for routing an external power supply to connected sensors.
The Vsup connection supports external power routing up to 2 A and 30 V maximum, subject to the module’s wiring and safety requirements.
Active and Passive Sensor Support
The NI-9208 can be used with both active and passive current-output sensors when they are wired correctly.
For a typical passive sensor, the external supply can be routed through Vsup and the appropriate analog input channel.
For an active sensor that provides its own powered current output, the signal can be connected between the appropriate analog input and COM according to the device wiring requirements.
C Series Platform
The NI-9208 uses the NI C Series form factor.
This allows it to be combined with other measurement and control modules in compatible systems, including:
- Voltage input modules
- Temperature modules
- Digital input/output modules
- Relay modules
- Analog output modules
- Communication modules
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | C Series Current Input Module |
| Model | NI-9208 |
| Manufacturer | National Instruments |
| Bus / Platform | C Series |
| Analog Input Channels | 16 Single-Ended |
| Analog Input Resolution | 24 Bit |
| Current Measurement Range | ±20 mA Class |
| Maximum Sampling Rate | 500 S/s Aggregate |
| ADC Architecture | Delta-Sigma, Multiplexed |
| High-Resolution Mode | Supported |
| 50/60 Hz Rejection | Supported |
| Vsup External Power Routing | Up to 2 A / 30 V Maximum |
| Operating Temperature | -40 °C to 70 °C |
| Primary Applications | 4–20 mA Measurement, Industrial Monitoring, Process Measurement and Data Acquisition |
NI-9208 Part Numbers
The NI-9208 is available in several configurations. The connector type, isolation rating, and conformal coating should be checked using the complete part number before ordering.
| Part Number | Connection | Configuration |
|---|---|---|
| 785041-01 | Spring Terminal | NI-9208 Spring-Terminal Version |
| 780968-01 | D-SUB | NI-9208 D-SUB Version |
| 780968-02 | D-SUB | NI-9208 D-SUB, Conformal-Coated Version |
Always provide the complete NI part number when requesting a replacement or quotation because different NI-9208 variants can have different connector, isolation, and environmental characteristics.
Spring Terminal vs D-SUB NI-9208
| Feature | Spring Terminal | D-SUB |
|---|---|---|
| Typical Part Number | 785041-01 | 780968-01 |
| Channels | 16 | 16 |
| Resolution | 24 Bit | 24 Bit |
| Maximum Sampling Rate | 500 S/s | 500 S/s |
| Current Range | ±20 mA Class | ±20 mA Class |
| Front Connection | Spring Terminal | D-SUB |
| Channel-to-Earth Isolation | 250 Vrms | 60 VDC |
How Does the NI-9208 Work?
The NI-9208 converts analog current signals from sensors and industrial transmitters into digital measurement data.
A simplified measurement path is:
Current Signal → NI-9208 Input → Multiplexer → 24-Bit ADC → C Series Chassis → Measurement Software
The host system can then display, analyze, log, alarm, or process the acquired current measurements.
Understanding the 500 S/s Sampling Rate
An important specification to understand is that the NI-9208 uses a multiplexed ADC architecture.
The specified 500 S/s maximum rate applies across the module rather than independently to every channel.
Therefore, applications requiring high-speed simultaneous measurements on every channel should consider a different C Series current input module.
The NI-9208 is primarily optimized for high-channel-count industrial process measurements rather than high-speed waveform acquisition.
High-Speed Mode vs High-Resolution Mode
The NI-9208 provides acquisition modes optimized for different measurement priorities.
| Mode | Typical Priority |
|---|---|
| High-Speed Mode | Faster channel conversion and monitoring |
| High-Resolution Mode | Lower noise and 50/60 Hz rejection |
High-resolution mode is particularly useful for slowly changing industrial process signals where power-line noise rejection is important.
What Is a 4–20 mA Current Loop?
A 4–20 mA current loop is one of the most common analog signal standards used in industrial instrumentation.
A typical system consists of:
Sensor / Transmitter → 4–20 mA Loop → NI-9208 → Measurement System
The current represents the measured physical parameter. For example, a pressure transmitter may map its minimum measurement value to approximately 4 mA and its maximum measurement value to approximately 20 mA.
Why Use Current Instead of Voltage Signals?
Current-loop signals are widely used in industrial environments because they are well suited for transmitting measurements over relatively long cable distances.
Advantages can include:
- Good resistance to electrical interference
- Reduced sensitivity to voltage drop in long wiring
- Simple fault detection in 4–20 mA systems
- Wide compatibility with industrial transmitters
- Reliable operation in process-control environments
Active Sensor Connection
An active current-output sensor provides its own powered output signal.
A typical connection is:
Active Sensor Output → NI-9208 AI Channel
Sensor Return → NI-9208 COM
The Vsup terminal is generally not required to power an active sensor that already has its own power source.
Passive Sensor Connection
Passive two-wire transmitters typically require an external loop power supply.
The NI-9208 Vsup terminals can be used to route an appropriate external power supply through the measurement system.
A simplified architecture is:
External Supply → Vsup → Passive Transmitter → AI Channel → NI-9208
Always verify the transmitter, power supply, wiring, and NI-9208 electrical specifications before making connections.
50/60 Hz Noise Rejection
Industrial facilities commonly contain electrical interference associated with 50 Hz or 60 Hz AC power systems.
The NI-9208 high-resolution mode provides rejection of these frequencies, helping improve measurement stability for low-speed process signals.
Typical applications include:
- Temperature monitoring
- Pressure monitoring
- Flow measurement
- Level measurement
- Long-term process monitoring
Industrial Process Monitoring
The NI-9208 is particularly well suited for industrial process measurement because many industrial transmitters provide standard 4–20 mA outputs.
One module can monitor up to 16 compatible current signals, such as:
CH0 → Pressure Transmitter
CH1 → Flow Transmitter
CH2 → Level Transmitter
CH3 → Temperature Transmitter
CH4–CH15 → Additional Process Sensors
CompactDAQ Applications
When installed in a compatible CompactDAQ chassis, the NI-9208 can be used for PC-based industrial data acquisition and logging.
A typical system can include:
- CompactDAQ chassis
- NI-9208 current input module
- Additional C Series measurement modules
- Host computer
- NI-DAQmx
- LabVIEW or compatible application software
CompactRIO Applications
The NI-9208 can also be integrated into compatible CompactRIO systems for embedded industrial measurement and monitoring.
A typical architecture is:
Industrial Sensors → NI-9208 → CompactRIO → Real-Time / FPGA System → Monitoring or Control
This configuration can be useful for distributed monitoring, embedded data acquisition, industrial automation, and machine-monitoring applications.
NI-9208 vs NI-9203
The NI-9208 and NI-9203 are both C Series current input modules, but they target different measurement requirements.
| Feature | NI-9208 | NI-9203 |
|---|---|---|
| Current Inputs | 16 | 8 |
| Current Range | ±20 mA Class | ±20 mA Class |
| Resolution | 24 Bit | 16 Bit |
| Maximum Sampling Rate | 500 S/s | 200 kS/s |
| Primary Strength | High Channel Density / Resolution | Higher-Speed Acquisition |
| Typical Application | Process Monitoring | Faster Current Measurements |
NI-9208 vs NI-9253
The NI-9208 and NI-9253 are both 24-bit C Series current input modules, but they are optimized for substantially different acquisition requirements.
| Feature | NI-9208 | NI-9253 |
|---|---|---|
| Input Channels | 16 | 8 |
| Current Range | ±20 mA | ±20 mA |
| Resolution | 24 Bit | 24 Bit |
| Sampling Architecture | Multiplexed | Simultaneous |
| Maximum Sampling | 500 S/s Aggregate | 50 kS/s/ch |
| Primary Strength | 16-Channel Process Monitoring | High-Speed Simultaneous Current Measurement |
Choose the NI-9208 when channel density and low-speed process monitoring are the priority. Choose the NI-9253 when substantially higher per-channel sampling rates and simultaneous acquisition are required.
NI-9208 vs NI-9207
The NI-9207 and NI-9208 share several industrial measurement characteristics, but the NI-9207 provides both voltage and current measurement capability while the NI-9208 is focused on current inputs.
| Feature | NI-9208 | NI-9207 |
|---|---|---|
| Primary Measurement | Current | Voltage + Current |
| Current Measurement | Supported | Supported |
| Resolution | 24 Bit | 24 Bit |
| Maximum Sample Rate | 500 S/s | 500 S/s |
| Best Application | High-Density Current Measurement | Mixed Voltage / Current Systems |
NI-9208 vs NI-9227
The NI-9208 should not be confused with the NI-9227. Although both measure current, they are designed for very different signal levels and applications.
| Feature | NI-9208 | NI-9227 |
|---|---|---|
| Typical Current Level | mA-Level Process Signals | Amp-Level Measurements |
| Typical Application | 4–20 mA Sensors | Electrical / Power Measurement |
| Channels | 16 | 4 |
| Resolution | 24 Bit | 24 Bit |
Isolation
NI-9208 isolation specifications depend on the connector version.
The spring-terminal configuration provides up to 250 Vrms channel-to-earth ground isolation, while the D-SUB configurations are specified with 60 VDC channel-to-earth ground isolation.
This difference is important when selecting a module for industrial installations with higher common-mode or safety requirements.
Operating Environment
The NI-9208 is designed for industrial environments and supports an operating temperature range of approximately -40 °C to 70 °C.
A conformal-coated D-SUB configuration is also available for applications where additional environmental protection of the electronics is required.
NI-DAQmx Integration
When used with compatible CompactDAQ hardware, the NI-9208 can be configured through NI-DAQmx.
Typical software operations include:
- Create current input channels
- Configure measurement ranges
- Select acquisition mode
- Configure timing
- Acquire measurements
- Scale current values to engineering units
- Log data
- Generate alarms
LabVIEW Integration
The NI-9208 can be integrated into compatible LabVIEW applications for industrial measurement and monitoring.
For example, a LabVIEW application can convert a 4–20 mA signal into engineering units such as:
- °C
- bar
- MPa
- L/min
- m³/h
- mm
- Percent full scale
Converting 4–20 mA to Engineering Units
Industrial transmitters normally map the 4–20 mA signal to a physical measurement range.
For example, if a pressure transmitter is configured as:
4 mA = 0 bar
20 mA = 100 bar
the acquired current can be mathematically scaled into pressure values inside the measurement software.
This allows the NI-9208 to serve as the current measurement interface while software displays the actual engineering quantity.
Signal Wiring Considerations
Before connecting current-loop devices to the NI-9208, verify:
- Current range
- Active or passive transmitter type
- External loop supply voltage
- Vsup wiring
- AI channel wiring
- COM connection
- Grounding
- Isolation requirements
- Connector type
- Cable shielding
Troubleshooting NI-9208 Measurements
If the NI-9208 produces incorrect or unstable measurements, check the complete current loop.
- Verify that the module is detected by the chassis.
- Confirm the correct analog input channel.
- Verify whether the sensor is active or passive.
- Check the external loop power supply.
- Confirm AI and COM wiring.
- Check Vsup wiring when powering passive transmitters.
- Verify the expected current range.
- Check for open-loop wiring.
- Verify grounding and shielding.
- Use high-resolution mode when 50/60 Hz interference is significant.
How to Choose a C Series Current Input Module
Before selecting the NI-9208, determine:
- Required number of current input channels
- Required current range
- Required sampling rate
- Required resolution
- Whether simultaneous sampling is required
- 4–20 mA transmitter type
- Active or passive sensor wiring
- Isolation requirements
- Spring-terminal or D-SUB connection
- Environmental requirements
- CompactDAQ or CompactRIO compatibility
- Software and driver compatibility
Industries
- Industrial Automation
- Process Control
- Oil and Gas
- Energy
- Water Treatment
- Manufacturing
- Building Automation
- Environmental Monitoring
- Automated Test
- Research and Development
Applications
4–20 mA Sensor Measurement
The NI-9208 provides high-density measurement of standard 4–20 mA industrial transmitter signals.
Process Monitoring
Sixteen current inputs allow one module to monitor multiple pressure, flow, level, temperature, and other process transmitters.
Industrial Data Acquisition
The NI-9208 can be combined with compatible CompactDAQ or CompactRIO hardware to create modular industrial data acquisition systems.
Machine Monitoring
Current-output sensors installed on industrial machinery can be monitored and logged through the NI-9208.
Environmental Monitoring
The module can acquire current signals from compatible environmental sensors and transmitters used for long-duration monitoring.
Distributed Measurement
CompactRIO systems equipped with NI-9208 modules can be deployed as distributed measurement nodes for industrial processes and equipment.
Recommended Related Products
| NI-9208 | 16-channel, 24-bit current input module optimized for high-density ±20 mA and 4–20 mA process measurement. |
| NI-9203 | 8-channel current input module for applications requiring substantially higher acquisition speed. |
| NI-9253 | 8-channel, 24-bit, 50 kS/s/ch current input module for high-speed simultaneous current measurement. |
| NI-9207 | C Series module combining voltage and current input capability for mixed industrial signals. |
| NI-9265 | C Series current output module for generating industrial analog current signals. |
Why Choose NI-9208?
- 16 analog current input channels
- ±20 mA current measurement
- Ideal for 4–20 mA industrial transmitters
- 24-bit ADC resolution
- 500 S/s aggregate acquisition
- High-resolution acquisition mode
- 50/60 Hz noise rejection
- External sensor power routing through Vsup
- Active and passive sensor support
- High channel density
- Spring-terminal configuration available
- D-SUB configuration available
- Conformal-coated configuration available
- Wide industrial operating temperature range
- Suitable for CompactDAQ
- Suitable for CompactRIO
- Suitable for industrial process monitoring
Frequently Asked Questions
What is the NI-9208?
The NI-9208 is a 16-channel C Series analog current input module designed for industrial current measurement, including common 4–20 mA and 0–20 mA process signals.
How many input channels does NI-9208 have?
The NI-9208 provides 16 single-ended analog current input channels.
What is the current input range of NI-9208?
The NI-9208 is designed for approximately ±20 mA current measurement, making it suitable for common industrial current-loop signals.
What is the resolution of NI-9208?
The NI-9208 uses a 24-bit ADC.
What is the maximum sampling rate of NI-9208?
The maximum module sampling rate is 500 S/s.
Is NI-9208 500 S/s per channel?
No. The NI-9208 uses a multiplexed architecture with one ADC. The 500 S/s maximum rate applies across the module rather than independently to every channel.
Can NI-9208 measure 4–20 mA signals?
Yes. Measuring 4–20 mA industrial current-loop signals is one of the primary applications for the NI-9208.
Can NI-9208 measure 0–20 mA signals?
Yes. A 0–20 mA signal is within the module’s current measurement range when the complete circuit meets the NI-9208 electrical specifications.
Can NI-9208 measure negative current?
Yes. The NI-9208 supports bidirectional current measurement within its specified input range.
Does NI-9208 support 50/60 Hz rejection?
Yes. Its high-resolution mode provides 50/60 Hz rejection to help reduce power-line interference in low-speed industrial measurements.
Can NI-9208 connect to passive 4–20 mA sensors?
Yes. Passive sensors can be used with an appropriate external loop supply, and the NI-9208 Vsup terminals can route external power according to the specified wiring configuration.
Can NI-9208 connect to active current-output sensors?
Yes. Active and passive sensors can be connected to the same NI-9208 when each signal is wired according to its required configuration.
What are the NI-9208 part numbers?
Common NI-9208 configurations include 785041-01 for the spring-terminal version, 780968-01 for the D-SUB version, and 780968-02 for the conformal-coated D-SUB version.
What is the difference between NI-9208 785041-01 and 780968-01?
Both are NI-9208 current input modules, but 785041-01 uses a spring-terminal front connection while 780968-01 uses a D-SUB connection. Their channel-to-earth isolation specifications also differ.
What is NI-9208 780968-02?
Part number 780968-02 is the D-SUB NI-9208 configuration with conformal coating for additional environmental protection of the electronics.
What is the difference between NI-9208 and NI-9203?
The NI-9208 provides 16 channels and 24-bit resolution with a 500 S/s aggregate rate, making it attractive for high-density process monitoring. The NI-9203 provides fewer channels but substantially higher acquisition speed.
What is the difference between NI-9208 and NI-9253?
The NI-9208 provides 16 channels and is optimized for high-density, relatively low-speed process monitoring. The NI-9253 provides eight channels with 24-bit simultaneous acquisition at up to 50 kS/s/ch, making it more suitable for higher-speed current measurements.
Can NI-9208 be used with CompactDAQ?
Yes. The NI-9208 can be installed in compatible CompactDAQ systems for PC-based industrial data acquisition and process monitoring.
Can NI-9208 be used with CompactRIO?
Yes. The NI-9208 can also be used with compatible CompactRIO systems for embedded and distributed industrial measurement applications.
What should I check before purchasing NI-9208?
Verify the required channel count, current range, acquisition speed, active or passive sensor configuration, external loop power requirements, isolation requirements, spring-terminal or D-SUB connection, conformal coating requirement, chassis compatibility, wiring accessories, and software compatibility.
Conclusion
The NI-9208 16-Channel C Series Current Input Module combines high channel density, ±20 mA-class current measurement, 24-bit resolution, a 500 S/s multiplexed acquisition architecture, and high-resolution 50/60 Hz noise rejection. It is particularly well suited for 4–20 mA industrial transmitters, process monitoring, machine monitoring, environmental measurement, industrial data acquisition, and CompactDAQ or CompactRIO systems.
