Product Introduction

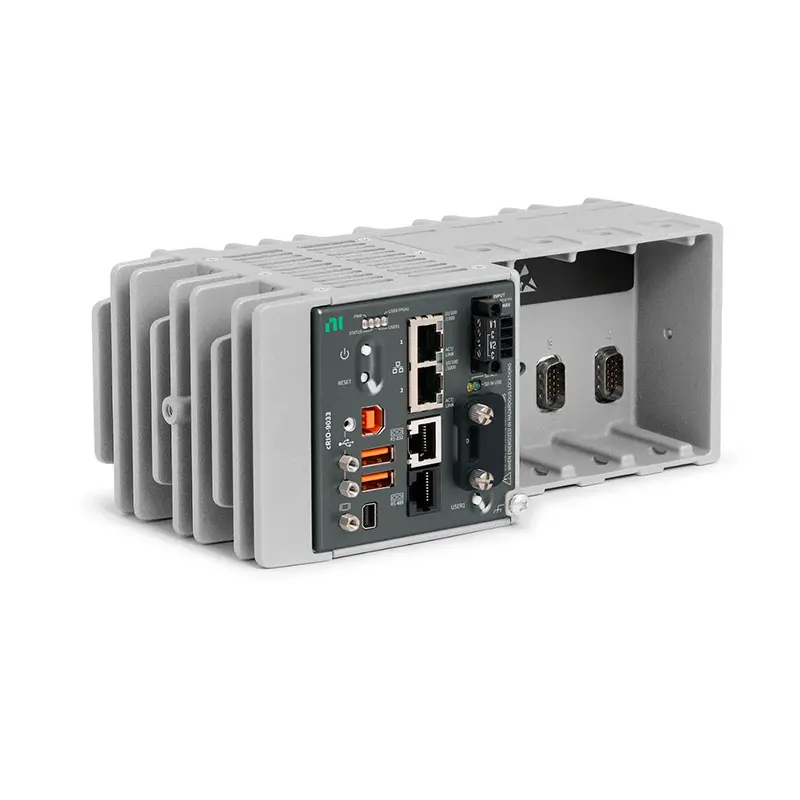

The NI cRIO-9033 is a high-performance CompactRIO real-time controller designed for industrial automation, embedded control, machine monitoring, and advanced data acquisition applications. It combines a real-time processor, user-programmable FPGA, and C Series I/O module support in a rugged industrial platform.
Featuring an Intel Atom processor, integrated FPGA technology, Ethernet connectivity, and compatibility with more than 100 NI C Series modules, the cRIO-9033 provides a flexible solution for deterministic control, real-time processing, and distributed measurement systems.
Product Overview
The cRIO-9033 belongs to the NI CompactRIO 903x controller family and provides an embedded platform for developing reliable industrial control and monitoring systems.
The controller integrates a real-time processor running NI Linux Real-Time, a high-performance FPGA for custom hardware processing, and multiple C Series module slots for analog, digital, communication, and specialty I/O expansion.
With its rugged design, industrial operating capability, and LabVIEW-based programming environment, the cRIO-9033 is widely used in manufacturing, energy, transportation, aerospace, and research applications.
Key Features
Integrated Real-Time Processor
The cRIO-9033 provides embedded computing capability for deterministic industrial applications.
- Intel Atom processor
- NI Linux Real-Time operating system
- Real-time application execution
- Embedded data processing
- Standalone controller operation
Advantage: Enables reliable autonomous operation without requiring an external computer.
User-Programmable FPGA
The integrated FPGA provides customizable hardware processing and deterministic control.
- Custom FPGA logic
- Parallel processing
- High-speed I/O handling
- Hardware timing control
- Low-latency control loops
Advantage: Provides faster and more deterministic performance than software-only controllers.
C Series I/O Module Compatibility
The cRIO-9033 supports NI C Series modules for flexible system expansion.
- Analog input modules
- Analog output modules
- Digital I/O modules
- Communication modules
- Specialty measurement modules
Advantage: Allows engineers to customize hardware according to application requirements.
Industrial Ethernet Connectivity
The controller provides network communication for distributed systems.
- Gigabit Ethernet
- Network-based monitoring
- Remote system access
- Industrial communication support
- Distributed control applications
Advantage: Enables integration into modern industrial automation networks.
Industrial Rugged Design
The cRIO-9033 is designed for demanding deployment environments.
- Industrial temperature operation
- Fanless design
- Compact embedded form factor
- Reliable long-term operation
- Field deployment capability
Advantage: Suitable for factory floors, vehicles, and outdoor industrial systems.
LabVIEW Real-Time Support
The cRIO-9033 integrates with NI software tools for rapid development.
- LabVIEW support
- LabVIEW FPGA programming
- NI-RIO driver support
- Real-time application development
- Remote deployment and debugging
Advantage: Simplifies development of complex embedded control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | CompactRIO Real-Time Controller |
| Processor | Intel Atom Processor |
| Operating System | NI Linux Real-Time |
| FPGA | Integrated User-Programmable FPGA |
| C Series Slots | 4 Slots |
| Network Interface | Gigabit Ethernet |
| Programming Environment | LabVIEW, LabVIEW FPGA |
| Driver | NI-RIO |
| Application | Industrial Control and Data Acquisition |
Software Ecosystem
The cRIO-9033 integrates with NI software platforms for embedded control and industrial automation.
- LabVIEW: Provides graphical programming for real-time applications.
- LabVIEW FPGA: Enables custom FPGA logic development and hardware acceleration.
- NI-RIO: Provides communication between controller, FPGA, and C Series modules.
- NI MAX: Supports hardware configuration and system management.
- NI Linux Real-Time: Provides a reliable embedded operating environment.
Industries
- Industrial Automation
- Manufacturing Systems
- Aerospace and Defense
- Automotive Testing
- Energy Systems
- Transportation
- Research Laboratories
- Machine Control
Applications
Industrial Automation
The cRIO-9033 provides deterministic control for industrial machines and processes.
- Machine monitoring
- Process control
- Factory automation
- Equipment integration
Data Acquisition Systems
The controller supports distributed measurement and monitoring applications.
- Sensor acquisition
- Remote monitoring
- Multi-channel measurement
- Real-time data processing
Hardware-in-the-Loop Testing
The FPGA and real-time processor support simulation and validation systems.
- Embedded controller testing
- Real-time simulation
- Control algorithm validation
- Automotive HIL systems
Embedded Control Applications
The cRIO-9033 enables standalone intelligent control systems.
- Robotics
- Motion control
- Smart machines
- Industrial IoT applications
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI cRIO-9033 | CompactRIO controller with Intel Atom processor, FPGA, and 4 C Series slots. | Industrial embedded control |
| NI cRIO-9030 | CompactRIO controller with similar architecture and different expansion capability. | Compact embedded applications |
| NI cRIO-9049 | Higher-performance CompactRIO controller with more processing resources. | Advanced industrial systems |
| NI-9149 | EtherCAT expansion chassis for CompactRIO systems. | Distributed I/O expansion |
Recommended Related Products
| NI-9149 | EtherCAT expansion chassis for distributed CompactRIO systems. |
| NI cRIO-9056 | CompactRIO controller for advanced industrial automation. |
| NI cRIO-9049 | High-performance CompactRIO controller for demanding applications. |
| NI-9862 | CAN FD communication module for CompactRIO systems. |
Why Choose cRIO-9033?
- Integrated real-time processor and FPGA
- Supports NI C Series I/O modules
- Deterministic industrial control capability
- LabVIEW FPGA programming support
- Compact and rugged embedded design
- Gigabit Ethernet connectivity
- Ideal for automation and monitoring systems
- Scalable CompactRIO platform
Frequently Asked Questions
What is cRIO-9033 used for?
The cRIO-9033 is used for industrial control, embedded automation, real-time monitoring, data acquisition, and hardware-in-the-loop testing applications.
How many C Series modules does cRIO-9033 support?
The cRIO-9033 provides 4 C Series module slots for flexible analog, digital, communication, and specialty I/O expansion.
Does cRIO-9033 support LabVIEW FPGA?
Yes. The cRIO-9033 supports LabVIEW, LabVIEW FPGA, NI-RIO drivers, and NI Linux Real-Time development environments.
Conclusion
The NI cRIO-9033 CompactRIO controller provides a powerful embedded platform combining real-time processing, FPGA customization, and flexible C Series I/O expansion. With rugged industrial design, LabVIEW support, and deterministic control capability, it is an ideal solution for industrial automation, machine control, data acquisition, and advanced embedded testing applications.
