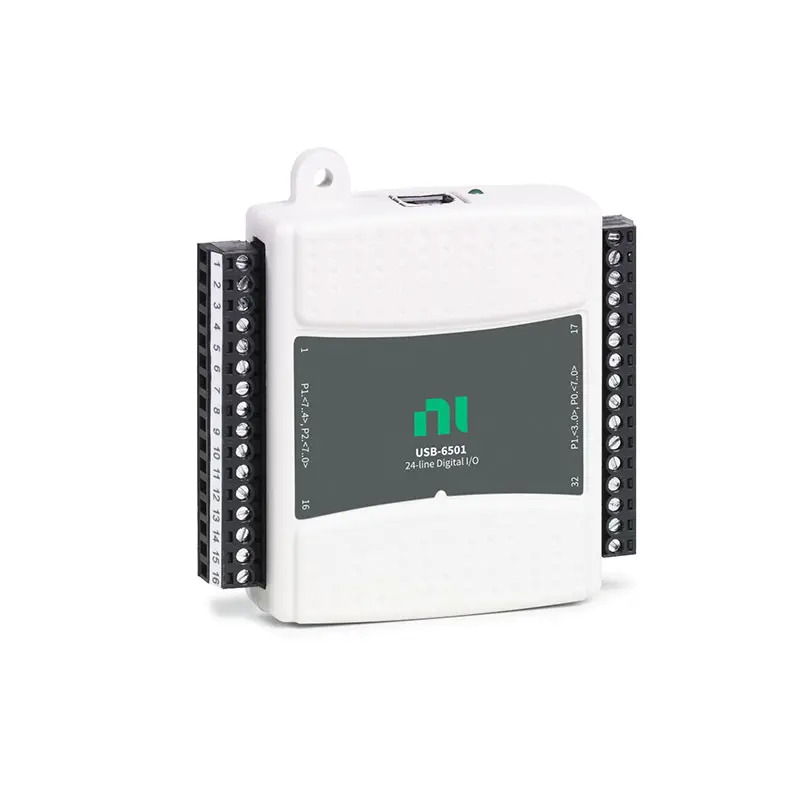

NI USB-6501 USB Digital I/O Device
The NI USB-6501 is a low-cost USB digital input/output (DIO) device designed for basic automation, equipment control, digital monitoring, and laboratory applications. Developed by National Instruments, the USB-6501 provides 24 static digital I/O lines through a compact USB-connected platform.
Unlike multifunction DAQ devices that focus on analog measurement, the USB-6501 is optimized for simple and reliable digital control applications. It provides an economical solution for engineers who need basic digital signal acquisition and output capability without complex hardware.
With USB plug-and-play connectivity, NI-DAQmx driver support, and LabVIEW compatibility, the USB-6501 allows users to quickly integrate digital control functions into test systems, prototypes, and automation projects.
Key Features of NI USB-6501
24-Channel Digital I/O Capability
The USB-6501 provides 24 digital I/O channels for simple control and monitoring applications.
- 24 programmable digital I/O lines
- Digital input monitoring
- Digital output control
- Static digital signal operation
USB Plug-and-Play Operation
The USB-6501 provides simple connection and deployment through standard USB connectivity.
- Direct USB connection
- No additional interface hardware required
- Portable digital I/O solution
- Easy system integration
Simple Digital Control and Monitoring
The USB-6501 is designed for applications requiring basic digital communication and control.
- Relay control
- Switch monitoring
- LED and indicator control
- Digital device interfacing
NI Software Integration
The USB-6501 supports NI software tools for easy digital I/O programming and automation development.
- LabVIEW support
- NI-DAQmx driver support
- NI MAX configuration
- Automation application development
Applications of NI USB-6501
Basic Automation Control
The USB-6501 provides a simple digital control interface for small automation systems.
- Equipment control
- Digital switching
- Automation prototypes
- Simple control systems
Test and Measurement Systems
The USB-6501 can be integrated into test systems requiring digital signal control and monitoring.
- Test fixture control
- Device status monitoring
- Functional testing
- Laboratory automation
Education and Research
The USB-6501 is suitable for teaching digital I/O concepts and developing experimental systems.
- Engineering education
- Digital electronics experiments
- Prototype development
- Research projects
Embedded System Development
The USB-6501 provides a convenient interface for connecting computers with external digital devices.
- Hardware testing
- External device control
- Digital interface verification
- Development projects
Software Support
The NI USB-6501 supports National Instruments software platforms for digital I/O programming.
- LabVIEW
- NI-DAQmx
- NI MAX
- Measurement and automation applications
Technical Specifications of USB-6501
| Feature | Description |
|---|---|
| Product Type | USB Digital I/O Device |
| Platform | USB DAQ |
| Digital Channels | 24 Digital I/O Lines |
| Functions | Static Digital Input and Output |
| Connectivity | USB Interface |
| Software | LabVIEW, NI-DAQmx |
| Applications | Automation, control, monitoring, education |
Comparison with Similar USB Digital I/O Devices
| Model | Main Difference | Best Application |
|---|---|---|
|
NI USB-6501 | Compact and affordable USB digital I/O device with 24 channels for basic control and monitoring. | Entry-level digital automation |
|
NI USB-6503 | Industrial-oriented USB digital I/O device designed for more demanding switching and control applications. | Industrial automation |
|
NI USB-6509 | High-density USB digital I/O device providing 96 channels for complex control systems. | Large-scale digital control |
|
NI USB-6008 | Multifunction USB DAQ device combining analog measurement and digital I/O capability. | Basic measurement and education |
Recommended Related Products
The following products are commonly used with the USB-6501 to build complete digital control and automation systems.
|
NI USB-6503 | USB digital I/O device designed for industrial switching, monitoring, and automation applications. |
|
NI USB-6509 | High-channel USB digital I/O device for complex automation and control systems. |
|
NI USB-6001 | Compact multifunction USB DAQ device for basic measurement and control applications. |
|
NI cDAQ-9174 | CompactDAQ chassis for modular industrial measurement and distributed I/O systems. |
|
NI-9474 | Digital output module for CompactDAQ industrial control and switching applications. |
Why Choose NI USB-6501
- Affordable USB digital I/O solution
- 24-channel digital input and output capability
- Simple plug-and-play USB operation
- Supports LabVIEW and NI-DAQmx
- Ideal for basic automation and control applications
- Suitable for education, testing, and prototype development
Conclusion
The NI USB-6501 USB Digital I/O Device provides an economical and flexible solution for applications requiring simple digital control and monitoring capability.
With 24 digital I/O channels, USB connectivity, and NI software support, the USB-6501 is an excellent choice for basic automation, laboratory experiments, test systems, and embedded control applications.
