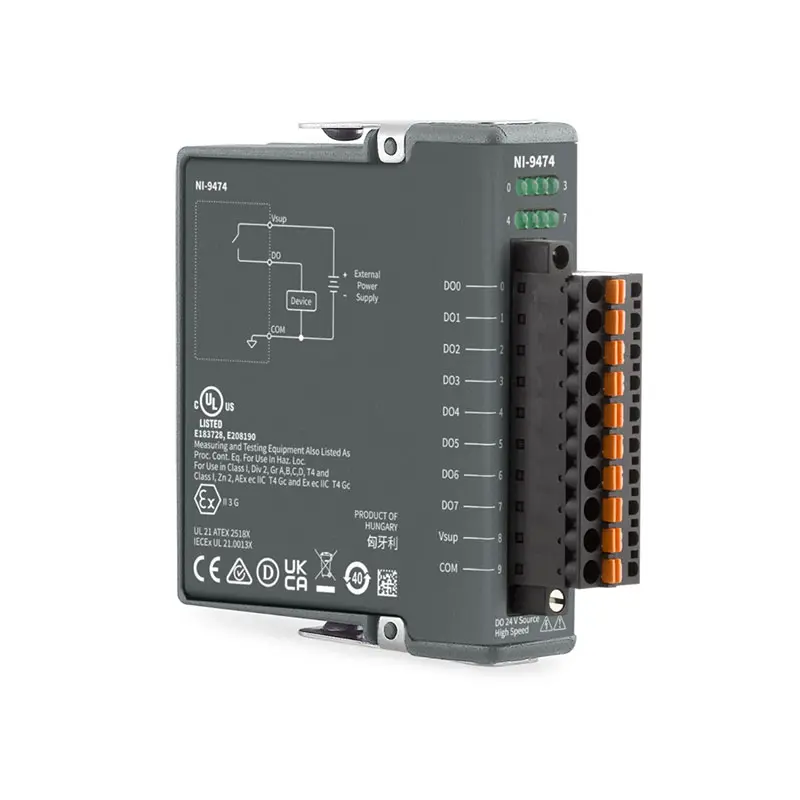

The NI-9474 is a rugged C Series digital output module designed for CompactRIO and CompactDAQ systems. It provides 8 sourcing digital output channels capable of driving industrial loads directly at 6 VDC to 30 VDC, making it ideal for industrial automation, machine control, process systems, and embedded applications.
Unlike relay modules such as the NI-9482 or NI-9485, the NI-9474 uses solid-state transistor outputs, enabling faster switching speeds, longer operational life, and reliable control of industrial actuators.
Typical applications include:
- Industrial automation
- PLC replacement systems
- Solenoid valve control
- Relay driving
- Industrial machine control
- Factory automation
- Embedded control systems
- FPGA-based automation
Digital Output Architecture
The NI-9474 provides:
- 8 sourcing digital output channels
- 6 VDC to 30 VDC output range
- Solid-state transistor outputs
- Industrial voltage compatibility
- FPGA direct control
- Channel-to-earth isolation
Key specifications include:
| Specification | Value |
|---|---|
| Channels | 8 Digital Outputs |
| Output Type | Sourcing |
| Output Voltage Range | 6 VDC to 30 VDC |
| Maximum Current | 1 A per channel |
| Isolation | 250 Vrms |
| Connector Type | Spring Terminal |
| FPGA Compatible | Yes |
The module is capable of directly driving a wide variety of industrial devices without requiring external interface hardware.
Industrial Load Control
The NI-9474 is designed to control common industrial loads.
Supported devices include:
Solenoid Valves
Control pneumatic and hydraulic systems.
Industrial Relays
Drive external relay coils and contactors.
Indicator Lights
Control stack lights, warning lamps, and status indicators.
PLC Interface Signals
Generate industrial control outputs for external systems.
Actuators and Control Devices
Provide deterministic output control for industrial machinery.
The 1 A output capability allows the NI-9474 to drive many industrial loads directly.
FPGA Integration and Deterministic Control
The NI-9474 integrates directly with CompactRIO FPGA resources.
Engineers can implement:
- Real-time machine control
- Deterministic output sequencing
- Safety interlocks
- Production line synchronization
- Trigger generation
- Embedded automation logic
Because output signals are controlled directly by FPGA hardware, timing is deterministic and unaffected by operating system delays.
Typical FPGA applications include:
- Packaging equipment
- Robotics systems
- Semiconductor machinery
- Automated assembly systems
- Industrial test equipment
Fast Solid-State Switching
Unlike electromechanical relay modules, the NI-9474 uses transistor-based outputs.
Benefits include:
Faster Response Time
Solid-state outputs switch significantly faster than mechanical relays.
Longer Lifetime
No moving parts means virtually unlimited switching cycles.
Silent Operation
No audible relay clicking.
Higher Reliability
Suitable for applications requiring frequent switching.
These characteristics make the NI-9474 particularly effective in modern automated production environments.
Industrial Automation Applications
The NI-9474 is commonly deployed in:
Factory Automation
Control machine outputs, alarms, and actuators.
Material Handling Systems
Operate conveyors, diverters, and sorting equipment.
Process Control
Control valves, pumps, and process equipment.
Industrial Robotics
Provide deterministic control of robot peripherals and tooling.
Automated Test Systems
Control external instruments and test fixtures.
The module’s combination of reliability and simplicity makes it a popular choice in industrial control architectures.
Isolation and Protection Features
The NI-9474 includes industrial-grade protection features.
Benefits include:
- Channel-to-earth isolation
- Short-circuit protection
- Overvoltage protection
- Industrial EMC compliance
- Noise immunity enhancement
These protections improve:
- System reliability
- Electrical safety
- Equipment protection
- Long-term durability
The module is designed to operate reliably in electrically noisy industrial environments.
CompactRIO and CompactDAQ Integration
The NI-9474 supports:
- CompactRIO Controllers
- CompactDAQ Chassis
- Distributed Embedded Systems
- Industrial Automation Platforms
Supported software includes:
- LabVIEW FPGA
- LabVIEW Real-Time
- NI-RIO Driver
- NI-DAQmx
- C/C++
- Python
- .NET
This allows easy integration into existing NI-based control systems.
Rugged Industrial Design
The NI-9474 is designed for demanding industrial environments.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Shock resistance: 50 g
- Vibration resistance: 5 g RMS
- Industrial EMC compliance
Suitable deployment environments include:
- Manufacturing plants
- Industrial machinery
- Transportation systems
- Semiconductor facilities
- Energy infrastructure
- Outdoor control cabinets
Application-Oriented Use Cases
Machine Control
Drive industrial actuators and control outputs.
Factory Automation
Operate relays, indicators, and production equipment.
Embedded Systems
Provide FPGA-controlled digital outputs for real-time applications.
Automated Testing
Control external hardware and test fixtures.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9474 | 8-channel sourcing output, 1 A/ch | Industrial load control |
| NI-9472 | Standard digital output | General-purpose control |
| NI-9476 | 32-channel digital output | High-density output systems |
| NI-9482 | Mechanical relay output | AC/DC switching |
| NI-9485 | Solid-state relay output | Isolated DC switching |
Compared with the NI-9482, the NI-9474 provides much faster switching and longer life because it uses transistor outputs rather than mechanical relays. Compared with the NI-9476, it offers fewer channels but higher per-channel drive capability for industrial loads.
Conclusion
The NI-9474 is a high-performance 8-channel digital output module designed for CompactRIO and CompactDAQ systems requiring reliable industrial load control.
Its combination of:
- 8 sourcing digital outputs
- Up to 1 A per channel drive capability
- 6 VDC to 30 VDC operation
- FPGA integration
- Industrial isolation
- Fast solid-state switching
- Rugged industrial reliability
makes it an excellent solution for factory automation, machine control, robotics, process control, automated testing, and embedded industrial applications.
