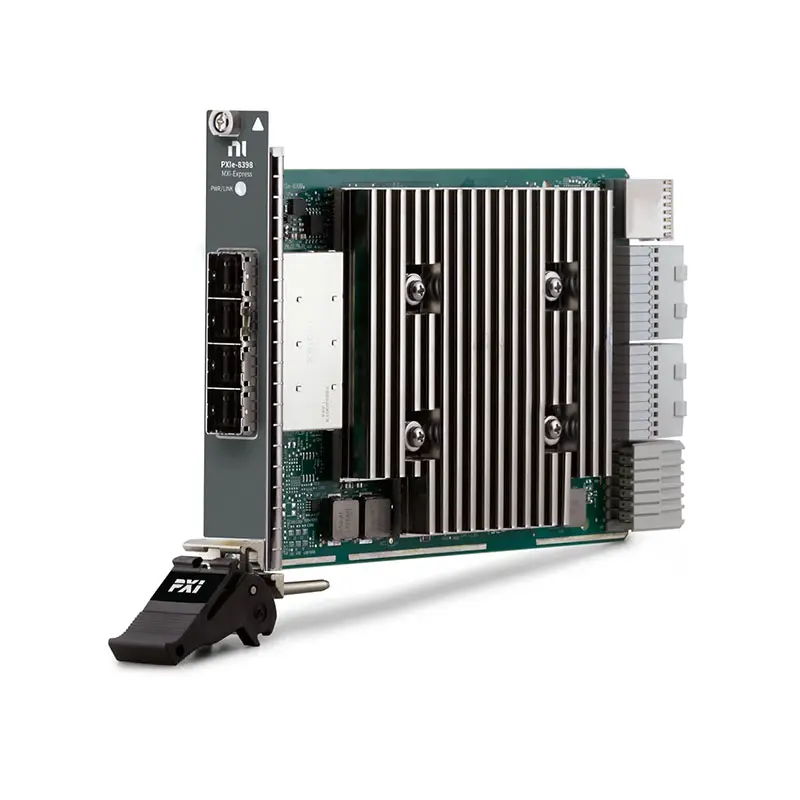

NI PXIe-8398 PXI Express Remote Control Interface Module
The NI PXIe-8398 is a high-performance PXI Express remote control interface module designed to connect external computers with PXI Express chassis. Developed by National Instruments, the PXIe-8398 provides a high-bandwidth PCI Express communication solution for advanced modular test and measurement systems.
The PXIe-8398 allows engineers to use the processing power of external workstations while accessing PXI Express instruments installed in a chassis. This architecture provides a flexible solution for high-speed automated testing, RF validation, semiconductor testing, and advanced data acquisition applications.
With high-speed PCI Express connectivity, PXI Express compatibility, and reliable system integration capability, the PXIe-8398 is designed for demanding engineering environments requiring maximum data throughput and flexible system architecture.
Key Features of NI PXIe-8398
High-Speed PCI Express Remote Control
The PXIe-8398 provides a high-performance connection between external computers and PXI Express chassis through PCI Express technology.
- High-bandwidth PCI Express communication
- External computer PXI Express control
- Low-latency instrument communication
- High-speed data transfer capability
- Suitable for advanced measurement systems
PXI Express System Expansion
The PXIe-8398 enables engineers to expand desktop computing platforms with PXI Express modular instruments.
- Flexible PXI Express architecture
- External workstation integration
- Scalable measurement platforms
- Reduced dependency on embedded controllers
Designed for High-Performance Applications
The PXIe-8398 is optimized for applications requiring large data throughput and fast communication between computing platforms and instruments.
- High-speed acquisition systems
- Large data processing applications
- Complex automated testing
- Advanced engineering validation
PXI Express Modular Compatibility
The PXIe-8398 works with PXI Express chassis and modules to create customized test and measurement systems.
- PXI Express chassis support
- Modular instrumentation integration
- Multi-instrument system deployment
- Flexible test architecture
NI Software Ecosystem Support
The PXIe-8398 integrates with National Instruments software platforms for automated measurement and test development.
- LabVIEW support
- TestStand support
- NI MAX configuration
- NI Measurement Studio
Applications of NI PXIe-8398
Automated Test Equipment (ATE)
The PXIe-8398 provides high-speed communication for advanced PXI Express automated test platforms.
- Production testing
- Functional verification
- Electronic validation
- Complex test system control
RF and Wireless Testing
The PXIe-8398 supports high-performance PXI Express RF measurement systems requiring fast data communication.
- RF signal analysis
- Wireless communication testing
- Transmitter validation
- Receiver testing
High-Speed Data Acquisition
The PXIe-8398 is suitable for PXI Express systems requiring fast data transfer and processing.
- Digitizer applications
- Sensor measurement
- Signal processing
- Engineering analysis
Semiconductor Test Systems
The PXIe-8398 supports semiconductor validation systems requiring high-performance PXI Express connectivity.
- Device characterization
- Electrical testing
- Production validation
- Automated measurement
Software Support
The PXIe-8398 supports National Instruments software platforms for PXI Express system development.
- LabVIEW
- TestStand
- NI MAX
- NI Measurement Studio
Technical Specifications of PXIe-8398
| Feature | Description |
|---|---|
| Product Type | PXI Express Remote Control Interface Module |
| Interface | PCI Express |
| Platform | PXI Express |
| Connection | External Computer to PXI Express Chassis |
| Applications | Automated test, RF testing, semiconductor test, data acquisition |
Comparison with Similar PXI Express Interface Modules
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-8398 | High-performance PXI Express remote control interface designed for maximum bandwidth communication. | High-speed PXI Express test systems |
|

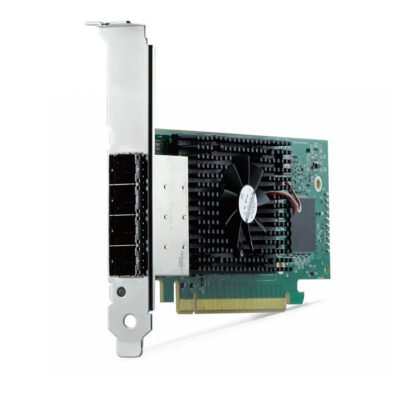

NI PCIe-8398 | PCI Express interface module for desktop PC control of PXI Express systems. | Desktop-controlled PXI Express platforms |
|
NI PXIe-8361 | General PXI Express remote control interface for external computer connection. | Standard PXI Express measurement systems |
|
NI PXIe-8301 | Thunderbolt-based PXI Express interface designed for portable computer connectivity. | Portable PXI Express testing |
Recommended Related Products
The following products are commonly used with the PXIe-8398 to build complete high-performance PXI Express test and measurement systems.
|
NI PXIe-1095 | High-performance PXI Express chassis designed for large-scale automated test systems. |
|
NI PXIe-1085 | PXI Express chassis optimized for high-bandwidth data acquisition and RF applications. |
|
NI PXIe-8862 | High-performance PXI Express embedded controller for advanced measurement applications. |
|
NI PXIe-5842 | PXI Express Vector Signal Transceiver for RF and wireless communication testing. |
|
NI PXIe-5164 | PXI Express digitizer module for high-speed waveform acquisition and electronic validation. |
Why Choose NI PXIe-8398
- High-performance PXI Express remote control solution
- High-bandwidth PCI Express communication
- Supports advanced modular test architectures
- Flexible external computer integration
- Compatible with NI software ecosystem
- Ideal for RF, semiconductor, and high-speed measurement systems
Conclusion
The NI PXIe-8398 PXI Express Remote Control Interface Module provides a powerful high-speed connection solution between external computers and PXI Express chassis.
With PCI Express performance, flexible system integration, and support for demanding measurement applications, the PXIe-8398 is an excellent choice for automated testing, RF validation, semiconductor testing, and high-speed data acquisition systems.
