Product Introduction

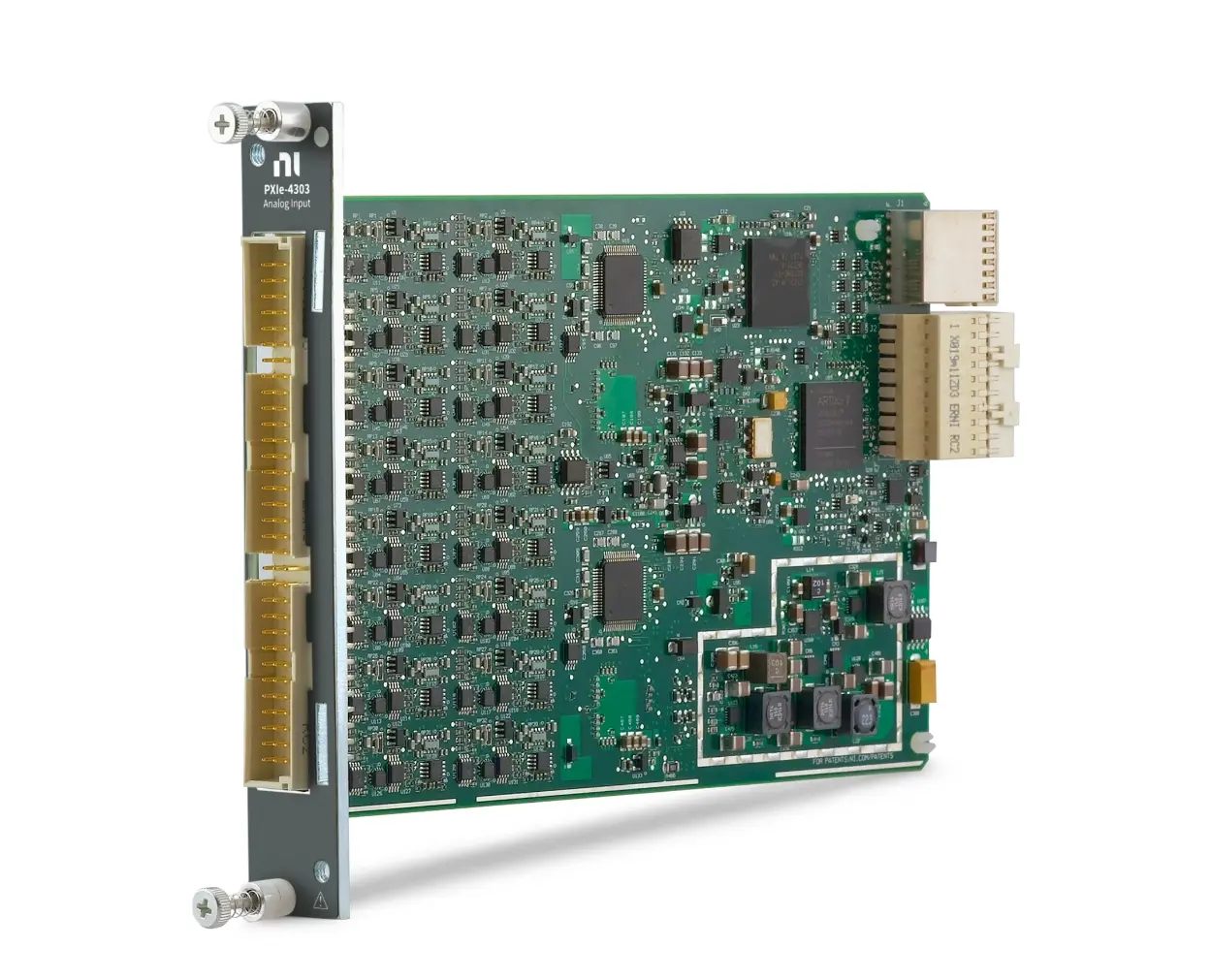

The NI PXIe-4303 is a high-accuracy PXI Express analog input module designed for precision data acquisition, industrial measurement, sensor monitoring, and automated test applications. It provides reliable analog signal measurement with high-resolution conversion and flexible channel configuration.
Featuring 16 analog input channels, precision ADC technology, differential measurement capability, and NI-DAQmx driver support, the PXIe-4303 enables engineers to build scalable PXI-based data acquisition systems for demanding measurement environments.
Product Overview
The PXIe-4303 belongs to the NI PXI Express Data Acquisition (DAQ) module family and is optimized for applications requiring accurate analog signal acquisition and long-term measurement stability.
The module supports connection to various sensors and measurement devices, including voltage output sensors, industrial transducers, and electronic systems requiring precise analog monitoring.
With PXI Express high-bandwidth architecture, synchronized timing resources, and NI-DAQmx software integration, the PXIe-4303 provides a complete solution for automated measurement and validation systems.
Key Features
16 Analog Input Channels
The PXIe-4303 provides multiple analog input channels for flexible measurement applications.
- 16 analog input channels
- Differential measurement capability
- Multi-channel signal acquisition
- Sensor measurement support
- Automated data collection
Advantage: Enables simultaneous monitoring of multiple analog signals within a single PXI module.
High-Resolution Analog Measurement
The module provides accurate analog-to-digital conversion for precision applications.
- High-resolution ADC
- Low-noise measurement
- Stable signal acquisition
- Accurate voltage measurement
- Reliable test results
Advantage: Captures small signal variations required for engineering validation and industrial measurement.
Differential Analog Input Configuration
The PXIe-4303 supports differential input measurement for improved signal quality.
- Noise reduction
- Improved common-mode rejection
- Better measurement accuracy
- Long-distance sensor connection
- Industrial signal compatibility
Advantage: Provides reliable measurements in electrically noisy environments.
PXI Express High-Speed Architecture
The PXIe-4303 uses PXI Express technology for efficient data transfer and system synchronization.
- High-bandwidth PXI Express interface
- Fast data streaming
- Multi-module synchronization
- Shared timing resources
- Scalable DAQ systems
Advantage: Supports large-scale measurement systems requiring high throughput.
NI-DAQmx Software Support
The PXIe-4303 integrates with NI DAQ software platforms.
- NI-DAQmx driver support
- LabVIEW integration
- TestStand compatibility
- Signal acquisition programming
- Automated measurement development
Advantage: Simplifies hardware configuration and application development.
Flexible PXI System Integration
The module integrates with other PXI instruments to build complete test systems.
- PXI Express chassis compatibility
- Integration with controllers
- Combination with switching modules
- Mixed-signal measurement systems
- Expandable architecture
Advantage: Allows engineers to create customized automated test platforms.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Analog Input Module |
| Analog Input Channels | 16 Channels |
| Input Configuration | Differential Analog Input |
| Measurement Type | Voltage Measurement |
| ADC | High-Resolution Analog-to-Digital Converter |
| Interface | PXI Express |
| Driver | NI-DAQmx |
| Software Support | LabVIEW, TestStand, Python, C/C++, .NET |
Software Ecosystem
The PXIe-4303 integrates with NI software tools for data acquisition and automated measurement applications.
- NI-DAQmx: Provides hardware configuration, acquisition control, timing, and programming functions.
- LabVIEW: Enables graphical development of measurement and control applications.
- TestStand: Supports automated test sequence integration.
- NI MAX: Provides device configuration and diagnostics.
- Python, C/C++, .NET: Supports custom data acquisition software development.
Industries
- Industrial Automation
- Aerospace and Defense
- Automotive Testing
- Energy Systems
- Research Laboratories
- Manufacturing Test
- Structural Monitoring
- Electronic Validation
Applications
Industrial Data Acquisition
The PXIe-4303 provides accurate analog monitoring for industrial systems.
- Process monitoring
- Sensor measurement
- Machine diagnostics
- Equipment validation
Automated Test Systems
The module integrates into PXI-based automated measurement platforms.
- Electronic testing
- Production validation
- Functional testing
- Multi-channel acquisition
Sensor Measurement Applications
The PXIe-4303 supports various analog sensor interfaces.
- Voltage sensors
- Industrial transducers
- Monitoring systems
- Research measurements
Engineering Validation
The module provides accurate measurements during product development.
- Prototype verification
- Design validation
- Performance testing
- System characterization
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXIe-4303 | 16-channel PXI Express precision analog input module. | General precision DAQ applications |
| NI PXIe-4302 | PXI Express analog input module with different channel configuration. | Industrial measurement systems |
| NI PXIe-4492 | Dynamic signal acquisition module optimized for IEPE sensors. | Vibration and acoustic measurement |
| NI PXIe-5164 | High-speed digitizer for waveform measurement. | High-bandwidth signal analysis |
Recommended Related Products
| NI PXIe-1095 | High-performance PXI Express chassis for DAQ systems. |
| NI PXIe-8880 | High-performance PXI Express controller. |
| NI PXIe-4492 | Dynamic signal acquisition module for vibration testing. |
| NI PXIe-5164 | PXI Express digitizer for high-speed measurement. |
Why Choose PXIe-4303?
- 16-channel precision analog input
- High-resolution signal acquisition
- Differential measurement capability
- PXI Express high-speed architecture
- NI-DAQmx software support
- Flexible sensor measurement solution
- Ideal for industrial and automated testing
- Scalable PXI data acquisition platform
Frequently Asked Questions
What is PXIe-4303 used for?
The PXIe-4303 is used for precision analog measurement, industrial data acquisition, sensor monitoring, automated testing, and engineering validation.
What software supports PXIe-4303?
The PXIe-4303 supports NI-DAQmx, LabVIEW, TestStand, NI MAX, Python, C/C++, and .NET programming environments.
What is the difference between PXIe-4303 and PXIe-4492?
The PXIe-4303 is designed for precision general analog input measurement, while the PXIe-4492 is optimized for dynamic signal acquisition using IEPE sensors such as accelerometers and microphones.
Conclusion
The NI PXIe-4303 analog input module provides a high-accuracy PXI Express solution for multi-channel data acquisition and precision measurement applications. With 16 differential analog inputs, high-resolution conversion, NI-DAQmx support, and scalable PXI integration, it is an ideal platform for industrial monitoring, automated testing, sensor measurement, and engineering validation systems.
