Product Introduction

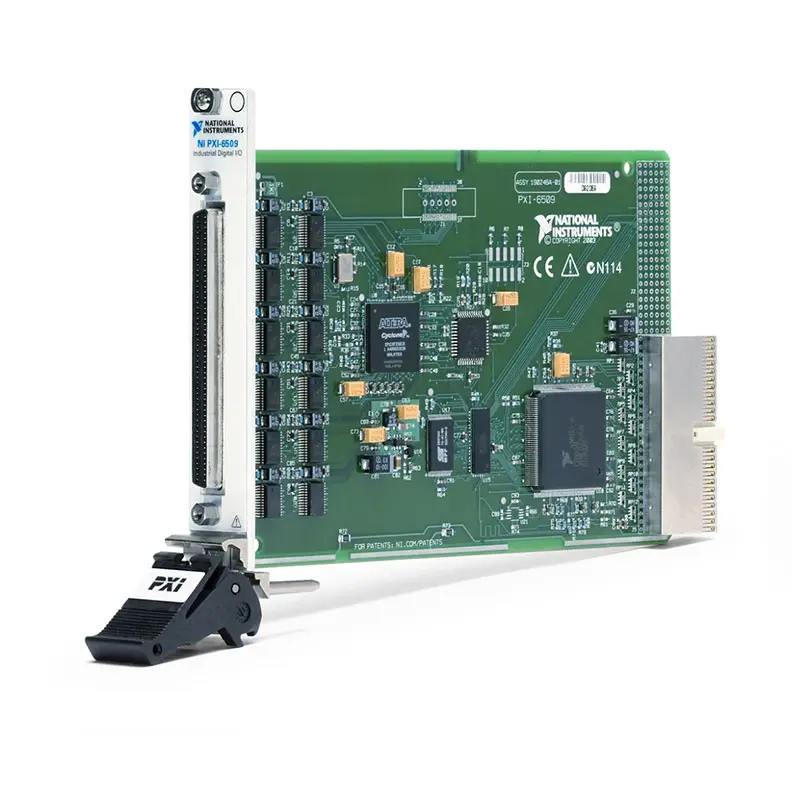

The NI PXI-6509 is a high-density industrial digital I/O module designed for PXI-based automated test systems, industrial automation, machine control, and equipment monitoring applications. It provides 96 digital I/O channels with industrial-grade signal handling capability for controlling and monitoring external devices.
With flexible digital input and output configuration, isolated field connections, and NI-DAQmx software support, the PXI-6509 provides a reliable solution for applications requiring large numbers of digital signals within a PXI measurement platform.
Product Overview
The PXI-6509 belongs to the National Instruments PXI digital I/O module family and is designed for high-channel-count industrial control applications. It provides 96 bidirectional digital lines organized for flexible connection to external equipment.
The module supports industrial voltage levels and isolation features that help protect the PXI system from field wiring conditions. It is commonly used for controlling relays, monitoring switches, reading status signals, and interfacing with industrial equipment.
Integrated with NI-DAQmx, LabVIEW, TestStand, and NI MAX, the PXI-6509 enables rapid development of automated testing and industrial control systems.
Key Features
96 Digital I/O Channels
The PXI-6509 provides a large number of digital channels for complex automation systems.
- 96 digital I/O lines
- High-density PXI digital interface
- Flexible input/output configuration
- Multiple device control capability
- Industrial automation support
Advantage: Allows engineers to control and monitor many external signals using a single PXI module.
Industrial Digital Signal Support
The module is designed for direct connection to industrial devices.
- Industrial voltage compatibility
- Relay control
- Switch monitoring
- Status signal acquisition
- Machine interface applications
Advantage: Simplifies integration between PXI systems and industrial equipment.
Isolated Digital I/O
Electrical isolation improves system protection and measurement reliability.
- Channel isolation
- Field wiring protection
- Reduced ground-loop problems
- Improved noise immunity
- Industrial environment operation
Advantage: Protects PXI controllers and improves reliability in electrically noisy environments.
Flexible Digital Configuration
The PXI-6509 supports configurable digital signal operation.
- Digital input monitoring
- Digital output control
- Hardware signal detection
- External device interfacing
- Automation control functions
Advantage: Supports different application requirements without additional interface hardware.
PXI Modular Architecture
The PXI-6509 integrates into scalable PXI automated test platforms.
- PXI bus interface
- Single-slot PXI module
- Multi-module synchronization
- Shared PXI chassis resources
- Expandable system architecture
Advantage: Enables integration with PXI DAQ, switching, RF, and measurement instruments.
NI-DAQmx Software Support
The PXI-6509 works with NI software tools for configuration and automation.
- NI-DAQmx driver support
- LabVIEW integration
- TestStand compatibility
- NI MAX configuration
- Python and C/C++ programming support
Advantage: Reduces development time for automated digital control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Industrial Digital I/O Module |
| Digital I/O Channels | 96 Lines |
| Channel Configuration | Programmable Digital Input/Output |
| Digital Logic | Industrial Digital Signals |
| Isolation | Channel Isolation |
| Bus Interface | PXI |
| Connector | 100-Pin Connector |
| Driver | NI-DAQmx |
| Programming Support | LabVIEW, TestStand, Python, C/C++, C#, .NET |
Software Ecosystem
The PXI-6509 integrates with NI software for automated testing, digital control, and industrial applications.
- NI-DAQmx: Provides digital I/O configuration, acquisition, and control functions.
- LabVIEW: Enables graphical development of automation and control systems.
- TestStand: Supports production test sequence integration.
- NI MAX: Provides hardware configuration and diagnostics.
- Python, C/C++, C#, .NET: Supports custom application development.
Industries
- Industrial Automation
- Automated Test Equipment
- Electronics Manufacturing
- Automotive Production
- Semiconductor Testing
- Aerospace and Defense
- Machine Control
- Research Laboratories
Applications
Industrial Machine Control
The PXI-6509 provides digital control and monitoring for automated machinery.
- Relay switching
- Valve control
- Machine status monitoring
- Production automation
Automated Test Equipment
The module provides high-channel-count digital control for test systems.
- Test fixture control
- Device triggering
- Production testing
- Functional verification
Equipment Monitoring
Digital inputs allow monitoring of external device states.
- Alarm monitoring
- Switch detection
- Status acquisition
- Safety monitoring
Laboratory Automation
The PXI-6509 simplifies control of laboratory instruments and experimental equipment.
- Instrument triggering
- Experimental control
- Automation systems
- Research platforms
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXI-6509 | 96-channel industrial digital I/O module for high-density control applications. | Large-scale digital automation |
| NI PXI-6514 | Industrial digital input/output module with different channel configuration. | Industrial equipment monitoring |
| NI PXI-6528 | Relay and isolated digital I/O module for switching applications. | Relay control and automation |
| NI PXIe-6343 | Multifunction DAQ module combining analog and digital acquisition. | Mixed signal measurement systems |
Recommended Related Products
| NI PXI-1045 | Large PXI chassis for industrial automation and test systems. |
| NI PXIe-8880 | High-performance PXI Express embedded controller. |
| NI PXI-6251 | Multifunction DAQ module with analog and digital measurement capability. |
| NI PXI-6521 | Industrial digital I/O module for PXI automation systems. |
Why Choose PXI-6509?
- 96-channel digital I/O capability
- High-density PXI automation interface
- Industrial signal compatibility
- Isolated digital connections
- Flexible input/output configuration
- NI-DAQmx software support
- LabVIEW and TestStand integration
- Ideal for machine control and automated testing
Frequently Asked Questions
What is PXI-6509 used for?
The PXI-6509 is commonly used for industrial digital control, machine automation, relay switching, equipment monitoring, and automated test systems.
How many digital channels does PXI-6509 provide?
The PXI-6509 provides 96 digital I/O channels for controlling and monitoring external devices.
Does PXI-6509 support LabVIEW?
Yes. The PXI-6509 supports NI-DAQmx and integrates with LabVIEW, TestStand, NI MAX, and other NI software tools.
Conclusion
The NI PXI-6509 96-channel digital I/O module provides a high-density industrial interface for PXI automated test and control systems. With isolated digital I/O, flexible configuration, and NI software integration, it is an effective solution for machine automation, equipment monitoring, production testing, and industrial control applications.
