Product Introduction

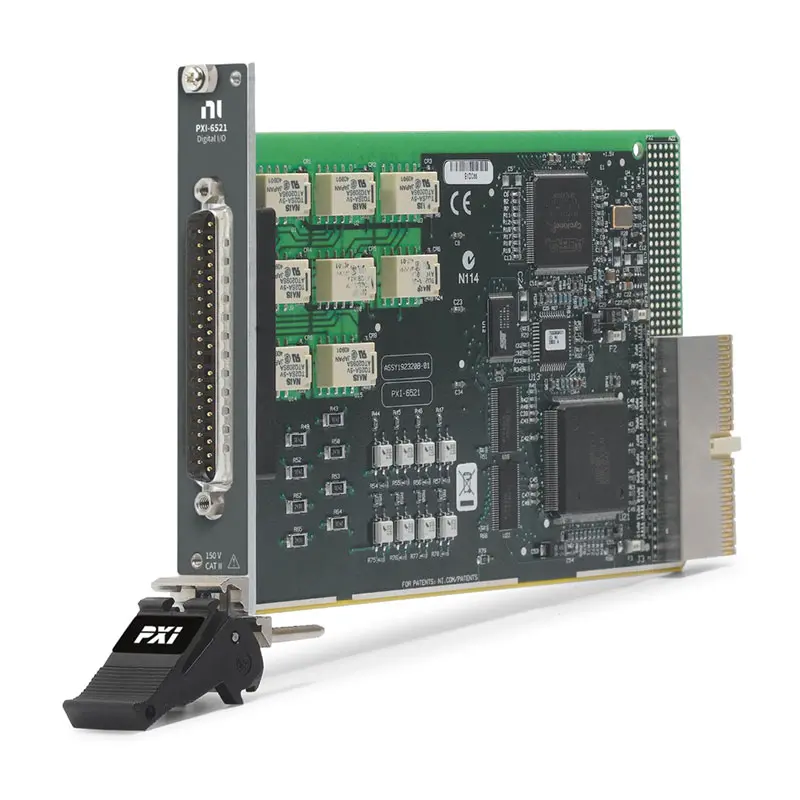

The NI PXI-6521 is a 32-channel isolated digital input module designed for industrial automation, machine monitoring, automated testing, and digital signal acquisition applications. As part of the National Instruments Industrial Digital I/O family, the PXI-6521 provides optical isolation between field signals and the PXI backplane, improving measurement reliability and protecting the host system from electrical noise and voltage transients.
With 32 isolated digital input channels, industrial voltage compatibility, and seamless integration with NI-DAQmx software, the PXI-6521 is ideal for monitoring PLC outputs, relay contacts, switches, industrial sensors, and other digital control signals.
Product Overview
The PXI-6521 is optimized for industrial digital signal acquisition rather than analog measurement. Each input channel is optically isolated to reduce ground loops, suppress electrical interference, and protect sensitive measurement equipment.
The module easily integrates into PXI automated test platforms alongside analog I/O, switching, RF, motion control, and timing modules. Combined with NI LabVIEW and TestStand, it enables reliable monitoring of industrial equipment and production systems.
Key Features
32 Optically Isolated Digital Input Channels
The PXI-6521 provides high-density isolated digital input capability for industrial applications.
- 32 digital input channels
- Optical isolation
- High noise immunity
- Industrial signal compatibility
- Reliable long-term operation
Advantage: Optical isolation protects the PXI controller while improving signal integrity in electrically noisy environments.
Industrial Voltage Compatibility
Designed for direct connection to industrial digital control systems.
- PLC signal monitoring
- Relay contact detection
- Limit switch monitoring
- Industrial sensor inputs
- Digital status acquisition
Advantage: Eliminates additional interface circuitry for many industrial automation systems.
Excellent Electrical Isolation
The isolation architecture minimizes interference between field wiring and the PXI system.
- Channel isolation
- Ground loop protection
- Noise suppression
- Improved measurement reliability
- Enhanced system safety
Advantage: Provides dependable operation in factories, production lines, and industrial control cabinets.
Industrial Digital Monitoring
The PXI-6521 continuously monitors external digital signals for automation and validation systems.
- Machine status monitoring
- Alarm signal acquisition
- Equipment diagnostics
- Process monitoring
- Production control
Advantage: Enables real-time monitoring of industrial equipment and automated production systems.
PXI Modular Architecture
The module integrates seamlessly into PXI-based automated test systems.
- Standard PXI module
- Easy system expansion
- Compatible with NI controllers
- Shared PXI timing resources
- Modular platform
Advantage: Allows digital monitoring to be combined with analog measurement, switching, RF instrumentation, and motion control within a single PXI chassis.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Isolated Digital Input Module |
| Digital Input Channels | 32 |
| Input Type | Optically Isolated Digital Input |
| Isolation | Channel-to-System Optical Isolation |
| Logic Compatibility | Industrial Digital Signals |
| Bus Interface | PXI |
| Connector | 68-Pin VHDCI |
| Driver Support | NI-DAQmx |
| Programming | LabVIEW, C/C++, .NET, Python |
| Calibration Interval | 2 Years |
| Operating Temperature | 0 °C to 55 °C |
Software Ecosystem
The PXI-6521 integrates with National Instruments software tools for digital acquisition, automation, and industrial control.
- NI-DAQmx – Digital input configuration and acquisition.
- LabVIEW – Industrial monitoring and graphical application development.
- NI MAX – Hardware configuration and diagnostics.
- TestStand – Automated production testing and validation.
- C/C++, .NET, Python – Supported through NI-DAQmx APIs.
Industries
- Industrial Automation
- Factory Automation
- Electronics Manufacturing
- Automotive Testing
- Semiconductor Production
- Aerospace and Defense
- Energy Systems
- Research Laboratories
Applications
PLC Signal Monitoring
Acquire digital output signals directly from PLC controllers.
- PLC diagnostics
- Control verification
- I/O monitoring
- Production automation
Machine Status Detection
Monitor machine operating conditions and equipment status.
- Alarm monitoring
- Machine interlocks
- Safety systems
- Equipment diagnostics
Automated Test Equipment
Capture digital control signals during automated validation.
- Functional testing
- Production verification
- Electronic validation
- Digital logic monitoring
Industrial Data Acquisition
Collect digital status information from field devices and industrial sensors.
- Limit switches
- Proximity sensors
- Relay contacts
- Industrial process monitoring
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXI-6521 | 32 isolated digital input channels. | Industrial digital signal acquisition |
| NI PXI-6528 | High-density isolated digital input/output module. | Industrial digital control |
| NI PXI-6515 | Industrial isolated digital I/O with bidirectional capability. | Industrial automation |
| NI PXI-6509 | General-purpose TTL digital I/O without isolation. | Laboratory digital applications |
Recommended Related Products
| NI PXI-1042Q | PXI chassis for modular industrial measurement systems. |
| NI PXI-8108 | Embedded PXI controller for industrial automation. |
| NI PXI-6259 | Multifunction DAQ module for analog measurement and control. |
| NI SH68-68-EPM | Shielded VHDCI cable for PXI digital I/O modules. |
| NI CB-68LP | 68-pin connector block for industrial field wiring. |
Why Choose PXI-6521?
- 32 optically isolated digital input channels
- Industrial-grade electrical isolation
- Excellent noise immunity
- Ideal for PLC and industrial equipment monitoring
- Reliable long-term operation
- Fully compatible with NI-DAQmx and LabVIEW
- Easy integration into PXI automated test systems
- Suitable for factory automation and industrial control
Frequently Asked Questions
What is the PXI-6521 primarily used for?
The PXI-6521 is designed for acquiring isolated digital input signals from PLCs, industrial sensors, relays, switches, and automated production equipment.
Does the PXI-6521 support digital outputs?
No. The PXI-6521 is a digital input-only module. If both digital inputs and outputs are required, consider models such as the PXI-6528 or PXI-6515.
Why is optical isolation important?
Optical isolation protects the PXI system from voltage transients, reduces electrical noise, minimizes ground loops, and improves overall system reliability in industrial environments.
Conclusion
The NI PXI-6521 Isolated Digital Input Module is an excellent solution for industrial digital signal monitoring. With 32 optically isolated input channels, strong electrical protection, seamless NI software integration, and PXI modular compatibility, it is ideal for factory automation, PLC monitoring, automated testing, machine diagnostics, and industrial control systems.
