NI PXIe-1081 PXI Express Chassis

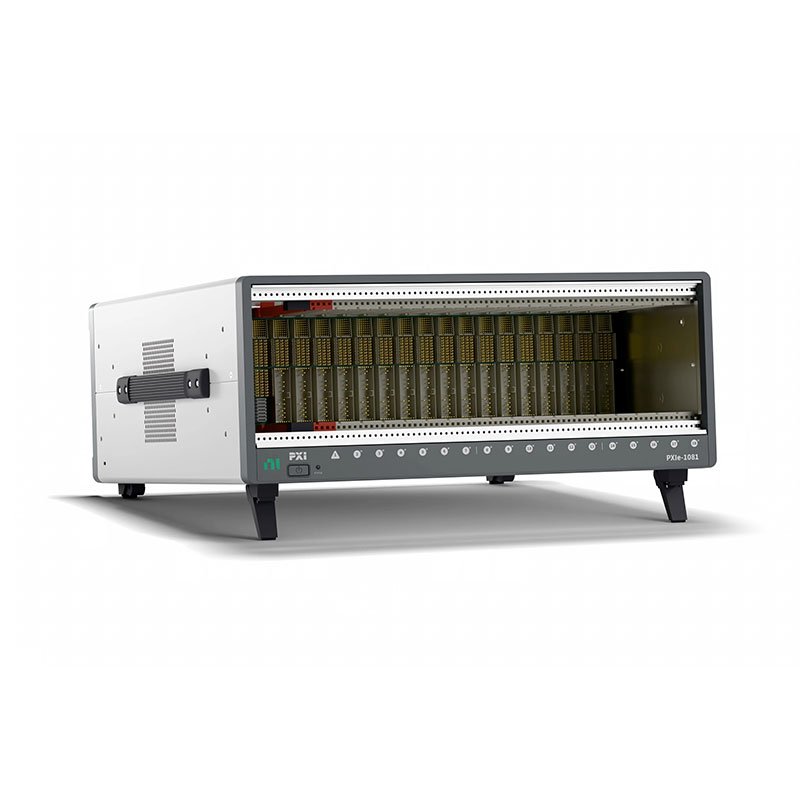

The NI PXIe-1081 is a compact PXI Express chassis designed for automated test, measurement, data acquisition, and electronic validation applications. Developed by National Instruments, the PXIe-1081 provides a flexible modular platform for integrating PXI and PXI Express instruments into compact test systems.
The PXIe-1081 combines PXI Express backplane technology, timing and synchronization capability, and reliable system architecture to support engineering applications requiring high-performance modular instrumentation in a smaller footprint.
With support for multiple PXI Express modules, the PXIe-1081 is widely used in laboratory testing, industrial validation, electronic verification, communication testing, and embedded measurement applications.
Key Features of NI PXIe-1081
Compact 5-Slot PXI Express Architecture
The PXIe-1081 provides five PXI Express slots for building compact modular test and measurement systems.
- 5 PXI Express slots
- Supports PXI and PXI Express modules
- Compact system footprint
- Flexible instrument integration
- Suitable for small and medium test platforms
PXI Express High-Speed Backplane
The PXIe-1081 provides high-speed communication between installed PXI Express modules.
- High-speed module communication
- Efficient data transfer
- Low-latency instrument interaction
- Supports demanding measurement applications
Timing and Synchronization Capability
The PXIe-1081 supports PXI Express timing and synchronization features for multi-module measurement systems.
- Reference clock distribution
- Trigger synchronization
- Multi-instrument coordination
- Deterministic measurement timing
Flexible Modular Test Platform
The PXIe-1081 allows engineers to combine different PXI Express instruments according to application requirements.
- Oscilloscope modules
- RF measurement modules
- Data acquisition modules
- Digital test instruments
Reliable Industrial Design
The PXIe-1081 is designed for stable operation in laboratory and industrial test environments.
- Optimized thermal management
- Reliable continuous operation
- Compact industrial design
- Easy system deployment
Applications of NI PXIe-1081
Automated Test Systems
The PXIe-1081 provides a compact modular platform for automated testing applications.
- Production testing
- Functional verification
- Electronic validation
- ATE systems
Electronic Design Verification
The PXIe-1081 supports engineers performing hardware validation and signal testing.
- Prototype verification
- Signal analysis
- Hardware debugging
- Design validation
Data Acquisition Applications
The PXIe-1081 can integrate PXI Express digitizers and measurement modules for advanced acquisition systems.
- High-speed measurement
- Sensor testing
- Signal processing
- Engineering analysis
RF and Communication Testing
The PXIe-1081 supports modular RF instruments for communication system validation.
- Wireless testing
- RF signal analysis
- Transmitter testing
- Receiver validation
Software Support
The PXIe-1081 integrates with National Instruments software platforms for automated measurement and test development.
- LabVIEW
- TestStand
- NI Measurement Studio
- NI MAX
Technical Specifications of PXIe-1081
| Feature | Description |
|---|---|
| Product Type | PXI Express Chassis |
| Slot Count | 5 PXI Express Slots |
| Platform | PXI Express |
| Module Support | PXI / PXI Express Modules |
| Applications | Automated test, data acquisition, RF testing, electronic validation |
Comparison with Similar PXI Express Chassis
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-1081 | Compact 5-slot PXI Express chassis designed for small and medium modular test systems. | Laboratory testing and compact automation systems |
|
NI PXIe-1082 | Larger PXI Express chassis providing additional slots for expanded test systems. | Medium-scale automated testing |
|
NI PXIe-1085 | High-performance PXI Express chassis designed for large bandwidth and demanding applications. | RF testing and high-speed acquisition |
|
NI PXIe-1090 | Advanced PXI Express chassis for complex modular instrumentation systems. | Large-scale automated test platforms |
Recommended Related Products
The following products are commonly used with the PXIe-1081 to build complete PXI Express automated test and measurement systems.
|
NI PXIe-8840 | PXI Express embedded controller for general-purpose automated test and measurement systems. |
|
NI PXIe-8822 | Compact PXI Express embedded controller suitable for laboratory and industrial testing. |
|
NI PXIe-5164 | PXI Express digitizer module for high-speed waveform acquisition and electronic validation. |
|
NI PXIe-6570 | PXI Express digital pattern instrument for semiconductor and digital testing applications. |
|
NI PXIe-5842 | PXI Express Vector Signal Transceiver for RF and wireless communication testing. |
Why Choose NI PXIe-1081
- Compact PXI Express chassis solution
- Supports PXI and PXI Express modules
- High-speed modular instrumentation platform
- Flexible synchronization capability
- Suitable for automated test applications
- Ideal for laboratory and industrial measurement systems
Conclusion
The NI PXIe-1081 PXI Express Chassis provides a compact and flexible platform for engineers developing modular automated test and measurement systems.
With PXI Express performance, reliable synchronization, and compatibility with a wide range of PXI modules, the PXIe-1081 is an excellent choice for electronic testing, data acquisition, RF validation, and engineering measurement applications.
