NI PXI-7841R FlexRIO FPGA Module
The NI PXI-7841R is a reconfigurable FPGA-based I/O module designed for real-time control, hardware-in-the-loop (HIL) simulation, digital testing, and custom instrumentation applications. Developed by National Instruments, the PXI-7841R combines FPGA processing capability with flexible digital I/O resources to provide engineers with a customizable embedded control platform.
Based on NI RIO technology, the PXI-7841R allows users to develop customized FPGA applications using LabVIEW FPGA programming. It provides deterministic execution, low-latency processing, and flexible hardware implementation for advanced engineering systems.
With PXI bus integration, FPGA acceleration, and reconfigurable I/O capability, the PXI-7841R is suitable for aerospace, automotive, industrial automation, and research applications.
Key Features of NI PXI-7841R
FPGA-Based Real-Time Processing
The PXI-7841R provides programmable FPGA resources for implementing customized real-time applications.
- Parallel FPGA processing
- Deterministic hardware execution
- Low-latency control algorithms
- Custom digital processing
Reconfigurable I/O Capability
The PXI-7841R provides flexible digital I/O resources that can be configured for different applications.
- Programmable digital channels
- Custom communication interfaces
- User-defined hardware functions
- Flexible system integration
LabVIEW FPGA Development Support
The PXI-7841R supports NI LabVIEW FPGA tools for graphical FPGA programming and rapid development.
- LabVIEW FPGA support
- FPGA application development
- Rapid prototyping
- Real-time hardware design
NI RIO Architecture
The PXI-7841R uses NI RIO technology to provide a flexible FPGA-based measurement and control platform.
- Reconfigurable hardware architecture
- Real-time deterministic operation
- High-speed I/O processing
- Custom measurement solutions
Applications of NI PXI-7841R
Hardware-in-the-Loop (HIL) Simulation
The PXI-7841R provides FPGA-based real-time processing for controller testing and simulation applications.
- Automotive HIL testing
- Aerospace simulation
- Embedded controller validation
- Real-time system testing
Industrial Control Systems
The PXI-7841R enables engineers to develop customized FPGA-based industrial control solutions.
- Machine control
- Motion control
- Industrial automation
- Real-time monitoring
Digital Testing Applications
The PXI-7841R provides flexible digital I/O capability for electronic testing and validation.
- Digital device testing
- Protocol verification
- Embedded system testing
- Hardware validation
Rapid Prototyping
The PXI-7841R provides a flexible FPGA platform for developing and validating custom hardware solutions.
- Algorithm verification
- FPGA research
- Prototype development
- Custom instrumentation
Software Support
The NI PXI-7841R supports National Instruments software tools for FPGA and real-time application development.
- LabVIEW FPGA
- LabVIEW Real-Time
- NI-RIO Driver
- TestStand
Technical Specifications of PXI-7841R
| Feature | Description |
|---|---|
| Product Type | FlexRIO FPGA Reconfigurable I/O Module |
| Platform | PXI |
| Technology | NI RIO FPGA Architecture |
| Programming | LabVIEW FPGA |
| Function | Real-Time FPGA Control and Digital I/O |
| Applications | HIL, industrial control, digital testing |
Comparison with Similar PXI FPGA Modules
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXI-7841R | FPGA-based reconfigurable I/O module for custom digital control and real-time applications. | Industrial control and HIL systems |
|
NI PXI-7842R | Enhanced FPGA I/O module with additional resources for advanced applications. | Complex FPGA systems |
|
NI PXIe-7846R | Higher-performance PXI Express FlexRIO FPGA module with increased processing capability. | Advanced FPGA processing |
|
NI PXIe-7822R | PXI Express FPGA I/O module designed for modern modular test systems. | PXI Express control applications |
Recommended Related Products
The following products are commonly used with the PXI-7841R to build complete FPGA-based control and test systems.
|
NI PXIe-7846R | High-performance FlexRIO FPGA module for advanced real-time processing applications. |
|

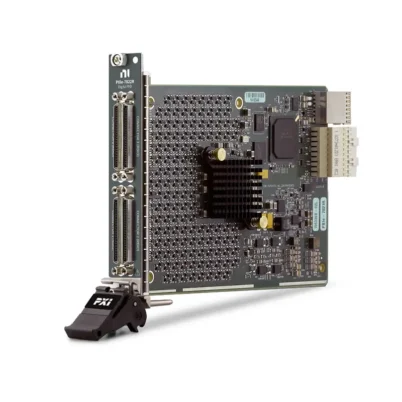

NI PXIe-7822R | PXI Express FPGA module with reconfigurable I/O capability for control systems. |
|
NI PXIe-7976 | FlexRIO FPGA module for high-speed measurement and custom signal processing. |
|
NI PXI-1042Q | PXI chassis for integrating FPGA modules and modular instrumentation systems. |
|
NI PXI-8108 | PXI embedded controller for controlling PXI-based automated test systems. |
Why Choose NI PXI-7841R
- Flexible FPGA-based real-time processing
- Reconfigurable digital I/O capability
- Supports LabVIEW FPGA development
- Deterministic hardware execution
- Ideal for HIL and industrial control
- Suitable for custom test and prototype systems
Conclusion
The NI PXI-7841R FlexRIO FPGA Module provides a flexible and powerful platform for engineers developing customized FPGA-based control, testing, and real-time processing systems.
With programmable FPGA resources, reconfigurable I/O, NI RIO technology, and LabVIEW FPGA support, the PXI-7841R is an excellent choice for HIL simulation, industrial automation, digital validation, and rapid prototyping applications.
