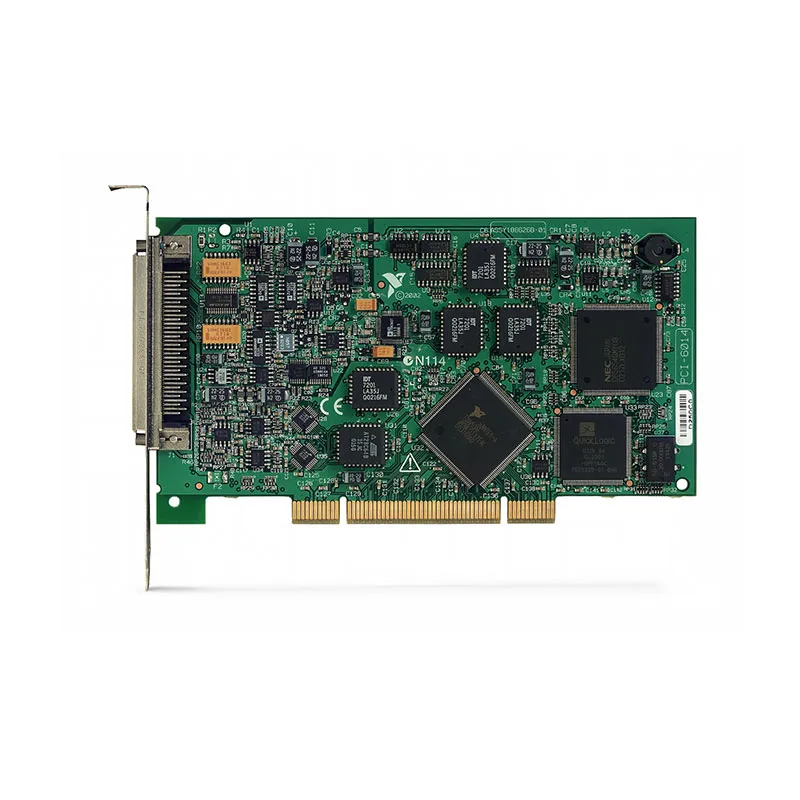

PCI-6014 16-Bit 200 kS/s Multifunction DAQ Device
The NI PCI-6014 is a B Series multifunction data acquisition board for laboratory automation, OEM equipment, design verification and manufacturing test. It integrates analog input, analog output, digital I/O and counter/timer capabilities on a conventional PCI interface.
The PCI-6014 provides 16 single-ended or eight differential analog inputs with 16-bit resolution and an aggregate sample rate up to 200 kS/s. Two analog outputs support programmable voltage generation.
Eight digital I/O lines and two 24-bit counter/timers support fixture control, event counting, pulse measurement and basic timing applications.
Key Features of the PCI-6014
- 16 single-ended or eight differential analog inputs
- 16-bit analog input resolution
- 200 kS/s maximum aggregate sampling
- Two analog output channels
- Eight digital I/O lines
- Two 24-bit counter/timers
- Digital triggering support
- 68-pin front-panel connector
- Conventional PCI computer interface
- NI-DAQmx software support
PCI-6014 Technical Specifications
| Product Model | PCI-6014 |
|---|---|
| Part Number | 778627-01 |
| Product Family | NI B Series Multifunction DAQ |
| Bus Interface | Conventional PCI |
| Analog Inputs | 16 single-ended or 8 differential |
| Analog Input Resolution | 16 bits |
| Maximum AI Rate | 200 kS/s aggregate |
| Analog Outputs | 2 |
| Digital I/O | 8 lines |
| Counter/Timers | 2 × 24-bit |
| Triggering | Digital triggering |
| Front Connector | 68-pin connector |
| Power Source | PCI bus powered |
| Driver Software | NI-DAQmx |
| Lifecycle | Legacy/discontinued product |
PCI-6014 Part Number and Accessories
| Item | Part Number | Description |
|---|---|---|
| PCI-6014 | 778627-01 | 16-bit, 200 kS/s PCI multifunction DAQ device |
| SH68-68-EP Cable | Length dependent | Shielded 68-pin cable for compatible terminal accessories |
| SCB-68A | 782536-01 | Shielded screw-terminal connector block |
| BNC-2110 | 777643-01 | BNC signal-access accessory |
| CB-68LP | 777145-01 | General-purpose screw-terminal connector block |
Because the PCI-6014 is a legacy board, confirm the cable connector and board revision before ordering replacement accessories.
16-Bit Analog Input
The device provides 16 single-ended channels for maximum density or eight differential channels for improved common-mode noise rejection.
The 200 kS/s aggregate rate is shared across the active channels. The rate required by each channel should be calculated before building the acquisition task.
Analog Output Capability
Two analog outputs can generate programmable control voltages and basic test stimulus. External amplifiers are required for high-current or power-control applications.
Digital I/O and Counters
Eight digital lines provide logic monitoring and control. Two 24-bit counters support event counting, frequency measurement and pulse-related operations.
Legacy System Integration
The PCI-6014 remains useful for maintaining test systems whose wiring, fixtures and software were designed around its channel names and connector pinout.
PCI-6014 Applications
- Laboratory automation
- OEM test equipment
- Manufacturing test
- Design verification
- Voltage data acquisition
- Analog stimulus generation
- Digital fixture control
- Event and frequency measurement
Design Verification
The PCI-6014 can apply a basic analog stimulus and measure the DUT response during electronic design verification.
Manufacturing Test
Digital lines can control fixture states while analog inputs verify voltage levels and counters measure DUT timing signals.
PCI-6014 Installation Workflow
Step 1: Confirm PCI Compatibility
Verify that the computer has an available conventional PCI expansion slot.
Step 2: Confirm Driver Support
Check that the operating system and NI-DAQmx version support the legacy PCI-6014.
Step 3: Install the Board
Power down the computer and install the device using ESD precautions.
Step 4: Connect the Accessory
Install a compatible shielded 68-pin cable and terminal block.
Step 5: Configure NI MAX
Run the self-test and verify each required I/O subsystem.
Step 6: Validate the Wiring
Confirm channel mode, ranges, grounding and safe analog output states.
PCI-6014 Troubleshooting
The device is not recognized
Check board seating, PCI resources and NI-DAQmx compatibility.
The input voltage is incorrect
Verify channel selection, input mode, range and signal reference.
The output voltage drops under load
The connected load may require more current than the output can provide. Add an appropriate buffer amplifier.
Digital signals are unstable
Check logic levels, grounding and cable shielding. Add conditioning when interfacing with industrial signals.
The counter reports extra pulses
Noisy edges may produce additional counts. Improve shielding or add a Schmitt-trigger interface.
PCI-6014 Comparison
| Model | AI | AO | Digital I/O | Primary Difference |
|---|---|---|---|---|
| PCI-6010 | 16 | 2 | 6 DI, 4 DO | 37-pin connector |
| PCI-6014 | 16 | 2 | 8 DIO | Legacy 68-pin B Series |
| PCI-6221 | 16 | 2 | 24 DIO | Newer M Series architecture |
| PCIe-6321 | 16 | 2 | 24 DIO | PCI Express interface |
PCI-6014 vs PCI-6221
The PCI-6221 provides more digital I/O, 32-bit counters and an updated M Series timing architecture. The PCI-6014 may be preferred when maintaining an existing fixture designed around its wiring.
Why Choose the PCI-6014?
Choose the PCI-6014 when an existing PCI test system requires the same B Series hardware behavior, channel mapping and software configuration.
PCI-6014 Frequently Asked Questions
What is the PCI-6014 part number?
A commonly specified orderable part number is 778627-01. Confirm the board label and revision before purchasing.
What is the maximum sampling rate?
The maximum analog input rate is 200 kS/s aggregate.
How many analog outputs are available?
The PCI-6014 provides two analog output channels.
Which driver supports the PCI-6014?
The device can be controlled through a compatible NI-DAQmx version.
Is it suitable for a PCI Express-only computer?
No. It requires a conventional PCI slot or replacement with a compatible PCI Express DAQ model.
Recommended Related Products

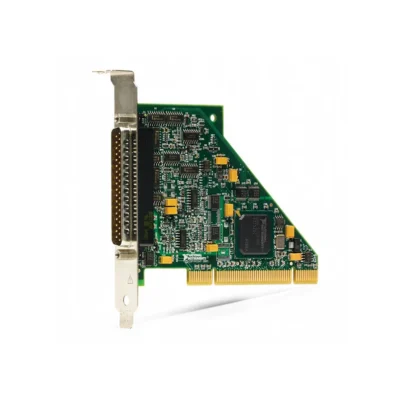

- PCI-6010 Multifunction DAQ Device
