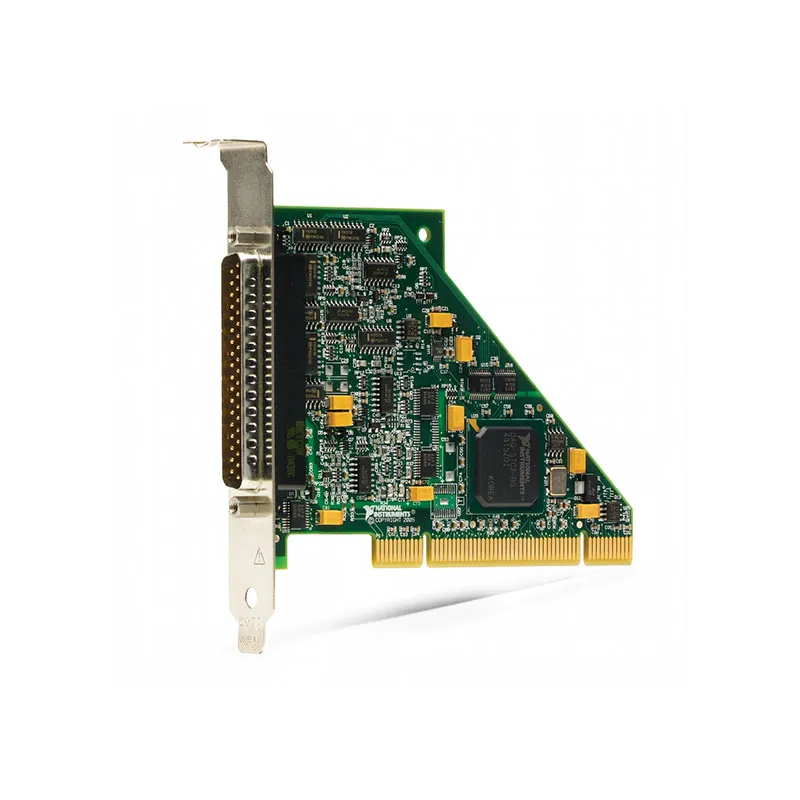

PCI-6010 16-Bit 200 kS/s Multifunction DAQ Device
The NI PCI-6010 is a low-cost multifunction data acquisition device designed for OEM equipment, laboratory automation, design verification and manufacturing test. It provides analog input, analog output, digital I/O and counter/timer functionality on a conventional PCI board.
The PCI-6010 includes 16 single-ended or eight differential analog input channels with 16-bit resolution and an aggregate sample rate up to 200 kS/s. Two analog outputs provide programmable voltage generation for stimulus and control applications.
Unlike many 68-pin NI DAQ devices, the PCI-6010 uses a compact 37-pin D-Sub connector. Its digital subsystem provides six dedicated digital inputs and four dedicated digital outputs.
Key Features of the PCI-6010
- 16 single-ended or eight differential analog inputs
- 16-bit analog input resolution
- 200 kS/s maximum aggregate sampling
- Two analog output channels
- Six dedicated digital inputs
- Four dedicated digital outputs
- Two counter/timers
- Analog input and digital triggering support
- 37-pin D-Sub front connector
- Conventional PCI interface
- Bus-powered operation
- NI-DAQmx driver support
PCI-6010 Technical Specifications
| Product Model | PCI-6010 |
|---|---|
| Part Number | 779348-01 |
| Product Type | Low-cost multifunction DAQ device |
| Bus Interface | Conventional PCI |
| Analog Inputs | 16 single-ended or 8 differential |
| Analog Input Resolution | 16 bits |
| Maximum AI Rate | 200 kS/s aggregate |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 4 |
| Bidirectional DIO | None |
| Counter/Timers | 2 |
| Front Connector | 37-pin female D-Sub |
| Power Source | PCI bus powered |
| Driver Software | NI-DAQmx |
| Lifecycle Status | Discontinued |
The digital lines have fixed input or output directions. They should not be confused with the fully bidirectional digital ports found on many M Series DAQ devices.
PCI-6010 Part Number and Accessories
| Item | Part Number | Description |
|---|---|---|
| PCI-6010 | 779348-01 | 16-bit, 200 kS/s PCI multifunction DAQ device |
| 37-Pin D-Sub Cable | Length dependent | Shielded male-to-female D-Sub signal cable |
| CB-37FH | Verify revision | 37-pin D-Sub screw-terminal connector block |
| Custom D-Sub Harness | Application dependent | Custom cable for OEM or test-fixture integration |
The cable must match the PCI-6010 female 37-pin D-Sub connector. Verify connector gender, cable shielding and pinout before ordering or building a harness.
16-Bit Analog Acquisition
The PCI-6010 provides 16 single-ended inputs for maximum channel count or eight differential inputs for improved noise rejection. Its 200 kS/s aggregate rate supports general-purpose sensor, control and test signals.
Because the channels use multiplexed acquisition, each active channel is sampled at a slightly different time. The total acquisition rate is shared among the channels in the task.
Two Analog Outputs
Two analog output channels can generate control voltages, reference levels and basic test stimulus. These outputs are intended for compatible high-impedance loads rather than direct control of motors or other power devices.
Dedicated Digital I/O
Six digital input lines can monitor switches, status signals and compatible logic outputs. Four digital output lines can control logic-level fixture functions or external driver circuits.
External buffering or isolation is required for industrial voltages, high-current loads and circuits that do not share a suitable ground reference.
Compact 37-Pin Connectivity
The 37-pin D-Sub interface helps reduce connection size in OEM systems. It also makes the PCI-6010 different from many NI multifunction boards that use 68-pin connectors.
PCI-6010 Applications
- OEM measurement systems
- Laboratory automation
- Manufacturing test
- Design verification
- General-purpose voltage acquisition
- Low-cost data logging
- Basic analog stimulus generation
- Digital status monitoring
- Fixture control
OEM Test Equipment
The compact D-Sub connector and multifunction architecture make the PCI-6010 suitable for integration into dedicated test stations and OEM measurement products.
Laboratory Automation
The device can acquire voltage signals, generate basic stimulus and monitor digital status lines from one software-controlled interface.
PCI-6010 Installation Workflow
Step 1: Verify the PCI Slot
Confirm that the computer provides a compatible conventional PCI slot.
Step 2: Check NI-DAQmx Support
The PCI-6010 is discontinued, so verify operating-system and driver compatibility before installation.
Step 3: Install the Board
Power down the computer and install the board using appropriate ESD precautions.
Step 4: Connect the D-Sub Cable
Confirm connector gender and pin assignments before connecting the external signals.
Step 5: Test in NI MAX
Run the self-test and verify analog input, analog output and digital operation.
Step 6: Validate the Application
Confirm voltage ranges, sample rates, grounding and safe output states before connecting the DUT.
PCI-6010 Troubleshooting
The PCI-6010 is not detected
Check the PCI slot, board seating and whether the installed NI-DAQmx version supports the device.
The D-Sub cable does not fit
Verify that the cable has the correct 37-pin connector and gender.
A digital input cannot be configured as an output
The PCI-6010 uses dedicated digital inputs and outputs rather than bidirectional digital channels.
Analog measurements contain noise
Use shielded wiring, differential acquisition and proper grounding. Keep signal cables away from power wiring.
An analog output cannot drive the load
Add an external amplifier or driver when the load requires more output current.
PCI-6010 Comparison
| Model | AI | AO | Digital I/O | Connector |
|---|---|---|---|---|
| PCI-6010 | 16, 16-bit | 2 | 6 DI and 4 DO | 37-pin D-Sub |
| PCI-6014 | 16, 16-bit | 2 | 8 DIO | 68-pin |
| PCI-6221 | 16, 16-bit | 2 | 24 DIO | 68-pin VHDCI |
| PCIe-6321 | 16, 16-bit | 2 | 24 DIO | PCI Express DAQ |

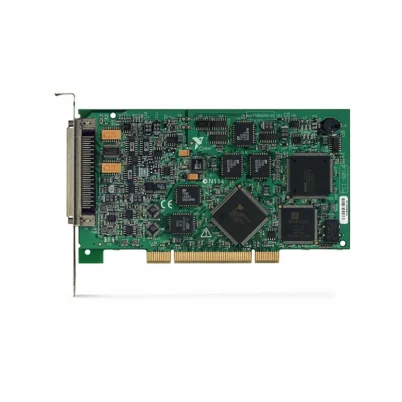

PCI-6010 vs PCI-6014
Both devices provide 16-bit, 200 kS/s analog input and two analog outputs. The PCI-6010 uses a 37-pin connector with dedicated digital directions, while the PCI-6014 uses a larger connector and eight digital I/O lines.
Why Choose the PCI-6010?
The PCI-6010 is useful for maintaining legacy OEM and laboratory systems that require its specific D-Sub wiring, NI-DAQmx configuration and PCI interface.
PCI-6010 Frequently Asked Questions
What is the PCI-6010 part number?
The standard part number is 779348-01.
How many analog inputs are included?
It provides 16 single-ended or eight differential analog inputs.
Does it have bidirectional digital lines?
No. It provides six dedicated digital inputs and four dedicated digital outputs.
Which connector does it use?
The PCI-6010 uses a 37-pin female D-Sub connector.
Is the PCI-6010 discontinued?
Yes. Confirm availability and software compatibility when maintaining an existing system.
