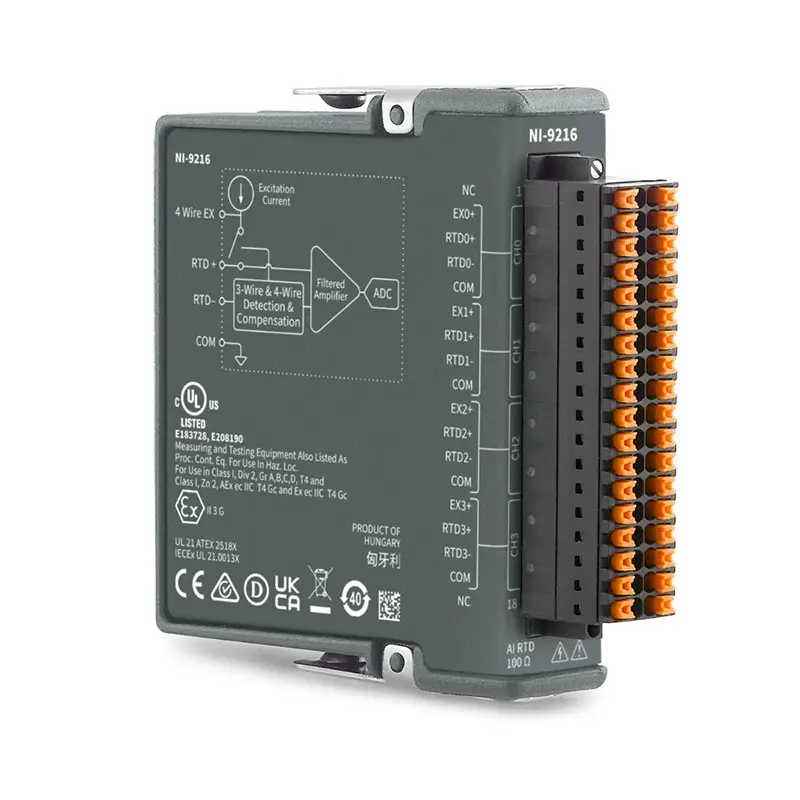

NI-9216 C Series RTD Temperature Input Module
The NI-9216 is a high-precision C Series RTD input module designed for temperature measurement, industrial monitoring, thermal testing, and sensor data acquisition applications. Developed by National Instruments, the NI-9216 provides 8 channels of RTD input for CompactDAQ and CompactRIO systems.
The NI-9216 is optimized for resistance temperature detector (RTD) sensors, including Pt100 and Pt1000 devices. With high-resolution measurement capability, integrated signal conditioning, and reliable C Series architecture, it delivers accurate temperature monitoring for demanding industrial environments.
Supporting NI-DAQmx software, LabVIEW integration, and flexible CompactDAQ deployment, the NI-9216 provides a reliable solution for precision temperature measurement systems.
Key Features of NI-9216
8-Channel RTD Temperature Measurement
The NI-9216 provides multiple RTD input channels for accurate temperature acquisition.
- 8 RTD input channels
- Pt100 and Pt1000 sensor support
- Resistance temperature measurement
- High-accuracy temperature monitoring
High-Resolution Temperature Acquisition
The NI-9216 provides precise measurement performance for applications requiring stable temperature monitoring.
- 24-bit ADC resolution
- Low-noise measurement
- High temperature accuracy
- Long-term measurement stability
Integrated Signal Conditioning
The NI-9216 includes built-in signal conditioning optimized for RTD sensor measurements.
- RTD excitation current
- Sensor compensation
- Improved measurement accuracy
- Reduced external circuitry requirements
C Series Modular Architecture
The NI-9216 uses NI C Series technology for flexible integration into distributed measurement systems.
- CompactDAQ compatibility
- CompactRIO compatibility
- Modular system expansion
- Industrial deployment capability
NI Software Support
The NI-9216 integrates with NI software platforms for temperature measurement and automation development.
- NI-DAQmx support
- LabVIEW integration
- NI MAX configuration
- TestStand compatibility
Applications of NI-9216
Industrial Temperature Monitoring
The NI-9216 provides reliable RTD temperature measurement for industrial monitoring systems.
- Machine temperature monitoring
- Process control
- Equipment diagnostics
- Factory automation
Thermal Testing and Validation
The NI-9216 is suitable for applications requiring accurate thermal characterization.
- Thermal chamber testing
- Environmental testing
- Temperature profiling
- Product validation
Energy and Power System Monitoring
The NI-9216 can be used for temperature monitoring in energy-related applications.
- Battery thermal monitoring
- Power electronics testing
- Energy storage systems
- Thermal management
Research and Laboratory Applications
The NI-9216 provides accurate temperature acquisition for scientific and engineering research.
- Material testing
- Experimental measurement
- Sensor characterization
- Data logging
Software Support
The NI-9216 supports National Instruments software tools for temperature measurement and automated testing.
- LabVIEW
- NI-DAQmx
- NI MAX
- TestStand
Technical Specifications of NI-9216
| Feature | Description |
|---|---|
| Product Type | C Series RTD Input Module |
| Platform | CompactDAQ / CompactRIO |
| Channels | 8 RTD Input Channels |
| Sensor Type | Pt100, Pt1000 RTD |
| Resolution | 24-bit ADC |
| Software | LabVIEW, NI-DAQmx |
| Applications | Temperature measurement, thermal testing, industrial monitoring |
Comparison with Similar C Series Temperature Measurement Modules
| Model | Main Difference | Best Application |
|---|---|---|
|
NI-9216 | 8-channel RTD input module designed for high-accuracy temperature measurement. | Industrial RTD temperature monitoring |
|
NI-9217 | RTD measurement module optimized for industrial temperature applications. | Multi-channel temperature acquisition |
|
NI-9219 | Universal analog input module supporting RTD, voltage, current, and thermocouple signals. | Multi-sensor measurement systems |
|
NI-9213 | High-channel-count thermocouple input module for temperature measurement. | Thermocouple-based thermal testing |
Recommended Related Products
The following products are commonly used with the NI-9216 to build complete CompactDAQ and CompactRIO temperature measurement systems.
|
NI cDAQ-9189 | Ethernet CompactDAQ chassis for distributed temperature and sensor measurement applications. |
|
NI cDAQ-9178 | 8-slot CompactDAQ chassis for multi-channel C Series measurement systems. |
|
NI-9213 | C Series thermocouple input module for multi-channel temperature acquisition. |
|
NI-9234 | Dynamic signal acquisition module for vibration and acoustic measurement. |
|
NI cRIO-9045 | CompactRIO controller for industrial control and embedded measurement systems. |
Why Choose NI-9216
- High-accuracy RTD temperature measurement
- Supports Pt100 and Pt1000 sensors
- 24-bit high-resolution acquisition
- Reliable C Series industrial design
- Compatible with CompactDAQ and CompactRIO
- Ideal for thermal testing and industrial monitoring
Conclusion
The NI-9216 C Series RTD Input Module provides a reliable and precise solution for engineers requiring accurate temperature measurement in industrial and research environments.
With RTD sensor support, high-resolution acquisition, C Series modular architecture, and NI software integration, the NI-9216 is an excellent choice for thermal testing, industrial monitoring, energy systems, and automated measurement applications.
