Product Introduction

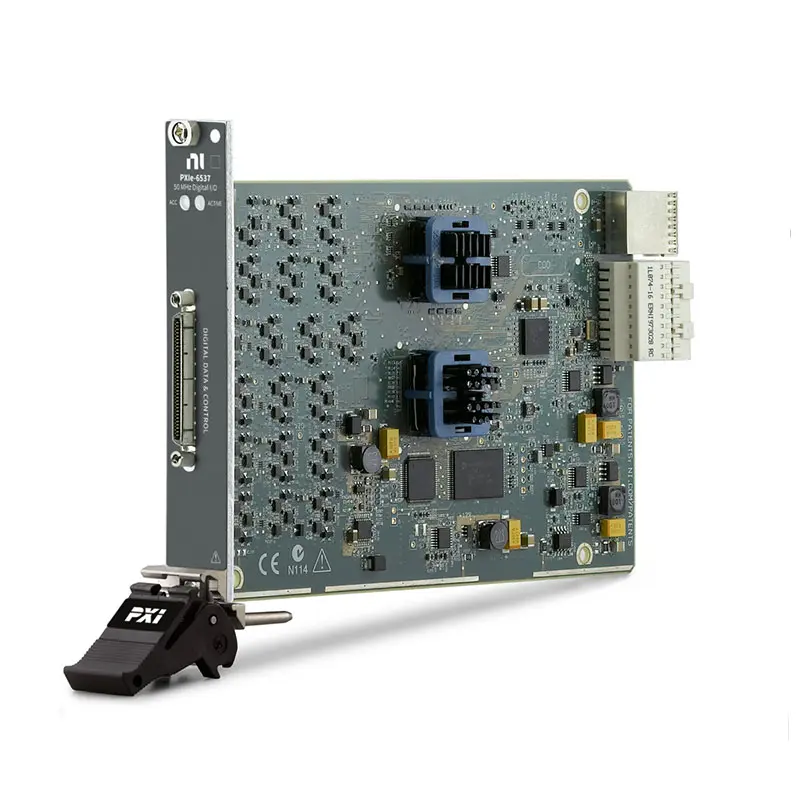

The NI PXIe-6537 is a high-speed digital I/O module designed for PXI Express-based automated test systems, semiconductor testing, embedded validation, and digital signal applications. It provides flexible digital pattern generation and acquisition capabilities for testing high-speed digital devices and electronic systems.
Featuring 32 bidirectional digital channels, hardware-timed digital waveform generation and acquisition, programmable timing control, and NI-HSDIO software support, the PXIe-6537 enables engineers to build scalable digital test platforms with precise synchronization and high-speed data transfer.
Product Overview
The PXIe-6537 belongs to the NI High-Speed Digital I/O (HSDIO) product family and provides advanced digital pattern testing capabilities in a PXI Express modular platform.
The module is designed for applications requiring deterministic digital stimulus generation, digital response capture, and high-speed communication testing. It can be integrated with PXI controllers, FPGA modules, signal generators, and other test instruments to create complete automated validation systems.
With PXI Express high-bandwidth architecture, flexible timing resources, and NI-HSDIO driver support, the PXIe-6537 is suitable for semiconductor validation, digital interface testing, and research applications.
Key Features
32 Bidirectional Digital Channels
The PXIe-6537 provides flexible digital input and output capability.
- 32 digital I/O channels
- Programmable input/output direction
- Digital pattern generation
- Digital data acquisition
- Parallel device testing
Advantage: Enables testing of complex digital interfaces with a single PXI Express module.
High-Speed Digital Pattern Generation
The module provides precise digital stimulus generation for device testing.
- Hardware-timed pattern output
- Programmable digital waveforms
- Deterministic timing control
- Repeatable test sequences
- Automated digital stimulation
Advantage: Provides accurate and repeatable digital testing for electronic devices.
High-Speed Digital Data Acquisition
The PXIe-6537 supports high-speed capture of digital signals.
- Digital waveform acquisition
- High-speed data capture
- Logic signal monitoring
- Protocol validation
- Digital debugging
Advantage: Allows engineers to analyze and validate fast digital communication signals.
Hardware Timing and Synchronization
The PXIe-6537 provides accurate timing control for advanced digital testing.
- Hardware clocking
- External triggering
- PXI synchronization
- Deterministic operation
- Multi-module coordination
Advantage: Supports synchronized testing with other PXI instruments.
PXI Express High-Bandwidth Interface
The PXIe-6537 uses PXI Express technology for high-speed communication.
- High-speed PCI Express communication
- Fast digital data transfer
- Low-latency operation
- Scalable PXI architecture
- Multi-instrument integration
Advantage: Handles demanding digital test applications requiring high throughput.
NI-HSDIO Software Support
The PXIe-6537 integrates with NI high-speed digital I/O software tools.
- NI-HSDIO driver support
- LabVIEW integration
- TestStand compatibility
- Digital waveform editing
- Automated test development
Advantage: Simplifies programming and deployment of digital test systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express High-Speed Digital I/O Module |
| Digital Channels | 32 Bidirectional Channels |
| Channel Direction | Programmable Input/Output |
| Digital Function | Pattern Generation and Acquisition |
| Timing Control | Hardware-Timed Digital I/O |
| Interface | PXI Express |
| Driver | NI-HSDIO |
| Programming Support | LabVIEW, TestStand, C/C++, C#, .NET |
Software Ecosystem
The PXIe-6537 integrates with NI software tools for digital testing and automated measurement systems.
- NI-HSDIO: Provides digital waveform generation, acquisition, timing configuration, and hardware control.
- LabVIEW: Enables graphical development of digital test applications.
- TestStand: Supports automated production test sequences.
- NI MAX: Provides hardware configuration and diagnostics.
- C/C++, C#, .NET: Supports custom digital test software development.
Industries
- Semiconductor Testing
- Electronics Manufacturing
- Embedded Systems
- Aerospace and Defense
- Automotive Electronics
- Communication Equipment
- Research Laboratories
- Automated Test Equipment
Applications
Semiconductor Device Testing
The PXIe-6537 provides digital pattern testing capability for semiconductor devices.
- IC functional testing
- Digital interface validation
- Memory testing
- Device characterization
Digital Protocol Testing
The module supports validation of high-speed digital communication interfaces.
- Protocol verification
- Logic analysis
- Embedded communication testing
- Interface debugging
Electronic Product Validation
The PXIe-6537 helps engineers validate digital electronic designs.
- Prototype testing
- Hardware verification
- Functional testing
- Design validation
Automated Test Systems
The module integrates into PXI-based automated test platforms.
- Production testing
- Device verification
- Multi-instrument systems
- High-throughput testing
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXIe-6537 | 32-channel PXI Express high-speed digital I/O module. | Digital pattern testing and validation |

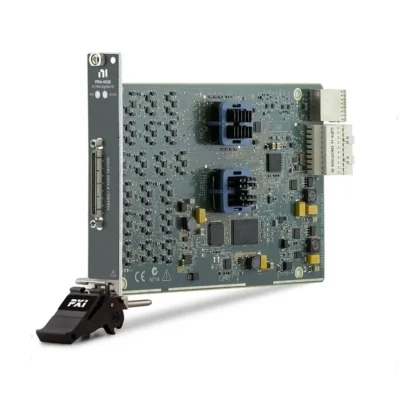

| NI PXIe-6536 | High-speed digital I/O module with different performance configuration. | Digital waveform applications |
| NI PXIe-6570 | Semiconductor digital pattern instrument with per-pin measurement capability. | IC production testing |
| NI PXIe-7976 | FPGA-based PXI Express processing module. | Custom real-time digital processing |
Recommended Related Products
| NI PXIe-1095 | High-performance PXI Express chassis for digital test systems. |
| NI PXIe-8880 | High-performance PXI Express controller for automated testing. |
| NI PXIe-6570 | Digital pattern instrument for semiconductor testing. |
| NI PXIe-7976 | FPGA module for custom digital processing applications. |
Why Choose PXIe-6537?
- 32-channel high-speed digital I/O
- Hardware-timed digital pattern generation
- High-speed digital acquisition capability
- PXI Express high-bandwidth architecture
- NI-HSDIO software support
- Flexible input/output configuration
- Ideal for semiconductor and electronics testing
- Scalable PXI automated test solution
Frequently Asked Questions
What is PXIe-6537 used for?
The PXIe-6537 is used for high-speed digital testing, semiconductor validation, digital interface verification, embedded system testing, and automated test applications.
How many digital channels does PXIe-6537 provide?
The PXIe-6537 provides 32 programmable digital I/O channels for pattern generation and acquisition.
Does PXIe-6537 support LabVIEW?
Yes. The PXIe-6537 supports NI-HSDIO drivers and integrates with LabVIEW, TestStand, NI MAX, and other NI software environments.
Conclusion
The NI PXIe-6537 high-speed digital I/O module provides a flexible PXI Express platform for digital pattern generation, high-speed acquisition, and automated device testing. With 32 programmable channels, precise hardware timing, NI-HSDIO software support, and PXI Express performance, it is an ideal solution for semiconductor testing, electronics validation, and advanced digital measurement systems.
