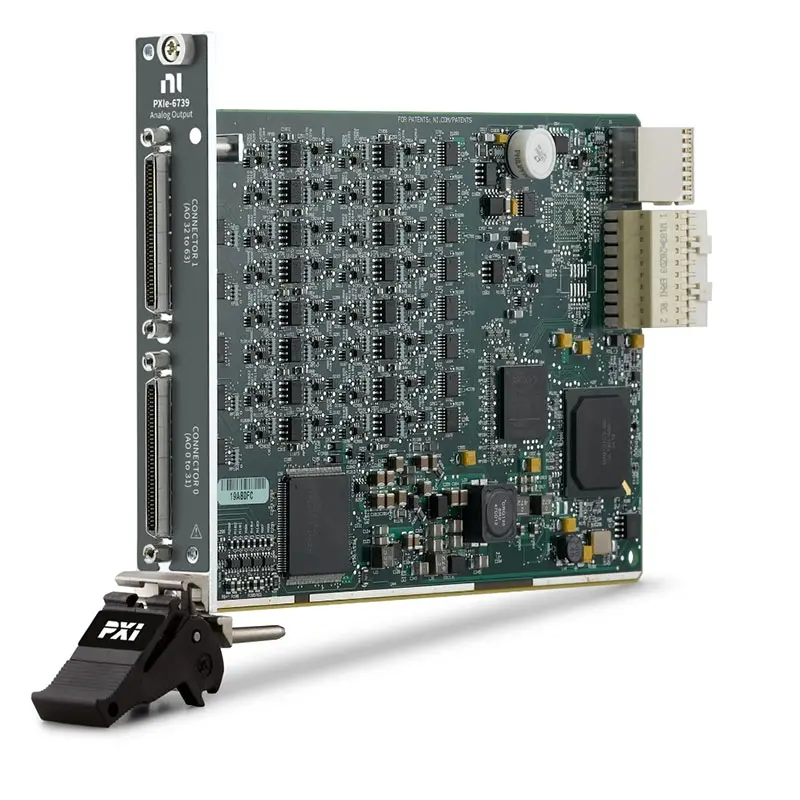

The PXIe‑6739 is a high-density analog output module. The device is ideal for applications such as stimulus-response tests and open-loop simulations at high densities. You can achieve the maximum sample rate if using up to 16 channels, where each channel is on a separate bank. The PXIe‑6739 also includes 20 digital I/O lines, four counter/timers, digital triggering, and advanced timing to meet a wide range of application requirements. Its digital triggering and PXI Express synchronization capabilities allow it to be coupled with additional data acquisition, motion, and vision products to create highly custom measurement solutions to test innovative designs.
Part Number(s): 783801-01
Applications and Use Cases of PXIe-6739
The PXIe-6739 Analog Output Module is a high-density analog output module for PXI Express systems, designed to provide multiple synchronized voltage outputs with high resolution and update rates. It is ideal for applications that require simultaneous multi-channel signal generation and precise control.
1. Multi-Channel Analog Signal Generation
PXIe-6739 is widely used for generating multiple synchronized analog voltage signals, making it suitable for applications requiring high channel count output.
2. Sensor Simulation and System Emulation
It can simulate outputs from various sensors and real-world systems, enabling engineers to test and validate measurement devices and control systems without physical inputs.
3. Industrial Automation and Control Systems
With multiple output channels, PXIe-6739 is ideal for driving actuators, controlling industrial processes, and providing control signals in automated systems.
4. Hardware-in-the-Loop (HIL) Simulation
PXIe-6739 is commonly used in HIL systems to generate real-time analog signals that emulate real-world inputs, enabling system validation and control algorithm testing.
5. Electronic Device and Circuit Testing
The module is suitable for providing controlled voltage signals to electronic circuits, embedded systems, and components during testing and validation.
6. Power Electronics and Motor Control Testing
PXIe-6739 can be used to generate control signals for testing power electronics, inverters, and motor drive systems.
7. Research, Development, and Prototyping
It is widely used in R&D labs and engineering environments for system prototyping, experimental testing, and multi-channel signal generation tasks.
