Product Introduction

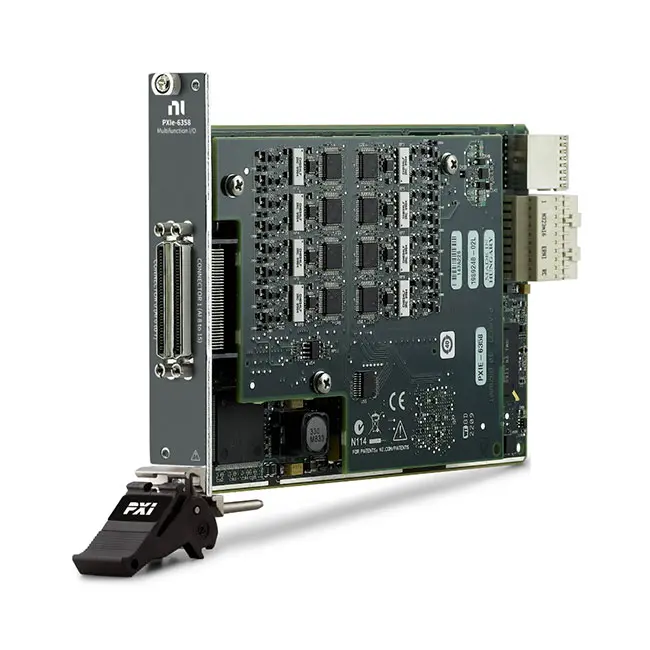

The NI PXIe-6358 is a high-performance, simultaneous-sampling X Series multifunction data acquisition module designed for high-speed automated testing, transient recording, signal analysis, and synchronized measurement applications. It combines analog input, analog output, digital I/O, counter/timer functions, and advanced triggering in a single PXI Express module.
With 16 differential analog input channels sampling simultaneously at up to 1.25 MS/s per channel, the PXIe-6358 can acquire time-correlated signals without the channel-to-channel delay associated with multiplexed acquisition systems. Its PXI Express interface and NI-STC3 timing architecture make it suitable for demanding multichannel measurement and control platforms.
Product Overview
The PXIe-6358 belongs to the NI X Series multifunction DAQ family and is optimized for applications requiring high-speed, phase-aligned acquisition across multiple analog channels. Each analog input channel uses dedicated simultaneous-sampling architecture, making the module suitable for transient signals, waveform comparison, phase measurement, and multichannel signal analysis.
In addition to its analog input subsystem, the PXIe-6358 provides four high-speed analog outputs, 48 programmable digital I/O lines, four 32-bit counters, and analog and digital triggering capabilities. These integrated functions allow engineers to perform acquisition, waveform generation, device control, event counting, and synchronization with one modular instrument.
The module is supported by NI-DAQmx and integrates with LabVIEW, TestStand, FlexLogger, and common programming environments, helping engineers develop scalable automated test and measurement systems.
Key Features
16 Simultaneous Analog Inputs for Time-Correlated Measurements
The PXIe-6358 provides 16 differential analog input channels with simultaneous sampling across every channel.
- 16 differential analog input channels
- Dedicated simultaneous-sampling architecture
- Up to 1.25 MS/s sampling rate per channel
- 16-bit analog input resolution
- 1 MHz analog input bandwidth
Advantage: Simultaneous sampling preserves timing and phase relationships between channels, improving accuracy in transient recording, waveform comparison, and multichannel analysis.
Flexible Input Ranges for Different Signal Levels
The PXIe-6358 supports several programmable analog input ranges for measuring signals with different amplitudes.
- ±1 V input range
- ±2 V input range
- ±5 V input range
- ±10 V input range
- DC-coupled signal acquisition
Advantage: Programmable ranges help engineers match the measurement span to the signal level, improving effective resolution and measurement flexibility.
Four High-Speed Analog Outputs for Signal Generation
The PXIe-6358 includes four analog output channels for waveform generation, stimulus creation, and closed-loop control.
- 4 simultaneous analog output channels
- 16-bit digital-to-analog conversion
- Up to 3.3 MS/s update rate per channel
- ±10 V and ±5 V output ranges
- Nonperiodic and regenerated waveform modes
Advantage: Integrated analog outputs allow the same module to generate test stimuli while simultaneously acquiring system responses.
48 Programmable Digital I/O Lines
The PXIe-6358 provides a high number of digital lines for device control, status monitoring, communication, and test sequencing.
- 48 digital I/O lines
- Individually programmable direction
- Static and hardware-timed operation
- Digital waveform generation and acquisition
- External device interfacing
Advantage: The large digital I/O capacity reduces the need for separate control modules in complex automated test systems.
Advanced Counter, Triggering, and Timing Resources
The PXIe-6358 incorporates NI-STC3 timing and synchronization technology for precise hardware-timed operation.
- Four 32-bit counters
- Analog edge and window triggering
- Digital triggering
- Independent analog and digital timing engines
- Retriggerable measurement tasks
Advantage: Advanced timing resources support deterministic test sequences, pulse measurements, encoder acquisition, frequency analysis, and synchronized multi-instrument operation.
PXI Express Integration for Scalable Test Systems
The PXIe-6358 installs in a standard 3U PXI Express system and communicates with the host through the PXI Express bus.
- Standard 3U PXI Express form factor
- High-bandwidth bus communication
- PXI trigger and synchronization support
- Compatible with embedded and remote controllers
- Two 68-pin VHDCI I/O connectors
Advantage: PXI Express integration makes it possible to combine the module with digitizers, switching modules, RF instruments, power instruments, and other DAQ devices in one synchronized platform.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Simultaneous-Sampling Multifunction DAQ Module |
| DAQ Family | NI X Series |
| Analog Input Channels | 16 Differential Channels |
| Analog Input Resolution | 16 Bits |
| Maximum AI Sample Rate | 1.25 MS/s per Channel |
| Sampling Architecture | Simultaneous Sampling |
| Analog Input Ranges | ±1 V, ±2 V, ±5 V, and ±10 V |
| Input Coupling | DC |
| Analog Input Bandwidth | 1 MHz |
| Analog Output Channels | 4 Simultaneous Channels |
| Analog Output Resolution | 16 Bits |
| Maximum AO Update Rate | 3.3 MS/s per Channel |
| Analog Output Ranges | ±10 V, ±5 V, and External Reference |
| Digital I/O | 48 Programmable Digital I/O Lines |
| Counters | Four 32-Bit Counters |
| Analog Triggering | Edge, Edge with Hysteresis, and Window Triggering |
| Bus Interface | PXI Express |
| I/O Connectors | Two 68-Pin VHDCI Connectors |
| Driver Support | NI-DAQmx |
| Calibration Interval | 2 Years |
| Operating Temperature | 0 °C to 55 °C |
Software Ecosystem
The PXIe-6358 is supported by the NI software ecosystem for configuration, programming, data logging, synchronization, and automated test development.
- NI-DAQmx: Provides device configuration, hardware-timed acquisition, triggering, synchronization, and application programming interfaces.
- LabVIEW: Supports graphical development of measurement, control, signal-processing, and automated test applications.
- NI MAX: Enables hardware detection, configuration, self-testing, calibration management, and diagnostic testing.
- TestStand: Supports automated test sequencing, result processing, reporting, and production deployment.
- FlexLogger: Provides no-code and low-code workflows for data logging, alarms, triggers, events, and test automation.
- Programming APIs: NI-DAQmx APIs can be used with C/C++, .NET, Python, and other supported development environments.
Industries
- Aerospace and Defense
- Automotive and Transportation
- Telecommunications
- Medical and Ultrasound Research
- Electronics Manufacturing
- Physics and Scientific Research
- Industrial Automation
- Academic Laboratories
Applications
Transient Recording and Multichannel Waveform Analysis
The simultaneous-sampling architecture makes the PXIe-6358 suitable for capturing fast transients and comparing signals across multiple channels.
- Transient event recording
- Time-correlated waveform acquisition
- Phase comparison
- Pulse and event analysis
Telecommunications Manufacturing Test
The PXIe-6358 can acquire and generate signals for automated testing of telecommunications equipment and signal paths.
- IF signal digitization
- ISDN equipment testing
- ADSL system validation
- POTS manufacturing test
Ultrasound and Sonar Testing
Its simultaneous inputs and high sampling rate support multichannel acoustic and ultrasonic measurement systems.
- Ultrasound transducer evaluation
- Sonar signal acquisition
- Time-of-flight measurement
- Multichannel acoustic analysis
Automated Electronic Test Systems
The PXIe-6358 combines stimulus generation, response acquisition, digital control, and triggering for automated validation platforms.
- Functional verification
- Production testing
- Electronic device characterization
- Hardware validation
Scientific and High-Energy Physics Research
The module can capture synchronized signals from experimental equipment and laboratory sensors.
- Detector signal acquisition
- Experimental event recording
- Multichannel laboratory measurement
- Research instrumentation
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-6358 | Provides 16 simultaneous analog inputs at 1.25 MS/s per channel, four high-speed analog outputs, and 48 digital I/O lines. | Time-correlated multichannel acquisition and mixed-signal testing |
|

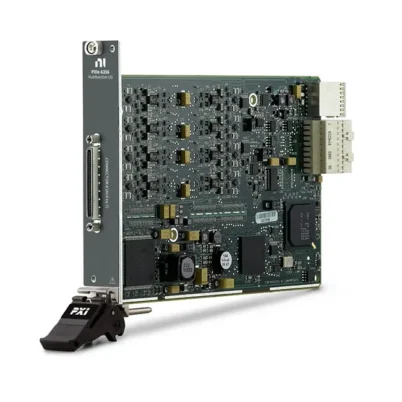

NI PXIe-6356 | Offers fewer simultaneous analog input channels for systems that do not require the channel density of the PXIe-6358. | Compact simultaneous-sampling test systems |
|
NI PXIe-6368 | Provides multiplexed X Series acquisition with a larger general-purpose analog input configuration rather than dedicated simultaneous sampling. | High-channel-count multifunction data acquisition |
|
NI PXI-6133 | S Series simultaneous-sampling DAQ module based on the conventional PXI platform. | Legacy PXI simultaneous waveform acquisition |
Recommended Related Products
The following products can be combined with the PXIe-6358 to build a complete PXI Express measurement and automated test system.
|
NI PXIe-1092 | PXI Express chassis for compact modular automated test and measurement systems. |
|
NI PXIe-1095 | High-performance 18-slot PXI Express chassis for larger multichannel systems. |
|
NI PXIe-8842 | Embedded PXI Express controller for running measurement, analysis, and automated test applications. |
|
NI BNC-2110 | Shielded BNC connector block for convenient analog, digital, and timing signal access. |
|
NI SCB-68A | Shielded 68-pin connector block for custom field wiring and signal termination. |
Why Choose PXIe-6358?
- 16 dedicated simultaneous analog input channels
- Up to 1.25 MS/s acquisition rate on every input channel
- Four 16-bit analog outputs operating at up to 3.3 MS/s
- 48 programmable digital I/O lines
- Four 32-bit counters and advanced triggering
- Accurate time correlation across multiple analog signals
- PXI Express integration for scalable automated test systems
- Supported by NI-DAQmx, LabVIEW, TestStand, and FlexLogger
Frequently Asked Questions
Does the PXIe-6358 sample all analog input channels simultaneously?
Yes. The PXIe-6358 provides 16 differential simultaneous-sampling analog inputs. Every channel can acquire at up to 1.25 MS/s, helping preserve timing and phase relationships between signals.
Can the PXIe-6358 generate analog signals as well as acquire them?
Yes. In addition to its analog input subsystem, the PXIe-6358 provides four 16-bit analog output channels with simultaneous update rates of up to 3.3 MS/s per channel.
What software and accessories are compatible with the PXIe-6358?
The PXIe-6358 is supported by NI-DAQmx and can be programmed with LabVIEW and other supported APIs. Compatible connectivity accessories include the BNC-2110, BNC-2120, SCB-68A, TB-2706, and suitable 68-pin VHDCI cables.
Conclusion
The NI PXIe-6358 simultaneous-sampling multifunction DAQ module provides a powerful mixed-signal platform for engineers requiring accurate time-correlated acquisition, high-speed waveform generation, digital control, and advanced hardware timing.
With 16 simultaneous analog inputs, four analog outputs, 48 digital I/O lines, four counters, PXI Express integration, and comprehensive NI software support, the PXIe-6358 is an excellent choice for transient recording, telecommunications testing, ultrasound and sonar applications, automated electronic validation, and scientific research.
