Product Introduction

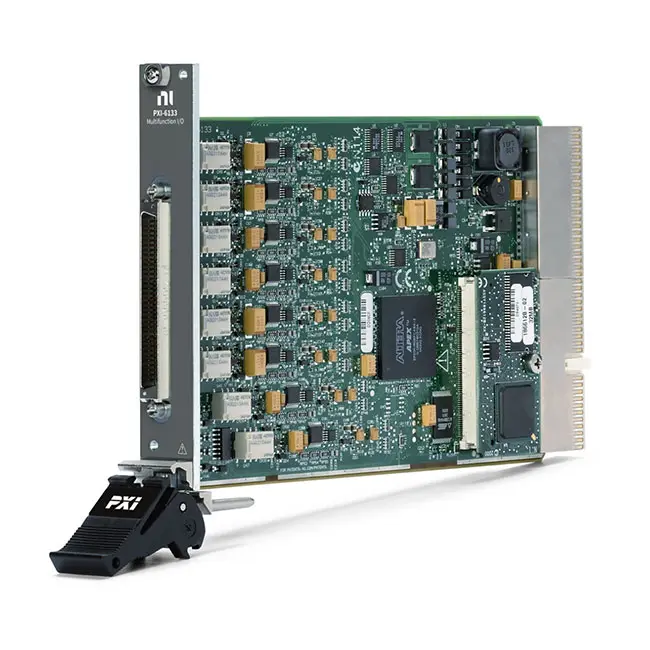

The NI PXI-6133 is a high-speed S Series multifunction data acquisition (DAQ) module designed for synchronized analog measurement, automated testing, transient signal acquisition, and research applications. It provides eight simultaneously sampled analog input channels, allowing engineers to acquire multiple signals without the channel-to-channel timing skew associated with multiplexed architectures.
Featuring 14-bit resolution, sampling rates up to 3 MS/s per channel, eight simultaneous analog inputs, digital I/O, and counter/timer functionality, the PXI-6133 provides a versatile measurement platform for demanding PXI-based data acquisition and automated test systems.
Product Overview
The NI PXI-6133 belongs to the NI S Series simultaneous-sampling multifunction DAQ family. It is designed for applications where accurate timing relationships between multiple analog signals are important.
Unlike multiplexed DAQ devices that share an analog-to-digital converter across several channels, the PXI-6133 uses simultaneous sampling architecture. This enables all analog input channels to acquire data at the same time, making the module particularly suitable for phase-sensitive measurements, transient events, multi-channel waveform acquisition, and dynamic system testing.
The combination of high-speed analog acquisition, digital I/O, counter/timers, PXI synchronization, and NI software support enables the PXI-6133 to serve as a core measurement device in automated test, research, industrial, automotive, and aerospace systems.
Key Features
8 Simultaneously Sampled Analog Inputs
The PXI-6133 provides eight analog input channels with simultaneous sampling capability.
- 8 analog input channels
- Dedicated simultaneous sampling architecture
- Multi-channel waveform acquisition
- Accurate channel-to-channel timing
- Synchronized signal measurement
Advantage: Preserves the timing and phase relationships between multiple input signals during acquisition.
3 MS/s per Channel Sampling Rate
The NI PXI-6133 provides sampling rates up to 3 MS/s on each analog input channel.
- Up to 3 MS/s per channel
- High-speed waveform acquisition
- Transient event capture
- Dynamic signal measurement
- Fast automated testing
Advantage: Enables acquisition of rapidly changing signals across multiple channels simultaneously.
14-Bit Analog Input Resolution
The PXI-6133 provides 14-bit analog-to-digital conversion for high-speed measurement applications.
- 14-bit ADC resolution
- Detailed waveform acquisition
- Reliable amplitude measurement
- High-speed data acquisition
- Repeatable measurement performance
Advantage: Provides a useful balance between acquisition speed and measurement resolution for dynamic test applications.
Simultaneous Sampling Architecture
The simultaneous sampling design of the PXI-6133 is one of its primary advantages for multi-channel measurement applications.
- No multiplexing delay between analog channels
- Accurate relative phase measurements
- Synchronized transient capture
- Multi-sensor acquisition
- Parallel waveform measurement
Advantage: Makes the PXI-6133 suitable for applications where even small channel-to-channel timing differences can affect measurement results.
Multifunction Data Acquisition
In addition to analog input acquisition, the PXI-6133 provides digital and timing functionality for integrated test systems.
- Analog input acquisition
- Digital I/O
- Counter/timer functionality
- Hardware triggering
- PXI synchronization support
Advantage: Combines several measurement and control functions within a single PXI module.
Digital I/O Capability
The PXI-6133 includes digital I/O functionality for communicating with and controlling external devices.
- Digital input monitoring
- Digital output control
- Device status monitoring
- Test fixture control
- Automated sequence integration
Advantage: Reduces the need for additional hardware in applications requiring basic digital control together with analog measurements.
Counter and Timer Functions
Integrated counter/timer resources support timing, frequency, pulse, and event measurement applications.
- Event counting
- Frequency measurement
- Pulse measurement
- Timing applications
- Trigger generation
Advantage: Adds flexible timing and event measurement functionality to automated test systems.
PXI Triggering and Synchronization
The PXI-6133 can take advantage of PXI timing and triggering resources for synchronization with other instruments.
- PXI trigger integration
- Multi-module synchronization
- Hardware-timed acquisition
- Coordinated measurement sequences
- Scalable PXI system integration
Advantage: Enables the PXI-6133 to participate in larger synchronized measurement and automated test systems.
NI Software Integration
The PXI-6133 integrates with NI software environments for configuration, data acquisition, analysis, and automated test development.
- NI-DAQmx driver support
- LabVIEW integration
- NI MAX configuration
- TestStand integration
- Custom application development
Advantage: Simplifies development of high-speed multi-channel data acquisition and automated test applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI S Series Multifunction DAQ Module |
| Analog Input Channels | 8 |
| ADC Resolution | 14-bit |
| Maximum Sampling Rate | Up to 3 MS/s per Channel |
| Sampling Architecture | Simultaneous Sampling |
| Analog Input Range | Software-Selectable Bipolar Voltage Ranges |
| Digital I/O | Supported |
| Counter/Timers | Supported |
| Triggering | Hardware and PXI Trigger Support |
| Platform | PXI |
| Driver | NI-DAQmx |
| Primary Applications | High-Speed DAQ, Simultaneous Sampling and Automated Testing |
Software Ecosystem
The NI PXI-6133 integrates with the NI software ecosystem for measurement configuration, data acquisition, visualization, analysis, and test automation.
- NI-DAQmx: Provides hardware configuration, acquisition, triggering, timing, and programming APIs for the PXI-6133.
- LabVIEW: Enables graphical development of high-speed data acquisition, signal analysis, monitoring, and automated measurement applications.
- NI MAX: Provides hardware detection, configuration, testing, and diagnostics.
- TestStand: Enables the PXI-6133 to be integrated into automated validation and production test sequences.
- C/C++ and .NET: Support development of customized PC-based measurement and test applications through compatible NI drivers.
Industries
- Automated Test
- Aerospace and Defense
- Automotive Testing
- Electronic Manufacturing
- Industrial Measurement
- Research and Development
- Electromechanical Testing
- Scientific Laboratories
Applications
High-Speed Data Acquisition
The PXI-6133 can simultaneously acquire multiple rapidly changing analog signals for dynamic measurement applications.
- High-speed waveform acquisition
- Transient recording
- Multi-channel signal monitoring
- Dynamic system characterization
Automated Electronic Testing
The multifunction architecture makes the PXI-6133 suitable for automated validation and production test platforms.
- Functional testing
- Electronic subsystem validation
- Production testing
- Automated measurement sequences
Transient Signal Capture
The 3 MS/s per channel sampling capability enables acquisition of short-duration and rapidly changing electrical events.
- Transient event analysis
- Power-up behavior measurement
- Switching waveform acquisition
- Fault event recording
Automotive and Electromechanical Testing
The PXI-6133 can simultaneously measure multiple sensors and electrical signals during automotive and electromechanical validation.
- Vehicle component testing
- Motor and actuator testing
- Electronic control system validation
- Multi-sensor acquisition
Aerospace and Defense Testing
The module can be incorporated into PXI-based aerospace test systems requiring synchronized multi-channel acquisition.
- Avionics validation
- Subsystem testing
- Hardware simulation
- Electronic system characterization
Research and Laboratory Measurement
The PXI-6133 provides researchers with programmable multi-channel acquisition for experimental measurement systems.
- Experimental data acquisition
- Prototype characterization
- Multi-channel waveform analysis
- Scientific measurements
Comparison with Similar PXI DAQ Modules
| Model | Main Difference | Best Application |
|---|---|---|
| NI PXI-6133 | 8-channel, 14-bit S Series DAQ module with simultaneous sampling at up to 3 MS/s per channel. | High-speed synchronized multi-channel acquisition |
| NI PXI-6132 | S Series simultaneous-sampling DAQ module for high-speed multi-channel measurements with a different I/O configuration. | High-speed simultaneous data acquisition |
| NI PXI-6251 | M Series multifunction DAQ module offering general-purpose analog input, analog output, digital I/O, and counter/timer functionality. | General-purpose multifunction DAQ |
| NI PXI-6259 | High-channel-count M Series multifunction DAQ module for systems requiring greater I/O density. | High-density multifunction data acquisition |
Recommended Related Products
| NI PXI-6132 | S Series multifunction DAQ module for high-speed simultaneous analog acquisition. |
| NI PXI-6251 | Multifunction PXI DAQ module for general-purpose automated measurement and control applications. |
| NI PXI-6259 | High-channel-count multifunction DAQ module for large automated measurement systems. |
| NI PXI-6722 | PXI analog output module suitable for systems requiring programmable multi-channel waveform and voltage generation. |
Why Choose PXI-6133?
- 8 simultaneously sampled analog input channels
- Up to 3 MS/s sampling rate per channel
- 14-bit analog input resolution
- Accurate channel-to-channel synchronization
- Digital I/O functionality
- Counter/timer capabilities
- PXI triggering and synchronization support
- NI-DAQmx and LabVIEW integration
- Ideal for high-speed automated test and research systems
Frequently Asked Questions
What is the NI PXI-6133 used for?
The NI PXI-6133 is used for high-speed simultaneous data acquisition, transient signal capture, automated electronic testing, multi-channel waveform acquisition, automotive testing, aerospace validation, and research applications.
How many analog input channels does the PXI-6133 have?
The PXI-6133 provides eight analog input channels for simultaneous multi-channel data acquisition.
What is the maximum sampling rate of the PXI-6133?
The PXI-6133 supports analog input sampling rates up to 3 MS/s per channel, allowing all eight analog input channels to acquire high-speed signals simultaneously.
What is the resolution of the PXI-6133?
The NI PXI-6133 provides 14-bit analog-to-digital conversion resolution.
Does the PXI-6133 support simultaneous sampling?
Yes. Simultaneous sampling is one of the key capabilities of the PXI-6133. The architecture allows its analog input channels to acquire signals at the same time, helping preserve channel-to-channel phase and timing relationships.
What is the advantage of simultaneous sampling compared with multiplexed DAQ?
A multiplexed DAQ system typically samples multiple channels sequentially through a shared ADC, creating a small time difference between channels. A simultaneous-sampling architecture acquires the channels at the same instant, making it better suited for phase-sensitive measurements, transient events, and synchronized waveform analysis.
Does the PXI-6133 support NI-DAQmx?
Yes. The PXI-6133 is supported through the NI-DAQmx software environment, allowing engineers to configure acquisition, triggering, timing, and other measurement functions.
What is the difference between PXI-6133 and PXI-6251?
The PXI-6133 is an S Series device designed around high-speed simultaneous analog input acquisition. The PXI-6251 belongs to the M Series multifunction DAQ family and is better suited to general-purpose applications requiring a broader combination of analog input, analog output, digital I/O, and counter/timer functions. The PXI-6133 is generally preferred when simultaneous multi-channel sampling is a primary requirement.
Conclusion
The NI PXI-6133 S Series multifunction DAQ module provides a high-performance solution for synchronized multi-channel data acquisition, transient signal capture, automated testing, and dynamic measurement applications. With eight simultaneously sampled analog inputs, 14-bit resolution, sampling rates up to 3 MS/s per channel, digital I/O, counter/timer functionality, and PXI synchronization capabilities, the PXI-6133 is well suited for demanding automated test, automotive, aerospace, industrial, and research systems.
