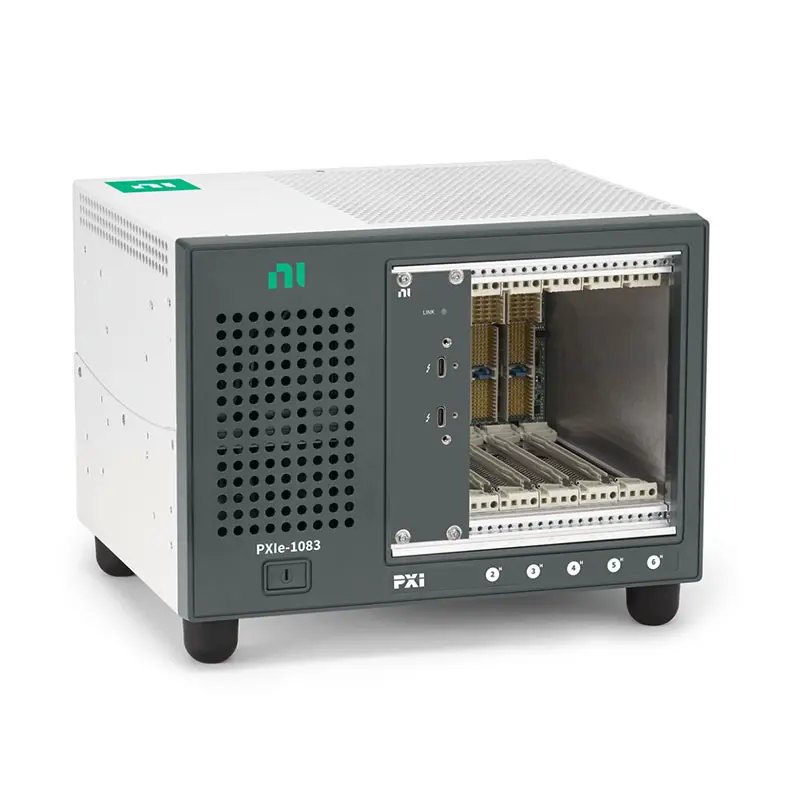

NI PXIe-1083 PXI Express Chassis
The NI PXIe-1083 is a PXI Express chassis designed for modular automated test, measurement, data acquisition, and electronic validation applications. Developed by National Instruments, the PXIe-1083 provides a flexible platform for integrating PXI Express controllers and measurement modules into reliable test systems.
With PXI Express high-speed communication, integrated timing and synchronization resources, and efficient thermal management, the PXIe-1083 is suitable for engineers building scalable measurement platforms for laboratory, industrial, and production testing environments.
The PXIe-1083 supports a wide range of PXI and PXI Express modules, including digitizers, data acquisition modules, switching devices, FPGA modules, and signal measurement instruments. It is widely used in automated test equipment (ATE), electronic verification, industrial testing, and research applications.
Key Features of NI PXIe-1083
Flexible PXI Express Modular Architecture
The PXIe-1083 provides a flexible PXI Express platform for integrating multiple measurement and control modules into a single test system.
- PXI Express modular architecture
- Supports PXI and PXI Express modules
- Compatible with PXI Express embedded controllers
- Flexible system expansion capability
- Suitable for automated measurement systems
High-Speed PXI Express Communication
The PXIe-1083 provides efficient communication between installed modules through the PXI Express backplane.
- PCI Express-based communication
- Fast module-to-module data transfer
- Low-latency system communication
- Supports advanced measurement applications
Timing and Synchronization Capability
The PXIe-1083 provides timing resources required for synchronized operation of multiple PXI Express instruments.
- 10 MHz reference clock
- PXI trigger support
- PXI Express timing resources
- Multi-module synchronization
Reliable Cooling Design
The PXIe-1083 features efficient airflow management to maintain stable operation of installed PXI Express modules.
- Forced-air cooling system
- Improved thermal management
- Supports continuous operation
- Suitable for laboratory and industrial environments
Broad PXI Module Compatibility
The PXIe-1083 supports various National Instruments PXI and PXI Express modules for different test and measurement requirements.
- PXIe digitizers
- PXIe data acquisition modules
- PXIe RF instruments
- PXIe FPGA modules
- PXI switching modules
Applications of NI PXIe-1083
Automated Test Equipment (ATE)
The PXIe-1083 provides a flexible platform for automated electronic testing and validation systems.
- Production testing
- Functional verification
- Electronic validation
- Manufacturing test systems
Data Acquisition Applications
Combined with PXIe acquisition modules, the PXIe-1083 provides a scalable solution for measurement applications.
- Sensor measurement
- Multi-channel acquisition
- Signal monitoring
- Laboratory testing
Industrial Measurement
The PXIe-1083 is suitable for industrial systems requiring flexible modular instrumentation.
- Equipment testing
- Control validation
- Electronic verification
- Research applications
Electronic Design Validation
The PXIe-1083 can be integrated into engineering validation systems requiring multiple synchronized measurement instruments.
- Prototype testing
- Hardware validation
- Signal analysis
- Engineering development
Software Support
The PXIe-1083 works with National Instruments software tools for configuration, automation, and measurement development.
- LabVIEW
- NI TestStand
- NI MAX
- NI-DAQmx
- Instrument drivers
- Python
- C/C++
Technical Specifications of PXIe-1083
| Feature | Description |
|---|---|
| Product Type | PXI Express Chassis |
| Architecture | PXI Express modular platform |
| Compatibility | PXI and PXI Express modules |
| Synchronization | PXI timing and triggering resources |
| Cooling | Forced-air cooling system |
| Applications | Automated test, data acquisition, industrial measurement, electronic validation |
Comparison with Similar PXI Express Chassis
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-1083 | Flexible PXI Express chassis designed for general modular test systems. | General automated test and measurement |
|
NI PXIe-1084 | Higher-performance PXI Express chassis for expanded modular systems. | Advanced measurement applications |
|
NI PXIe-1092 | Compact PXI Express chassis for flexible system integration. | Medium-scale automated test systems |
|
NI PXIe-1090 | Compact PXI Express chassis optimized for smaller modular systems. | Laboratory and portable test applications |
Recommended Related Products
The following products are commonly used with the PXIe-1083 to build complete PXI Express automated test and measurement systems.
|
NI PXIe-1084 | Higher-performance PXI Express chassis for advanced modular instrumentation and automated testing applications. |
|
NI PXIe-1092 | PXI Express chassis designed for flexible medium-scale measurement and automated test systems. |
|
NI PXIe-8861 | PXI Express embedded controller for high-performance modular test and measurement systems. |
|
NI PXIe-6368 | High-performance multifunction DAQ module for analog input, digital I/O, and timing-sensitive measurement applications. |
|
NI PXIe-5164 | PXI Express digitizer for high-speed waveform acquisition and signal analysis applications. |
Why Choose NI PXIe-1083
- Flexible PXI Express modular architecture
- High-speed communication between modules
- Reliable synchronization capability
- Efficient cooling performance
- Supports multiple PXI Express instruments
- Ideal for automated test and measurement systems
Conclusion
The NI PXIe-1083 PXI Express Chassis provides a flexible and reliable platform for engineers developing modular automated test and measurement systems.
With PXI Express communication, synchronization capability, broad module compatibility, and scalable architecture, the PXIe-1083 is an excellent solution for automated testing, data acquisition, industrial measurement, and electronic validation applications.
