Product Introduction

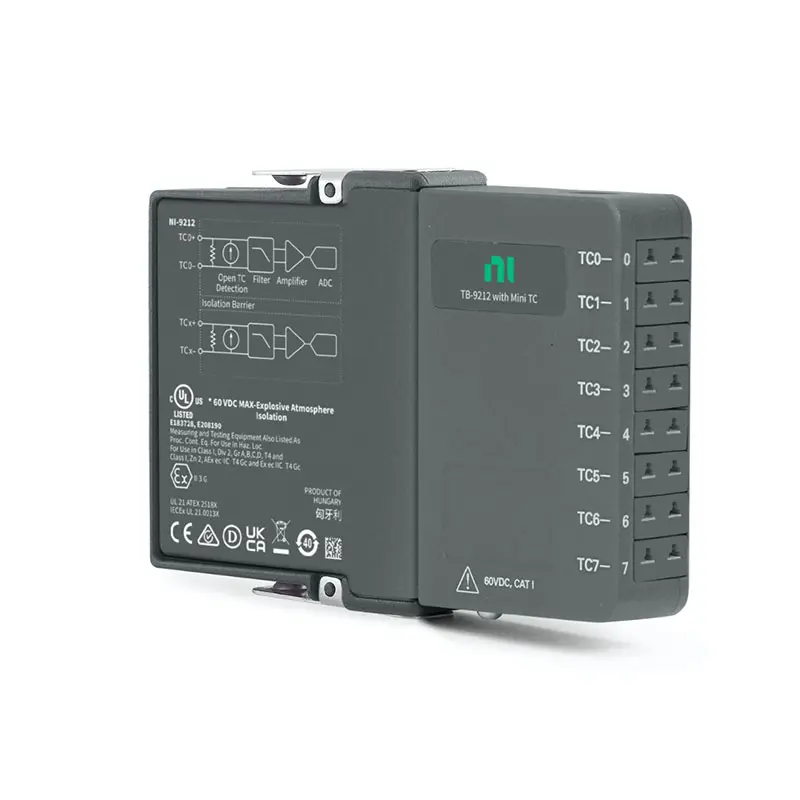

The NI-9212 is an 8-channel C Series temperature measurement module designed for thermocouple-based temperature acquisition, industrial monitoring, laboratory testing, and automated measurement systems. It provides high-accuracy temperature measurement with integrated cold junction compensation and support for multiple sensor types.
With 24-bit ADC resolution, channel-to-earth isolation, and compatibility with CompactDAQ and CompactRIO platforms, the NI-9212 delivers reliable temperature data acquisition for demanding industrial and research applications.
Product Overview
The NI-9212 belongs to the National Instruments C Series temperature input family and provides eight differential analog input channels optimized for thermocouple and temperature sensor measurements.
The module supports multiple thermocouple types including J, K, T, E, N, R, S, and B, while also supporting resistance-based temperature sensors such as RTDs and thermistors through appropriate configurations.
Integrated cold junction compensation, open thermocouple detection, and high-resolution analog conversion simplify temperature measurement system design by eliminating additional signal conditioning hardware.
Key Features
8 Differential Temperature Input Channels
The NI-9212 provides eight independent differential input channels for temperature acquisition.
- 8 differential analog inputs
- Thermocouple measurement support
- Temperature sensor compatibility
- High-density measurement capability
- Independent channel configuration
Advantage: Enables multiple temperature points to be monitored using a single compact C Series module.
Multiple Thermocouple Support
The NI-9212 supports a wide range of industrial thermocouple types.
- Type J thermocouple
- Type K thermocouple
- Type T thermocouple
- Type E thermocouple
- Type N thermocouple
- Type R thermocouple
- Type S thermocouple
- Type B thermocouple
Advantage: Provides flexibility for applications requiring different temperature ranges and sensor characteristics.
24-Bit High-Resolution ADC
The NI-9212 uses a high-resolution analog conversion architecture for precise temperature measurements.
- 24-bit ADC resolution
- High sensitivity for low-level signals
- Improved measurement accuracy
- Low-noise acquisition
- Excellent repeatability
Advantage: Captures small thermocouple voltage changes for accurate temperature monitoring.
Integrated Cold Junction Compensation
Built-in cold junction compensation simplifies thermocouple measurement.
- Internal CJC sensor
- Automatic compensation
- No external compensation hardware required
- Reduced wiring complexity
- Improved temperature accuracy
Advantage: Makes direct thermocouple connection easier while maintaining measurement reliability.
Supports RTD and Resistance Measurement
The NI-9212 provides additional temperature measurement flexibility beyond thermocouples.
- RTD measurement capability
- Resistance measurement support
- Thermistor applications
- Sensor characterization
- Temperature calibration systems
Advantage: Allows one module to support different temperature sensor technologies.
Open Thermocouple Detection
The module provides sensor fault detection for improved system reliability.
- Broken thermocouple detection
- Sensor fault monitoring
- Automatic diagnostics
- Reduced maintenance effort
- Improved measurement confidence
Advantage: Prevents incorrect temperature readings caused by disconnected or damaged sensors.
Channel-to-Earth Isolation
Electrical isolation improves performance in industrial environments.
- Channel-to-earth isolation
- Reduced ground-loop effects
- Improved noise rejection
- Protection against voltage differences
- Industrial deployment capability
Advantage: Provides stable temperature measurements in electrically noisy systems.
Compact C Series Architecture
The NI-9212 integrates into modular CompactDAQ and CompactRIO systems.
- C Series modular design
- Compact installation
- Flexible chassis expansion
- Mixed measurement systems
- Long-term platform support
Advantage: Engineers can combine temperature acquisition with analog, digital, communication, and control modules.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | C Series Temperature Input Module |
| Number of Channels | 8 Differential Inputs |
| ADC Resolution | 24 Bits |
| Input Types | Thermocouple, RTD, Resistance, Voltage |
| Thermocouple Types | J, K, T, E, N, R, S, B |
| Input Range | ±78 mV |
| Maximum Sampling Rate | 95 S/s Aggregate |
| Cold Junction Compensation | Built-In |
| Open Thermocouple Detection | Supported |
| Isolation | Channel-to-Earth Isolation |
| Supported Platforms | CompactDAQ and CompactRIO |
| Connector Type | Spring Terminal |
| Driver | NI-DAQmx |
| Programming Support | LabVIEW, FlexLogger, Python, C/C++, C#, .NET |
Software Ecosystem
The NI-9212 integrates with National Instruments software tools for temperature acquisition, analysis, and automation.
- NI-DAQmx: Provides hardware configuration, temperature acquisition, timing, calibration, and programming support.
- LabVIEW: Enables graphical development of temperature monitoring and control applications.
- FlexLogger: Provides configuration-based temperature logging and engineering monitoring.
- NI MAX: Supports device discovery, diagnostics, and hardware configuration.
- DIAdem: Provides measurement data analysis and reporting.
- Python, C/C++, C#, .NET: Supports custom temperature measurement applications.
Industries
- Industrial Automation
- Process Control
- Automotive Testing
- Aerospace Testing
- Energy Systems
- Manufacturing
- Laboratory Research
- Environmental Monitoring
Applications
Industrial Temperature Monitoring
The NI-9212 provides reliable temperature monitoring for industrial processes and equipment.
- Machine temperature monitoring
- Process temperature measurement
- Equipment diagnostics
- Thermal protection systems
Thermal Testing and Validation
The module integrates temperature measurement into automated validation systems.
- Environmental testing
- Thermal cycling tests
- Product validation
- Reliability testing
Laboratory Research
High-resolution temperature acquisition supports scientific experiments and analysis.
- Material testing
- Thermal experiments
- Temperature logging
- Research measurement
Energy and Battery Testing
Temperature monitoring is critical for energy storage and power system validation.
- Battery thermal monitoring
- Motor temperature measurement
- Power equipment testing
- Thermal management systems
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI-9212 | 8-channel temperature input module supporting thermocouples and multiple temperature sensors. | Medium-channel temperature monitoring |
| NI-9211 | 4-channel thermocouple module with integrated cold junction compensation. | Small temperature measurement systems |
| NI-9213 | 16-channel thermocouple module for high-channel-count temperature systems. | Large temperature monitoring applications |
| NI-9219 | Universal analog input module supporting multiple sensor types. | Mixed sensor measurement systems |
Recommended Related Products
| NI cDAQ-9185 | Ethernet CompactDAQ chassis for distributed temperature monitoring systems. |
| NI cRIO-9056 | CompactRIO controller supporting C Series temperature modules. |
| NI-9211 | 4-channel thermocouple input module for compact temperature applications. |
| NI-9213 | 16-channel thermocouple module for high-density temperature measurement. |
| NI-9220 | Voltage acquisition module for general analog measurement applications. |
Why Choose NI-9212?
- 8-channel temperature measurement capability
- 24-bit high-resolution ADC
- Supports multiple thermocouple types
- Built-in cold junction compensation
- Open thermocouple detection
- Supports RTD and resistance measurement
- Channel-to-earth isolation
- Compact C Series modular architecture
- Compatible with CompactDAQ and CompactRIO
- Ideal for industrial and laboratory temperature monitoring
Frequently Asked Questions
What is the difference between NI-9211 and NI-9212?
The NI-9211 provides 4 thermocouple input channels, while the NI-9212 provides 8 temperature input channels and supports a wider range of temperature sensor configurations including thermocouples, RTDs, and resistance measurements.
Does NI-9212 support cold junction compensation?
Yes. The NI-9212 includes integrated cold junction compensation for accurate thermocouple temperature measurement without requiring external compensation hardware.
Can NI-9212 work with CompactRIO?
Yes. The NI-9212 is compatible with supported CompactRIO controllers and CompactDAQ chassis through the NI C Series architecture.
Conclusion
The NI-9212 8-channel C Series temperature input module provides accurate thermocouple and temperature sensor measurement with 24-bit resolution, integrated cold junction compensation, sensor fault detection, and industrial isolation. It is an excellent solution for thermal monitoring, automated testing, process control, laboratory research, and distributed temperature measurement systems based on CompactDAQ and CompactRIO platforms.
