Product Introduction

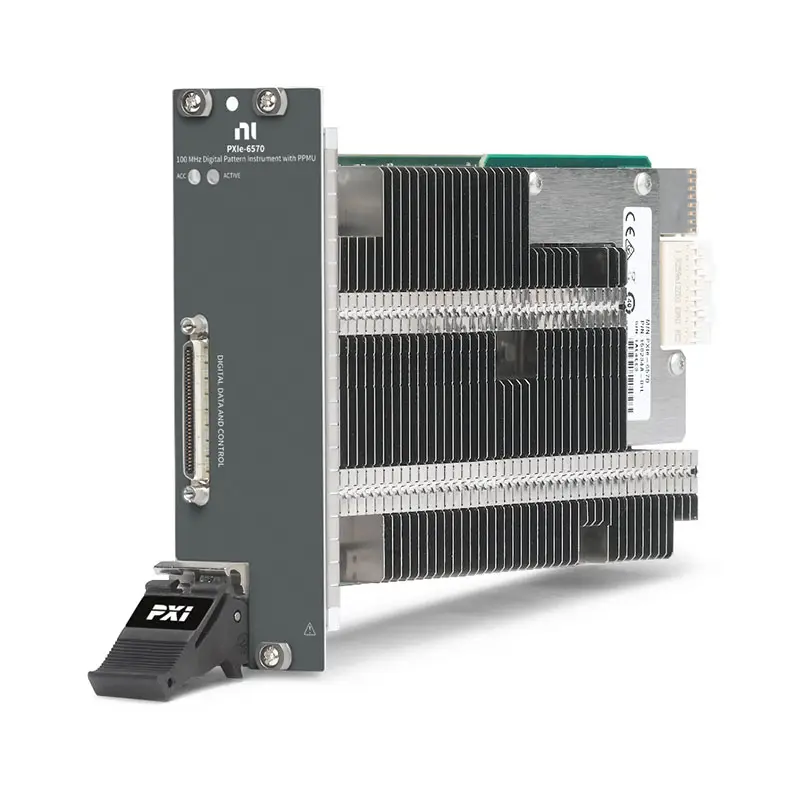

Земля NI PXIe-6570 is a high-performance digital pattern instrument designed for semiconductor automated test equipment (ATE), IC validation, production testing, and digital device characterization applications. It provides a flexible PXI Express-based platform for generating digital patterns, performing parametric measurements, and validating semiconductor devices.
Featuring 32 high-speed digital channels, per-pin programmable voltage levels, timing control, and hardware-based pattern execution, the PXIe-6570 enables engineers to replace traditional semiconductor testers with a compact and scalable PXI architecture.
Product Overview
Земля PXIe-6570 belongs to the NI Semiconductor Test System (STS) and PXI Digital Pattern Instrument family. It combines digital pattern generation, measurement, and device control capabilities in a PXI Express modular instrument.
The module is designed for testing digital semiconductor devices including microcontrollers, processors, memory devices, ASICs, and other integrated circuits. It supports industry-standard digital test workflows and integrates with NI Semiconductor Test solutions for scalable production environments.
With PXI Express high-speed communication, synchronized timing resources, and flexible software support, the PXIe-6570 is suitable for both engineering validation and manufacturing test applications.
Key Features
32 High-Speed Digital Channels
The PXIe-6570 provides 32 programmable digital channels for semiconductor testing.
- 32 digital pattern channels
- High-speed digital I/O
- Independent channel control
- Parallel device testing
- Digital pattern execution
Advantage: Enables efficient testing of complex digital semiconductor devices.
Hardware-Timed Digital Pattern Generation
The module provides precise timing control for semiconductor test sequences.
- Hardware-based pattern execution
- Детерминированное время
- High-speed waveform generation
- Programmable timing parameters
- Accurate digital stimulation
Advantage: Provides repeatable and reliable semiconductor test results.
Per-Pin Parametric Measurement Unit (PPMU)
The PXIe-6570 integrates per-pin measurement capability for device characterization.
- Voltage measurement
- Current measurement
- Programmable drive levels
- Threshold adjustment
- Digital pin characterization
Advantage: Allows detailed electrical validation without additional measurement hardware.
Programmable Digital Voltage Levels
The module supports flexible voltage configuration for different semiconductor technologies.
- Programmable output voltage
- Adjustable input thresholds
- Multiple logic families support
- Device interface flexibility
- Digital signal validation
Advantage: Supports testing of various digital IC architectures.
PXI Express High-Speed Architecture
The PXIe-6570 uses PXI Express technology for advanced semiconductor test systems.
- High-bandwidth PXI Express interface
- Fast pattern transfer
- Multi-instrument synchronization
- Shared timing resources
- Scalable test architecture
Advantage: Enables integration with other PXI instruments for complete test solutions.
Semiconductor Test Software Integration
The PXIe-6570 integrates with NI semiconductor testing software environments.
- NI Digital Pattern Driver support
- Интеграция LabVIEW
- TestStand Semiconductor Module compatibility
- Digital pattern development tools
- Automated production test support
Advantage: Simplifies development from device validation to production testing.
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | PXI Express Digital Pattern Instrument |
| Digital Channels | 32 Channels |
| Приложение | Semiconductor Automated Test |
| Pattern Generation | Hardware-Timed Digital Patterns |
| Measurement Capability | Per-Pin Parametric Measurement |
| Voltage Levels | Programmable Digital Levels |
| Interface | PXI Express |
| Синхронизация | PXI Timing and Triggering |
| Поддержка программного обеспечения | LabVIEW, TestStand, Digital Pattern Tools |
| Driver | NI Digital Pattern Driver |
Software Ecosystem
The PXIe-6570 works with NI semiconductor test software tools for digital device validation and production testing.
- NI Digital Pattern Driver: Provides digital pattern configuration, execution, and measurement functions.
- LabVIEW: Enables custom semiconductor test application development.
- TestStand Semiconductor Module: Supports automated production test workflows.
- NI STS Software: Provides semiconductor test system integration.
- NI MAX: Supports hardware configuration and diagnostics.
Industries
- Semiconductor Manufacturing
- Integrated Circuit Testing
- Automotive Electronics
- Consumer Electronics
- Aerospace and Defense Electronics
- Embedded System Development
- Research and Development
- Automated Test Equipment
Applications
IC Functional Testing
The PXIe-6570 provides digital pattern testing for semiconductor devices.
- Microcontroller testing
- ASIC validation
- Digital IC verification
- Device characterization
Production Semiconductor Test
The module supports scalable manufacturing test solutions.
- High-volume production testing
- Automated device testing
- Yield improvement
- Quality verification
Engineering Validation
The PXIe-6570 enables engineers to validate new semiconductor designs.
- Prototype testing
- Debug analysis
- Electrical characterization
- Design verification
Embedded Device Testing
The module supports testing of digital embedded components.
- Processor testing
- Memory validation
- Communication IC testing
- Digital interface verification
Comparison with Similar Products
| Модель | Основное различие | Best Application |
|---|---|---|
| NI PXIe-6570 | 32-channel PXI Express digital pattern instrument for semiconductor testing. | Digital IC validation and production test |
| NI PXIe-6571 | Digital pattern instrument with different channel configuration and performance. | Advanced semiconductor testing |
| НИ PXIe-6545 | High-speed digital waveform generator/analyzer for digital applications. | Digital signal analysis |
| NI PXIe-5164 | High-speed digitizer for analog waveform measurement. | Analog signal testing |
Recommended Related Products
| NI PXIe-1095 | High-performance PXI Express chassis for semiconductor test systems. |
| NI PXIe-8880 | High-performance PXI Express controller for automated testing. |
| NI PXIe-6571 | Digital pattern instrument for semiconductor applications. |
| NI PXIe-4082 | Precision measurement module for electronic validation systems. |
Why Choose PXIe-6570?
- 32-channel semiconductor digital pattern testing
- Per-pin parametric measurement capability
- Hardware-timed digital pattern execution
- Programmable voltage levels
- PXI Express high-speed architecture
- NI semiconductor test software support
- Suitable for IC validation and production testing
- Scalable PXI-based ATE solution
Frequently Asked Questions
What is PXIe-6570 used for?
The PXIe-6570 is used for semiconductor automated testing, digital IC validation, device characterization, and production test applications.
How many channels does PXIe-6570 provide?
The PXIe-6570 provides 32 programmable digital pattern channels for semiconductor testing.
Does PXIe-6570 support TestStand?
Yes. The PXIe-6570 integrates with NI TestStand Semiconductor Module and NI digital pattern software for automated test development.
Заключение
Земля NI PXIe-6570 digital pattern instrument provides a scalable PXI Express solution for semiconductor testing, combining digital pattern generation, per-pin measurement, programmable voltage levels, and high-speed synchronization. It is an ideal platform for IC validation, production testing, and advanced automated test equipment applications.
