PXIe-1095

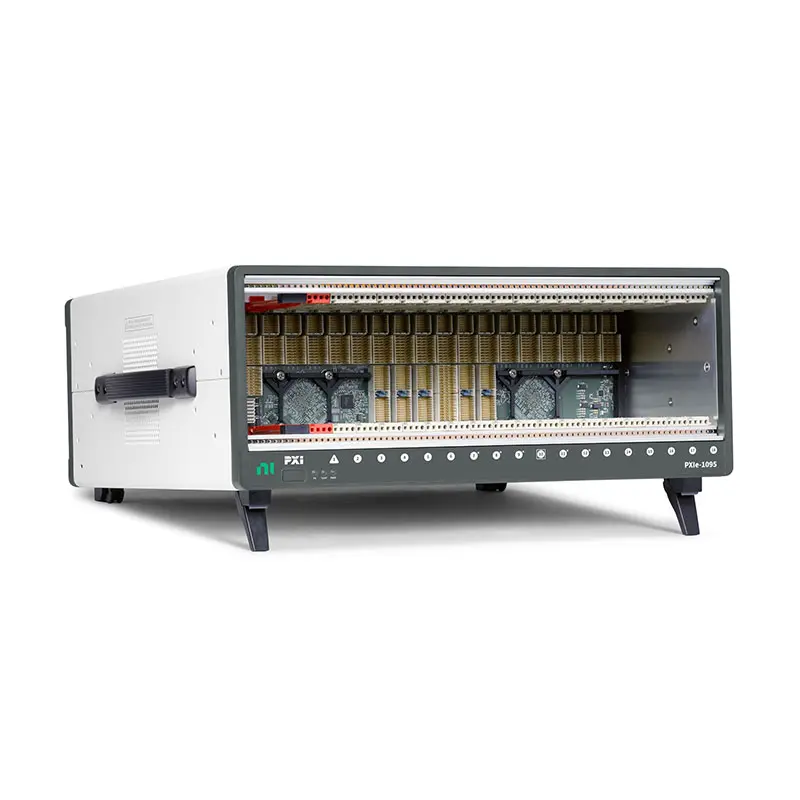

Земля PXIe-1095 флагман PXI Express шасси на 18 слотов от Национальные инструменты, designed for high-performance automated test, RF validation, semiconductor testing, and modular instrumentation systems. It provides industry-leading bandwidth, advanced timing and triggering, and hybrid-slot flexibility for complex multi-module PXI applications.

Compared with older chassis such as PXIe-1085 и PXIe-1082, the PXIe-1095 offers significantly improved cooling, higher total system bandwidth, and better synchronization performance.

Типичные применения включают:

• Автоматизированное испытательное оборудование (АИО)
• RF validation
• Semiconductor testing
• Aerospace and defense systems
• Высокоскоростной сбор данных
• Аппаратно-программный комплекс
• Валидация электронного дизайна
• Modular instrumentation systems

Архитектура системы

The PXIe-1095 is built around a high-performance PXI Express backplane.

Ключевые характеристики:

This architecture makes the PXIe-1095 one of the most scalable chassis in the PXI ecosystem.

High-Bandwidth Backplane Performance

One of the biggest strengths of the PXIe-1095 is its backplane bandwidth.

Преимущества:

Multi-Instrument Throughput

Supports simultaneous high-speed operation of multiple instruments.

РЧ системы тестирования

Ideal for vector signal generators, analyzers, and digitizers.

Модули FPGA

Supports high-throughput FlexRIO and FPGA coprocessor cards.

Data Streaming

Efficient streaming to controllers and storage systems.

Applications benefiting include:

• RF characterization
• Высокоскоростные АЦП/ЦАП системы
• Massive data logging
• Semiconductor wafer testing

Compared with smaller chassis, the PXIe-1095 provides much higher expansion capability.

Синхронизация и привязка ко времени

The PXIe-1095 is optimized for precise synchronization.

Supported timing features:

• Шина триггеров PXI
• Differential star trigger
• System timing slot
• Распределение опорного тактового сигнала
• Синхронизация с низким перекосом

Преимущества:

Multi-Instrument Synchronization

Maintain tight timing alignment across modules.

РФ Фазовая когерентность

Critical for multi-channel RF systems.

High-Speed Triggering

Supports deterministic measurement sequencing.

HIL Системы

Precise real-time signal generation and acquisition.

This makes the chassis suitable for phase-coherent test systems.

Гибкость гибридных слотов

The PXIe-1095 supports 16 hybrid slots.

This allows engineers to mix:

• PXI модули
• Модули PXI Express
• Hybrid-compatible legacy cards

Преимущества:

• Protect existing hardware investments
• Simplify migration from older PXI systems
• Increase test system flexibility

This is important for long-term test platform scalability.

Cooling Performance

High-density test systems generate significant heat.

The PXIe-1095 provides:

• High-airflow cooling
• Per-slot thermal optimization
• Improved reliability under full load

Applications requiring strong cooling:

Цифровые регистраторы высокой скорости

High-power ADC modules.

РФ Приборы

Vector signal analyzers and generators.

Модули FPGA

FlexRIO and custom FPGA cards.

Тестирование полупроводников

Long-duration burn-in and validation systems.

Compared with older chassis, the PXIe-1095 provides better thermal headroom.

Типовые области применения

The PXIe-1095 is widely used in advanced engineering environments.

Тестирование полупроводников

Large multi-card validation systems.

Проверка РЧ

Wideband RF signal generation and analysis.

Аэрокосмическая и оборонная промышленность

Radar simulation, EW test, avionics validation.

Hardware-in-the-Loop (HIL)

Real-time simulation platforms.

Electronic Design Validation

Mixed-signal board testing and debugging.

Its 18-slot design makes it ideal for large integrated systems.

Сравнение с аналогичными шасси PXI

Compared with the PXIe-1085, the PXIe-1095 offers improved bandwidth distribution and cooling. Compared with the PXIe-1092, it provides much larger expansion capacity.

Why Engineers Choose PXIe-1095

Engineers choose the PXIe-1095 for:

• Large modular system expansion
• High bandwidth
• Precise synchronization
• Лучшая тепловая производительность
• RF phase-coherent systems
• Валидация полупроводников
• Large ATE deployments

It is one of the most widely selected chassis for large-scale PXI systems.

Заключение

Земля PXIe-1095 флагман PXI Express шасси на 18 слотов built for demanding test and measurement applications.

Его сочетание:

• 18-slot architecture
• High system bandwidth
• Advanced timing synchronization
• Гибридная совместимость слотов
• Strong thermal performance
• Modular scalability
• Enterprise-grade reliability

makes it an ideal choice for RF testing, semiconductor validation, HIL simulation, aerospace systems, and large-scale automated test environments.
