Product Introduction

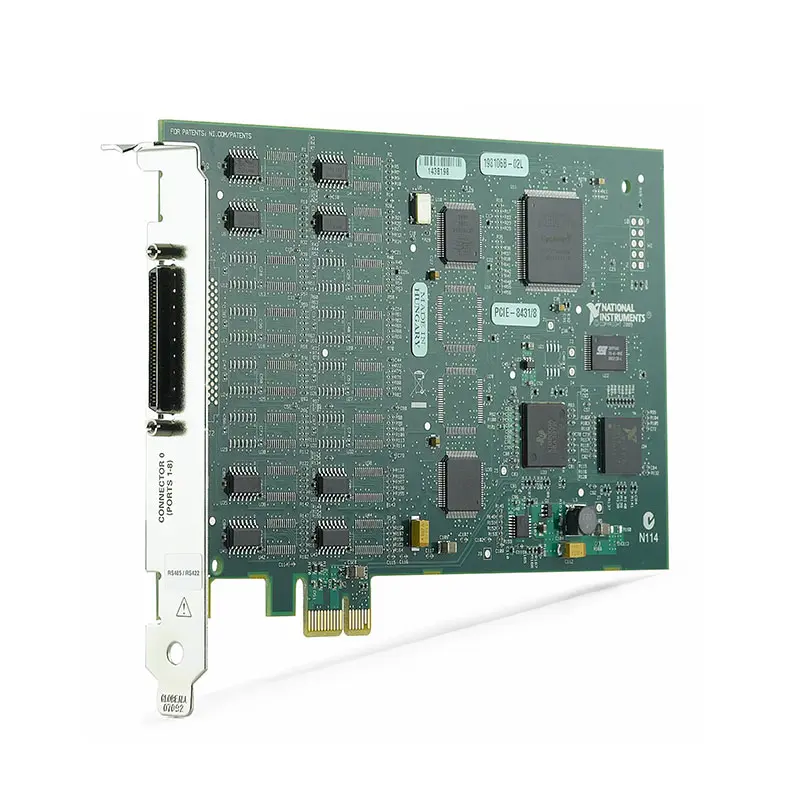

The NI PCIe-8431/8 is a high-performance 8-port RS-485/RS-422 serial interface device designed for industrial communication, automated test, instrument control, production systems, laboratory automation, and multi-device serial communication.
The PCIe-8431/8 combines eight independent serial ports with a PCI Express host interface and supports communication rates up to 3 Mb/s. It is designed for systems that require reliable differential serial communication with multiple RS-485 or RS-422 devices from a single computer.
With support for RS-485 and RS-422 communication, the PCIe-8431/8 is well suited for industrial environments where noise immunity, flexible network topology, and multi-device connectivity are important.
Product Overview
The National Instruments PCIe-8431/8 provides eight serial communication channels for connecting a PCI Express host computer to compatible RS-485 and RS-422 equipment.
A typical system architecture is:
Host Computer → PCI Express → PCIe-8431/8 → RS-485 / RS-422 → Instruments / Controllers / DUTs
The eight-port architecture provides a practical balance between low-port-count interfaces and high-density 16-port serial devices, making the PCIe-8431/8 suitable for medium-sized industrial and automated test systems.
Key Features
8 RS-485/RS-422 Serial Ports
The PCIe-8431/8 provides eight serial communication ports for connecting multiple compatible devices.
Typical connected equipment can include:
- Industrial controllers
- PLCs
- Test instruments
- Embedded controllers
- Motion-control equipment
- Industrial sensors
- Production equipment
- Machine-control systems
RS-485 Communication
The PCIe-8431/8 supports RS-485 differential serial communication.
RS-485 is widely used in industrial systems because it provides good noise immunity and supports communication architectures involving multiple devices.
Typical applications include:
- Industrial automation
- Machine control
- Process control
- Distributed instrumentation
- Production equipment
- Automated testing
- Building automation
RS-422 Communication
The PCIe-8431/8 also supports RS-422 communication for compatible industrial, laboratory, and test equipment.
RS-422 uses differential signaling and is commonly selected for reliable serial communication where conventional single-ended RS-232 interfaces may not provide sufficient noise immunity or communication distance.
Up to 3 Mb/s Serial Communication
The PCIe-8431/8 supports serial communication rates up to 3 Mb/s.
This high maximum data rate makes the interface suitable for applications requiring greater serial throughput than conventional low-speed industrial serial connections.
2-Wire RS-485 Support
The PCIe-8431/8 can support 2-wire RS-485 configurations.
In a typical 2-wire system, transmitting and receiving share the same differential pair, resulting in half-duplex communication.
4-Wire Communication
The device can also support 4-wire serial configurations using separate differential pairs for transmit and receive signals.
Four-wire architectures can provide full-duplex communication when supported by the connected equipment.
Half-Duplex and Full-Duplex Operation
Depending on the selected wiring and external device configuration, the PCIe-8431/8 can be integrated into both half-duplex and full-duplex serial communication systems.
This flexibility allows one serial interface family to support a wide range of industrial equipment and communication architectures.
Differential Signaling
RS-485 and RS-422 use differential signaling, which provides improved resistance to common-mode electrical noise compared with conventional single-ended RS-232 communication.
This characteristic makes the PCIe-8431/8 particularly useful in electrically noisy industrial and production environments.
PCI Express Host Interface
The PCIe-8431/8 installs into a compatible PCI Express expansion slot.
A typical configuration is:
Industrial PC → PCIe-8431/8 → Serial Network → Industrial Equipment
The internal PCI Express architecture is suitable for permanently integrated automated test stations, industrial computers, workstations, and rackmount systems.
High-Density Serial Connectivity
Eight serial ports from one PCI Express interface can reduce the number of separate serial cards or external adapters required in a system.
This can simplify system integration, cabling, software configuration, and maintenance.
Multi-Port Communication
The PCIe-8431/8 is designed for systems where several serial devices need to communicate with the host computer independently.
For example:
Port 1 → PLC
Port 2 → Motion Controller
Port 3 → Test Instrument
Port 4 → Sensor Controller
Ports 5–8 → Additional Serial Devices
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Serial Interface Device |
| Model | PCIe-8431/8 |
| Manufacturer | National Instruments |
| Host Interface | PCI Express |
| Serial Interface | RS-485 / RS-422 |
| Number of Serial Ports | 8 |
| Maximum Baud Rate | Up to 3 Mb/s |
| Communication Modes | Half-Duplex / Full-Duplex |
| RS-485 Wiring | 2-Wire / 4-Wire |
| Signaling | Differential |
| Isolation | Non-Isolated |
| Primary Function | Multi-Port RS-485 / RS-422 Serial Communication |
| Typical Applications | Industrial Automation, Automated Test, Instrument Control, Production Test and Serial Data Communication |
How Does the PCIe-8431/8 Work?
The PCIe-8431/8 acts as the communication interface between application software running on the host computer and external RS-485 or RS-422 devices.
For transmitted data:
Application → Serial Driver → PCIe-8431/8 → RS-485 / RS-422 → External Device
For received data:
External Device → RS-485 / RS-422 → PCIe-8431/8 → Serial Driver → Application
Each port can communicate with compatible external equipment according to the serial settings and communication protocol configured by the application.
8-Port Serial Architecture
The eight-port architecture allows a single computer to manage multiple independent serial communication channels.
A typical system might use:
Port 1 → Controller A
Port 2 → Controller B
Port 3 → Measurement Instrument
Port 4 → Environmental Chamber
Port 5 → Motion Controller
Port 6 → Sensor System
Port 7 → DUT Interface
Port 8 → Production Equipment
This architecture is useful when each device requires an independent serial connection to the host computer.
What Is RS-485?
RS-485 is a differential serial communication standard widely used in industrial control and automation.
Compared with RS-232, RS-485 generally provides:
- Better electrical noise immunity
- Longer practical communication distances
- Differential signaling
- Multi-device network capability
- Better suitability for industrial environments
What Is RS-422?
RS-422 is a differential serial communication standard commonly used for reliable communication between industrial equipment, instruments, controllers, and embedded devices.
Like RS-485, differential signaling provides improved resistance to electrical interference compared with single-ended serial interfaces.
RS-485 vs RS-422
| Feature | RS-485 | RS-422 |
|---|---|---|
| Signaling | Differential | Differential |
| Multi-Device Networks | Well Suited | More Limited |
| 2-Wire Networks | Common | Typically Not Used |
| 4-Wire Communication | Supported | Common |
| Noise Immunity | High | High |
| Industrial Applications | Very Common | Common |
2-Wire vs 4-Wire RS-485
| Feature | 2-Wire | 4-Wire |
|---|---|---|
| Differential Pairs | 1 | 2 |
| Transmit / Receive | Shared | Separate |
| Typical Mode | Half-Duplex | Full-Duplex |
| Wiring Complexity | Lower | Higher |
| Simultaneous TX / RX | No | Yes |
Industrial Automation Applications
Industrial automation is one of the primary application areas for multi-port RS-485 and RS-422 interfaces.
The PCIe-8431/8 can provide communication with compatible:
- PLCs
- Machine controllers
- Motor controllers
- Industrial sensors
- Process equipment
- Building automation controllers
- Production machines
- Embedded systems
A typical architecture is:
Industrial Computer → PCIe-8431/8 → Multiple RS-485 / RS-422 Devices
Automated Test Applications
The PCIe-8431/8 can integrate multiple serial devices into an automated test platform.
A complete system can include:
- PCIe-8431/8 serial interface
- DAQ hardware
- Oscilloscopes or digitizers
- Programmable power supplies
- Electronic loads
- Switch systems
- Digital I/O
- DUT fixtures
The host application can coordinate serial communication with measurement and stimulus hardware during automated test sequences.
Instrument Control
The PCIe-8431/8 can communicate with compatible instruments equipped with RS-485 or RS-422 interfaces.
Typical operations include:
- Sending configuration commands
- Starting measurements
- Reading measurement results
- Monitoring instrument status
- Changing operating parameters
- Logging serial data
Production Test
The eight-port configuration is useful in production test systems where several DUTs, fixtures, controllers, or pieces of support equipment require serial communication.
A typical workflow is:
- Initialize the required serial ports.
- Configure communication parameters.
- Connect to the DUT or supporting equipment.
- Send initialization commands.
- Perform the required test sequence.
- Read serial response data.
- Evaluate test results.
- Store the results in the production database.
Multi-Device Serial Data Logging
The PCIe-8431/8 can also be used for serial data logging from multiple independent devices.
For example, a host application can continuously collect:
- Temperature data
- Controller status
- Machine operating parameters
- Sensor measurements
- Diagnostic messages
- Production data
The eight-port architecture allows data from multiple serial sources to be consolidated into one computer-based monitoring system.
Serial Communication Parameters
The PCIe-8431/8 and connected equipment must use compatible communication settings.
Important parameters include:
- Baud rate
- Data bits
- Parity
- Stop bits
- Flow-control configuration
- RS-485 or RS-422 mode
- 2-wire or 4-wire configuration
- Half-duplex or full-duplex mode
- Termination
- Biasing
RS-485 Network Termination
Correct termination is important for reliable RS-485 communication, particularly at higher communication rates and longer cable lengths.
Network design should consider:
- Termination resistance
- Cable characteristic impedance
- Communication speed
- Cable length
- Network topology
- Number of devices
- Stub length
Incorrect termination can cause signal reflections, corrupted data, intermittent communication, or complete communication failure.
RS-485 Biasing
Some RS-485 networks require bias resistors to maintain a defined bus state when no transmitter is actively driving the communication line.
Biasing requirements should be determined according to the network topology, connected transceivers, termination arrangement, and equipment documentation.
Communication Distance and Baud Rate
The maximum practical communication distance depends on more than the serial interface itself.
Important factors include:
- Baud rate
- Cable quality
- Cable impedance
- Electrical noise
- Network topology
- Termination
- Number of connected devices
- Transceiver characteristics
As communication speed increases, proper cable selection and signal-integrity design become increasingly important.
PCIe-8431/8 vs PCIe-8430/8
The PCIe-8431/8 and PCIe-8430/8 are both eight-port PCI Express serial interfaces, but they support different serial electrical standards.
| Feature | PCIe-8431/8 | PCIe-8430/8 |
|---|---|---|
| Serial Standard | RS-485 / RS-422 | RS-232 |
| Number of Ports | 8 | 8 |
| Signaling | Differential | Single-Ended |
| Maximum Baud Rate | Up to 3 Mb/s | Model Dependent |
| Multi-Device Networks | Well Suited | Primarily Point-to-Point |
| Industrial Noise Immunity | Higher | Lower |
| Primary Application | Industrial Communication | RS-232 Instrument Control |
PCIe-8431/8 vs PCIe-8431/2
| Feature | PCIe-8431/8 | PCIe-8431/2 |
|---|---|---|
| Serial Standard | RS-485 / RS-422 | RS-485 / RS-422 |
| Number of Ports | 8 | 2 |
| Maximum Baud Rate | Up to 3 Mb/s | Up to 3 Mb/s |
| Host Interface | PCI Express | PCI Express |
| Best Application | Medium-Density Serial Systems | Low-Port-Count Systems |
PCIe-8431/8 vs PCIe-8431/16
| Feature | PCIe-8431/8 | PCIe-8431/16 |
|---|---|---|
| Serial Standard | RS-485 / RS-422 | RS-485 / RS-422 |
| Number of Ports | 8 | 16 |
| Maximum Baud Rate | Up to 3 Mb/s | Up to 3 Mb/s |
| Host Interface | PCI Express | PCI Express |
| Best Application | Medium Port Count | High Port Count |
The PCIe-8431/8 is generally the more appropriate configuration when eight or fewer independent serial ports are required, while the PCIe-8431/16 is designed for higher-density systems.
PCIe-8431/8 vs Isolated RS-485 Interface
The PCIe-8431/8 is a non-isolated RS-485/RS-422 interface.
If electrical isolation is required between the host computer and the serial network, an isolated serial interface should be selected instead.
Isolation may be important when:
- Ground-potential differences exist
- Ground loops are possible
- Electrical noise is severe
- Equipment is distributed over large areas
- Additional electrical protection is required
PCIe-8431/8 vs USB RS-485 Interface
| Feature | PCIe-8431/8 | Typical USB RS-485 Interface |
|---|---|---|
| Host Interface | PCI Express | USB |
| Installation | Internal | External |
| Serial Ports | 8 | Model Dependent |
| Maximum Speed | Up to 3 Mb/s | Device Dependent |
| Permanent System Integration | Well Suited | Application Dependent |
| Portable Applications | Limited | Better |
NI-Serial Driver
The PCIe-8431/8 operates with compatible NI-Serial software.
The driver provides the software interface between the operating system, application software, and serial communication hardware.
Before integrating the device into an existing system, verify compatibility between:
- PCIe-8431/8 hardware
- NI-Serial version
- Host operating system
- Application software
- Development environment
NI-VISA Integration
Compatible serial applications can use NI-VISA to communicate with instruments and other serial devices through the PCIe-8431/8.
A typical VISA communication sequence is:
VISA Open → Configure Serial Port → VISA Write → VISA Read → VISA Close
LabVIEW Integration
The PCIe-8431/8 can be integrated into compatible LabVIEW applications for serial communication and automation.
Typical LabVIEW applications include:
- Industrial equipment control
- Automated testing
- Instrument communication
- Multi-port serial data logging
- Production testing
- Laboratory automation
- Device configuration
Modbus RTU Applications
Many Modbus RTU systems use RS-485 as their physical communication layer. The PCIe-8431/8 can provide the required RS-485 hardware interface for compatible Modbus RTU devices.
A typical architecture is:
Application / Modbus Software → PCIe-8431/8 → RS-485 → Modbus RTU Devices
The Modbus protocol itself must be implemented by compatible software, and all devices must use matching serial communication parameters.
Legacy Serial System Replacement
The PCIe-8431/8 can be used when upgrading an existing industrial or test computer while retaining RS-485 or RS-422 equipment.
Before replacing another serial interface, verify:
- RS-485 or RS-422 requirement
- Required number of ports
- 2-wire or 4-wire architecture
- Half-duplex or full-duplex operation
- Required baud rate
- Connector and cable configuration
- Termination requirements
- Biasing requirements
- Electrical isolation requirements
- PCI Express slot availability
- NI-Serial driver compatibility
- Operating system compatibility
- Existing application software
Troubleshooting RS-485/RS-422 Communication
If communication is unstable or unavailable, check the complete serial communication path.
- Verify that the PCIe-8431/8 is detected by the host computer.
- Confirm that the correct serial port is selected.
- Verify RS-485 or RS-422 configuration.
- Check 2-wire or 4-wire mode.
- Confirm baud rate.
- Verify data bits, parity, and stop bits.
- Check cable wiring and differential-pair polarity.
- Verify network termination.
- Check RS-485 biasing.
- Verify device addresses and communication protocol.
- Check cable length and network topology.
- Reduce the baud rate temporarily to diagnose signal-integrity problems.
How to Choose an RS-485/RS-422 Interface
Before selecting the PCIe-8431/8, determine:
- Required serial standard
- Required number of serial ports
- Maximum required baud rate
- 2-wire or 4-wire architecture
- Half-duplex or full-duplex operation
- Communication distance
- Network topology
- Termination requirements
- Biasing requirements
- Isolation requirements
- Host computer interface
- Available PCI Express slots
- Operating system compatibility
- Driver and software requirements
Industries
- Industrial Automation
- Automated Test
- Electronic Manufacturing
- Production Test
- Process Control
- Machine Automation
- Laboratory Automation
- Research and Development
- Embedded Systems
- System Integration
Applications
Industrial Automation
The PCIe-8431/8 provides multi-port RS-485 and RS-422 connectivity for industrial controllers, sensors, machines, and automation equipment.
Automated Test
Eight serial interfaces can connect multiple instruments, controllers, and DUTs to a computer-based automated test platform.
Instrument Control
Compatible RS-485 and RS-422 instruments can be configured, controlled, monitored, and queried through the PCIe-8431/8.
Production Test
Production test systems can communicate with multiple serial DUTs, fixtures, controllers, and supporting pieces of test equipment from one PCI Express interface.
Serial Data Logging
The eight-port architecture allows a host computer to collect serial measurement, status, diagnostic, and process data from multiple independent devices.
Modbus RTU Communication
The PCIe-8431/8 can provide RS-485 connectivity for compatible Modbus RTU networks when used with appropriate protocol software.
Legacy Equipment Integration
Existing RS-485 and RS-422 equipment can be retained when upgrading the host computer to a PCI Express-based platform.
Recommended Related Products
| PCIe-8431/2 | 2-port PCI Express RS-485/RS-422 interface for low-port-count systems. |
| PCIe-8431/4 | 4-port RS-485/RS-422 interface for applications requiring moderate serial connectivity. |
| PCIe-8431/8 | 8-port PCI Express RS-485/RS-422 interface for medium-density industrial serial systems. |
| PCIe-8431/16 | 16-port PCI Express RS-485/RS-422 interface for high-density serial communication systems. |
| PCIe-8430/8 | 8-port PCI Express RS-232 interface for equipment requiring RS-232 rather than RS-485/RS-422. |
Why Choose PCIe-8431/8?
- Eight serial communication ports
- RS-485 support
- RS-422 support
- Up to 3 Mb/s serial communication
- Differential signaling
- 2-wire RS-485 operation
- 4-wire communication
- Half-duplex support
- Full-duplex support
- PCI Express host interface
- Multi-device serial connectivity
- NI-Serial software integration
- NI-VISA compatibility
- LabVIEW integration
- Suitable for industrial automation
- Suitable for automated test
- Suitable for instrument control
- Suitable for production test
- Suitable for serial data logging
Frequently Asked Questions
What is the NI PCIe-8431/8?
The NI PCIe-8431/8 is an eight-port PCI Express serial interface device designed for RS-485 and RS-422 communication in industrial automation, automated test, and instrument-control systems.
How many serial ports does PCIe-8431/8 have?
The PCIe-8431/8 provides eight serial communication ports.
Does PCIe-8431/8 support RS-485?
Yes. The PCIe-8431/8 supports RS-485 differential serial communication.
Does PCIe-8431/8 support RS-422?
Yes. The device supports both RS-485 and RS-422 communication.
What is the maximum baud rate of PCIe-8431/8?
The PCIe-8431/8 supports serial communication rates up to 3 Mb/s, subject to the selected communication configuration and system requirements.
Does PCIe-8431/8 support 2-wire RS-485?
Yes. The device can be used for compatible 2-wire RS-485 half-duplex communication.
Does PCIe-8431/8 support 4-wire communication?
Yes. Four-wire configurations can be used when separate transmit and receive differential pairs are required.
Is PCIe-8431/8 isolated?
The PCIe-8431/8 is a non-isolated serial interface. Applications requiring electrical isolation should use an appropriate isolated RS-485/RS-422 interface.
Can PCIe-8431/8 communicate with Modbus RTU devices?
Yes, when the Modbus equipment uses a compatible RS-485 physical interface. The PCIe-8431/8 provides the serial hardware interface, while the Modbus RTU protocol must be implemented by compatible software.
Can PCIe-8431/8 communicate with multiple devices?
Yes. Its eight serial ports allow the host computer to communicate with multiple independent RS-485 or RS-422 devices. RS-485 ports may also be integrated into compatible multidrop network architectures.
What is the difference between PCIe-8431/8 and PCIe-8430/8?
The PCIe-8431/8 is designed for RS-485 and RS-422, while the PCIe-8430/8 is designed for RS-232. The correct model should be selected according to the electrical serial standard used by the external equipment.
What is the difference between PCIe-8431/8 and PCIe-8431/16?
Both belong to the same RS-485/RS-422 serial interface family. The PCIe-8431/8 provides eight serial ports, while the PCIe-8431/16 provides sixteen ports for higher-density applications.
What is the difference between PCIe-8431/8 and PCIe-8431/2?
The primary difference is port count. PCIe-8431/8 provides eight RS-485/RS-422 serial ports, while PCIe-8431/2 provides two ports. The appropriate model depends on the number of independent serial connections required.
Can PCIe-8431/8 be used with LabVIEW?
Yes. The PCIe-8431/8 can be integrated into compatible LabVIEW applications for serial communication, automated testing, industrial equipment control, and data logging.
Can PCIe-8431/8 be used with NI-VISA?
Yes. Compatible NI-VISA applications can communicate with serial instruments and other devices connected through the PCIe-8431/8.
Why is my RS-485 device not communicating with PCIe-8431/8?
Check the RS-485 wiring polarity, baud rate, data bits, parity, stop bits, 2-wire or 4-wire configuration, termination, network biasing, device address, communication protocol, and cable topology.
What should I check before purchasing PCIe-8431/8?
Verify the RS-485/RS-422 requirement, required number of ports, baud rate, 2-wire or 4-wire configuration, half-duplex or full-duplex operation, isolation requirements, connector and cable configuration, network termination and biasing, PCI Express slot availability, NI-Serial driver compatibility, operating system, NI-VISA, LabVIEW, and existing application software.
Conclusion
The NI PCIe-8431/8 8-Port RS-485/RS-422 Serial Interface Device provides eight differential serial communication ports through a PCI Express host interface. With support for RS-485, RS-422, communication rates up to 3 Mb/s, 2-wire and 4-wire configurations, and multi-device connectivity, it is well suited for industrial automation, automated test, instrument control, production testing, Modbus RTU systems, serial data logging, and integration of existing RS-485/RS-422 equipment.
