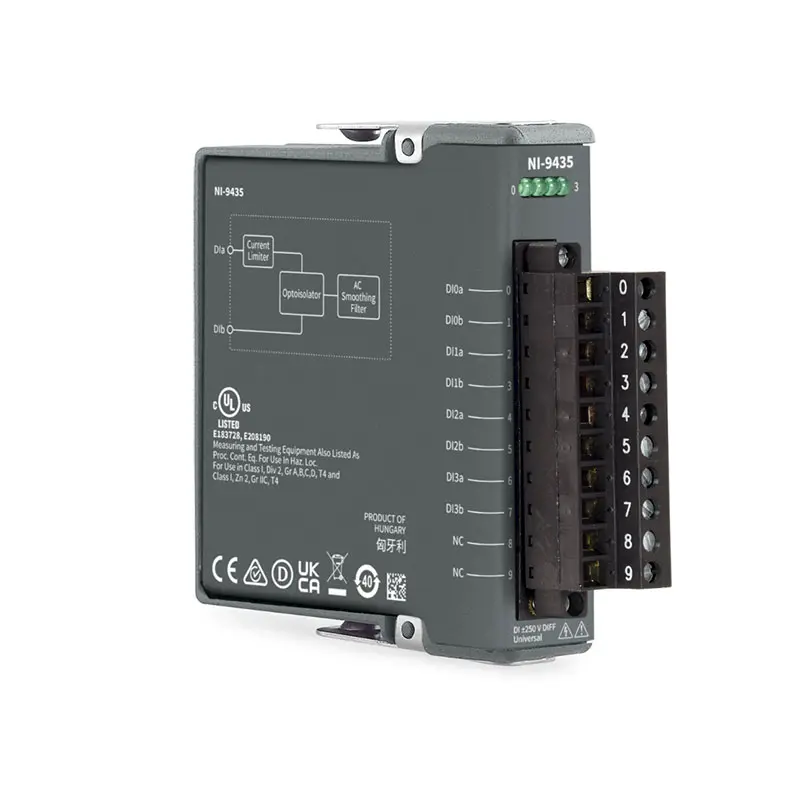

The NI-9435 is a rugged C Series high-voltage digital input module designed for CompactRIO and CompactDAQ systems. It provides 8 isolated digital input channels capable of directly monitoring industrial signals up to 250 VAC/VDC, eliminating the need for external signal conditioning in many high-voltage applications.
Unlike low-voltage digital input modules such as the NI-9422, NI-9423, or NI-9425, the NI-9435 is specifically designed for direct connection to industrial AC and DC control circuits commonly found in power systems, industrial machinery, building automation, and process control applications.
Typical applications include:
- Industrial automation
- AC control signal monitoring
- Power distribution systems
- Building automation
- Process control
- Motor control systems
- Industrial safety systems
- Energy infrastructure monitoring
High-Voltage Digital Input Architecture
The NI-9435 provides:
- 8 digital input channels
- Direct AC and DC signal monitoring
- High-voltage industrial compatibility
- Channel-to-earth isolation
- FPGA integration
- Industrial-grade noise immunity
Key specifications include:
| Specification | Value |
|---|---|
| Channels | 8 Digital Inputs |
| Input Voltage | 24 VAC/VDC to 250 VAC/VDC |
| Input Type | High-Voltage Digital |
| Isolation | 250 Vrms |
| Connector Type | Spring Terminal |
| FPGA Compatible | Yes |
| Hot Swappable | Yes |
The module enables engineers to directly acquire high-voltage control signals without intermediate relays or voltage conversion circuits.
Direct Monitoring of AC and DC Signals
One of the biggest advantages of the NI-9435 is its ability to directly monitor both AC and DC control voltages.
Supported signal types include:
24 VAC Control Signals
Commonly used in HVAC and building automation systems.
120 VAC Signals
Widely used in industrial control cabinets and equipment monitoring.
230 VAC Signals
Used throughout industrial facilities and power systems.
24 VDC / 48 VDC / 125 VDC Signals
Common in automation and power distribution systems.
This flexibility allows a single module to support a wide variety of industrial installations.
Industrial Power System Monitoring
The NI-9435 is frequently used in power and energy applications.
Typical monitoring tasks include:
Breaker Status Monitoring
Monitor the open/closed status of circuit breakers.
Switchgear Monitoring
Acquire digital status signals from switchgear equipment.
Relay Protection Systems
Monitor protection relay outputs and alarm conditions.
Power Distribution Equipment
Track equipment operating status and fault conditions.
Compared with standard 24 V digital input modules, the NI-9435 significantly simplifies integration into power infrastructure projects.
FPGA Integration and Deterministic Event Detection
The NI-9435 integrates directly with CompactRIO FPGA resources.
Engineers can implement:
- Deterministic event monitoring
- Alarm processing
- Safety interlocks
- Machine status monitoring
- Automated control logic
- Industrial sequencing systems
Because signals are processed directly within FPGA hardware, the system can respond immediately to critical events without software latency.
Typical FPGA applications include:
- Power automation
- Industrial process control
- Machine safety systems
- Embedded monitoring platforms
Industrial Automation Applications
The NI-9435 is widely used in industrial automation systems where high-voltage signals must be monitored.
Common applications include:
Motor Starter Monitoring
Monitor contactor and starter status.
Process Equipment Monitoring
Acquire operating status from industrial machinery.
Safety Circuits
Monitor emergency-stop and safety relay conditions.
Building Management Systems
Monitor HVAC equipment, lighting controls, and electrical infrastructure.
The module provides a reliable interface between high-voltage field signals and CompactRIO control systems.
Isolation and Electrical Safety
The NI-9435 includes industrial-grade isolation to improve safety and reliability.
Benefits include:
- Protection of CompactRIO systems
- Reduced ground-loop issues
- Improved EMC performance
- Enhanced operator safety
- Noise reduction
Industrial environments often contain:
- High-voltage switching equipment
- Large motors
- Power transformers
- Industrial drives
The NI-9435 is specifically designed to operate reliably in these demanding environments.
CompactRIO and CompactDAQ Integration
The NI-9435 supports:
- CompactRIO Controllers
- CompactDAQ Chassis
- Distributed Monitoring Systems
- Industrial Control Platforms
Supported software includes:
- LabVIEW FPGA
- LabVIEW Real-Time
- NI-RIO Driver
- NI-DAQmx
- C/C++
- Python
- .NET
This enables seamless integration into industrial automation and monitoring systems.
Rugged Industrial Design
The NI-9435 is built for harsh industrial environments.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Shock resistance: 50 g
- Vibration resistance: 5 g RMS
- Industrial EMC compliance
Suitable environments include:
- Power plants
- Manufacturing facilities
- Oil and gas installations
- Water treatment plants
- Transportation systems
- Energy infrastructure
Application-Oriented Use Cases
Power Distribution Monitoring
Monitor breakers, relays, and switchgear status signals.
Industrial Equipment Monitoring
Track machine operation and alarm conditions.
Building Automation
Monitor HVAC, lighting, and facility control systems.
Safety Systems
Acquire emergency-stop and protection relay signals.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9435 | 250 VAC/VDC digital input | High-voltage monitoring |
| NI-9422 | 24 V digital input | Industrial machine monitoring |
| NI-9423 | High-speed digital input | Fast event detection |
| NI-9425 | 32-channel digital input | High-density monitoring |
| NI-9411 | Differential digital input | Encoder feedback |
Compared with the NI-9422 and NI-9423, the NI-9435 supports direct monitoring of high-voltage AC and DC signals. Compared with the NI-9425, it provides lower channel density but eliminates the need for external voltage conversion when monitoring industrial power systems.
Conclusion
The NI-9435 is a specialized 8-channel high-voltage digital input module designed for CompactRIO and CompactDAQ systems requiring direct acquisition of industrial AC and DC control signals.
Its combination of:
- 8 isolated digital inputs
- Up to 250 VAC/VDC compatibility
- FPGA integration
- Industrial isolation
- Power-system compatibility
- High reliability
- Rugged industrial design
makes it an excellent solution for power monitoring, industrial automation, building management systems, process control, safety systems, and energy infrastructure applications.
