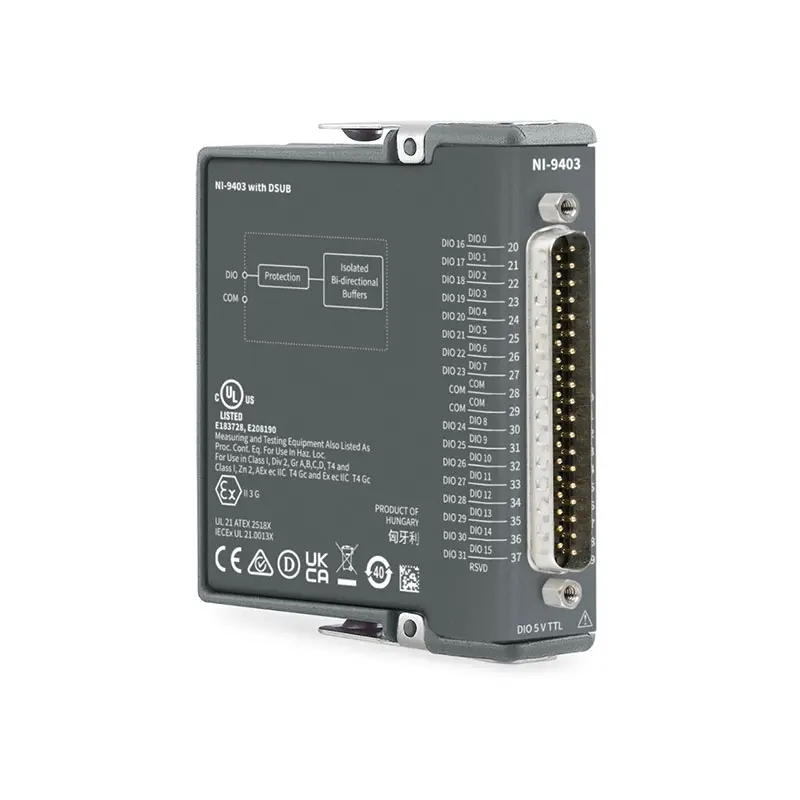

The NI-9403 is a high-speed C Series bidirectional digital I/O module designed for CompactRIO and CompactDAQ systems. It provides 32 configurable digital I/O channels supporting 5 V TTL logic, making it suitable for embedded control, FPGA applications, digital communication, pulse generation, industrial automation, and high-speed digital interfacing.
Unlike fixed-direction modules such as the NI-9425 or NI-9477, the NI-9403 allows engineers to configure each channel independently as either:
- Digital input
- Digital output
This flexibility makes the module ideal for:
- FPGA-based systems
- High-speed digital logic
- Encoder interfaces
- Digital protocol implementation
- Pulse generation
- Counter/timer applications
- Embedded machine control
- Industrial automation
Typical applications include:
- Custom FPGA digital protocols
- PWM generation
- Quadrature encoder interfaces
- High-speed counters
- Industrial digital control
- Embedded automation
- Trigger systems
- Digital communication systems
Bidirectional Digital I/O Architecture
The NI-9403 provides:
- 32 bidirectional digital I/O channels
- 5 V TTL logic compatibility
- Per-channel configurable direction
- 7 μs maximum update rate
- 37-pin DSUB connectivity
- FPGA-compatible architecture
Key specifications include:
| Specification | Value |
|---|---|
| Channels | 32 bidirectional DIO |
| Logic level | 5 V TTL |
| Direction control | Per-channel configurable |
| Update rate | 7 μs maximum |
| Connector | 37-pin DSUB |
| Isolation | 60 VDC channel-earth |
| Overvoltage protection | ±30 V |
Each digital line can independently function as an input or output, enabling extremely flexible FPGA and embedded system designs.
Flexible Per-Channel Direction Control
One of the major advantages of the NI-9403 is its independent per-channel direction configuration.
Engineers can dynamically configure channels for:
- Digital inputs
- Digital outputs
- Mixed-direction communication
- Bidirectional buses
- Protocol emulation
- FPGA-controlled logic systems
This architecture is especially useful for:
Digital Communication Protocols
The NI-9403 can implement custom protocols such as:
- SPI
- I²C
- UART
- Parallel buses
- Proprietary FPGA protocols
Embedded Machine Control
The module supports simultaneous digital sensing and actuator control within one module.
FPGA-Based Logic Systems
CompactRIO FPGA systems can dynamically reconfigure DIO directions during operation.
Counter and Encoder Applications
The NI-9403 is commonly used for quadrature encoders, counters, pulse measurement, and timing systems.
Compared with fixed-input or fixed-output modules, the NI-9403 provides significantly greater flexibility for embedded FPGA applications.
FPGA Integration and High-Speed Digital Logic
The NI-9403 is heavily optimized for CompactRIO FPGA integration.
With LabVIEW FPGA, engineers can implement:
- High-speed counters
- Encoder interfaces
- PWM generation
- Pulse measurement
- Trigger systems
- Digital communication protocols
- Deterministic state machines
- Custom digital timing logic
Because the FPGA processes signals locally, the NI-9403 can achieve deterministic low-latency operation that is difficult to obtain using standard PC-based digital I/O systems.
This makes the NI-9403 highly suitable for:
- Real-time embedded systems
- Industrial robotics
- Motion systems
- Machine automation
- Industrial testing
- FPGA-based control systems
Digital Logic Characteristics
The NI-9403 supports standard 5 V TTL logic.
Important electrical characteristics include:
| Parameter | Value |
|---|---|
| Logic high input | TTL compatible |
| Logic low input | TTL compatible |
| Current capability | Shared across channels |
| Maximum module current | 64 mA total |
| Typical output capability | 2 mA per channel typical |
The module uses Schmitt-trigger inputs for improved noise immunity and reliable signal detection in industrial environments.
The NI-9403 supports:
- Sourcing input
- Sinking input
- Sourcing output
- Sinking output
This flexibility simplifies interfacing with many types of digital devices and embedded systems.
High-Speed Counter and Encoder Applications
One of the most common uses for the NI-9403 is FPGA-based counter and encoder implementation.
Typical applications include:
Quadrature Encoder Interfaces
The module can read high-speed encoder signals for:
- Motion systems
- Robotics
- Servo control
- Industrial automation
Pulse Generation
Engineers can generate deterministic digital pulses and PWM signals directly from the FPGA.
Event Timing Systems
The NI-9403 supports precise FPGA-based timestamping and digital event capture.
High-Speed Trigger Systems
The module can be used for synchronized triggering across multiple industrial devices.
Compared with standard software-timed digital modules, the NI-9403 provides much tighter FPGA timing integration.
Protection and Reliability Features
The NI-9403 includes several industrial protection mechanisms:
- ±30 V overvoltage protection
- Overcurrent protection
- Short-circuit protection
- High-impedance shutdown mode
- Industrial EMC robustness
If an overcurrent condition occurs:
- The module automatically places all DIO lines into high-impedance mode for approximately 280 ms.
These features improve:
- System reliability
- Embedded safety
- Fault tolerance
- Industrial robustness
CompactDAQ vs CompactRIO Operation
The NI-9403 behaves differently depending on the host platform.
| Platform | Capability |
|---|---|
| CompactRIO | Full FPGA reconfigurable I/O |
| CompactDAQ | Static software-timed DIO only |
In CompactRIO systems, engineers can fully exploit FPGA timing and deterministic digital processing.
In CompactDAQ systems, the module operates as a standard software-timed digital I/O device.
This distinction is important when designing high-speed embedded applications.
Connectivity and Wiring
The NI-9403 uses a 37-pin DSUB connector.
Compatible accessories include:
- NI-9923 terminal block
- DSUB breakout boards
- Custom FPGA wiring systems
- Industrial digital harnesses
The module supports:
- CompactRIO
- CompactDAQ
- R Series expansion chassis
- EtherCAT systems
Rugged Industrial Design
The NI-9403 is designed for industrial deployment.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Random vibration: 5 g RMS
- Shock resistance up to 50 g
- IP40 protection
The module is suitable for:
- Factory automation
- Embedded machines
- Transportation systems
- Industrial robotics
- Energy infrastructure
- Real-time industrial systems
The NI-9403 also supports hazardous-location deployment in certified CompactRIO systems.
Application-Oriented Use Cases
FPGA Digital Protocol Implementation
The NI-9403 is widely used for implementing custom FPGA communication protocols.
Encoder and Motion Systems
The module supports high-speed quadrature encoder interfaces and deterministic motion control.
Industrial Automation
Engineers use the NI-9403 for mixed digital input/output industrial control systems.
Embedded Real-Time Systems
CompactRIO FPGA systems can use the NI-9403 for deterministic low-latency digital processing.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9401 | 8-channel bidirectional DIO | Compact FPGA digital I/O |
| NI-9402 | LVTTL high-speed DIO | High-speed digital communication |
| NI-9403 | 32-channel 5 V TTL bidirectional DIO | General-purpose FPGA digital I/O |
| NI-9425 | 32-channel digital input | Industrial DI monitoring |
| NI-9477 | 32-channel digital output | Industrial DO control |
Compared with the NI-9425 and NI-9477, the NI-9403 provides true bidirectional FPGA-configurable digital I/O instead of fixed-direction industrial channels. Compared with the NI-9402, the NI-9403 prioritizes higher channel count and general-purpose TTL operation rather than ultra-high-speed LVTTL communication.
Conclusion
The NI-9403 is a rugged high-density 32-channel bidirectional digital I/O module designed for CompactRIO and CompactDAQ systems requiring flexible FPGA-based digital interfacing.
Its combination of:
- 32 configurable digital I/O channels
- 5 V TTL compatibility
- Per-channel direction control
- FPGA integration
- High-speed digital timing
- Counter and encoder support
- Industrial protection features
- Rugged industrial reliability
makes it an excellent solution for FPGA systems, industrial automation, embedded control, motion systems, encoder interfaces, digital communication, and deterministic real-time industrial applications.
