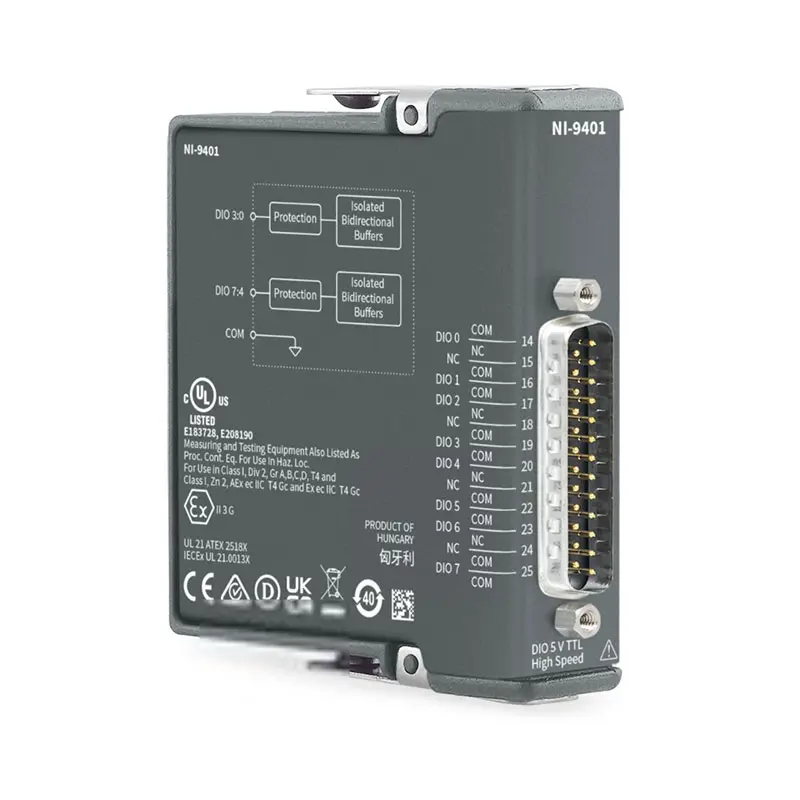

NI-9401

The NI-9401 is a high-speed C Series bidirectional digital I/O module designed for CompactRIO, CompactDAQ, and RIO-based embedded systems. It provides 8 configurable digital I/O channels that can be individually configured as inputs or outputs, making it ideal for FPGA-based control, digital communication, encoder interfaces, PWM generation, and high-speed industrial automation.

Unlike industrial 24 V modules such as the NI-9375, the NI-9401 is optimized for TTL/CMOS digital logic applications, where fast signal processing and deterministic timing are required.

Typical applications include:

• FPGA digital communication
• Motion control
• Encoder interfaces
• PWM generation
• High-speed triggering
• Automated test systems
• Embedded machine control
• Industrial robotics

High-Speed Digital I/O Architecture

The NI-9401 provides:

• 8 bidirectional digital channels
• Individually configurable I/O lines
• TTL-compatible operation
• FPGA direct connectivity
• Hardware-timed digital control
• High-speed signal processing

Key specifications include:

The module is designed to provide deterministic digital control with minimal latency when used with CompactRIO FPGA systems.

FPGA-Based Digital Processing

One of the biggest advantages of the NI-9401 is its seamless integration with the CompactRIO FPGA.

Engineers can implement:

• Custom digital protocols
• High-speed state machines
• Encoder interfaces
• Pulse counting
• PWM generation
• Trigger systems
• Real-time machine logic
• Communication interfaces

Because signal processing occurs directly on the FPGA, response times are significantly faster than traditional PLC-based systems.

Motion Control and Encoder Applications

The NI-9401 is widely used in motion control applications.

Typical functions include:

Encoder Acquisition

Read quadrature encoders for:

• Servo motors
• Stepper motors
• Positioning systems
• Robotics platforms

Motion Synchronization

Coordinate multiple machine axes with deterministic timing.

Trigger Generation

Generate position-based triggers for:

• Vision systems
• Inspection equipment
• Automated production lines

Real-Time Feedback

Provide accurate position and velocity information to CompactRIO controllers.

Compared with standard digital input modules, the NI-9401 offers much tighter integration with FPGA motion control applications.

High-Speed Digital Communication

The NI-9401 is commonly used for implementing custom digital interfaces.

Supported applications include:

• SPI communication
• UART communication
• Custom serial protocols
• Parallel digital interfaces
• Handshaking signals
• Embedded communication buses

The FPGA architecture allows engineers to create custom hardware-level communication protocols without requiring additional interface hardware.

This flexibility makes the NI-9401 a popular choice for embedded control and automated test systems.

PWM Generation and Pulse Output

The NI-9401 can be used as a deterministic pulse generation platform.

Typical applications include:

PWM Motor Control

Generate PWM signals for motor drives and power electronics.

Trigger Signals

Provide synchronized triggers for instruments and sensors.

Pulse Train Generation

Generate high-frequency pulse outputs for industrial equipment.

Timing and Synchronization

Distribute timing signals across multiple devices.

With FPGA control, engineers can generate precise pulse trains with sub-microsecond accuracy.

Industrial Automation Applications

The NI-9401 is widely used in CompactRIO-based industrial systems.

Common applications include:

• Packaging machinery
• Semiconductor equipment
• Factory automation
• Robotics systems
• Material handling equipment
• Machine vision systems
• Test automation platforms

Because the module combines input and output functionality, it reduces system complexity and conserves CompactRIO slots.

Isolation and Protection Features

The NI-9401 includes industrial-grade protection features.

Features include:

• Channel-to-earth isolation
• Overvoltage protection
• Short-circuit protection
• Hot-swap capability
• Industrial EMC compliance

Benefits include:

• Improved system reliability
• Better noise immunity
• Enhanced electrical safety
• Reduced downtime

These characteristics make the module suitable for demanding industrial environments.

CompactRIO and CompactDAQ Integration

The NI-9401 supports:

• CompactRIO Controllers
• CompactDAQ Chassis
• Single-Board RIO Systems
• Distributed Embedded Platforms

Supported software includes:

• LabVIEW FPGA
• LabVIEW Real-Time
• NI-DAQmx
• NI-RIO Driver
• C/C++
• Python
• .NET

This allows engineers to develop scalable automation solutions across multiple NI hardware platforms.

Rugged Industrial Design

The NI-9401 is designed for harsh environments.

Industrial specifications include:

• Operating temperature: -40 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Shock resistance: 50 g
• Vibration resistance: 5 g RMS
• Industrial EMC compliance

Suitable deployment environments include:

• Manufacturing facilities
• Transportation systems
• Industrial robotics
• Semiconductor production
• Outdoor industrial equipment
• Energy infrastructure

Application-Oriented Use Cases

FPGA Digital Control

Implement deterministic machine logic and custom digital interfaces.

Motion Systems

Read encoders and generate motion control signals.

Automated Test Equipment

Provide synchronized digital communication and triggering.

Industrial Robotics

Manage sensor feedback and actuator control with FPGA timing precision.

Comparison with Similar Modules

Compared with the NI-9403, the NI-9401 offers faster FPGA timing performance and a more compact form factor. Compared with the NI-9375, it is optimized for TTL-level digital communication rather than 24 V industrial signals.

Conclusion

The NI-9401 is a versatile 8-channel bidirectional digital I/O module designed for CompactRIO and CompactDAQ systems requiring deterministic high-speed digital control.

Its combination of:

• 8 configurable digital I/O channels
• FPGA integration
• 100 ns timing resolution
• Encoder support
• PWM generation capability
• Custom protocol implementation
• Industrial reliability

makes it an excellent solution for motion control, robotics, automated testing, FPGA applications, digital communication, and real-time industrial automation.
