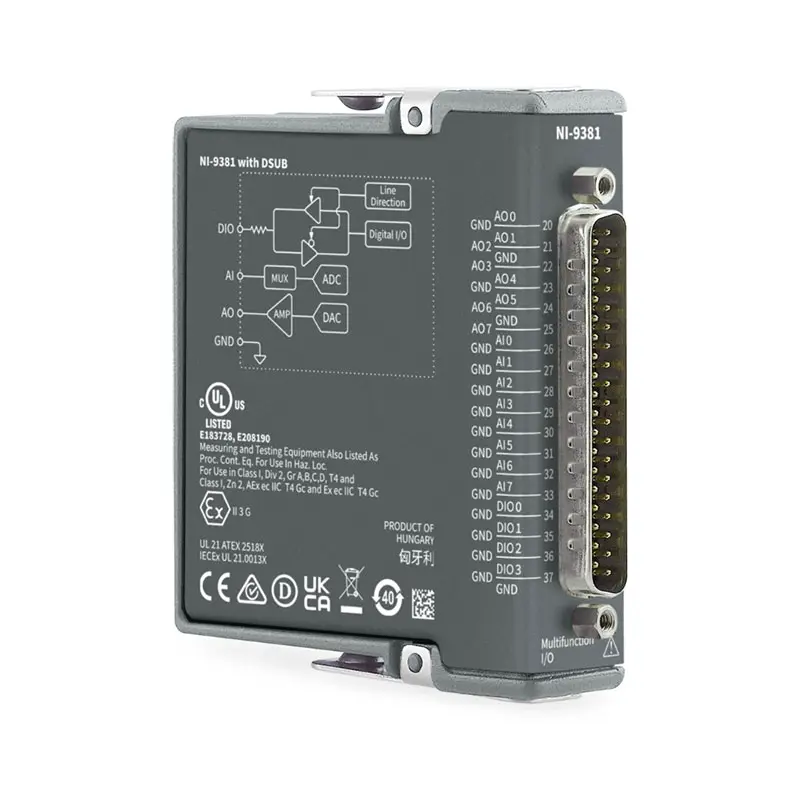

The NI-9381 is a multifunction C Series I/O module designed for CompactRIO systems that combines analog input, analog output, and digital I/O into a single compact industrial module. It is intended for engineers who need flexible mixed-signal I/O within embedded control, industrial automation, and distributed acquisition systems.
Unlike dedicated analog-only or digital-only modules, the NI-9381 integrates multiple signal types into one module, helping reduce slot usage in CompactRIO chassis and simplifying embedded system design.
Typical applications include:
- Embedded industrial control
- Machine automation
- Compact test systems
- Distributed measurement
- Sensor simulation
- Industrial monitoring
- Mixed-signal prototyping
- Educational and laboratory automation
Multifunction I/O Architecture
The NI-9381 combines:
- 8 analog input channels
- 8 analog output channels
- 4 digital I/O channels
- 0 V to 5 V signal range
- 12-bit resolution
- 20 kS/s update rate
The module uses a multiplexed analog architecture with a shared timing engine. The effective sample rate per channel depends on the number of active analog input and analog output channels being used simultaneously.
This design makes the NI-9381 particularly useful for systems where engineers need moderate-speed multifunction control rather than high-speed dedicated acquisition.
Analog Input Performance
The analog input section provides:
- 8 single-ended analog inputs
- 12-bit SAR ADC
- 0 V to 5 V input range
- 20 kS/s conversion rate
- 1 MΩ input impedance
- DC coupling
Typical applications for the analog input channels include:
- Sensor monitoring
- Position feedback
- Voltage measurement
- Embedded acquisition
- Process monitoring
- Industrial diagnostics
The module is optimized for low-voltage industrial and embedded applications where compact multifunction integration is more important than high-speed precision instrumentation.
Analog Output Performance
The analog output section provides:
- 8 analog output channels
- 12-bit DAC resolution
- 0 V to 5 V output range
- 20 kS/s update rate
- ±1 mA current drive
- Short-circuit protection
Typical analog output applications include:
- Control signal generation
- Embedded actuator control
- Sensor simulation
- Analog stimulus generation
- Industrial setpoint control
Because the NI-9381 integrates both analog input and analog output, it is well suited for closed-loop embedded control systems.
Digital I/O Capabilities
The module also provides:
- 4 LVTTL digital I/O lines
- Single-ended digital signaling
- Maximum switching frequency up to 1 MHz
The digital lines can be used for:
- Trigger signals
- Digital synchronization
- Status monitoring
- Embedded timing control
- Logic-level communication
Compared with dedicated high-speed digital modules, the NI-9381 focuses more on multifunction flexibility rather than maximum digital channel density.
CompactRIO System Integration
The NI-9381 is supported on:
- CompactRIO systems
- CompactRIO FPGA platforms
- Embedded industrial control systems
It supports:
- LabVIEW
- LabVIEW FPGA
- NI CompactRIO drivers
- NI-DAQmx integration
- Python
- ANSI C
- MATLAB integration
Because the module interfaces directly with CompactRIO FPGA resources, engineers can implement:
- Deterministic timing
- FPGA-based signal handling
- Real-time processing
- Custom triggering
- Embedded automation logic
This flexibility is one of the main advantages of the CompactRIO architecture compared with traditional PLC I/O systems.
Rugged Industrial Design
The NI-9381 is designed for industrial deployment and harsh environments.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- IP40 protection
- Random vibration: 5 g RMS
- Shock resistance up to 50 g
The module is suitable for:
- Factory automation
- Transportation systems
- Industrial machinery
- Remote monitoring systems
- Embedded industrial equipment
NI also offers a conformal-coated version for harsher industrial environments.
Application-Oriented Use Cases
Embedded Machine Control
The NI-9381 is useful for compact embedded control systems that require both analog monitoring and analog actuation within one module.
Sensor Simulation
The analog output channels can simulate sensor signals while the analog input channels monitor system feedback simultaneously.
Industrial Monitoring
The module can monitor analog process variables while handling local digital control and synchronization signals.
Educational and Prototype Systems
Because it integrates multiple signal types into one module, the NI-9381 is widely used in laboratory systems, educational CompactRIO setups, and rapid embedded prototyping.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9381 | Mixed analog and digital I/O | General multifunction control |
| NI-9205 | High-channel analog input | Large sensor acquisition |
| NI-9263 | High-performance analog output | Precision analog generation |
| NI-9401 | High-speed digital I/O | FPGA digital control |
| NI-9375 | Functional safety digital I/O | Industrial safety systems |
Compared with the NI-9205 or NI-9263, the NI-9381 provides mixed-signal flexibility instead of maximizing analog performance. Compared with the NI-9401, it includes analog functionality in addition to digital I/O.
Conclusion
The NI-9381 is a flexible multifunction C Series I/O module for CompactRIO systems that combines analog input, analog output, and digital I/O into a compact industrial platform.
Its combination of:
- 8 analog inputs
- 8 analog outputs
- 4 digital I/O lines
- 12-bit resolution
- CompactRIO FPGA integration
- Rugged industrial design
makes it an excellent solution for embedded automation, mixed-signal industrial control, compact test systems, and distributed industrial monitoring applications.
