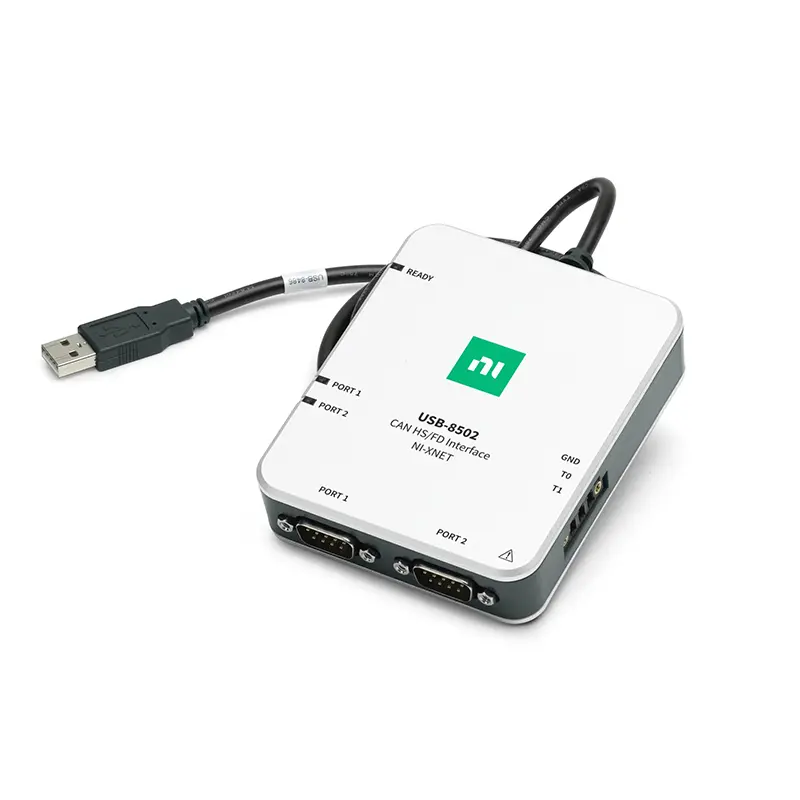

NI USB-8502 USB CAN Interface Device
The NI USB-8502 is a USB CAN interface device designed for CAN bus communication, automotive testing, embedded system development, and industrial network applications. Developed by National Instruments, the USB-8502 provides reliable CAN communication through a convenient USB connection, enabling engineers to connect computers with CAN-based devices and networks.
Based on NI-XNET technology, the USB-8502 provides high-performance CAN frame transmission and reception, real-time bus monitoring, and efficient communication for automated test and validation systems.
With USB connectivity, LabVIEW support, and NI-XNET API integration, the USB-8502 is widely used in ECU testing, CAN network analysis, embedded development, and industrial communication applications.
Key Features of NI USB-8502
USB CAN Communication Interface
The USB-8502 provides a simple and reliable connection between a host computer and CAN networks.
- USB-to-CAN communication
- CAN frame transmission and reception
- Real-time CAN bus access
- Easy system integration
NI-XNET Technology Support
The USB-8502 uses NI-XNET technology to provide high-performance CAN communication and network management.
- High-speed CAN communication
- Real-time message processing
- CAN network monitoring
- Automated testing support
Reliable CAN Bus Analysis
The USB-8502 enables engineers to monitor, test, and troubleshoot CAN communication networks.
- CAN message monitoring
- Bus communication analysis
- Network debugging
- Protocol verification
Software Integration
The USB-8502 integrates with NI software platforms for CAN application development.
- LabVIEW support
- NI-XNET API
- NI VeriStand integration
- Automated test development
Applications of NI USB-8502
Automotive ECU Testing
The USB-8502 provides CAN communication capability for automotive electronic testing and validation.
- ECU communication testing
- Vehicle network analysis
- CAN diagnostics
- Automotive validation
CAN Network Development
The USB-8502 helps engineers develop and verify CAN-based communication systems.
- CAN device testing
- Message simulation
- Communication debugging
- Network verification
Industrial Communication Systems
The USB-8502 supports industrial applications requiring reliable CAN communication.
- Industrial controllers
- Embedded devices
- Machine communication
- Automation systems
Hardware-in-the-Loop (HIL) Testing
The USB-8502 can be integrated into simulation and HIL environments requiring CAN communication.
- Real-time simulation
- Controller validation
- Embedded testing
- System verification
Software Support
The NI USB-8502 supports National Instruments software tools for CAN communication and automated testing.
- LabVIEW
- NI-XNET Driver
- NI VeriStand
- CAN communication APIs
Technical Specifications of USB-8502
| Feature | Description |
|---|---|
| Product Type | USB CAN Interface Device |
| Communication | CAN Bus |
| Technology | NI-XNET |
| Connectivity | USB Interface |
| Software | LabVIEW, NI-XNET API |
| Applications | Automotive testing, CAN analysis, industrial communication |
Comparison with Similar USB CAN Interface Devices
| Model | Main Difference | Best Application |
|---|---|---|
|
NI USB-8502 | USB CAN interface device designed for reliable CAN communication and network testing. | CAN communication development |
|
NI USB-8503 | USB communication interface designed for automotive network testing applications. | Automotive embedded testing |
|
NI USB-8506 | Advanced USB CAN interface supporting CAN FD communication. | Modern automotive CAN FD testing |
|
NI PXI-8512 | PXI CAN interface module for modular automated test platforms. | PXI-based CAN systems |
Recommended Related Products
The following products are commonly used with the USB-8502 to build complete CAN communication and automotive test systems.
|
NI USB-8506 | USB CAN interface supporting CAN FD communication for advanced automotive testing. |
|
NI USB-8503 | USB communication interface for automotive and embedded network applications. |
|
NI PXI-8512 | PXI CAN interface module for scalable automated test systems. |
|
NI PXIe-8521 | PXI Express CAN FD interface module for advanced automotive validation systems. |
|
NI cRIO-9037 | CompactRIO controller combining real-time processing and FPGA capability for industrial control. |
Why Choose NI USB-8502
- Reliable USB CAN communication solution
- Supports NI-XNET high-performance communication
- Easy USB deployment
- Supports LabVIEW and automated testing
- Ideal for ECU and CAN network validation
- Suitable for industrial communication applications
Conclusion
The NI USB-8502 USB CAN Interface Device provides a reliable and flexible solution for engineers developing CAN communication, automotive testing, and industrial network applications.
With NI-XNET technology, USB connectivity, and powerful software integration, the USB-8502 is an excellent choice for CAN bus analysis, ECU validation, embedded development, and automation systems.
