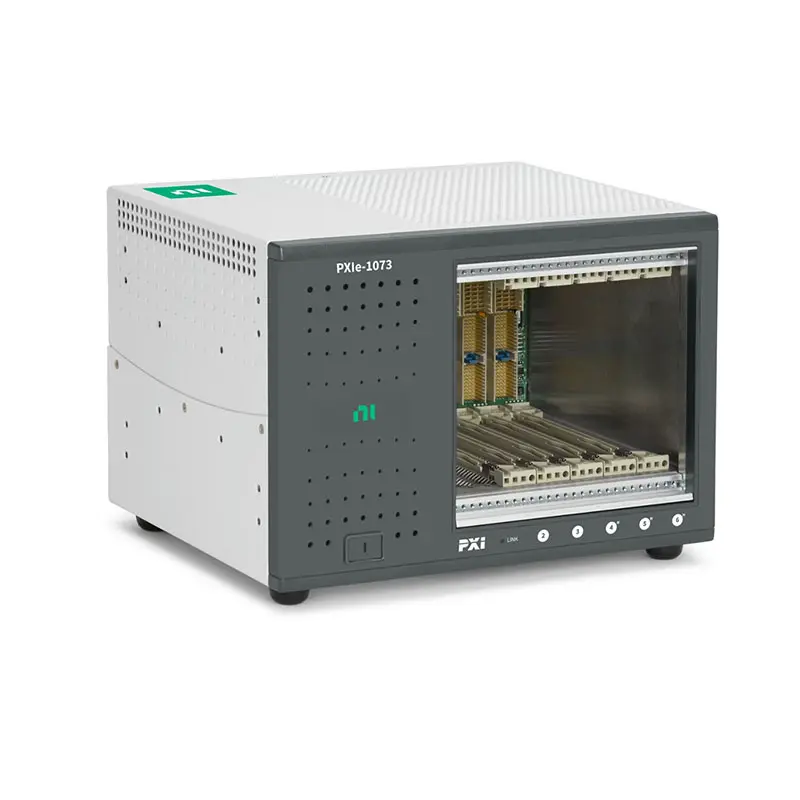

NI PXIe-1073 PXI Express Chassis
The NI PXIe-1073 is a compact PXI Express chassis designed for modular automated test, measurement, data acquisition, and laboratory applications. Developed by National Instruments, the PXIe-1073 provides an efficient and flexible platform for integrating PXI Express controllers and measurement modules into space-conscious test systems.
With PXI Express high-speed communication, reliable synchronization resources, and support for a wide range of PXI and PXI Express modules, the PXIe-1073 enables engineers to build compact and cost-effective measurement solutions for research, development, and industrial testing.
The PXIe-1073 is suitable for applications requiring a small footprint PXI Express platform, including engineering validation, electronic testing, educational laboratories, and automated measurement systems.
Key Features of NI PXIe-1073
Compact PXI Express Chassis Design
The PXIe-1073 provides a compact PXI Express platform optimized for applications where system size and flexibility are important.
- Compact PXI Express architecture
- Supports PXI and PXI Express modules
- Space-saving modular test solution
- Suitable for laboratory and engineering environments
- Flexible system expansion capability
PXI Express High-Speed Communication
The PXIe-1073 provides efficient communication between installed modules through the PXI Express backplane.
- PCI Express-based communication
- Fast module-to-module data transfer
- Low-latency measurement communication
- Supports modular instrumentation systems
Timing and Synchronization Capability
The PXIe-1073 provides synchronization resources required for coordinated operation of multiple PXI Express modules.
- 10 MHz reference clock
- PXI trigger support
- PXI Express timing resources
- Multi-module synchronization
Reliable Thermal Management
The PXIe-1073 features an efficient cooling design to maintain stable operation of installed PXI Express modules.
- Forced-air cooling
- Optimized airflow management
- Reliable continuous operation
- Suitable for laboratory applications
Flexible PXI Module Support
The PXIe-1073 supports various National Instruments PXI Express modules for different measurement requirements.
- PXIe data acquisition modules
- PXIe digitizers
- PXIe switching modules
- PXIe FPGA modules
- PXIe signal measurement modules
Applications of NI PXIe-1073
Laboratory Measurement Systems
The PXIe-1073 provides a compact platform for engineering laboratories requiring flexible modular instrumentation.
- Research measurement
- Prototype testing
- Electronic validation
- Engineering development
Automated Test Equipment (ATE)
The PXIe-1073 can be integrated into compact automated test systems for electronic verification and production testing.
- Functional testing
- Electronic verification
- Small-scale production testing
- Development test systems
Data Acquisition Applications
Combined with PXIe DAQ modules, the PXIe-1073 provides flexible measurement capability for various sensing applications.
- Sensor measurement
- Signal monitoring
- Multi-channel acquisition
- Laboratory data collection
Education and Research Applications
The compact design of the PXIe-1073 makes it suitable for universities and research institutions.
- Engineering education
- Laboratory experiments
- Research projects
- Prototype development
Software Support
The PXIe-1073 works with National Instruments software tools for system configuration, automation, and measurement development.
- LabVIEW
- NI TestStand
- NI MAX
- NI-DAQmx
- Instrument drivers
- Python
- C/C++
Technical Specifications of PXIe-1073
| Feature | Description |
|---|---|
| Product Type | Compact PXI Express Chassis |
| Architecture | PXI Express modular platform |
| Compatibility | PXI and PXI Express modules |
| Synchronization | PXI timing and triggering resources |
| Cooling | Forced-air cooling system |
| Applications | Laboratory testing, automated test, data acquisition, research |
Comparison with Similar PXI Express Chassis
| Model | Main Difference | Best Application |
|---|---|---|
|
NI PXIe-1073 | Compact PXI Express chassis designed for flexible modular systems. | Laboratory and small-scale automated testing |
|
NI PXIe-1090 | Compact PXI Express chassis designed for portable and flexible applications. | Portable measurement systems |
|
NI PXIe-1083 | General-purpose PXI Express chassis for broader modular applications. | Automated test and engineering validation |
|
NI PXIe-1082DC | DC-powered PXI Express chassis designed for mobile deployment. | Field and portable testing |
Recommended Related Products
The following products are commonly used with the PXIe-1073 to build compact PXI Express test and measurement systems.
|
NI PXIe-1090 | Compact PXI Express chassis designed for portable and flexible automated test applications. |
|
NI PXIe-8840 | PXI Express embedded controller suitable for compact automated test and measurement systems. |
|
NI PXIe-6368 | High-performance multifunction DAQ module for analog input, digital I/O, and measurement applications. |
|
NI PXIe-5164 | PXI Express digitizer for waveform acquisition and signal analysis applications. |
|
NI PXIe-2532 | PXI Express switching module for automated signal routing and test system integration. |
Why Choose NI PXIe-1073
- Compact PXI Express modular platform
- Flexible module integration capability
- Reliable synchronization performance
- Suitable for laboratory and engineering applications
- Supports automated test and measurement systems
- Ideal for compact PXI Express solutions
Conclusion
The NI PXIe-1073 PXI Express Chassis provides a compact and flexible platform for engineers developing modular automated test and measurement systems.
With PXI Express communication, synchronization capability, reliable operation, and broad module compatibility, the PXIe-1073 is an excellent solution for laboratory testing, data acquisition, electronic validation, research, and compact automated measurement applications.
