Product Introduction

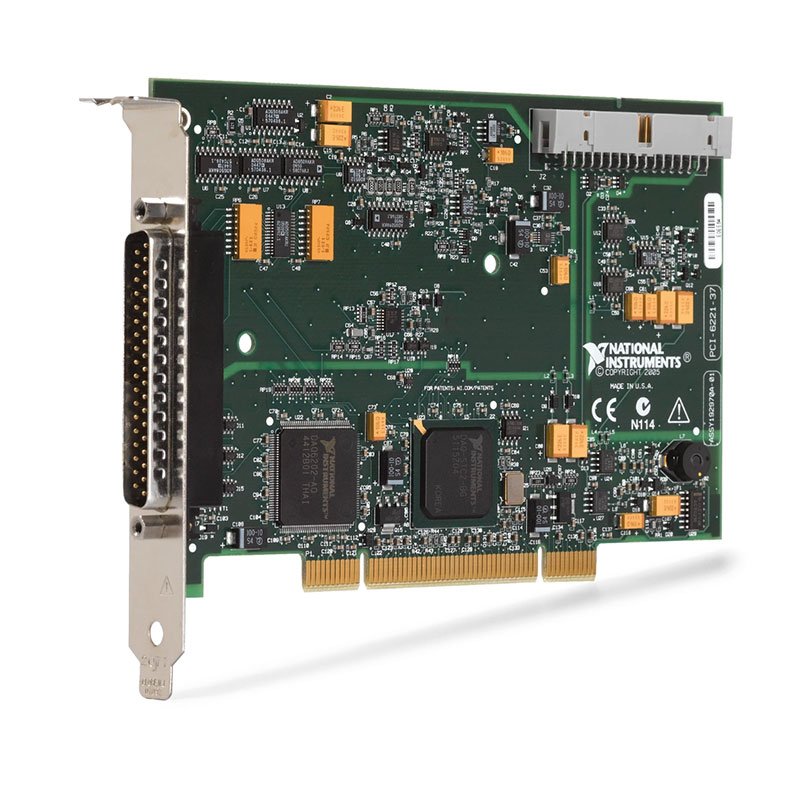

The NI PCI-6221 is a multifunction PCI data acquisition (DAQ) device designed for accurate analog measurement, signal generation, digital control, and automated test applications. It provides a flexible solution for engineers requiring reliable data acquisition capability in desktop-based measurement systems.
Featuring 16 analog input channels, analog output capability, digital I/O lines, counter/timer functions, and NI-DAQmx software support, the PCI-6221 enables engineers to develop scalable measurement and automation systems for industrial, laboratory, and research applications.
Product Overview
The PCI-6221 belongs to the NI M Series multifunction DAQ product family and provides a combination of analog input, analog output, digital I/O, and timing functionality in a single PCI interface board.
Unlike single-function measurement devices, the PCI-6221 combines multiple acquisition and control functions, allowing users to perform data collection, signal generation, and hardware control from one integrated platform.
With NI-DAQmx driver support, LabVIEW integration, and compatibility with a wide range of sensors and measurement systems, the PCI-6221 is suitable for automated testing, industrial monitoring, and engineering research.
Key Features
16-Channel Analog Input Acquisition
The PCI-6221 provides multi-channel analog input capability for measuring voltage signals from sensors and electronic devices.
- 16 analog input channels
- High-resolution analog measurement
- Multi-channel scanning
- Sensor signal acquisition
- Software-configurable measurement
Advantage: Enables engineers to monitor multiple analog signals simultaneously in measurement systems.
Analog Output Signal Generation
The PCI-6221 provides analog output functionality for generating programmable voltage signals.
- Analog waveform generation
- Programmable voltage output
- Control signal generation
- Simulation applications
- Closed-loop system support
Advantage: Allows the same DAQ device to perform both measurement and signal generation tasks.
Digital I/O Capability
The PCI-6221 includes digital input and output channels for equipment control and communication.
- Digital input channels
- Digital output channels
- Device control signals
- Status monitoring
- Industrial automation support
Advantage: Provides flexible integration with external devices and control systems.
Counter and Timing Functions
The PCI-6221 includes hardware timing resources for precise measurement applications.
- Counter inputs
- Pulse measurement
- Frequency measurement
- Timing operations
- Hardware synchronization
Advantage: Supports applications requiring accurate timing and event measurement.
NI-DAQmx Software Support
The PCI-6221 integrates with NI software tools for configuration, programming, and automation.
- NI-DAQmx driver support
- LabVIEW integration
- TestStand compatibility
- NI MAX configuration
- Python and C/C++ support
Advantage: Simplifies development of custom data acquisition applications.
PCI Bus Integration
The PCI-6221 is designed for desktop computer-based measurement systems.
- PCI interface compatibility
- Direct computer integration
- Stable data communication
- Desktop DAQ applications
- Laboratory measurement systems
Advantage: Provides a cost-effective solution for PC-based data acquisition.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PCI Multifunction Data Acquisition Device |
| Analog Input Channels | 16 Channels |
| Analog Input Type | Voltage Measurement |
| Analog Output | Supported |
| Digital I/O | Supported |
| Counter/Timers | Supported |
| Interface | PCI Bus |
| Driver | NI-DAQmx |
Software Ecosystem
The PCI-6221 works with NI software platforms for data acquisition, measurement automation, and control applications.
- NI-DAQmx: Provides hardware configuration, acquisition control, timing, and measurement functions.
- LabVIEW: Enables graphical programming for automated measurement systems.
- TestStand: Supports automated production testing workflows.
- NI MAX: Provides hardware setup and device diagnostics.
- Python, C/C++, .NET: Supports custom software development.
Industries
- Industrial Automation
- Manufacturing Test
- Automotive Testing
- Aerospace and Defense
- Research Laboratories
- Electronic Validation
- Sensor Measurement
- Engineering Development
Applications
Data Acquisition Systems
The PCI-6221 provides reliable analog measurement for PC-based acquisition systems.
- Sensor monitoring
- Voltage measurement
- Signal recording
- Laboratory experiments
Industrial Monitoring
The device supports monitoring and control applications in industrial environments.
- Process monitoring
- Equipment diagnostics
- Automation systems
- Control signal generation
Automated Test Systems
The PCI-6221 integrates into computer-based automated testing platforms.
- Functional testing
- Electronic validation
- Production measurement
- Test fixture integration
Research and Laboratory Applications
The module provides flexible measurement capability for engineering research.
- Experimental data collection
- Signal analysis
- Prototype testing
- Custom measurement systems
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| NI PCI-6221 | PCI multifunction DAQ device with analog input, output, digital I/O, and counters. | General-purpose PC-based measurement |
| NI PCI-6251 | Higher-performance multifunction DAQ device with faster acquisition capability. | Advanced data acquisition |
| NI PCIe-6320 | PCI Express version of multifunction DAQ architecture. | Modern PC-based DAQ systems |
| NI USB-6212 | USB-based multifunction DAQ device for portable systems. | Portable measurement applications |
Recommended Related Products
| NI PCIe-6320 | PCI Express multifunction DAQ device for modern computer systems. |
| NI USB-6212 | Portable USB multifunction data acquisition device. |
| NI PXI-6251 | PXI multifunction DAQ module for modular test systems. |
| NI PXIe-4309 | High-precision PXI Express analog input module. |
Why Choose PCI-6221?
- 16-channel analog input capability
- Multifunction DAQ architecture
- Analog output and digital I/O support
- Hardware timing and counter functions
- NI-DAQmx software integration
- Reliable PCI-based measurement solution
- Suitable for automation and research applications
- Cost-effective PC-based data acquisition
Frequently Asked Questions
What is PCI-6221 used for?
The PCI-6221 is used for analog data acquisition, signal generation, digital control, industrial monitoring, and automated test applications.
Does PCI-6221 support LabVIEW?
Yes. The PCI-6221 supports NI-DAQmx and integrates with LabVIEW, TestStand, NI MAX, Python, and C/C++ programming environments.
What is the difference between PCI-6221 and PCIe DAQ devices?
The PCI-6221 uses the traditional PCI bus interface, while PCIe DAQ devices use PCI Express technology for newer computer platforms with higher bandwidth.
Conclusion
The NI PCI-6221 multifunction DAQ device provides a reliable and flexible solution for PC-based measurement and automation systems. With 16 analog input channels, analog output, digital I/O, counter functions, and NI-DAQmx support, it is an ideal choice for industrial monitoring, laboratory measurement, electronic testing, and automated data acquisition applications.
