Product Introduction

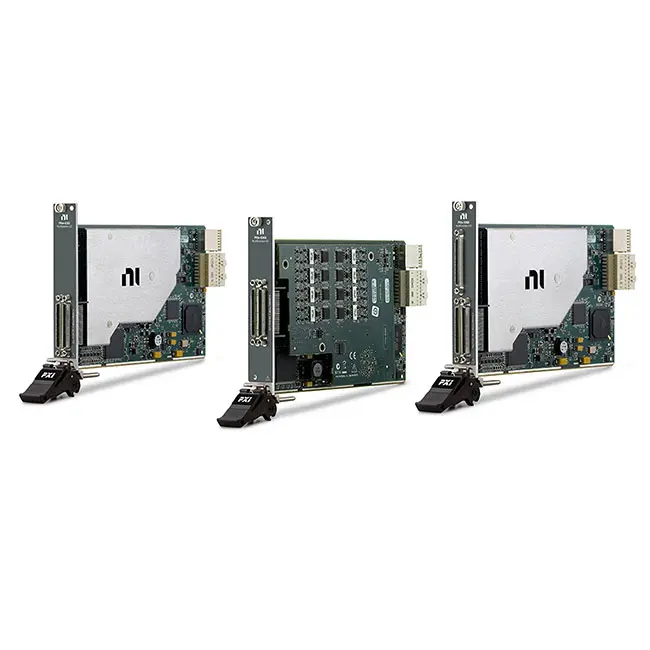

The NI PXIe-6124 is a high-speed simultaneous-sampling multifunction data acquisition (DAQ) module designed for PXI Express automated test, dynamic signal acquisition, transient recording, and precision measurement applications. As part of the National Instruments S Series DAQ family, the PXIe-6124 provides dedicated analog-to-digital converters for each input channel, ensuring accurate phase alignment and time-correlated measurements.
Featuring four simultaneous analog input channels with sampling rates up to 4 MS/s per channel, 16-bit resolution, digital I/O, and advanced timing resources, the PXIe-6124 is ideal for high-speed waveform capture, power electronics testing, aerospace validation, and industrial automation.
Product Overview
The PXIe-6124 is engineered for engineers and researchers requiring simultaneous acquisition of multiple high-speed analog signals. Unlike multiplexed DAQ devices, every analog input channel includes its own ADC, eliminating channel-to-channel delay and providing highly accurate phase measurements.
Built on the PXI Express architecture, the PXIe-6124 offers high-bandwidth communication, deterministic synchronization, and seamless integration with other PXI instruments. Combined with NI-DAQmx and LabVIEW software, it enables rapid development of scalable automated test and measurement systems.
Key Features
High-Speed Simultaneous Analog Input
The PXIe-6124 provides dedicated simultaneous sampling for accurate multi-channel acquisition.
- 4 simultaneous analog input channels
- 16-bit resolution
- Up to 4 MS/s per channel
- Dedicated ADC per channel
Advantage: Eliminates channel skew while maintaining accurate timing relationships between multiple signals.
Excellent Signal Accuracy
Designed for precision waveform measurement and transient signal analysis.
- High dynamic range
- Low-noise analog front end
- Excellent signal fidelity
- Accurate phase measurements
Advantage: Produces reliable measurement results for demanding engineering and research applications.
Integrated Digital I/O and Timing
The PXIe-6124 includes digital control resources for synchronized measurement systems.
- Programmable digital I/O
- Hardware timing engine
- Advanced triggering
- Counter/timer support
Advantage: Supports synchronized acquisition, event triggering, and digital device control within a single module.
Advanced PXI Express Synchronization
Built for deterministic operation in modular PXI Express systems.
- PXI trigger bus
- Reference clock synchronization
- Multi-device timing
- Deterministic acquisition
Advantage: Enables accurate synchronization across multiple measurement instruments.
Optimized for Automated Test Systems
The PXIe-6124 integrates seamlessly into modular automated test platforms.
- Compact PXI Express module
- NI-DAQmx compatible
- LabVIEW integration
- Scalable architecture
Advantage: Reduces development time while improving system flexibility and maintainability.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | PXI Express Simultaneous Sampling DAQ Module |
| DAQ Family | NI S Series |
| Analog Input Channels | 4 Simultaneous Channels |
| Resolution | 16-bit |
| Maximum Sample Rate | 4 MS/s per Channel |
| Sampling Method | Simultaneous Sampling |
| Digital I/O | Programmable Digital I/O |
| Counter/Timer | Integrated Timing Resources |
| Bus Interface | PXI Express |
| Driver | NI-DAQmx |
Software Ecosystem
The PXIe-6124 integrates with National Instruments software tools for measurement, automation, and system development.
- LabVIEW – Graphical programming for measurement and automation.
- NI-DAQmx – Hardware configuration and synchronized acquisition.
- NI MAX – Device management, calibration, and diagnostics.
- TestStand – Automated production test sequencing.
- FlexLogger – Configuration-based data logging without programming.
Industries
- Aerospace and Defense
- Automotive Electronics
- Power Electronics
- Industrial Automation
- Semiconductor Test
- Research Laboratories
Applications
Power Electronics Testing
Acquire multiple voltage and current signals simultaneously during inverter, motor drive, and power converter testing.
- Inverter validation
- Motor drive testing
- Power quality analysis
- Switching waveform capture
Transient Signal Acquisition
Capture high-speed transient events with precise timing.
- Pulse analysis
- Transient recording
- Switching events
- Fault analysis
Automated Test Equipment (ATE)
Supports synchronized measurements in automated production and validation systems.
- Functional testing
- Production verification
- Electronic validation
- Quality control
Scientific Research
Provides accurate simultaneous sampling for laboratory experiments and engineering development.
- Signal analysis
- Physics research
- Sensor evaluation
- Prototype validation
Comparison with Similar Products
| Model | Main Difference | Best Application |
|---|---|---|
| PXIe-6124 | 4 simultaneous analog inputs operating at up to 4 MS/s per channel. | High-speed synchronized acquisition |
| PXI-6123 | PXI version with similar simultaneous sampling architecture. | Legacy PXI systems |
| PXI-6132 | Higher channel count for simultaneous analog acquisition. | Multi-channel dynamic measurement |
| PXIe-6356 | X Series multifunction DAQ with integrated analog output and digital I/O. | General-purpose multifunction testing |
Recommended Related Products
| NI PXIe-1095 | 18-slot high-performance PXI Express chassis. |
| NI PXIe-1092 | Compact PXI Express chassis for modular systems. |
| NI PXIe-8842 | Embedded controller for PXI Express systems. |
| NI SHC68-68-EPM | Shielded VHDCI cable for high-speed signal connections. |
| NI SCB-68A | 68-pin shielded terminal block for signal wiring. |
Why Choose PXIe-6124?
- 4 dedicated simultaneous-sampling analog input channels
- 16-bit measurement accuracy
- Up to 4 MS/s sampling rate per channel
- High-speed PXI Express interface
- Integrated digital I/O and timing resources
- Advanced synchronization across PXI systems
- Compatible with NI-DAQmx, LabVIEW, and TestStand
- Ideal for transient recording, power electronics, and automated testing
Frequently Asked Questions
What is the PXIe-6124 used for?
The PXIe-6124 is designed for high-speed simultaneous analog signal acquisition, transient recording, automated testing, and precision engineering measurements.
What software supports the PXIe-6124?
The PXIe-6124 supports NI-DAQmx, LabVIEW, NI MAX, TestStand, FlexLogger, and programming environments including C/C++, .NET, and Python.
What is the difference between the PXIe-6124 and PXIe-6356?
The PXIe-6124 focuses on high-speed simultaneous analog acquisition with dedicated ADCs, while the PXIe-6356 is an X Series multifunction DAQ module that combines simultaneous analog acquisition with analog output and expanded digital I/O for more general-purpose measurement applications.
Conclusion
The NI PXIe-6124 Simultaneous Sampling DAQ Module delivers outstanding performance for engineers requiring accurate, synchronized, high-speed analog measurements. Its dedicated simultaneous-sampling architecture, advanced timing resources, and seamless integration with the NI software ecosystem make it an excellent choice for automated testing, transient analysis, power electronics validation, and research laboratories.
