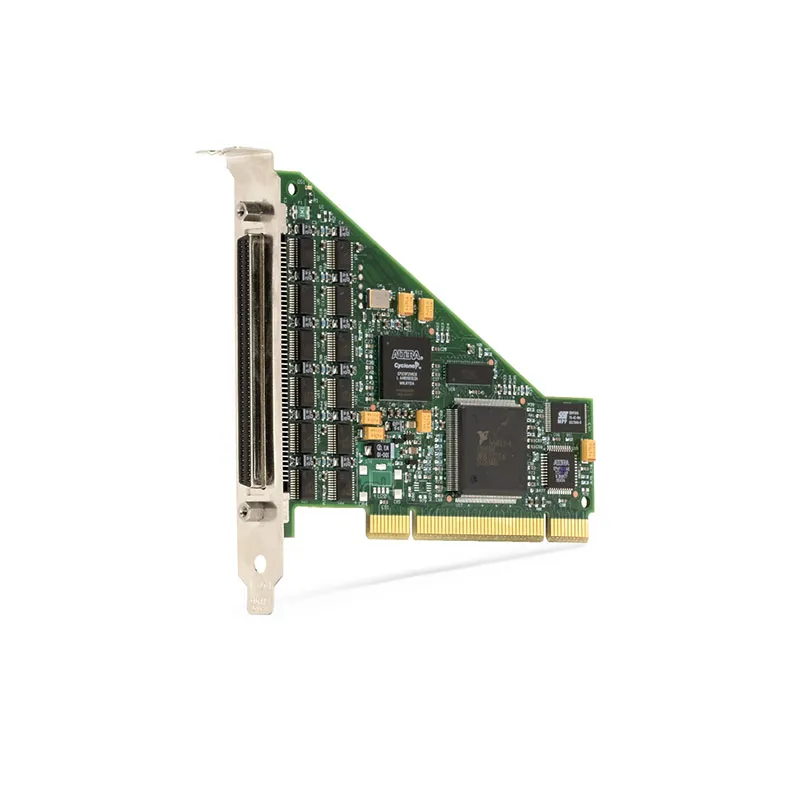

PCI-6509 96-Channel Digital I/O Device
The PCI-6509 is a high-channel-count PCI digital I/O device designed for automated test equipment, production control, industrial monitoring and computer-based digital interfacing. It provides 96 bidirectional digital lines compatible with 5 V TTL and CMOS logic.
The 96 lines are organized into twelve 8-bit ports. Each port can be configured independently for digital input or digital output, allowing the PCI-6509 to support different combinations of monitoring and control signals within the same system.
With up to 24 mA output drive, the PCI-6509 can directly interface with many logic devices and solid-state relays. It also supports programmable power-up states, digital I/O watchdogs and software-selectable input filters for reliable operation in automated systems.
Key Features of the PCI-6509
- 96 bidirectional digital I/O channels
- Twelve independently configurable 8-bit ports
- 5 V TTL/CMOS logic compatibility
- Up to 24 mA current drive per digital line
- Software-programmable input or output direction
- Programmable power-up output states
- Digital I/O watchdog protection
- Software-selectable digital input filters
- Switch and relay-contact debouncing
- Direct control of compatible solid-state relays
- Static digital I/O operation
- PCI computer interface
- 100-pin SCSI-type front connection
- NI-DAQmx and LabVIEW compatibility
PCI-6509 Technical Specifications
| Product Model | PCI-6509 |
|---|---|
| Part Numbers | 778792-01 and 778936-01 |
| Product Type | Static digital I/O device |
| Bus Interface | PCI |
| Digital I/O Channels | 96 bidirectional lines |
| Port Organization | 12 ports with 8 lines per port |
| Direction Control | Configurable by port |
| Logic Compatibility | 5 V TTL/CMOS |
| Digital Voltage Range | 0 V to 5 V |
| Maximum Current Drive | 24 mA per channel, subject to port and device limits |
| Signal Type | Single-ended |
| Isolation | Nonisolated |
| Input Filtering | Software-selectable digital filters |
| Power-Up States | Programmable |
| Watchdog Timer | Supported |
| Front Connector | 100-pin SCSI-type connector |
| Software Driver | NI-DAQmx |
PCI-6509 Part Number and Accessories
| Item | Part Number | Description |
|---|---|---|
| PCI-6509 | 778792-01 | 96-channel, 5 V TTL/CMOS PCI digital I/O device |
| PCI-6509 Bundle | 778936-01 | PCI-6509 supplied as a connectivity bundle configuration |
| SH100-100-F Cable | Configuration dependent | Shielded 100-pin cable for compatible terminal accessories |
| SCB-100A | 785024-01 | Shielded 100-pin screw-terminal connector block |
| CB-50 | 776164-90 | DIN-rail-mount connector block used with compatible split cables |
The exact cable arrangement depends on whether all 96 lines must be accessible and whether the fixture uses a single 100-pin terminal block or two 50-pin connector blocks. Verify the complete device-to-cable-to-accessory path before ordering.
96-Channel Port Architecture
The PCI-6509 divides its 96 digital lines into twelve 8-bit ports. Each port can be configured as an input port or output port, but individual lines within the same port do not provide independent direction selection.
When designing the fixture, group signals requiring the same direction into the same port. Proper grouping prevents unused lines from limiting the required input and output configuration.
24 mA Digital Output Drive
The output lines can source or sink enough current to control many logic circuits, indicators and compatible solid-state relay inputs. No separate external logic supply is required for standard TTL output operation.
The 24 mA figure is a per-line capability and does not override the total-current limits applying to an entire port or device. Calculate simultaneous output loading before connecting several high-current loads.
Programmable Power-Up States
Programmable power-up states determine the initial digital output values when the computer and device start. This prevents connected equipment from briefly entering an unintended state during system initialization.
Power-up states are especially useful for fixture enable signals, external relay controls, status indicators and production equipment that must remain inactive until the test application is ready.
Digital I/O Watchdog
The watchdog can place outputs into predefined safe states if the application stops responding or fails to communicate with the device within the configured timeout period.
The watchdog improves fault recovery but should not replace independent emergency-stop circuits, safety relays or other hardware protection required by the machine or process.
Programmable Input Filters
Software-selectable input filtering helps reject short noise pulses and contact bounce. This is useful when monitoring mechanical switches, pushbuttons, limit switches and relay contacts.
The filter interval should be selected carefully. Excessive filtering may prevent the application from detecting legitimate short-duration input events.
PCI-6509 Applications
- Automated test equipment
- Production fixture control
- High-channel-count logic monitoring
- Solid-state relay control
- LED and status-panel control
- Switch and contact monitoring
- Manufacturing process automation
- Electronic device validation
- Laboratory digital interfacing
- Test-sequence interlocks
- Fixture identification systems
- Parallel static digital control
Production Fixture Control
The PCI-6509 can control pneumatic valves, fixture relays and indicator circuits through suitable interface hardware. Its input ports can monitor fixture position sensors, operator controls and pass/fail signals.
Solid-State Relay Control
The 24 mA output-drive capability allows the device to operate many compatible solid-state relay inputs directly. Verify the relay input voltage, current and polarity before connecting it to the board.
Important Isolation Consideration
The PCI-6509 is a nonisolated 5 V logic device. It should not be connected directly to 24 V industrial signals. Use external isolation, level conversion or an isolated NI digital I/O device for higher-voltage field wiring.
PCI-6509 Installation Workflow
Step 1: Confirm PCI Compatibility
Verify that the host computer provides a conventional PCI slot and supports a compatible NI-DAQmx version.
Step 2: Install the Device
Shut down the computer, observe ESD precautions and install the PCI-6509 firmly in the selected slot.
Step 3: Detect the Hardware
Open NI Measurement & Automation Explorer, confirm device recognition and run the available self-test.
Step 4: Connect the Cable and Terminal Block
Install the selected 100-pin cable or split-cable arrangement. Check the port and line labels before connecting external equipment.
Step 5: Configure Port Directions
Assign each 8-bit port as input or output according to the fixture design.
Step 6: Configure Safe States
Set appropriate power-up states, watchdog timeout behavior and digital input filters before operating the production system.
PCI-6509 Troubleshooting
The PCI-6509 is not detected
Check PCI seating, computer BIOS configuration, NI-DAQmx installation and Windows Device Manager.
An individual line cannot change direction
Direction is configured by 8-bit port. Move the signal to another port or reorganize the port allocation if mixed directions are required.
An output cannot drive the connected load
Measure the load current and confirm that both the per-line and total port-current limits are respected. Use a relay driver or buffer for larger loads.
Inputs change unexpectedly
Check grounding, cable shielding, unused input states and electrical noise. Enable an appropriate digital input filter when monitoring contacts.
Outputs enter the wrong state during startup
Review the programmed power-up state and confirm that the configuration is stored for the correct device.
PCI-6509 Comparison
| Model | Channel Configuration | Voltage | Isolation |
|---|---|---|---|
| PCI-6509 | 96 bidirectional I/O | 5 V TTL/CMOS | Nonisolated |

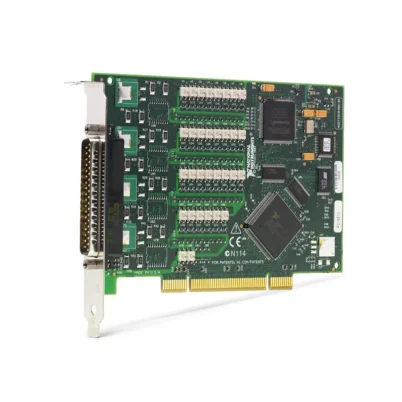

| PCI-6510 | 32 digital inputs | ±30 VDC | Bank isolated |
| PCI-6517 | 32 sinking outputs | 0 V to 30 V | Bank isolated |
| PCI-6528 | 24 inputs and 24 outputs | Up to 60 V | Channel-to-channel isolated |
Choose the PCI-6509 for high-channel-count 5 V logic. Select a PCI-651x or PCI-6528 device when the application requires industrial voltage levels and electrical isolation.
PCI-6509 Frequently Asked Questions
How many channels does the PCI-6509 provide?
It provides 96 bidirectional digital I/O lines organized into twelve 8-bit ports.
Can every line be configured independently?
Digital values are controlled by line, but input or output direction is configured by port.
Can the PCI-6509 accept 24 V signals?
No. It is intended for 5 V TTL/CMOS logic. A compatible level converter or isolated interface is required for 24 V signals.
Does it support safe startup states?
Yes. The PCI-6509 supports programmable power-up states and watchdog-controlled fault states.
What are the PCI-6509 part numbers?
Common catalog numbers include 778792-01 and the 778936-01 bundle configuration.
