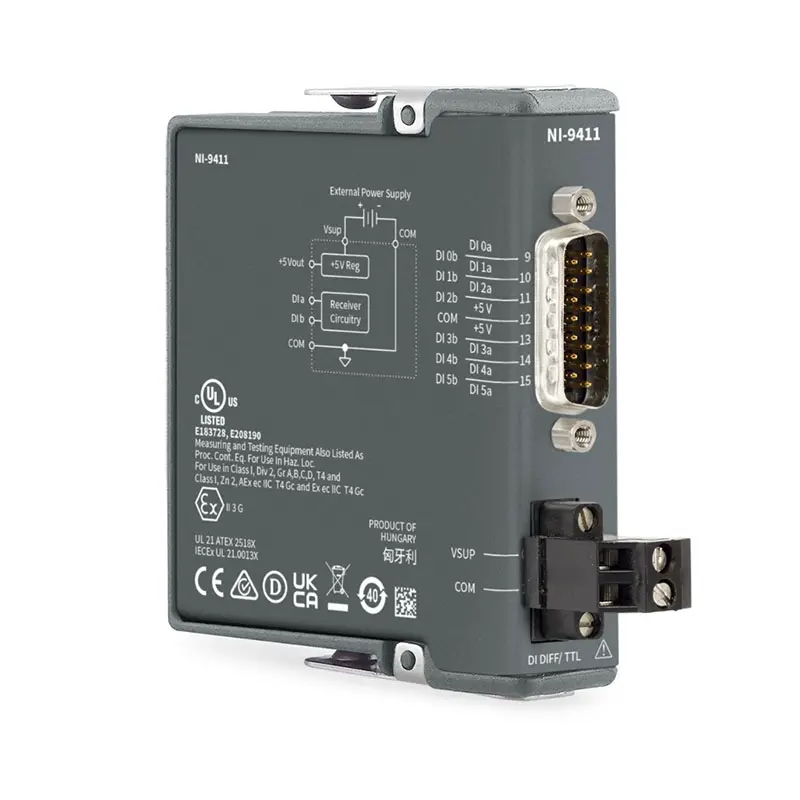

The NI-9411 is a high-speed C Series differential digital input module designed for CompactRIO, CompactDAQ, and industrial motion control systems. It provides 6 differential digital input channels optimized for encoder acquisition, position measurement, frequency analysis, and high-noise industrial environments.
Unlike standard digital input modules such as the NI-9425, the NI-9411 is specifically designed for motion control and encoder feedback applications, supporting differential signal standards commonly used in industrial automation and servo systems.
Typical applications include:
- Incremental encoder acquisition
- Motion control systems
- Industrial robotics
- Servo motor feedback
- Position tracking
- Frequency measurement
- Machine synchronization
- FPGA-based automation
Differential Digital Input Architecture
The NI-9411 provides:
- 6 differential digital input channels
- RS-422 compatible inputs
- Differential signal acquisition
- High-speed edge detection
- FPGA integration
- Encoder support
Key specifications include:
| Specification | Value |
|---|---|
| Channels | 6 Differential Inputs |
| Input Type | Differential |
| Signal Standard | RS-422 Compatible |
| Logic Levels | TTL Compatible |
| Maximum Input Frequency | 1 MHz |
| Connector Type | Spring Terminal |
| Isolation | Channel-to-Earth |
The differential architecture provides excellent noise immunity compared with single-ended digital inputs.
Encoder and Position Feedback Applications
The NI-9411 is widely used for incremental encoder acquisition.
Supported encoder functions include:
Quadrature Encoder Reading
Measure:
- Position
- Speed
- Direction
- Motion synchronization
Rotary Encoders
Used in:
- Servo motors
- Industrial machinery
- Robotics systems
- Automated production equipment
Linear Encoders
Provide accurate position feedback for:
- CNC machines
- Motion stages
- Packaging equipment
- Precision automation systems
Because the module directly interfaces with differential encoder outputs, it minimizes signal degradation over long cable distances.
Motion Control Systems
The NI-9411 is commonly deployed in CompactRIO motion control platforms.
Typical functions include:
- Position tracking
- Velocity measurement
- Motion synchronization
- Trigger generation
- Servo feedback
- Multi-axis control
Applications include:
Industrial Robotics
Monitor joint positions and motion trajectories.
CNC Equipment
Provide real-time encoder feedback for machine positioning.
Packaging Machinery
Synchronize conveyor systems and product movement.
Semiconductor Equipment
Support precise positioning and wafer handling systems.
Compared with conventional digital input modules, the NI-9411 offers significantly higher measurement accuracy for motion applications.
Differential Signal Advantages
One of the major advantages of the NI-9411 is its differential input architecture.
Benefits include:
Noise Immunity
Differential signaling rejects common-mode electrical noise.
Long Cable Runs
Reliable operation over extended distances.
Improved Signal Integrity
Reduced susceptibility to EMI and industrial interference.
Better Motion Accuracy
Cleaner encoder signals improve position and velocity calculations.
These advantages make the NI-9411 ideal for industrial environments containing:
- Servo drives
- Variable-frequency drives (VFDs)
- Motors
- Switching power supplies
- High-current equipment
FPGA Integration and Deterministic Timing
The NI-9411 integrates directly with the CompactRIO FPGA.
Engineers can implement:
- High-speed counters
- Encoder processing
- Real-time motion control
- Position-based triggering
- Velocity calculations
- Custom digital timing systems
The FPGA architecture enables:
- Deterministic operation
- Low-latency signal processing
- Real-time event handling
- Hardware-timed measurements
This capability is especially important for advanced motion control and industrial automation applications.
High-Speed Frequency Measurement
In addition to encoder applications, the NI-9411 supports high-speed pulse acquisition.
Common measurements include:
Frequency Measurement
Monitor:
- Motor speed
- Turbine rotation
- Pulse train outputs
- Industrial sensors
Event Counting
Count high-speed digital events with FPGA precision.
Timing Analysis
Measure pulse widths, periods, and event timing relationships.
These capabilities make the NI-9411 suitable for both control and measurement systems.
CompactRIO and CompactDAQ Integration
The NI-9411 supports:
- CompactRIO Controllers
- CompactDAQ Chassis
- R Series Expansion Systems
- Embedded Monitoring Platforms
Supported software includes:
- LabVIEW FPGA
- LabVIEW Real-Time
- NI-RIO Driver
- NI-DAQmx
- C/C++
- Python
- .NET
The module integrates seamlessly into NI motion control and industrial automation platforms.
Rugged Industrial Design
The NI-9411 is designed for harsh industrial environments.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Shock resistance: 50 g
- Vibration resistance: 5 g RMS
- Industrial EMC compliance
Suitable deployment environments include:
- Factory automation
- Industrial robotics
- Transportation systems
- CNC machinery
- Semiconductor manufacturing
- Energy systems
Application-Oriented Use Cases
Servo Motor Feedback
Acquire high-resolution encoder signals for precise motion control.
Industrial Robotics
Track robot arm positions and movement.
CNC Systems
Provide real-time machine position feedback.
High-Speed Automation
Support synchronized industrial processes using encoder-based timing.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9411 | 6-channel differential digital input | Encoder feedback |
| NI-9361 | Counter input module | Advanced counter applications |
| NI-9401 | Bidirectional digital I/O | General FPGA control |
| NI-9425 | Industrial digital input | Machine monitoring |
| NI-9375 | Industrial digital I/O | Equipment control |
Compared with the NI-9425, the NI-9411 is optimized for differential encoder signals rather than industrial status monitoring. Compared with the NI-9401, the NI-9411 provides superior signal integrity for motion control and high-speed position feedback applications.
Conclusion
The NI-9411 is a high-performance 6-channel differential digital input module designed for CompactRIO and CompactDAQ systems requiring accurate encoder acquisition and deterministic motion feedback.
Its combination of:
- 6 differential input channels
- RS-422 compatibility
- Encoder support
- FPGA integration
- High-speed frequency measurement
- Excellent noise immunity
- Industrial reliability
makes it an ideal solution for motion control, robotics, CNC systems, servo feedback, position measurement, and industrial automation applications.
