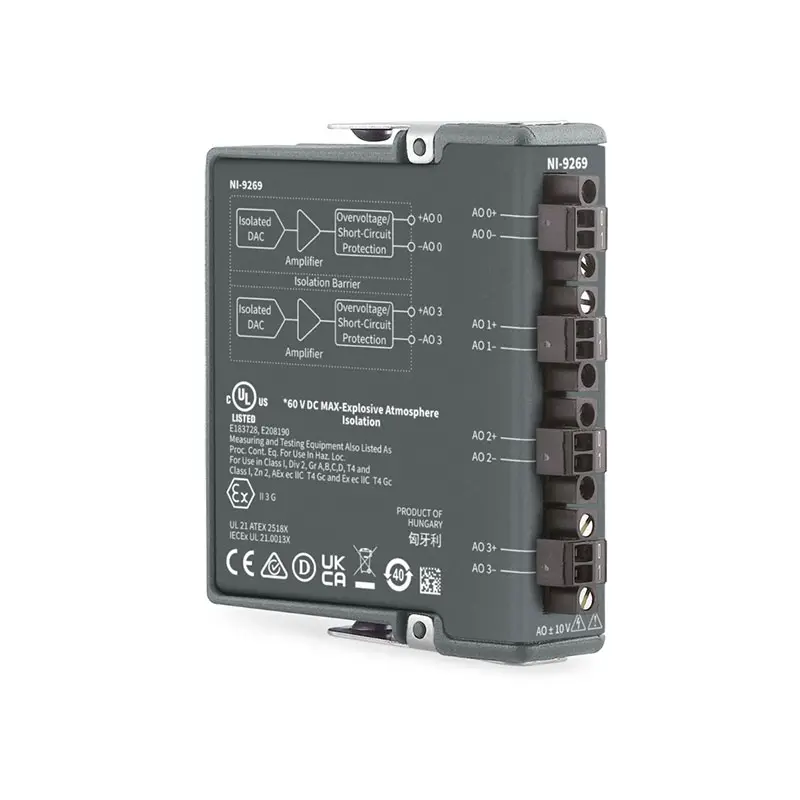

The NI-9269 is a high-performance C Series analog voltage output module designed for CompactRIO and CompactDAQ systems. It provides 4 simultaneously updated analog voltage output channels, 16-bit resolution, ±10 V output range, and up to 100 kS/s per channel update rate, making it suitable for industrial automation, embedded control, high-noise environments, and deterministic FPGA-based systems.
Unlike the standard NI-9263, the NI-9269 adds channel-to-channel isolation, significantly improving:
- Electrical safety
- Noise immunity
- Ground-loop protection
- Multi-system integration
- Industrial signal integrity
Typical applications include:
- Industrial automation
- Power electronics testing
- Automotive systems
- Hardware-in-the-loop (HIL)
- Embedded machine control
- High-noise industrial systems
- Multi-ground analog systems
- FPGA-based deterministic control
Analog Output Architecture
The NI-9269 provides:
- 4 analog voltage output channels
- ±10 V nominal output range
- 16-bit DAC resolution
- 100 kS/s/ch simultaneous update rate
- Independent DAC per channel
- Channel-to-channel isolation
Key specifications include:
| Specification | Value |
|---|---|
| Channels | 4 analog outputs |
| Output range | ±10 V |
| Resolution | 16-bit |
| Maximum update rate | 100 kS/s/ch |
| Maximum current drive | ±10 mA/ch typical |
| DAC type | R-2R DAC |
| Output impedance | 100 mΩ |
The module uses an isolated DAC architecture where each channel has an independent signal path. This allows all channels to update simultaneously while remaining electrically isolated from one another.
Channel-to-Channel Isolation
One of the major advantages of the NI-9269 is its 250 Vrms channel-to-channel isolation.
This is important for applications involving:
Multiple Ground Domains
The module can safely interface with systems operating on different electrical grounds.
Industrial Noise Environments
Isolation improves immunity to industrial EMI and ground-loop interference.
Automotive and Power Electronics
The NI-9269 is commonly used in systems where several isolated electrical subsystems must be controlled simultaneously.
Safer Embedded Systems
Isolation improves operator safety and protects connected equipment.
Compared with non-isolated modules such as the NI-9263, the NI-9269 offers substantially better robustness in electrically noisy industrial environments.
Simultaneous Output Performance
The NI-9269 supports simultaneous analog output updating across all channels.
This is valuable for:
- Multi-axis motion systems
- Synchronized analog control
- Hardware-in-the-loop simulation
- Dynamic waveform generation
- Real-time industrial automation
- Embedded FPGA systems
Performance characteristics include:
| Parameter | Value |
|---|---|
| Full-scale settling time | 20 μs |
| Crosstalk | 100 dB |
| Gain drift | 14 ppm/°C |
| Offset drift | 80 μV/°C |
| Overvoltage protection | ±30 V |
| Short-circuit protection | Indefinite |
The simultaneous update architecture preserves timing synchronization between channels, which is essential for deterministic control systems.
Stackable Voltage Architecture
One unique feature of the NI-9269 is the ability to stack output channels to achieve higher voltage ranges.
By connecting outputs in series, engineers can increase output voltage beyond ±10 V.
Typical configurations include:
| Configuration | Approximate Range |
|---|---|
| Single channel | ±10 V |
| Two stacked channels | ±20 V |
| Four stacked channels | Up to ±40 V |
This capability is particularly useful for:
- Industrial actuator control
- Power electronics
- Specialized analog stimulation
- Laboratory automation
- Embedded simulation systems
Because the channels are isolated, stacking can be implemented safely without violating channel isolation design principles.
FPGA Integration and Deterministic Control
When used with CompactRIO systems, the NI-9269 interfaces directly with FPGA resources.
Engineers can implement:
- FPGA waveform generation
- Deterministic analog timing
- Real-time analog simulation
- Embedded control loops
- Low-latency signal generation
- Industrial automation logic
The CompactRIO FPGA architecture enables deterministic analog output timing with extremely low jitter compared with traditional PC-based DAQ systems.
This makes the NI-9269 highly suitable for:
- Embedded automation
- Industrial robotics
- Real-time simulation
- Power electronics
- HIL testing
- Machine control
Industrial Protection and Safety
The NI-9269 includes several industrial-grade protection mechanisms:
- ±30 V overvoltage protection
- Indefinite short-circuit protection
- Double-isolation barrier
- Floating output channels
- Industrial EMC compliance
Safety ratings include:
| Isolation Type | Rating |
|---|---|
| Channel-to-channel | 250 Vrms |
| Channel-to-earth | 250 Vrms CAT II |
| Hazardous location support | Class I Division 2 / Zone 2 |
The module is suitable for hazardous industrial environments when installed in certified NI chassis systems.
Connectivity and Versions
The NI-9269 is available in multiple connector versions:
| Version | Connector Type |
|---|---|
| Screw Terminal | Industrial field wiring |
| Snap-In Terminal | Fast industrial installation |
| Conformal Coated | Harsh environments |
Supported platforms include:
- CompactRIO
- CompactDAQ
- EtherCAT systems
- R Series Expansion Chassis
Supported software includes:
- LabVIEW
- LabVIEW FPGA
- NI-DAQmx
- C/C++
- Python
- MATLAB
- .NET integration
Rugged Industrial Design
The NI-9269 is designed for harsh industrial deployment.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Random vibration: 5 g RMS
- Shock resistance up to 50 g
- IP40 protection
The module is suitable for:
- Factory automation
- Transportation systems
- Power electronics
- Industrial machinery
- Embedded systems
- Outdoor monitoring systems
Application-Oriented Use Cases
Industrial Automation
The NI-9269 is widely used for isolated analog voltage control in industrial environments.
Power Electronics Testing
The module is suitable for isolated analog stimulation and inverter testing systems.
Automotive Systems
Isolation makes the NI-9269 ideal for multi-ground automotive testing applications.
Hardware-in-the-Loop Simulation
The module supports deterministic synchronized analog waveform generation for embedded simulation platforms.
Comparison with Similar Modules
| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9263 | Non-isolated ±10 V AO | General industrial control |
| NI-9264 | 16-channel AO | High-density analog output |
| NI-9265 | 0–20 mA current output | Industrial current-loop control |
| NI-9269 | Channel-to-channel isolated AO | High-noise industrial systems |
| NI-9262 | 1 MS/s high-speed AO | High-speed waveform generation |
Compared with the NI-9263, the NI-9269 adds channel-to-channel isolation for improved safety and noise immunity. Compared with the NI-9262, the NI-9269 prioritizes industrial robustness and electrical isolation instead of ultra-high-speed waveform generation.
Conclusion
The NI-9269 is a rugged isolated 4-channel analog voltage output module designed for CompactRIO and CompactDAQ systems requiring deterministic analog output with strong electrical isolation.
Its combination of:
- 4 simultaneous analog outputs
- ±10 V output range
- 16-bit resolution
- 100 kS/s/ch update rate
- Channel-to-channel isolation
- FPGA integration
- Stackable output capability
- Industrial ruggedness
makes it an excellent solution for industrial automation, embedded control, power electronics, automotive systems, hardware-in-the-loop simulation, and high-noise industrial environments.
