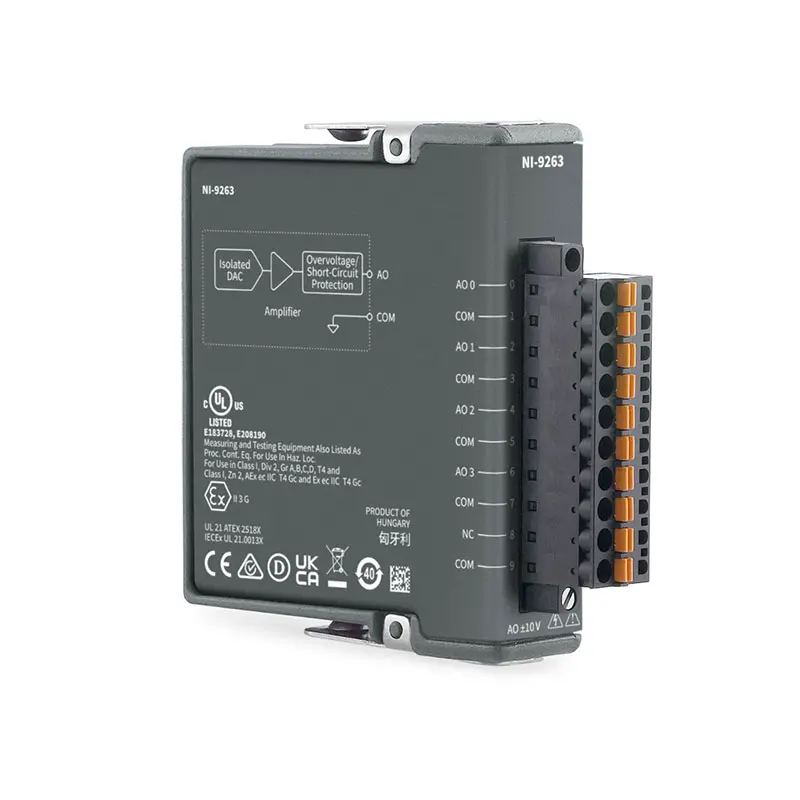

The NI-9263 is a high-performance C Series analog output module designed for CompactRIO and CompactDAQ systems. It provides 4 simultaneously updated analog voltage output channels, 16-bit resolution, and update rates up to 100 kS/s per channel, making it suitable for industrial automation, embedded control, waveform generation, and deterministic FPGA-based systems.
Unlike lower-speed or multiplexed analog output modules, the NI-9263 focuses on:
- Simultaneous analog output
- Deterministic signal generation
- FPGA-controlled waveform output
- Industrial control systems
- Embedded automation
- Real-time simulation
- Hardware-in-the-loop systems
Typical applications include:
- Industrial automation
- Embedded analog control
- Hardware-in-the-loop (HIL)
- Dynamic signal generation
- Process control
- FPGA-based systems
- Industrial test platforms
- Distributed automation systems
Analog Output Architecture
The NI-9263 provides:
- 4 analog voltage output channels
- ±10 V output range
- 16-bit DAC resolution
- 100 kS/s/ch simultaneous update rate
- Dedicated DAC per channel
- String DAC architecture
Key electrical characteristics include:
| Specification | Value |
|---|---|
| Channels | 4 |
| Resolution | 16-bit |
| Output range | ±10 V |
| Maximum update rate | 100 kS/s/ch |
| Overvoltage protection | ±30 V |
| Output isolation | 250 Vrms Ch-Earth |
| Output type | Simultaneous update |
Compared with general-purpose PLC analog outputs, the NI-9263 provides much faster deterministic update capability and significantly better waveform performance.
Simultaneous Output Capability
One of the key advantages of the NI-9263 is its simultaneous analog output architecture.
Unlike multiplexed analog output systems, all channels update at the same instant.
This is important for applications such as:
Multi-Axis Motion Control
Generating synchronized analog control signals across multiple motion axes.
Hardware-in-the-Loop Simulation
Driving multiple actuator simulation channels with deterministic timing.
Industrial Automation
Controlling multiple analog process outputs simultaneously without channel skew.
Dynamic Signal Generation
Generating synchronized waveform outputs for industrial testing and embedded simulation.
Because each channel includes its own DAC, the NI-9263 preserves precise timing relationships between channels.
Signal Quality and Accuracy
The NI-9263 is optimized for industrial signal generation and deterministic analog control.
Important performance specifications include:
| Parameter | Value |
|---|---|
| Settling time (Full-scale) | 20 µs |
| Settling time (3 V step) | 10 µs |
| Gain drift | 6 ppm/°C |
| Offset drift | 80 µV/°C |
| Crosstalk | Low |
| Monotonicity | Excellent |
Additional module features include:
- Low crosstalk
- Fast slew rate
- High relative accuracy
- NIST-traceable calibration
- Short-circuit protection
These characteristics make the NI-9263 suitable for:
- Precision analog control
- Embedded simulation
- Industrial signal generation
- Real-time process control
- Automated test systems
FPGA Integration and Deterministic Control
When used with CompactRIO systems, the NI-9263 interfaces directly with FPGA resources.
Engineers can implement:
- FPGA waveform generation
- Deterministic analog timing
- Real-time signal synthesis
- Embedded control loops
- Custom timing engines
- Low-latency analog output
The module supports:
- LabVIEW FPGA
- FPGA I/O nodes
- NI-DAQmx
- CompactRIO Real-Time integration
Compared with PC-only DAQ systems, the CompactRIO FPGA architecture allows deterministic analog output with extremely low jitter and latency.
This makes the NI-9263 especially useful for:
- Embedded automation
- Industrial robotics
- Real-time simulation
- Power electronics
- Deterministic machine control
Isolation and Industrial Protection
The NI-9263 includes:
- 250 Vrms channel-to-earth isolation
- Double isolation barrier
- Industrial noise immunity
- Ground loop reduction
- Enhanced operational safety
Protection features include:
- ±30 V overvoltage protection
- Indefinite short-circuit protection
- Industrial EMC compliance
Compared with non-isolated analog output modules, the NI-9263 provides improved reliability in noisy industrial environments.
Connectivity and Platform Support
The NI-9263 is available in:
| Version | Connector Type |
|---|---|
| 779012-01 | Screw Terminal |
| 783740-01 | Spring Terminal |
Supported platforms include:
- CompactRIO
- CompactDAQ
- R Series Expansion Chassis
- EtherCAT systems
Supported software includes:
- LabVIEW
- LabVIEW FPGA
- NI-DAQmx
- C/C++
- Python
- MATLAB
- .NET integration
This flexibility allows engineers to reuse the NI-9263 across multiple NI embedded and DAQ platforms.
Rugged Industrial Design
The NI-9263 is designed for harsh industrial environments.
Industrial specifications include:
- Operating temperature: -40 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Random vibration: 5 g RMS
- Shock resistance: 50 g
- IP40 protection
The module is suitable for:
- Factory automation
- Transportation systems
- Industrial machinery
- Embedded industrial systems
- Energy infrastructure
- Outdoor monitoring systems
The NI-9263 also supports hazardous-location deployment when installed in certified NI chassis.
Application-Oriented Use Cases
Embedded Analog Control
The NI-9263 is widely used in CompactRIO systems for deterministic analog actuator control.
Hardware-in-the-Loop (HIL)
The module can generate synchronized analog simulation signals for ECU and embedded system validation.
Industrial Process Control
Engineers use the NI-9263 to drive industrial analog devices such as valves, amplifiers, and analog controllers.
Dynamic Signal Generation
The module supports synchronized waveform generation for industrial testing and simulation platforms.
Comparison with Similar Modules

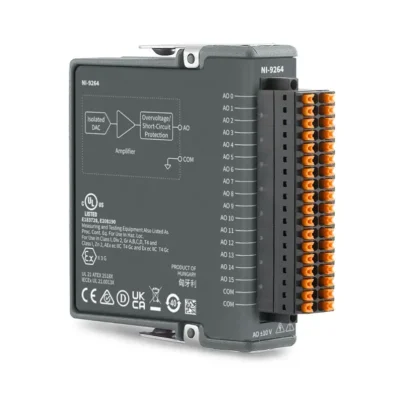

| Model | Main Difference | Typical Use |
|---|---|---|
| NI-9260 | 24-bit dynamic signal output | Audio and precision waveform generation |
| NI-9262 | 1 MS/s simultaneous AO | High-speed deterministic waveform generation |
| NI-9263 | Industrial simultaneous ±10 V AO | General-purpose embedded analog control |
| NI-9264 | 16-channel AO | High-density analog output |
| NI-9269 | Isolated high-voltage AO | Industrial power control |
Compared with the NI-9262, the NI-9263 prioritizes industrial robustness and general-purpose embedded control rather than ultra-high-speed waveform generation. Compared with the NI-9260, the NI-9263 focuses more on industrial automation than high-dynamic-range audio applications.
Conclusion
The NI-9263 is a rugged simultaneous analog voltage output module designed for CompactRIO and CompactDAQ systems requiring deterministic industrial analog output.
Its combination of:
- 4 simultaneous analog outputs
- ±10 V output range
- 16-bit resolution
- 100 kS/s/ch update rate
- FPGA integration
- Industrial isolation
- Rugged industrial reliability
makes it an excellent solution for embedded automation, industrial process control, hardware-in-the-loop simulation, deterministic analog waveform generation, and FPGA-based industrial systems.
