Product Introduction

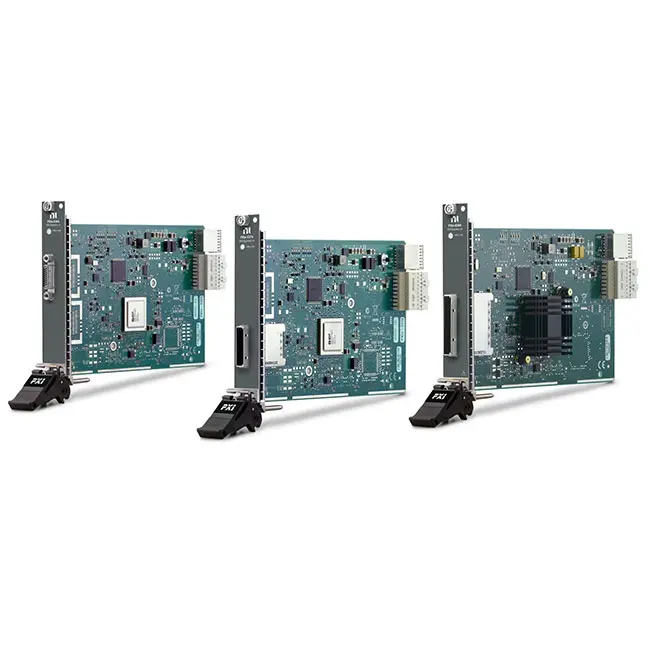

Земля NI PXIe-8384 is a high-performance PXI Express remote control module designed to connect PXI Express systems with external PCI Express-based host computers. It provides a high-bandwidth PCIe Gen 3 x8 interface for remote PXI chassis control in automated test, measurement, and industrial applications.
With high-speed data transfer capability, transparent PXI Express communication, and support for distributed test architectures, the PXIe-8384 enables engineers to build flexible remote PXI systems without requiring a local embedded controller.
Product Overview
Земля PXIe-8384 belongs to the NI PXI Express remote control module family and provides a direct PCI Express connection between a host PC and PXI Express chassis.
The module is installed in a PXI Express chassis and connects to a desktop workstation or industrial computer through a compatible PCIe interface. This architecture allows users to utilize PC processing resources while accessing PXI instruments remotely.
The PXIe-8384 is commonly used in large-scale automated test systems, semiconductor testing, RF validation, electronic verification, and research platforms requiring high-performance PXI expansion.
Key Features
PCI Express Gen 3 x8 Remote Control Interface
The PXIe-8384 provides high-speed communication between external computers and PXI Express chassis.
- PCI Express Gen 3 x8 interface
- High-bandwidth remote communication
- Low-latency PXI access
- Direct host PC connection
- High-performance system expansion
Advantage: Enables remote PXI Express operation with performance similar to a locally controlled system.
High-Bandwidth PXI Express Expansion
The module supports demanding PXI applications requiring large data throughput.
- Fast instrument communication
- Large data transfer capability
- Multi-module PXI system support
- High-speed measurement applications
- Distributed test architecture
Advantage: Supports advanced PXI systems without adding an embedded controller.
Remote PXI Chassis Control
The PXIe-8384 allows users to operate PXI Express chassis from external computers.
- Remote chassis management
- External workstation control
- Industrial PC integration
- Flexible system placement
- Centralized test control
Advantage: Provides flexible deployment options for complex test environments.
PXI Express System Integration
The module works with PXI Express chassis and NI modular instruments.
- PXI Express chassis compatibility
- Integration with DAQ modules
- Support for RF instruments
- Compatibility with digitizers and switches
- Scalable modular architecture
Advantage: Allows engineers to create customized automated test platforms.
Software Transparent Operation
The PXIe-8384 provides seamless integration with NI software environments.
- NI MAX configuration support
- LabVIEW compatibility
- TestStand integration
- NI driver ecosystem support
- Standard PXI software workflow
Advantage: Allows existing PXI applications to run with minimal software changes.
Flexible System Architecture
The PXIe-8384 supports various PXI deployment scenarios.
- Remote laboratory systems
- Production test stations
- Distributed measurement platforms
- Large PXI installations
- Research environments
Advantage: Helps optimize system cost, space, and computing resources.
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | PXI Express Remote Control Module |
| Interface | PCI Express Gen 3 x8 |
| Function | Remote PXI Express Chassis Control |
| Host Connection | PCI Express Interface |
| PXI Interface | PXI Express |
| Communication | High-Speed PCIe Link |
| Compatible Systems | Шасси PXI Express |
| Поддержка программного обеспечения | NI MAX, LabVIEW, TestStand |
| Driver | NI PXI Platform Drivers |
Software Ecosystem
The PXIe-8384 integrates with NI software platforms for remote PXI system control.
- NI MAX: Provides PXI hardware detection, configuration, and diagnostics.
- LabVIEW: Enables automated measurement and instrument control applications.
- TestStand: Supports production test sequence development.
- NI Drivers: Provides communication support for PXI Express modules.
- Windows PC Platforms: Enables external computer-based PXI control.
Industries
- Automated Test Equipment
- Тестирование полупроводников
- Аэрокосмическая и оборонная промышленность
- Automotive Electronics
- RF Communication Testing
- Industrial Measurement
- Исследовательские лаборатории
- Electronic Validation
Applications
Large-Scale Automated Test Systems
The PXIe-8384 enables remote control of complex PXI Express test platforms.
- Production testing
- Electronic validation
- Multi-instrument systems
- High-volume testing
Semiconductor Test Platforms
The module provides high-bandwidth communication for semiconductor measurement systems.
- Device characterization
- Wafer testing
- ATE systems
- High-speed measurement
RF and Wireless Testing
The PXIe-8384 supports remote PXI RF test architectures.
- RF validation
- Communication testing
- Signal analysis
- Wireless research
Distributed Measurement Systems
The module allows flexible placement of PXI hardware and host computers.
- Remote laboratories
- Industrial test stations
- Research systems
- Large measurement networks
Comparison with Similar Products
| Модель | Основное различие | Best Application |
|---|---|---|
| NI PXIe-8384 | PCIe Gen 3 x8 remote control module for PXI Express chassis. | High-bandwidth remote PXI systems |
| NI PXIe-8381 | Remote control module with different PCI Express bandwidth configuration. | General PXI remote expansion |
| NI PXIe-1095 | High-performance PXI Express chassis for advanced systems. | Large PXI Express platforms |
| NI PXIe-8880 | Embedded PXI Express controller for local chassis operation. | Standalone PXI systems |
Recommended Related Products
| NI PXIe-1095 | High-performance PXI Express chassis for remote test systems. |
| NI PXIe-1085 | PXI Express chassis for modular automated testing. |
| NI PXIe-8880 | High-performance embedded controller for PXI Express systems. |
| NI PXIe-5164 | PXI Express digitizer module for high-speed measurement applications. |
Why Choose PXIe-8384?
- PCI Express Gen 3 x8 high-speed interface
- Remote PXI Express chassis control
- High-bandwidth data communication
- Flexible PXI system deployment
- Compatible with NI PXI ecosystem
- Supports LabVIEW and TestStand
- Ideal for advanced automated test systems
- Reduces need for embedded controllers
Frequently Asked Questions
What is PXIe-8384 used for?
The PXIe-8384 is used to remotely control PXI Express chassis from external computers in automated test, measurement, semiconductor, and research applications.
What interface does PXIe-8384 use?
The PXIe-8384 uses a PCI Express Gen 3 x8 interface to provide high-speed communication between a host PC and PXI Express chassis.
Does PXIe-8384 support LabVIEW?
Yes. The PXIe-8384 works with NI software including LabVIEW, TestStand, NI MAX, and standard PXI drivers.
Заключение
Земля NI PXIe-8384 PXI Express remote control module provides high-bandwidth PCI Express connectivity for controlling PXI Express systems from external computers. With PCIe Gen 3 x8 performance, flexible deployment options, and seamless NI software integration, it is an ideal solution for advanced automated test, semiconductor validation, RF testing, and distributed measurement applications.
